- Model: MG995
- Operating voltage: 4.8V~ 7.2V
- Servo Plug: JR
- Stall torque @4.8V : 13kg-cm
- Stall torque @6.6V : 15kg-cm
Description:
It equips very good quality DC motor and a thicker connection cable than other servo motors that we sell, hence we are selling it as a Good Quality Servo Motor. It has metal gears which makes it robust and reliable motors. These MG995 TowerPro Servo Motors are the high-speed servo motors with the mighty torque of 13 kg/cm. They are compatible with all the applications that use the genuine TowerPro MG995 Servo Motor because of their same size, comparable quality, and optimized performance. They equip good quality ball bearings to make operation smooth and safe. The optimized performance and reliability of this servo have made it the favorite choice of many RC hobbyists. The TowerPro MG995 High-Speed Digital Servo Motor rotates 90° in each direction making it 360° servo motor. It is a Digital Servo Motor which receives and processes PWM signal faster and better. It equips sophisticated internal circuitry that provides good torque, holding power, and faster updates in response to external forces.
Specification:
| Model | MG995 |
| Operating Voltage | 4.8~7.2 V |
| Operating Speed @4.8V | 20sec/60° |
| Operating Speed @6.6V | 16sec/60° |
| Stall Torque @4.8V | 10 kg-cm |
| Stall Torque @6.6V | 12 kg-cm |
| Operating Temperature (°C) | -30 to 60 |
| Dead Band Width | 1 μs |
| Gear Type | Metal |
| Rotational Degree | 360º |
| Servo Plug | JR |
Features:
- The connection cable is thicker.
- Equips high-quality motor.
- High resolution
- Accurate positioning
- Fast control response
- Constant torque throughout the servo travel range
- Excellent holding power
Wire Description:
- Red: Positive
- Brown:Negative
- Orange: Signal
Package Included:

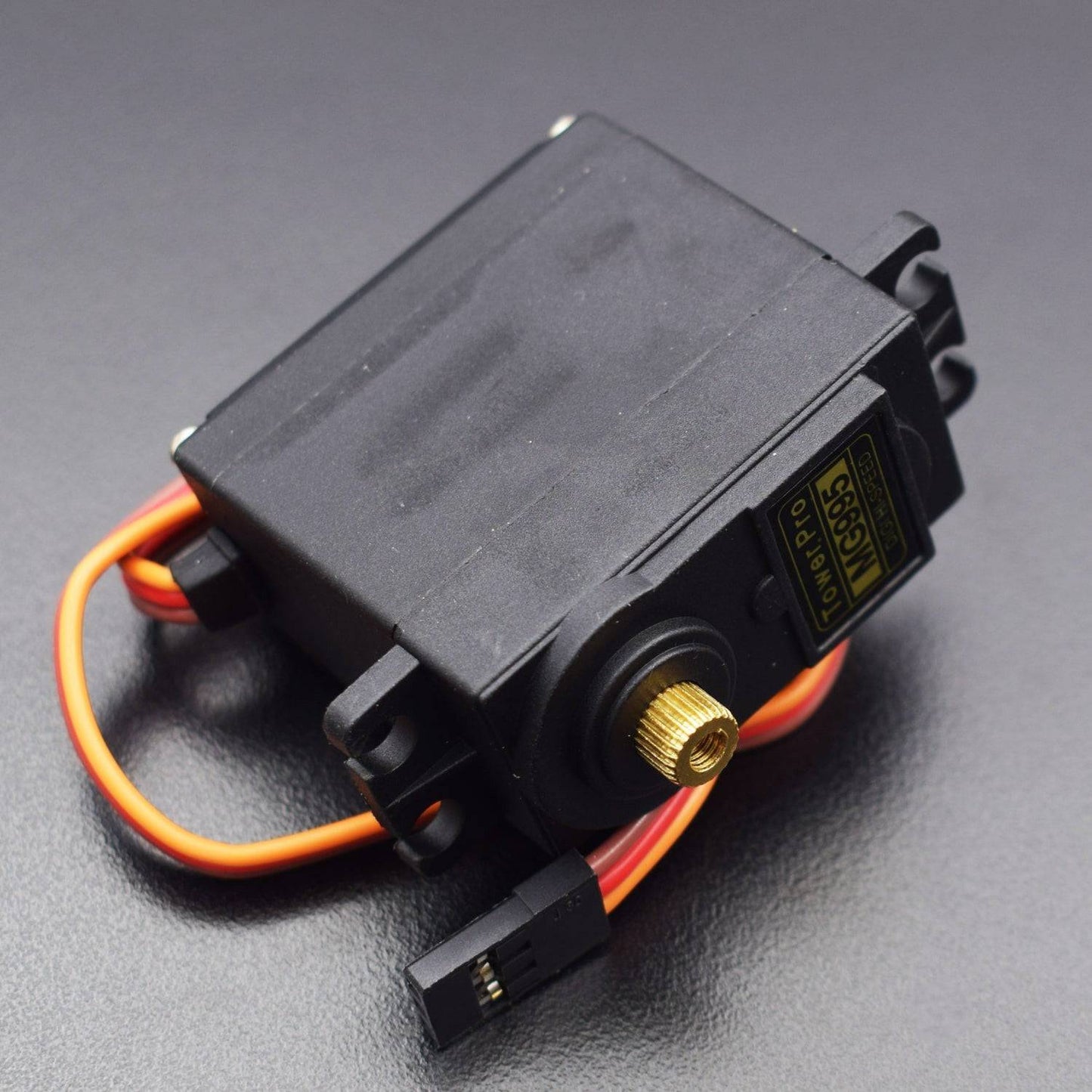

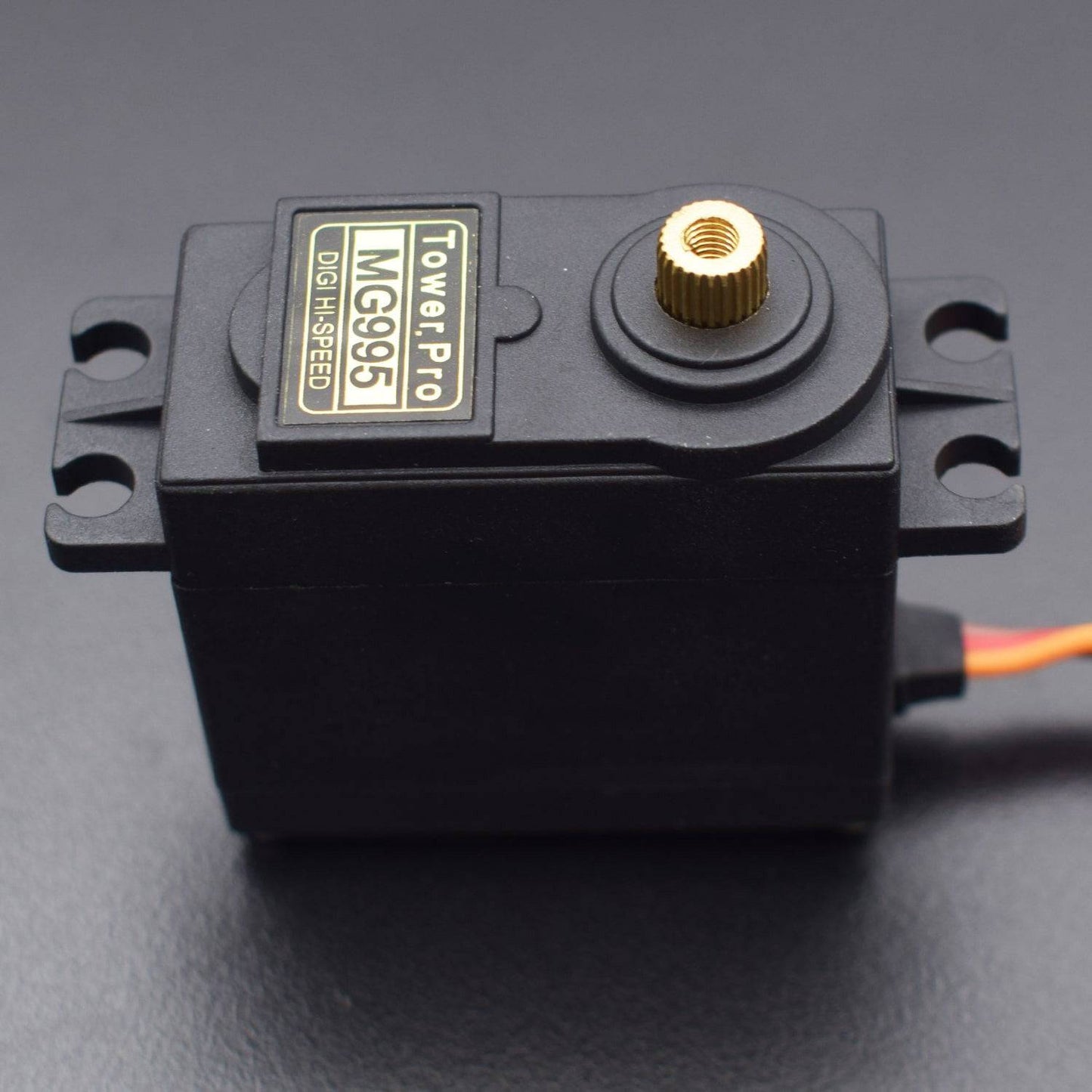

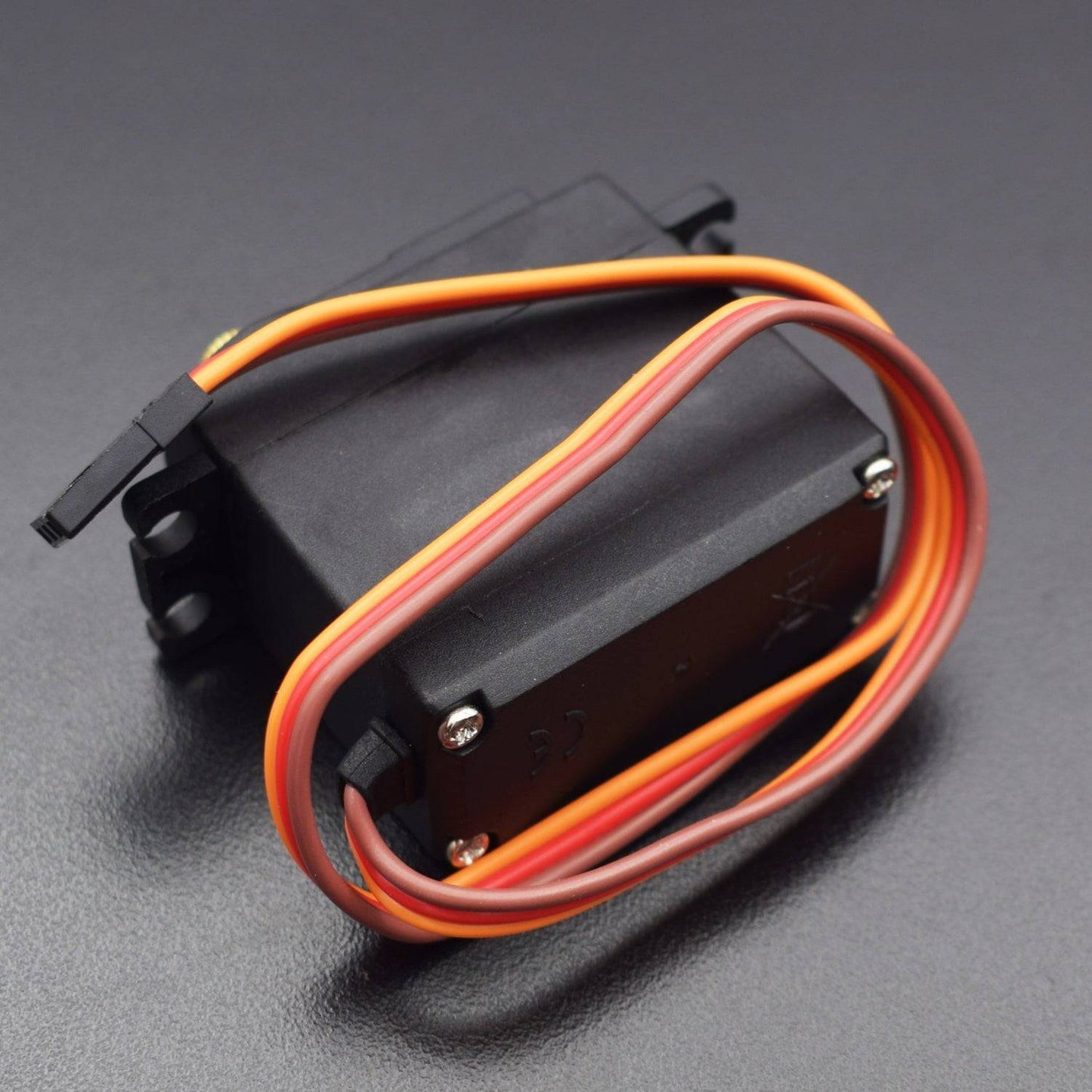

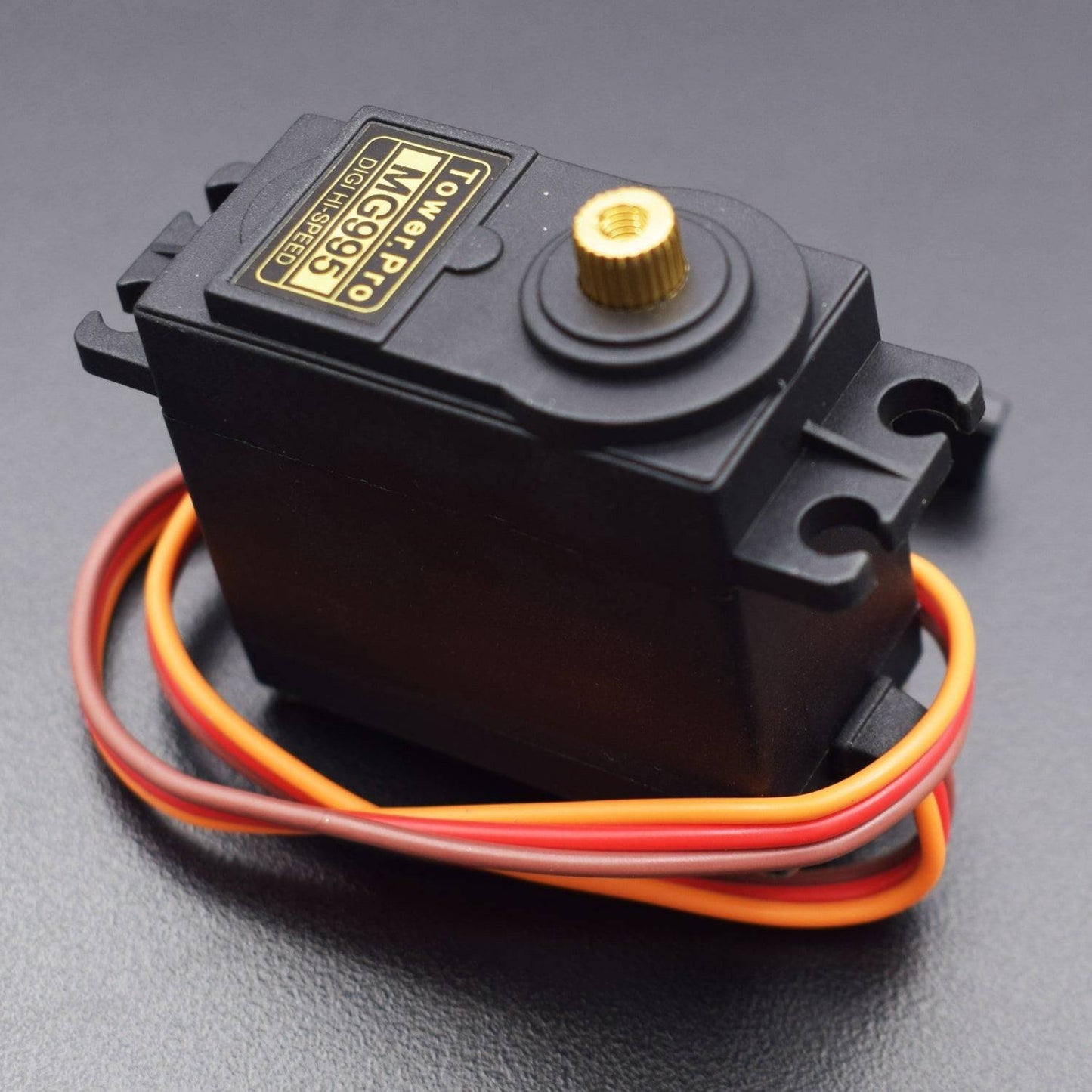

1 x TowerPro MG995 Metal Gear Servo Motor (360º Rotation)
