Description:

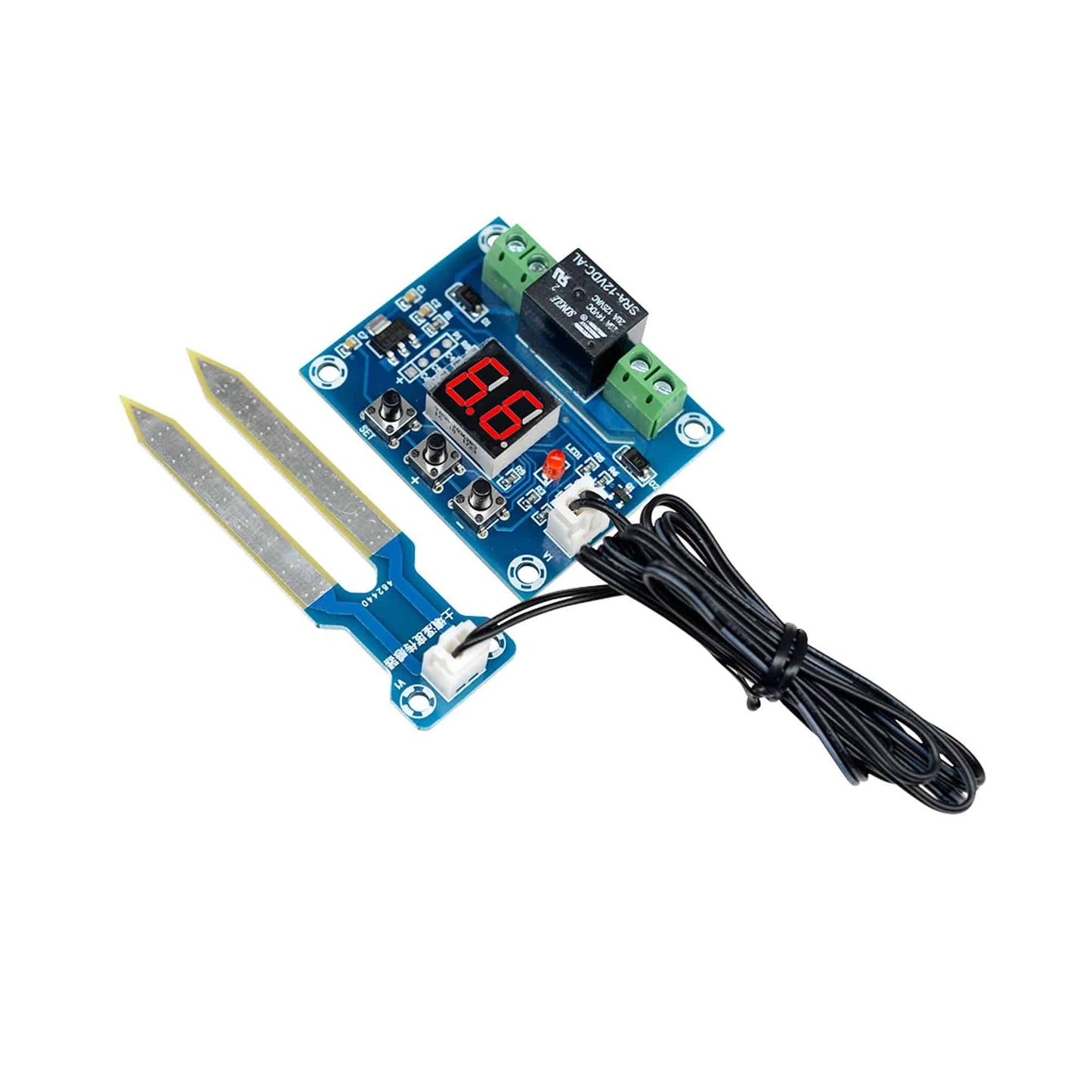

The Soil Moisture Sensor is an electronic device designed for precise automatic control of irrigation systems based on soil humidity levels. This Soil Moisture Sensor Module is equipped with a soil sensor that measures soil moisture and sends signals to the controller to adjust the watering frequency and duration.
The Soil Moisture Sensor Module has a red digital display that shows the current humidity level in percentages ranging from 20% to 99% RH. The display also shows the status of the irrigation system, including whether it is on or off, and the set-point humidity level. The probe can be inserted directly into the soil. It is a digital display of soil moisture.
Specifications:
- Model: XH-M214
- Working Voltage: 12V DC
- Working Current: 10A
- Humidity Range: 20~99% RH
- Control Precision: 1% RH
Features:
- Very easy to use
- Adjustable humidity control range
- Soil Moisture Sensor has delay function
- Soil Moisture Sensor has high precision
Applications:

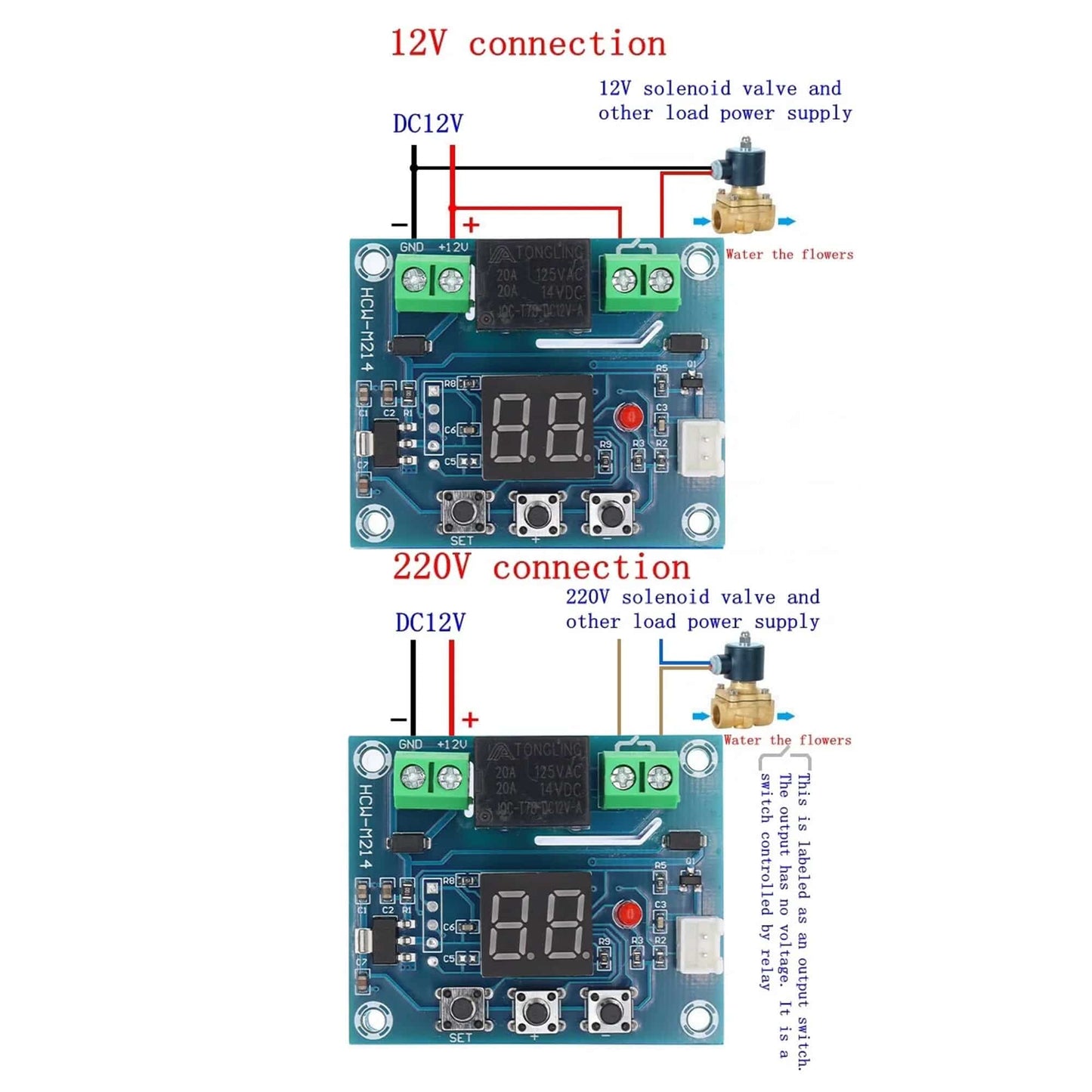

This Soil Moisture Sensor can be used in Gardening When the humidity is below the set value starting pump starts watering, and when humidity reaches the set value it stops watering.
How to Use:
- F0 setting start humidity(the humidity of the solenoid valve or the pump starts working) Press the "SET" button to display "F0" press the "SET" button to display the start humidity, and press the +/ button to "SET" the humidity value
- F1 setting stop humidity (the humidity of the solenoid valve or the pump stops working) Press the +/- button to switch to "F1", press the "SET" button to display the stop humidity value, and press the +/ button to SET the humidity value
- F2 humidity correction
Normal use without correction error. The correction of values in the use of multiple modules at the same time is conducive to a unified management operation.
Package Included:
1 x Soil Moisture Sensor XH-M214 12V Soil Humidity Sensor Controller Irrigation System Automatic Watering Module Digital Display Humidity Controller
