Description:

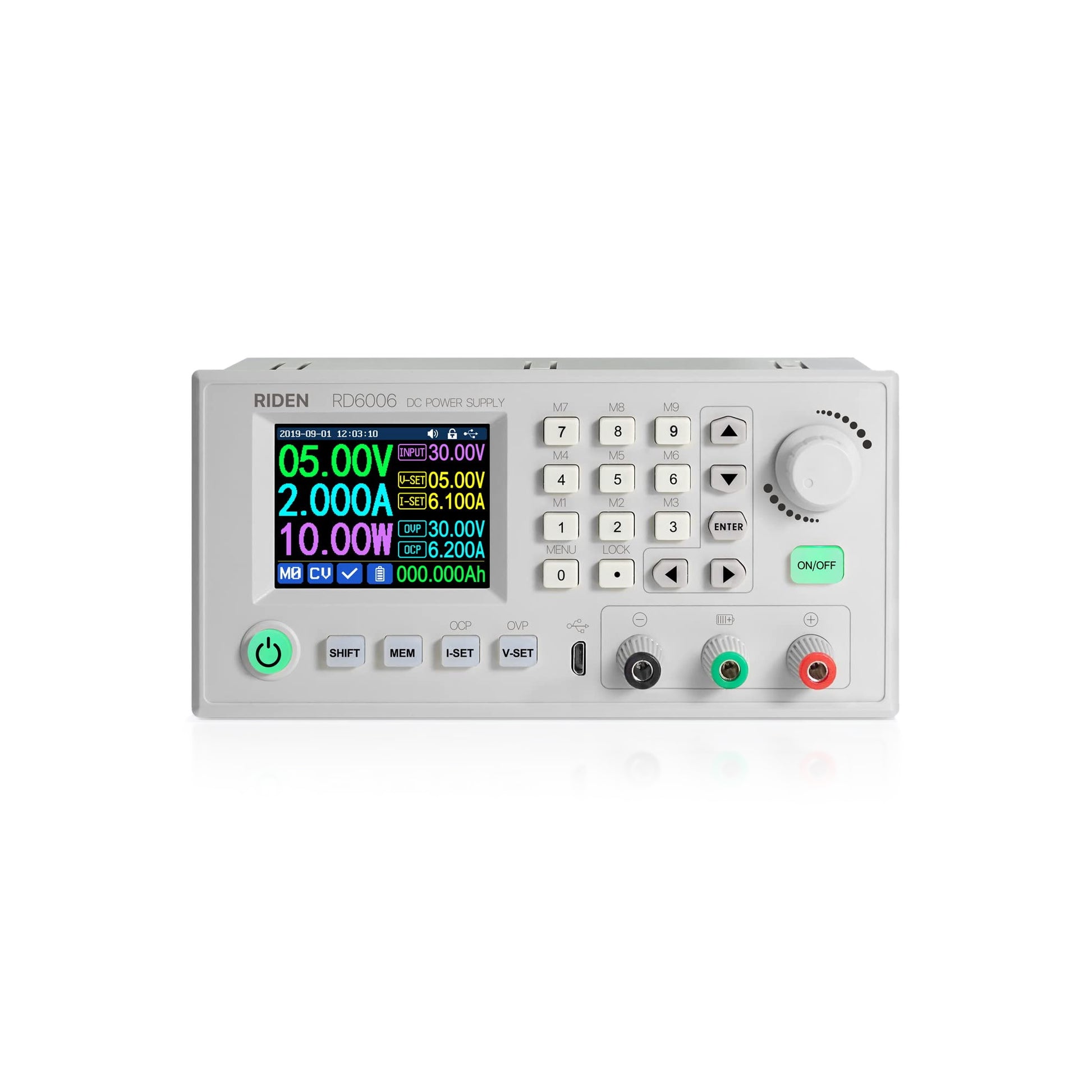

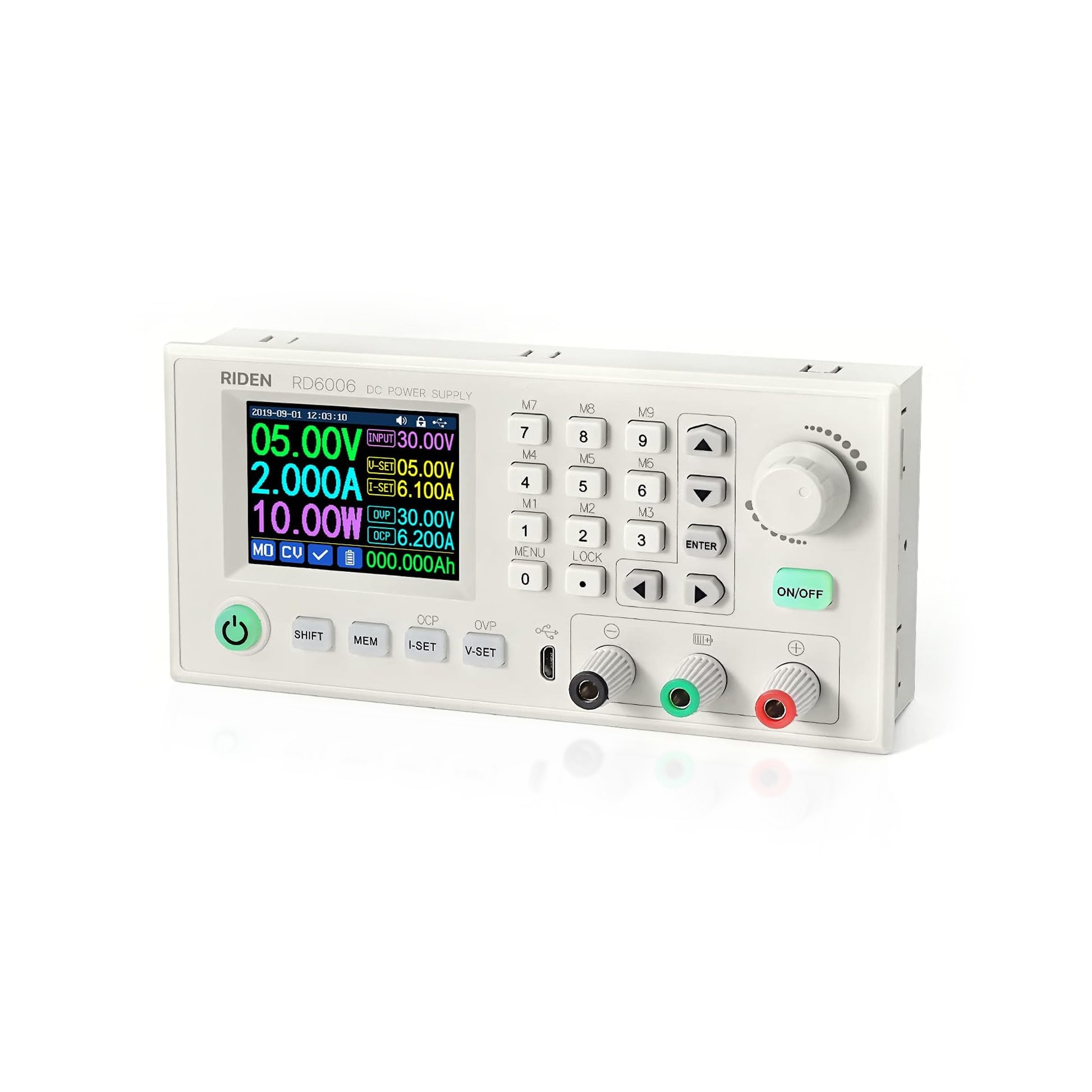

The RD6006 Power Supply is a versatile electronic device designed to provide a stable and adjustable DC voltage and current output for various applications. The RD6006 allows users to adjust both the voltage and current output according to their specific requirements. This feature is crucial for powering a wide range of electronic devices and circuits.
The power supply is equipped with a digital display that provides real-time readings of the output voltage and current, allowing users to monitor the power parameters. It is designed to deliver precise and stable DC power, making it suitable for applications that demand accurate voltage and current levels.
The power supply offers different output modes, including constant voltage (CV) and constant current (CC), ensuring that the power supply can adapt to various load conditions. The power supply is equipped with protection mechanisms to prevent overloading and ensure the safety of connected devices.
Specifications:
- Model: RD6006
- Input voltage range: 6-70.00V
- Output voltage range: 0-60.00V
- Output current range: 0-6.000A
- Output power range: 0-360W
- Input voltage measurement resolution: 0.01V
- Output voltage setting measurement resolution: 0.01V
- Output current setting measurement resolution: 0.001A
- Battery voltage measurement resolution: 0.01V
- Input voltage measurement accuracy: ±(1%+5 digits)
- Output voltage accuracy between setting and measurement: ±(0.3%+3 digits)
- Output current accuracy between setting and measurement:±(0.5%+5 digits)
- Battery voltage measurement accuracy: ±(0.5%+3 digits)
- Automatic cut-off current value charging:10mA
- Output ripple typical:100mV VPP
- Working temperature range: -10℃~40℃
- External sensor Temperature detection range:-10℃~100℃/0℉~200℉
- External sensor Temperature detection accuracy:±3℃/±6℉
- Constant voltage response time: 2ms（0.1A-5A Load）
- Constant voltage mode load regulation: ±(0.1%+2 digits)
- Constant current mode load regulation: ±(0.1%+3 digits)
- Capacity measurement range: 0-9999.99Ah
- Energy measurement range: 0-9999.99Wh
- Capacity and energy statistical error: ±2％
- Buck working mode: Voltage drop >1V and >10%
- Over temperature protection: System temperature>80℃
- Screen brightness setting: 0-5(6 level in total)
- Screen: 2.4inch color HD display
- Cooling fan start condition: Output voltage>40V or Output current>4A
- or System temperature>45℃
- Cooling fan shut down condition: Output voltage<40V and Output current<3.9A
- and System temperature<45℃
Note:
- Power Supply has two versions: RD6006 and RD6006-W, RD6006-W has a WiFi board, and RD6006 doesn’t. RD6006-W can use the WIFI board to connect apps and software, and also use a USB micro cable to connect PC software. RD6006 doesn’t have a WIFI board, it only supports PC software by connecting with a USB micro cable, n’t support an APP.
- For PC software, it only supports Win 7 and above for now. For APP, it only supports Android 5.0 and above. For APP and PC software, please download first before buying, if you can download and install, you can make the order, or else stop buying.
- For APP and PC software, before buying, please download and install first, if it can’t be installed, stop buying. because of some PC language and phone system problems, it can’t be installed. so please check first before buying.
Package Included:
1 x RD6006/RD6006-W Digital Control Switch Adjustable Power Supply DC Stabilized Power Adapter Buck Module Monitoring Power Supply - RD6006
