Description:
Radiolink SUI04 Ultrasonic Sensor, could applicable to Radiolink PIXHWAK/ Mini PIX/TURBO PIX flight control, And the open source PIXHAWK flight control, but we must use Radiolink SUI04 special FC firmware (V3.5.7 version) to use the Radiolink SUI04 Ultrasonic Sensor omnidirectional obstacle avoidance ultrasonic module, other open source flight control except open source PIXHAWK does not support automatic identification of flight control I2C, UART, MAVlink interface protocol, avoid obstacles upwards, set downwards, the first dual filtering technology, 30ms speed response, 0.4cm detection accuracy, transceiver integrated 0 blind zone, precision barrier without delay. Multiple Security technology.
Specifications:
- Input Voltage: 4.5~5.5V (high voltage is not supported)
- Current: 18mA
- Transmitting Power: 90mA
- Working Temperature: -4~176℉(-20~ 80℃)
- Detection Distance: 15.748in~177.765in
- Detection Accuracy: 0.039in
- Detection Frequency: 40+-1.0MHz
- Output Mode: I2C mode;serial port

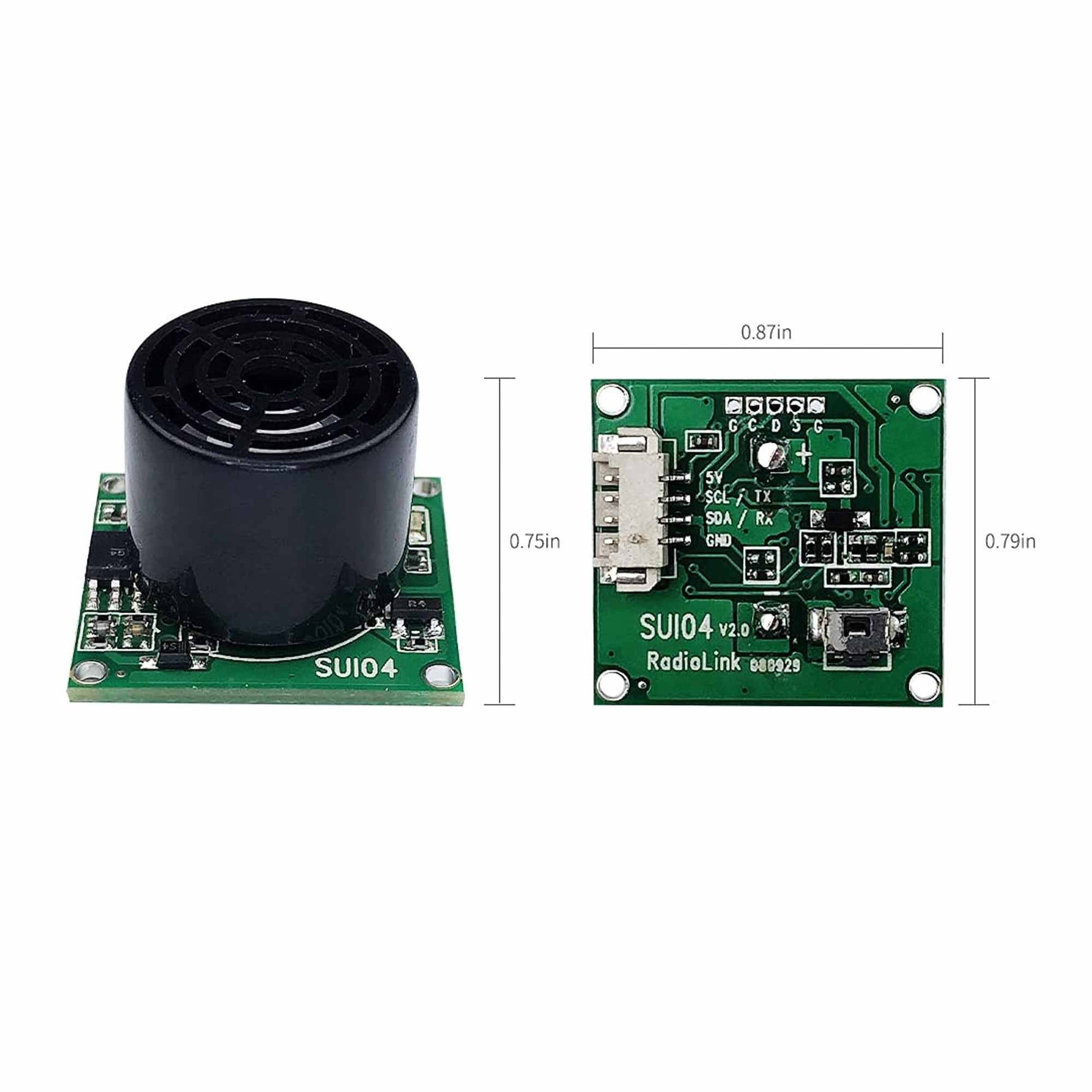

- Size: 0.787*0.866*0.748in
- Weight: 0.28 oz (with line)
Features:
- Obstacle Avoidance: Radiolink SUI04 Ultrasonic Sensor is a transmitting and receiving hybrid ultrasonic sensor, it will help the drones (only multirotor) achieve autonomous obstacle avoidance in directions horizontal, obstacle avoidance to the upward side, and altitude hold to the downward. Supports installing up to 6 sensors on one drone for all-direction obstacle avoidance.
- High Accuracy and Low Latency: Radiolink SUI04 Ultrasonic Sensor supports 0.4cm high detection accuracy, even the smallest obstacles can be accurately captured. Precise positioning without fear of obstacles. Extreme Fast Response, latency as low as 30ms.
- Small Size and Multifunction: Single probe only 0.017Lb and 0.78*0.86*0.75in, easy to install on your drone. Obstacle avoidance function can protect your device when the beginner practice fly.

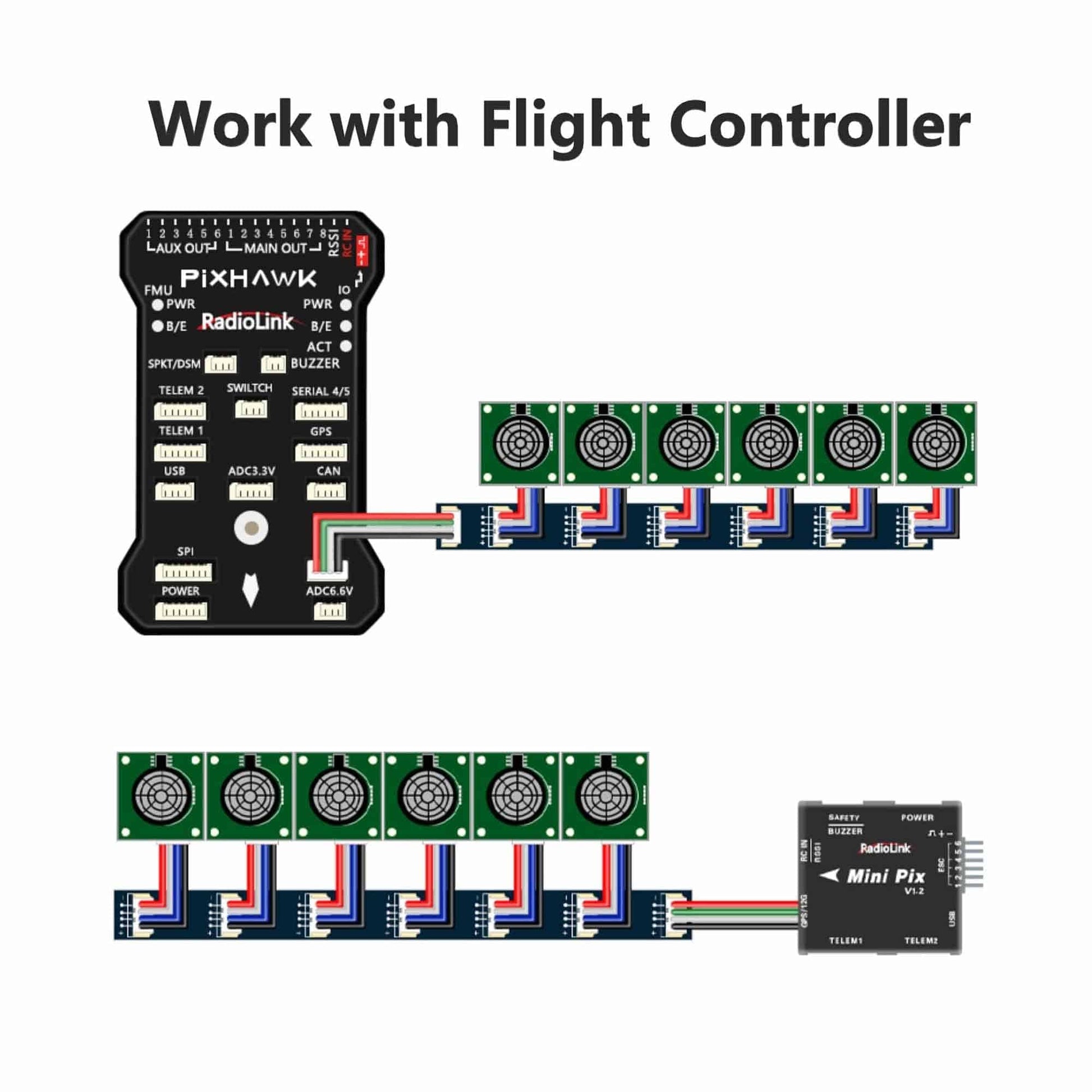

- Compatible Mode: Radiolink SUI04 Ultrasonic Sensor could suitable for Radiolink PIXHAWK/ Mini PIX/TURBO PIX flight controller, and it also can automatically identify I2C port.
- Perfect for: Radiolink SUI04 Ultrasonic Sensor can be used on Agriculture, Training, and rescue. Safety Guaranteed for Outdoors Operation and Training. Can only work with multirotor, such as Quadcopter, Hexacopter, Octocopter, and so on.
Package Included:
- 1 x Radiolink SUI04 Ultrasonic Sensor
- 1 x PIXHWAK I2C Slot Cable
- 1 x Mini PIX I2C Slot Cable
