Description:
Pseudo random algorithm FHSS communication technology makes Radiolink R8FG RC Receiver control distance up to 1900 feet ( 600 meters ). Integrated gyro for on/off-road RC car vehicles and boats. Support PPM/PWM/SBUS signal output, vehicle's voltage and RSSI information telemetry, high voltage servo (3-12v DC), waterproof (IPX4) and more, Radiolink R8FG RC Receiver works well with Radiolink RC4GS V3/RC4GS V2/RC4GS/RC6GS V3/RC6GS V2/RC6GS/RC8X/T8FB/T8S radio controller.
Specifications:
- Channel: 8 channels
- Version: V2.1. (R8fg_v2.1 supports digital servo. The Servo speed is 4ms or 3ms. Can be selected in rc8xv1.1.5.)
- Working Voltage: 3-12v
- Operating Current: 30ma
- Control Distance: 600m
- Signal: PWM/SBUS & PPM/PWM & PWM
- Telemetry: Real-time built-in telemetry for model battery voltage (up to 33.6V, 8S lipo), RSSI, and receiver voltage
- Gyro: Receiver with integrated gyro, customizable gyro sensitivity
- Anti-splash: Yes, Waterproof grade is IPX4
- Weight: 6g (0.21oz)
- Size: 35*24*13.5mm
- Applicable Model Type: car (including crawler/tank/caterpillar etc.)/boat/robot
Features:
- 3ms latency Response: Servo speed can be selected from 14ms, 4ms, and 3ms. 14ms is suggested if connected with the analogue servo while 4ms or 3ms is suggested if connected with the digital servo. (need firmware of RC8X to V1.1.5 or above)
- Excellent Anti-interference: With pseudo-random FHSS algorithm, which makes Radiolink R8FG RC Receiver with excellent anti-interference ability, control distance up to 1900 feet (600 meters).
- Real-time Telemetry: Radiolink R8FG RC Receiver telemetry feature can provide real-time vital information like the vehicle's battery voltage, RSSI signal and more, avoiding battery over-discharge and damage.
- Integrated Gyro: Radiolink R8FG RC Receiver's built-in gyro can keep the vehicle in a straight line, and Gyro sensitivity can be adjusted by the transmitter, which fits for drifting and on-road cars.
- Waterproof: IPX4 can protect Radiolink R8FG RC Receiver from water splash. Also with anti-polarity protection, not damage the receiver even if you insert the wrong polarity. 3-12v DC support high voltage servo.
Package Included:

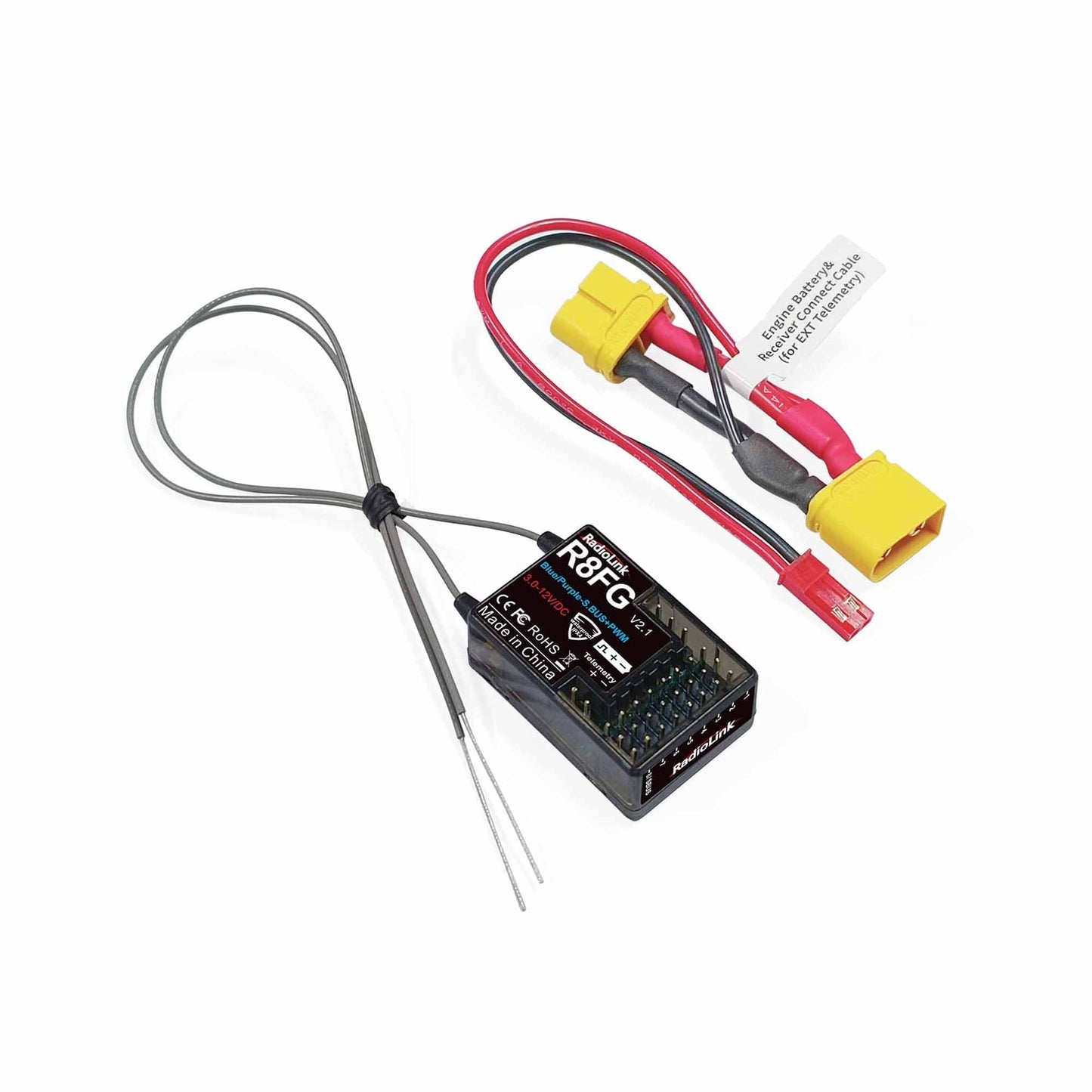

1 x Radiolink R8FG RC Receiver 2.4Ghz R8FG V2.1 3ms Latency 8 Channels Gyro Receiver with Voltage Telemetry, Waterproof RX for RC Crawler Car Boat Radio Controller RC8X/RC6GS V3/RC4GS V3/RC6GS V2/RC4GS V2/T8FB/T8S
