Description:
Radiolink R12DS RC Receiver with DSSS&FHSS protocol, which makes R12DS with excellent anti-interference ability, a control range of up to 2.4 miles(4km). Radiolink R12DS RC Receiver supports PWM/SBUS signal output and works with Radiolink AT9/AT9S/AT9S Pro/AT10/AT10II.

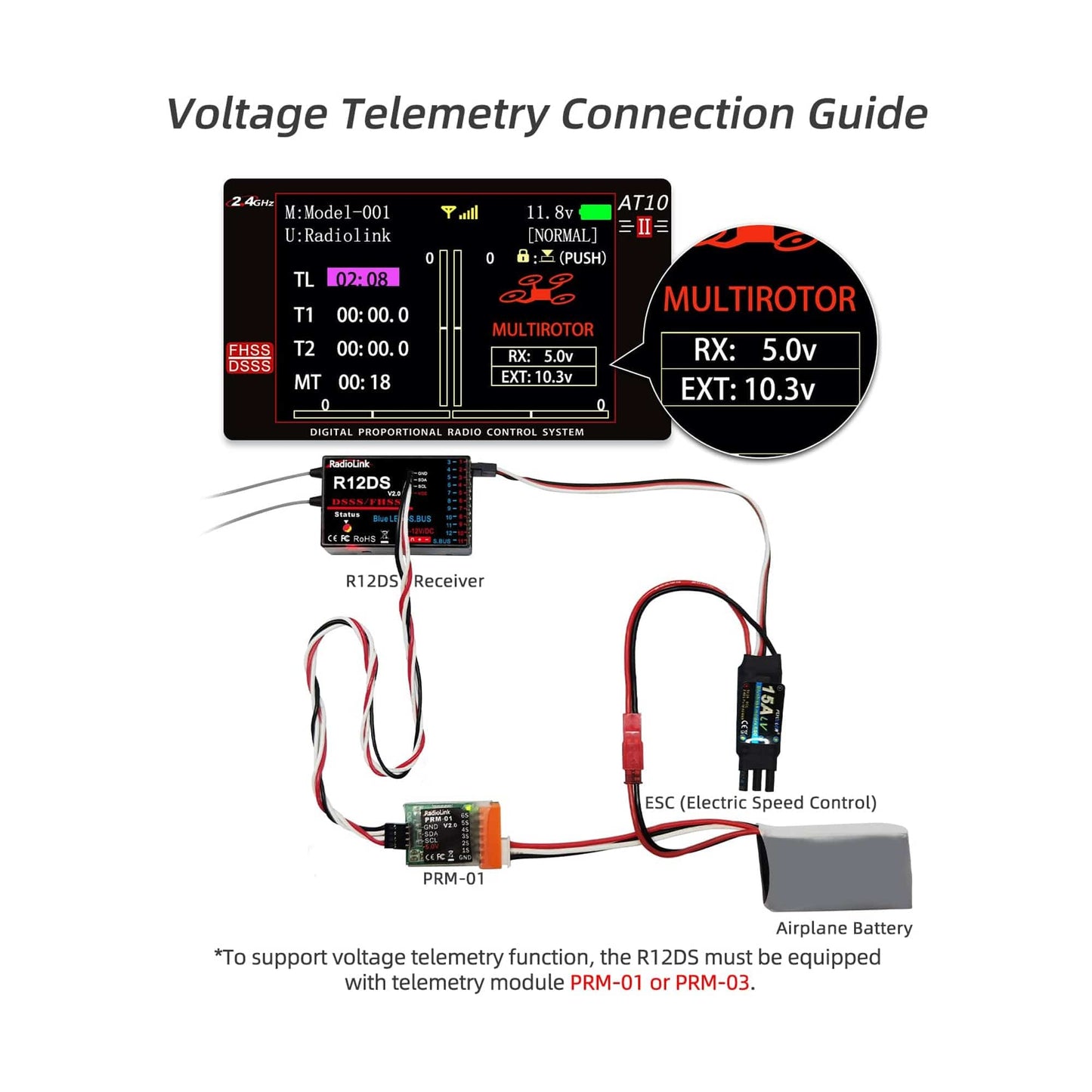

Note: To support voltage telemetry function, the R12DS must be equipped with telemetry module PRM-01 or PRM-03.
Specifications:

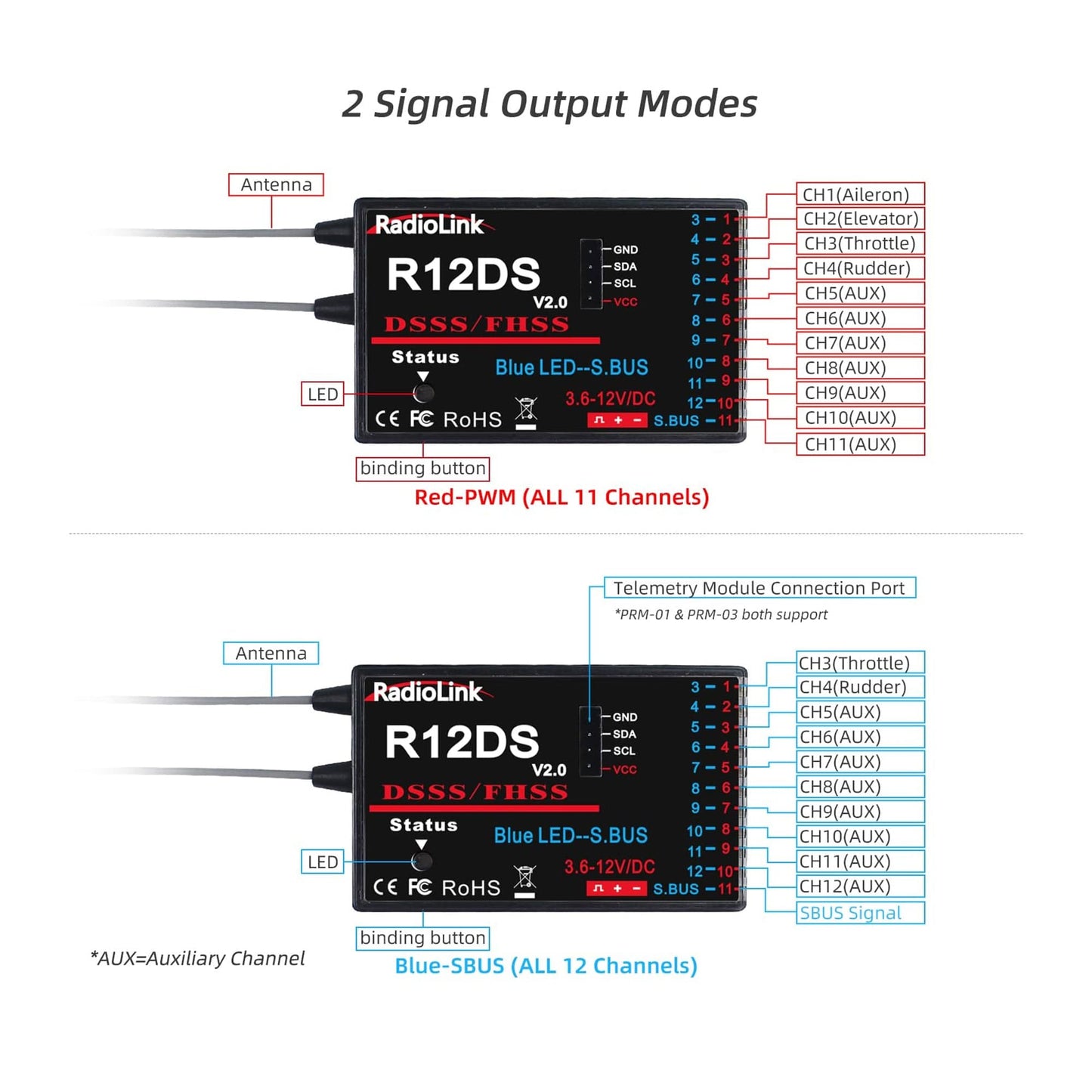

- Signal: SBUS, PWM
- Channel: PWM 11 Channels, SBUS 12 Channels
- Working Voltage: 3.7-12V (new test)
- Working Current: 38-45mA (Input Voltage: 5V)
- Size: 1.97*1.26*0.59in
- Weight: 14g
Features:

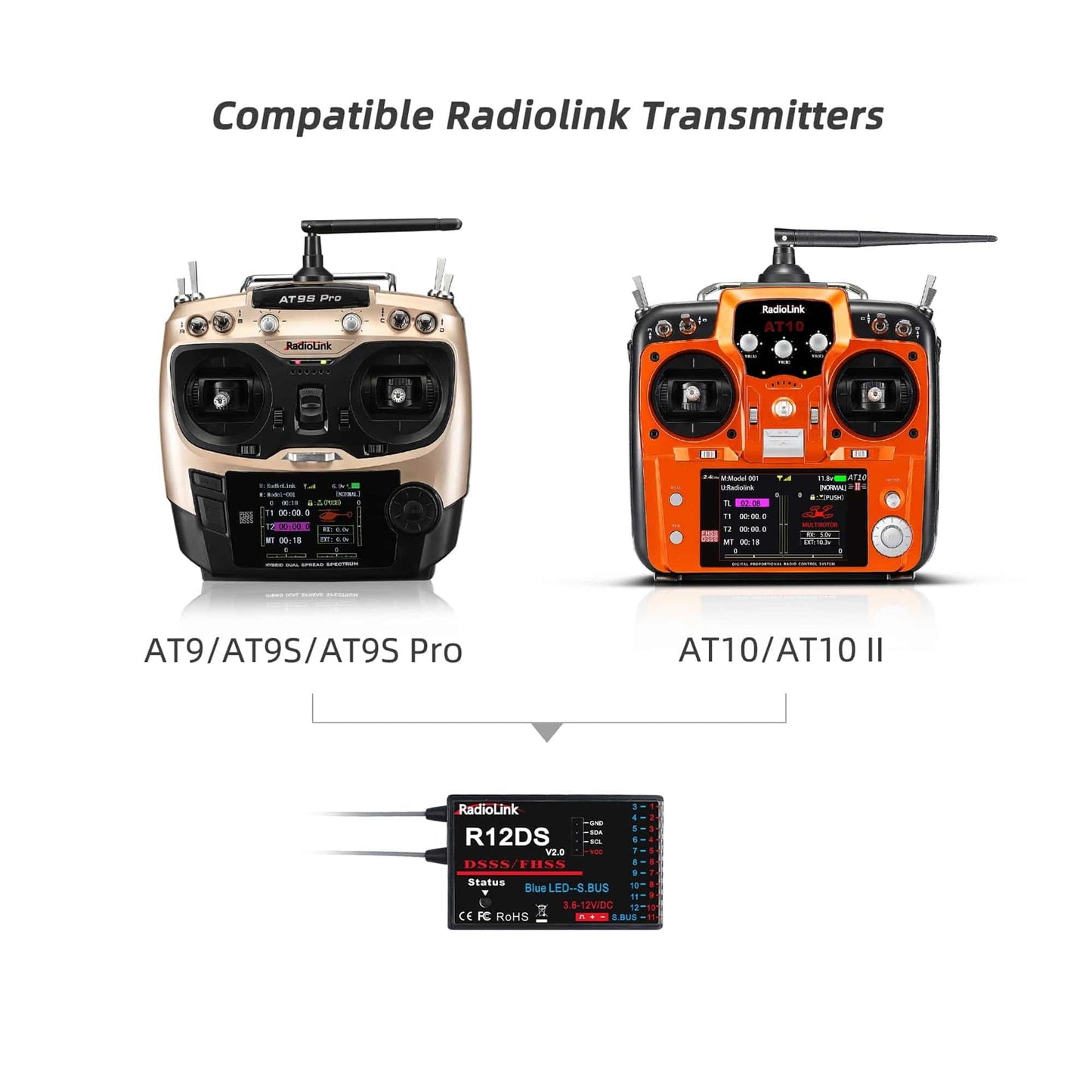

- Stronger Anti-interference: DSSS&FHSS communication technology makes a Radiolink R12DS RC Receiver with a stable transmission signal, and control distance up to 2.4 miles in the air. (Actually, the control range depends on the environment). It's ONLY suitable for Radiolink's transmitter AT9 AT9S AT9S Pro AT10 AT10II.

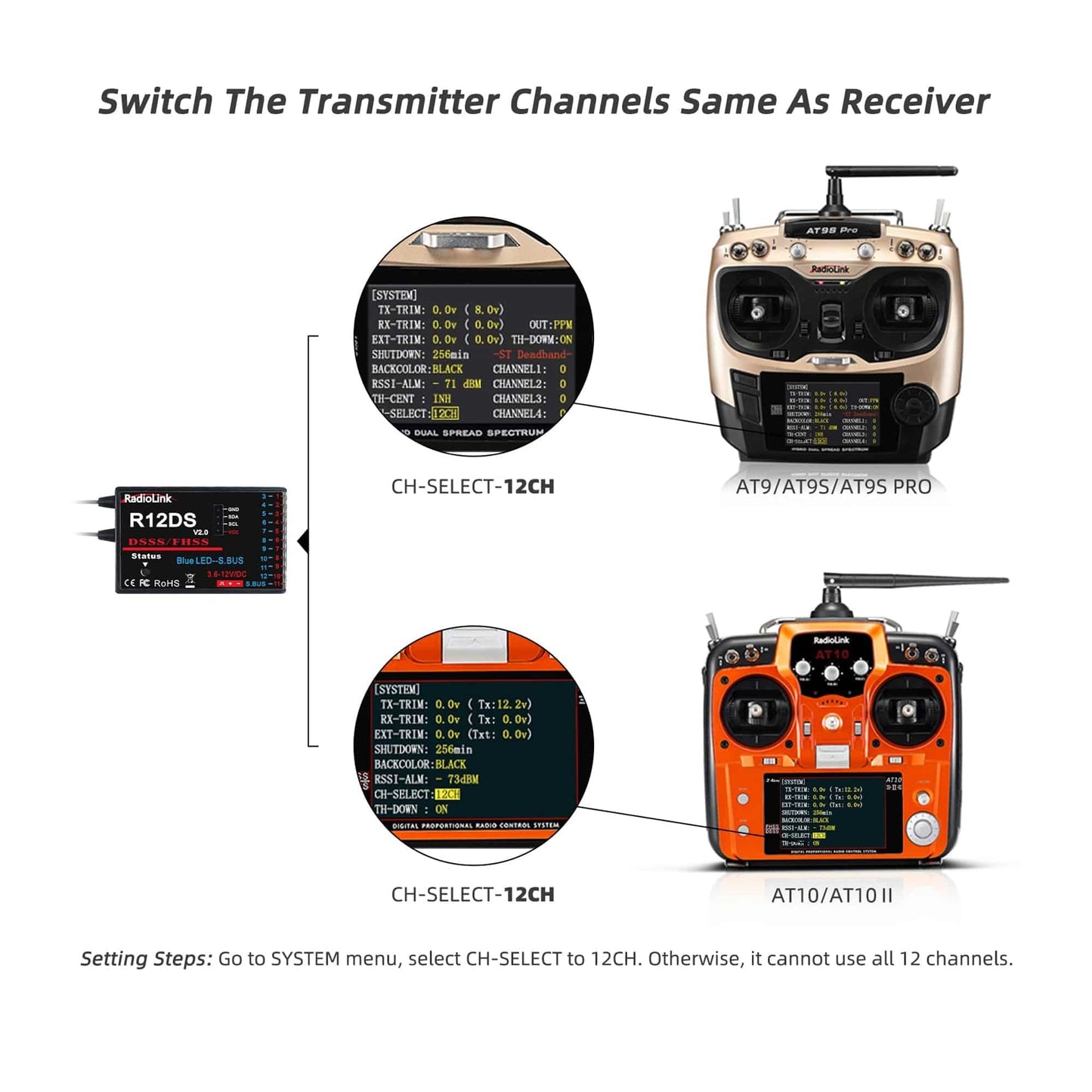

- 12 Channels: Radiolink R12DS RC Receiver with standard SBUS/PWM signal output, a high-resolution ratio of 4096, and fast Response for all channels. Make sure the SYSTEM CH selection is in 12CH mode when it works with the AT9S/AT9S Pro transmitter, otherwise, that will not work.
- Real-time Information: When working with PRM-01 module can telemetry aeroplane's voltage on Radiolink AT9S/AT9S Pro/AT10II screen.
- Quick to Bind: Just press the bind button for 1 second, no need for any setting on the transmitter when they are binding.
- Anti-polarity Protection: Radiolink R12DS RC Receiver with a reverse polarity protection circuit, won't damage the receiver even if you plug the wrong polarity. 3-10v DC, support high voltage servo.
Package Included:
1 x Radiolink R12DS RC Receiver 2.4GHz 12 Channels SBUS/PWM Long Range Control for Airplane, Aircraft Drone Jet RC Transmitter AT10II/AT10/AT9S Pro/AT9S/AT9
