Description:

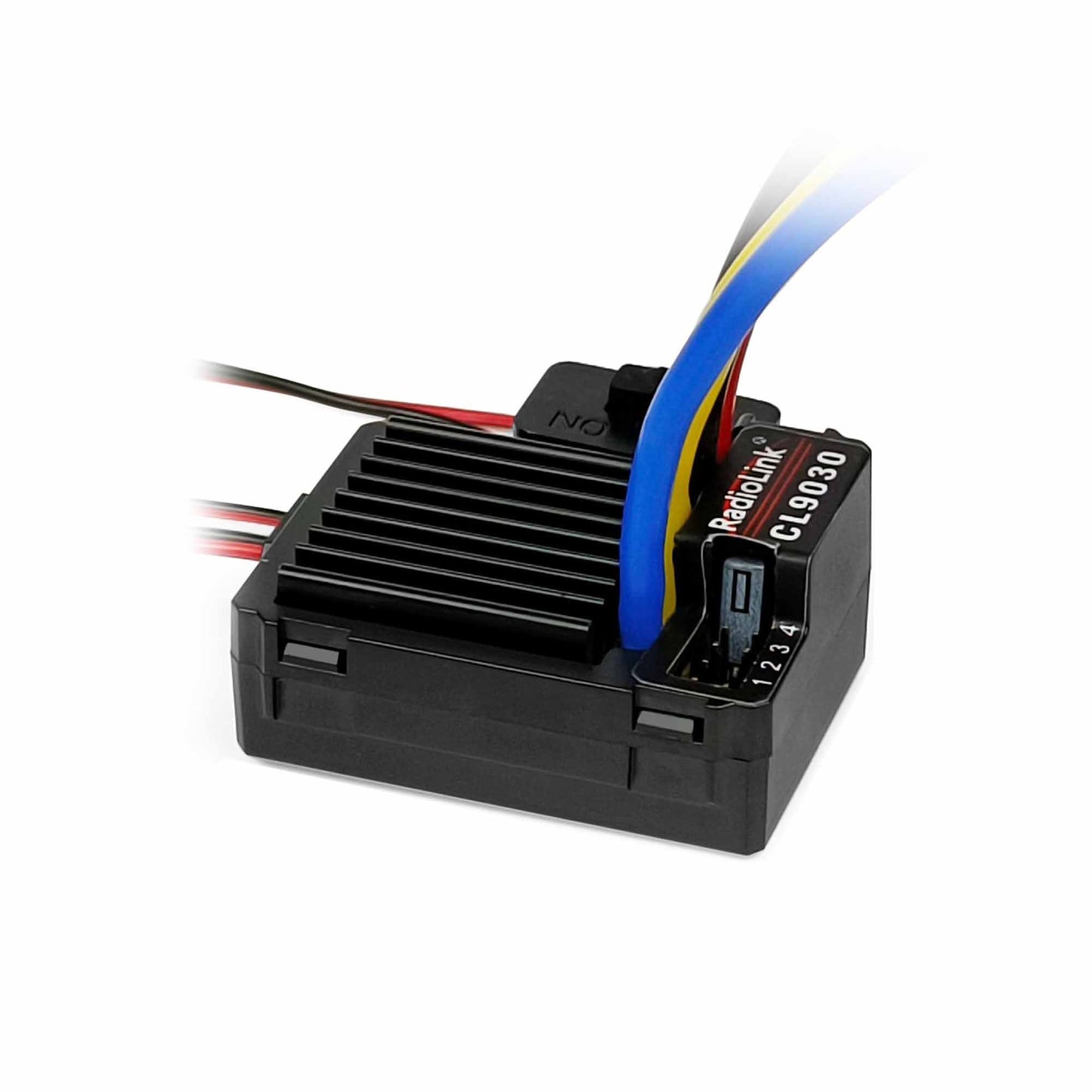

Radiolink Cool 9030 ESC with 32bits high-speed chip, high-frequency switch-mode chip MP9943 from MPS, and 18 years of circuit design experience, COOL9030 makes the throttle sensitivity up to 2000. Radiolink Cool 9030 ESC is perfectly compatible with most cars and boats including both twin-engine models like crawlers, drifting cars, tractor trucks, bait boats, 1/10th scale touring cars, buggies, short-course trucks, monster trucks, or tanks.
The built-in high-efficiency and stable switching power supply BEC work with max output current 5A. No matter it is a 2S or 4S battery, Radiolink Cool 9030 ESC always maintains a stable voltage output of 5.2V even in the case of instantaneous high current. No inefficient heating as linear battery nor output voltage jitter from sudden loading of ordinary switch power, Radiolink Cool 9030 ESC can easily drive all kinds of standard and high-voltage servos and other external electrical equipment.
Specifications:
- Model: cool9030
- Constant Current: 90a @ 18v
- Peak Current: 100a
- Bec Voltage : 5A@5.5V 5A@7.5V
- Input Voltage: 6~16.8V (NI-MH, NI-CD or lead acid battery); 6~18V (lithium battery)
- Low Voltage Protection: 6.5v @ 2 seconds , 9.75v @ 3s , 13.0v @ 4s
- Internal Resistance: 7mOhm
- PCB Constant Temperature: 100℉C
- Plug Input: XT60
- Plug Output: Outlet Disconnector
- Motor Limits: Brushed motor limits 380/540/550/560/570
- Driving Frequency: PWM frequency 2kHz
- ESC Mode: 5

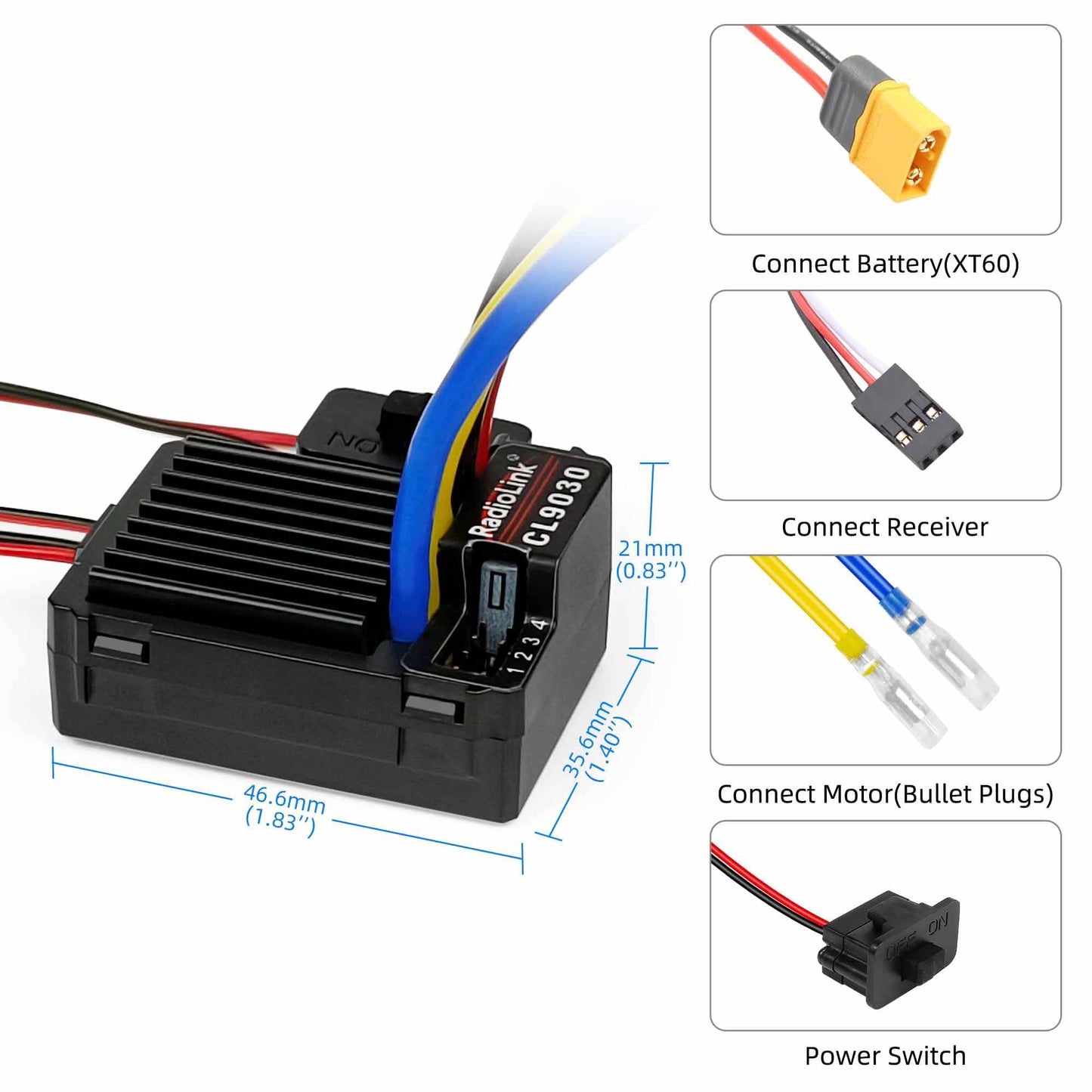

- Dimensions: 46.6*35.6*21mm
- Weight: 49g
- Compatible Model: All kinds of rc cars and boats
Features:
- Built-in Switchable BEC: 90A@18V constant output current, with built-in BEC output voltage selectable 5A@5.5V / 5A@7.5V. No matter it is a 2S or 4S battery, it always maintains stable voltage output even in the case of instantaneous high current. Radiolink Cool 9030 ESC can easily drive all kinds of standard and high-voltage servos and other external electrical equipment.
- High Performance: With a 32-bit high-speed chip, high-frequency switch-mode chip MP9943 from MPS, and 20 years of circuit design experience, Radiolink Cool 9030 ESC makes the throttle sensitivity up to 2000. Linear smooth control both forward and reverse is perfect for RC crawlers, drifting cars, and monster trucks.
- Waterproof & Dust-rejected & Multiple Protections: abnormal voltage input & low voltage cut-off protection for battery/Over-heating Protection/Over-input voltage Protection.
- Wide Voltage Compatibility: Input voltage range 6-16.8V(for NI-MH, Ni-Cd, or lead-acid battery), 6-18V(for 2S-4S, Lithium Battery).
- 4 Working Modes: Boat Mode, Training Mode, Racing Mode, and Crawler Mode. It can be set up easily through the jumper cap.
Package Included:
1 x Radiolink Cool 9030 ESC 90A Brushed (2-4S) Waterproof Built-in BEC 5A Selectable 5.5V/7.5V for RC Truck Crawlers Tanks Cars Bait Boats (XT60 Plug)
