Description:

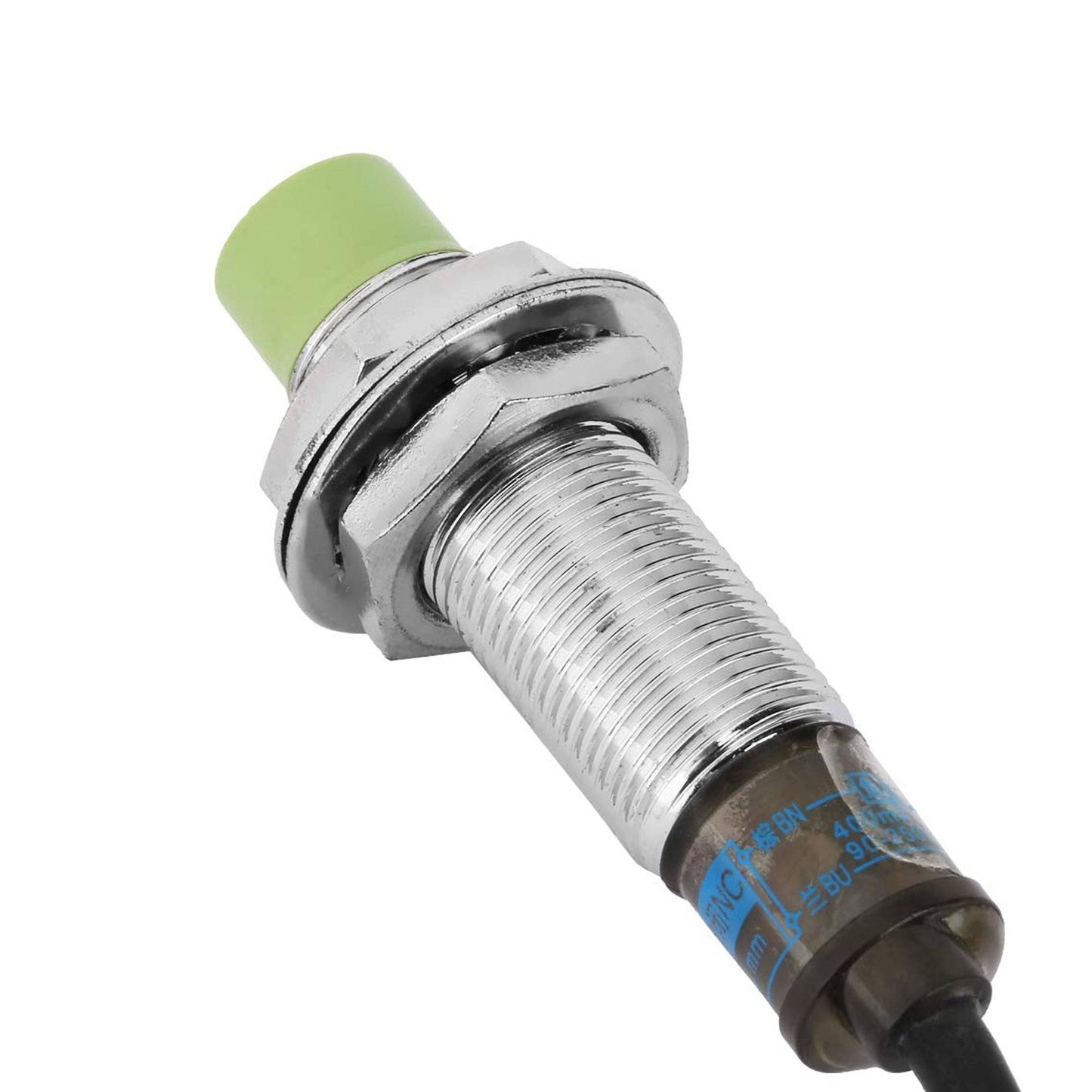

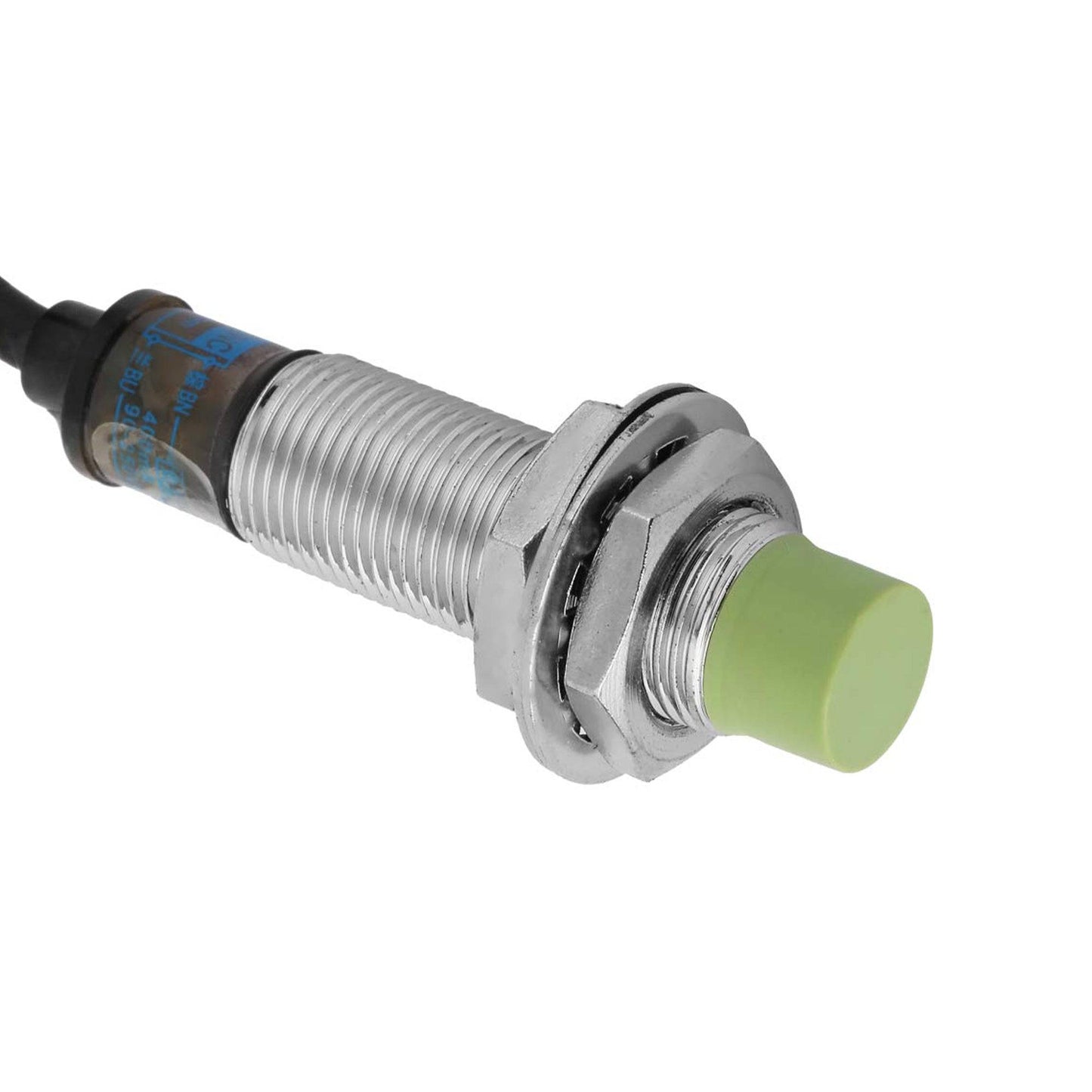

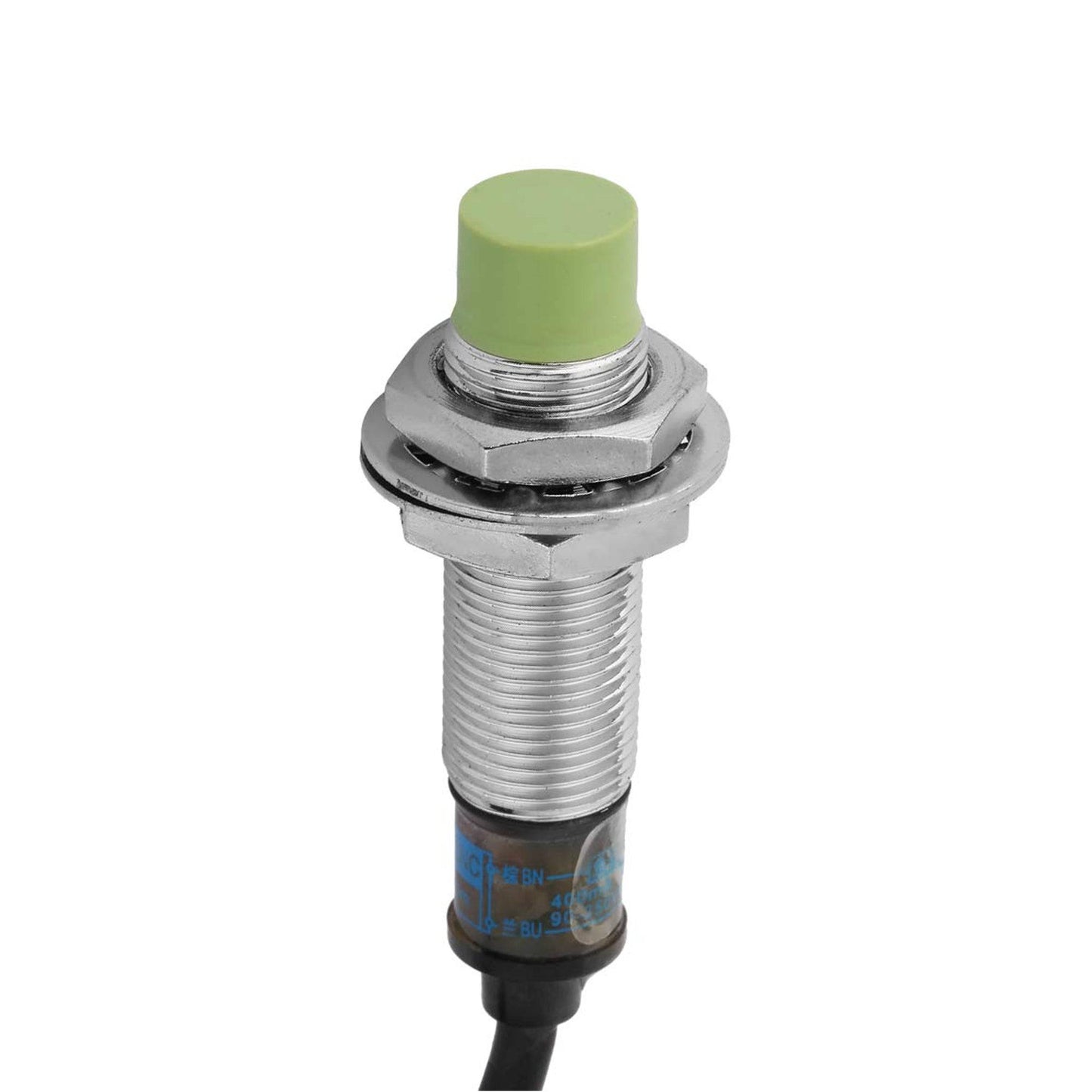

This is Autonics PR12-2DN Proximity Sensor NPN-NO (Shielded) Series enhances superior noise resistance characteristics with dedicated IC which Autonics self-developed. Also, the series can be widely used in any applications where proximity sensors are required because of a diverse range of line-ups in terms of size and sensing distance.
This PR12-2DN Proximity Sensor generates an electromagnetic field to sense metal objects. It features built-in sensitivity volume and provides no-touch object detection. PR12-2DN Proximity Sensor uses a magnetic field to detect objects. Capacitive sensors use an electric field. To be sensed by an inductive sensor, an object must be conductive.
This limits suitable targets to metal objects (for the most part). To be sensed by a capacitive sensor, the target doesn't need to be conductive. A capacitive sensor will react to an object acting as a dielectric material as well as a conductive object. This makes metal and non-metal objects suitable targets.
Note: This package does not include 2 washers as shown in the image (The package Includes only one washer).
Specifications:
- Model: Autonics M12 NPN-NO
- Operating Voltage: 10 ~ 30V DC
- Detection Distance: 2mm
- Outer Thread Size: M12
- Object Type: Inductive
- Output Type: NPN Normally Open Three-line
- Installation Type: Flush (Shielded)
- Max Output Current: 200mA
- Setting Distance: 0 ~ 1.4mm
- Insulation Resistance: 50M
- Operating Temperature: -25°C to 70°C
- Response Frequency: 1.5 kHz
- Storage Condition: -30°C to 80°C
Features:
- PR12-2DN Proximity Sensor improved the noise resistance with a dedicated IC
- Built-in reverse polarity protection circuit (DC 3-wire type)
- The built-in surge protection circuit
- PR12-2DN Proximity Sensor has a built-in overcurrent protection circuit (DC type)
- Long life cycle high reliability, and simple operation
- IP67 protection structure (IEC standard)
- Replaceable for micro switches and limit switches
Package Included:

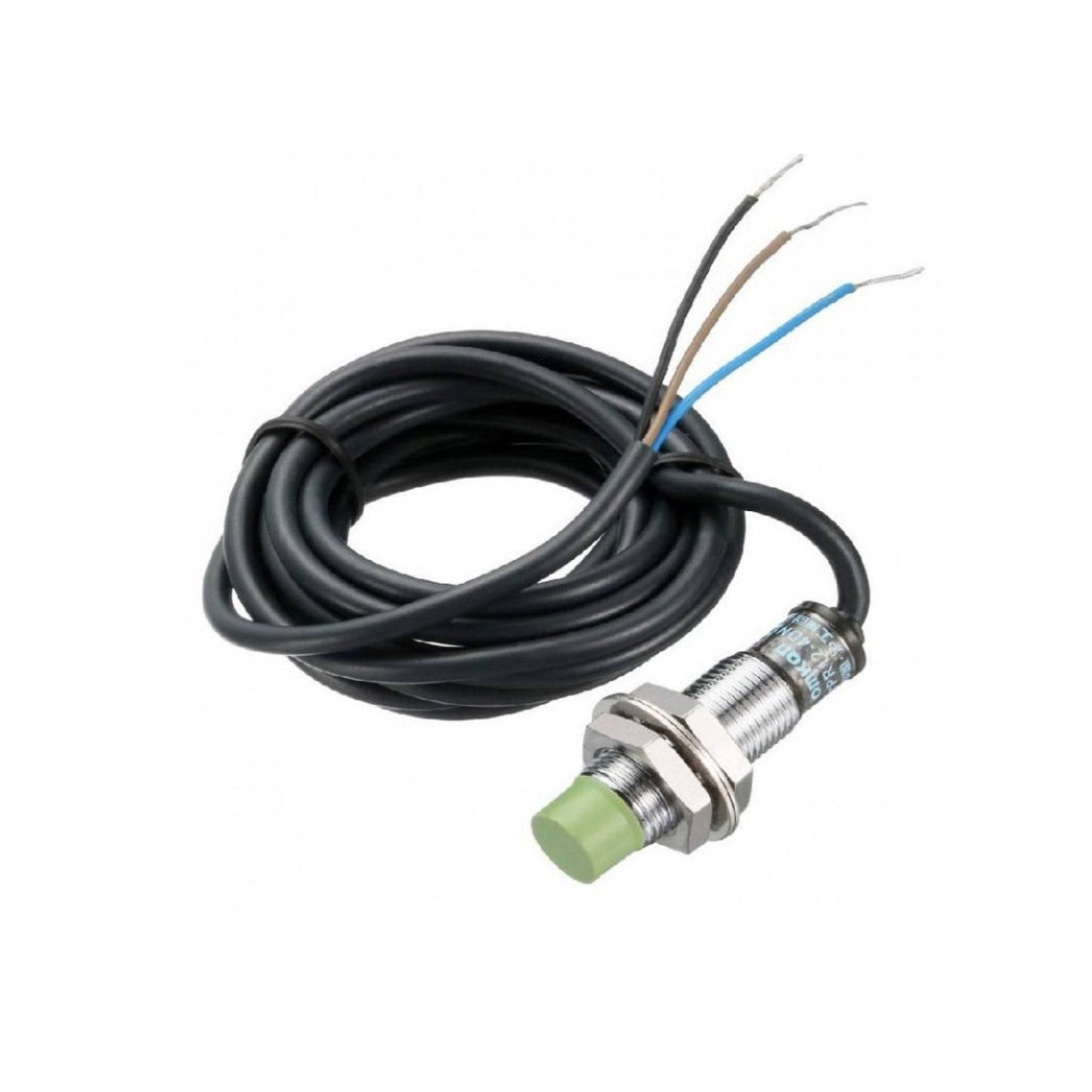

1 x PR12-2DN Proximity Sensor Autonics PR12-2DN DC 10-30V 2mm M12 Inductive Proximity Sensor NPN-NO (Shielded)
