Description:
This analogue pH sensor, specially designed for Arduino controllers is easy to use and can be used as a plug-and-play solution to measure the pH value of a solution without any additional circuit required. Instant connection to your probe and your Arduino to get pH measurements at ± 0.1pH (25 ?). For most hobbyists, this great accuracy range and its low cost make this a great tool for bio-robotics and other projects!

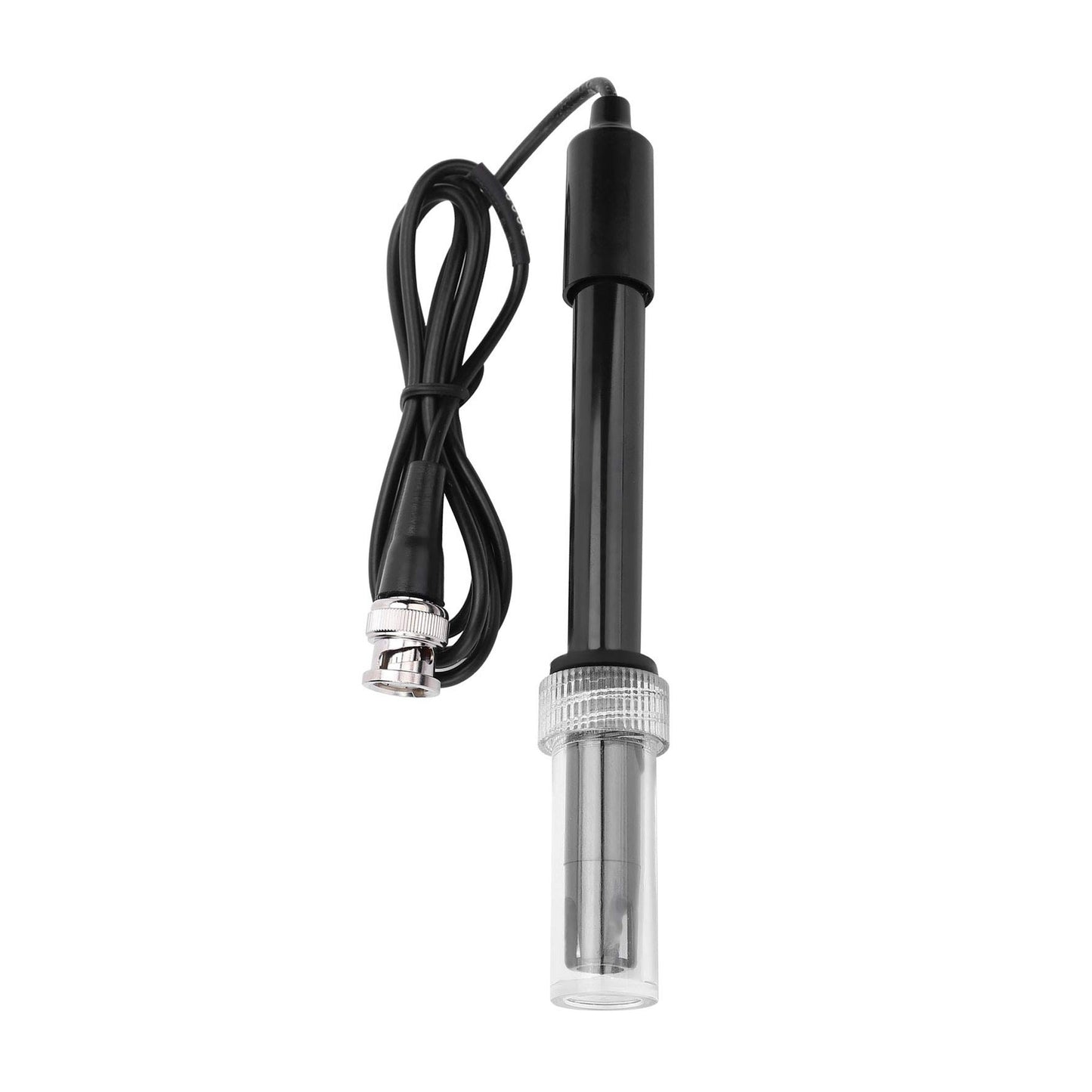

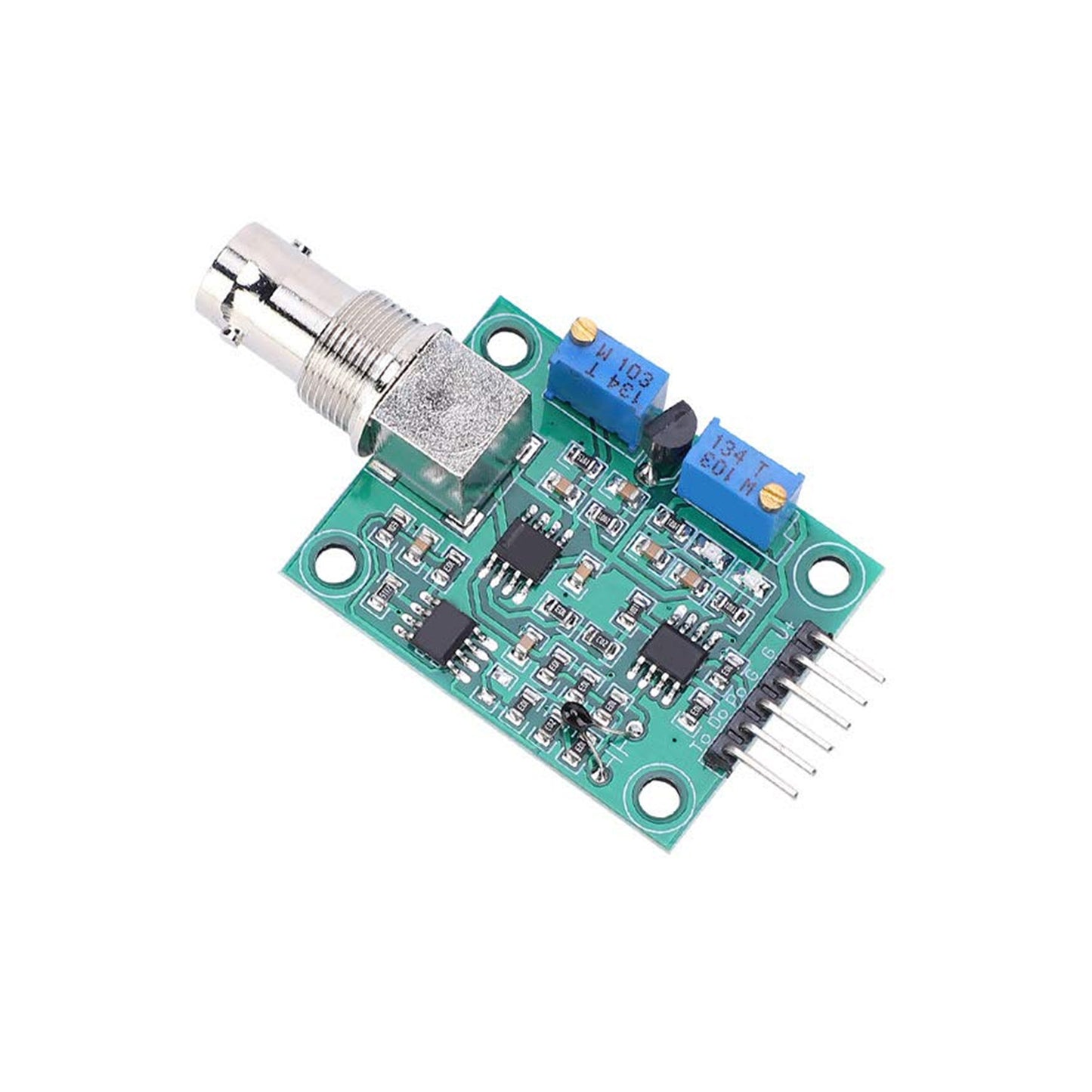

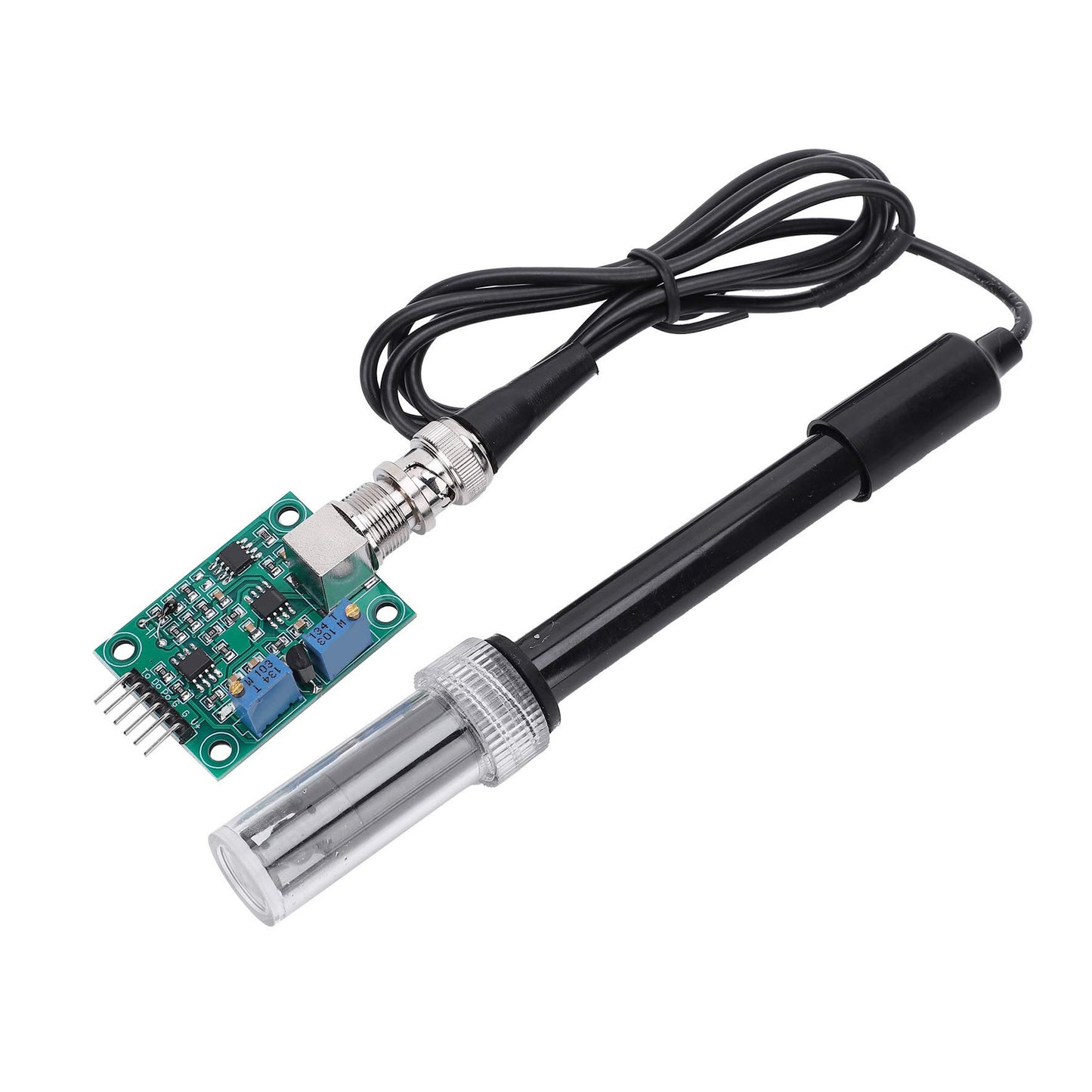

It has an LED that works as the Power Indicator, a BNC connector and a PH2.0 sensor interface. To use it, just connect the pH sensor with the BND connector, and plug the PH2.0 interface into the analog input port of any Arduino controller. With a simple program to a ready analogue voltage, you will get the pH value easily.
Comes in a compact plastic box with foams for better mobile storage. Build your PH meter gadget or a water monitoring station for your water tanks. This and our other water sensor devices could make for the ultimate water control device. Use it for your aquaponics fish tanks or other materials that need measurements.
Specifications:
- Heating voltage: 5 ± 0.2V (AC DC)
- Working current: 5-10mA
- Detectable concentration range: PH0-14
- Detection Temperature range: 0-80 ℃
- Response time:≤5S
- Settling Time:≤60S
- Component Power:≤0.5W
- Working temperature:-10-50 ℃ (nominal temperature 20 ℃)
- Humidity: 95% RH (nominal humidity 65% RH)
- Module Size: 42mm × 32mm × 20mm
- Output: Analogue voltage signal output
Features:
- The PH test value of the sensor module probe is very wide, the measuring range is 014PH, and the test temperature is 080.
- The sensor module PH probe uses sturdy and durable high-quality ABS material.
- This PH detects sensor probe is easy to use.
- It has high measurement accuracy and simple operation.

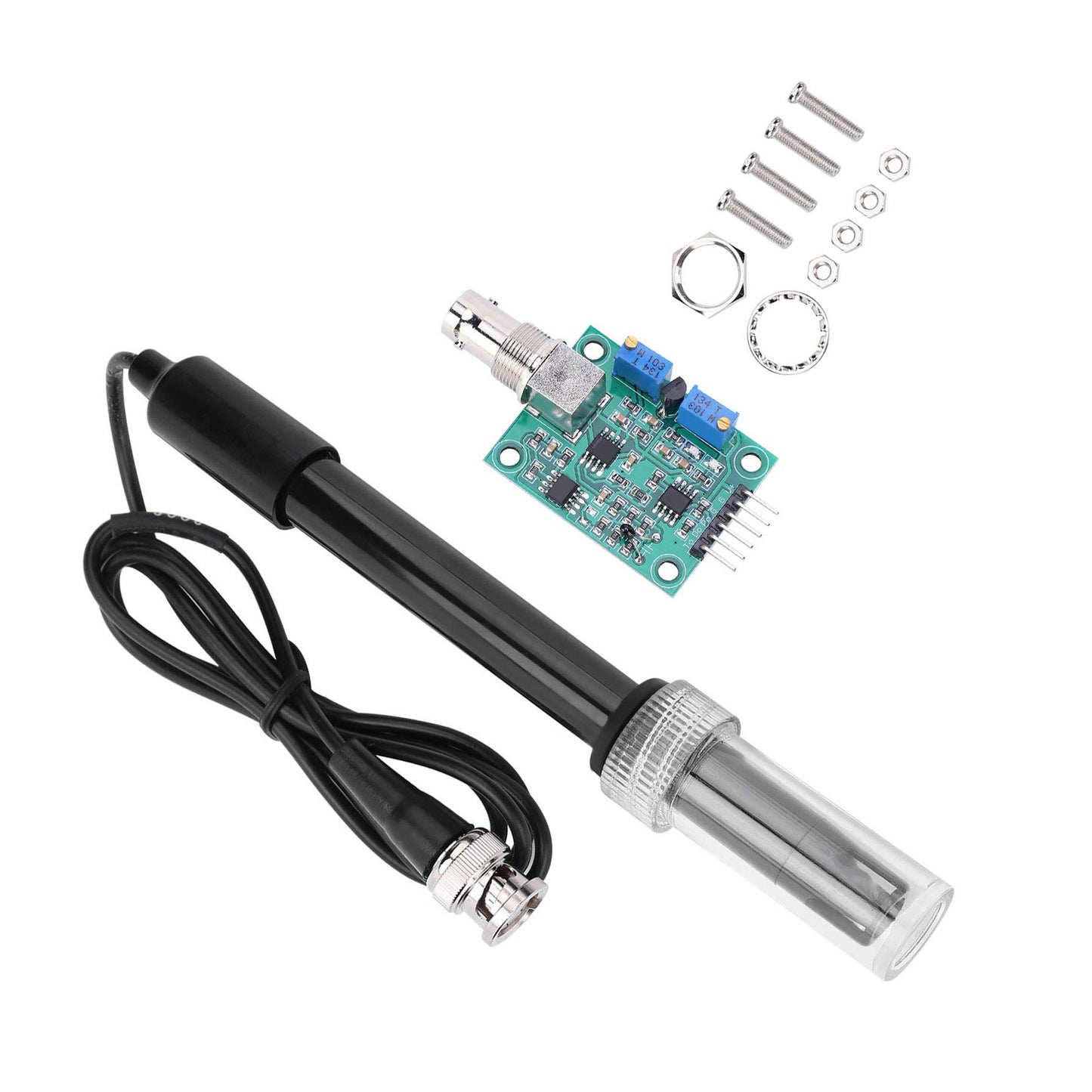

Package Included:
1 x PH Sensor PH Value Data Detection and Acquisition Sensor Module Acidity and Alkalinity Sensor Monitoring and Control
