Description:
HMI Displays are becoming increasingly popular as a result of their intelligence, and NEXTION is one of the major players in HMI Display Production, which has introduced a range of different kinds of Displays at a very affordable cost.
NEXTION offers an advanced level of displays at an affordable cost than any other competitor brand in the market, making them ideal for the one who wants to start some Projects through touch displays. This type of Display has inbuilt audio, video, and animation play functions which makes it smart.

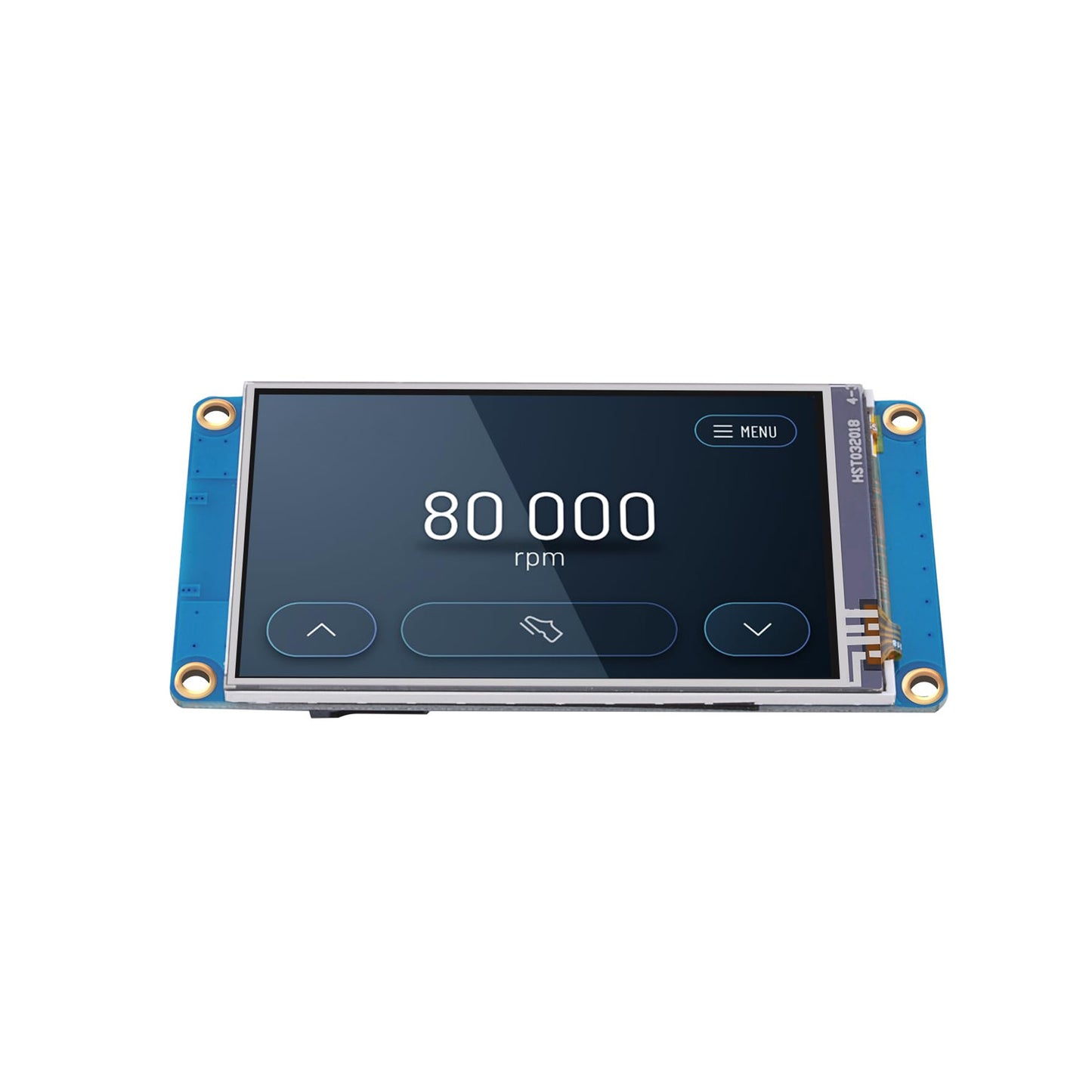

Nextion NX8048T050 – 5.0″ LCD TFT HMI Intelligent Touch Display is a seamless Human Machine Interface (HMI) solution that provides a control and visualization interface between a human and a process, machine, application or appliance. Nextion is mainly applied to the Internet of Things (IoT) or consumer electronics field. It is the best solution to replace the traditional LCD and LED Nixie tubes.
The operating Voltage of the Display lies between 4.75 to 7 V also this TFT Screen Intelligent Display Module with TFT Lcd Intelligent Display Module Screen with integrated 4-wire Resistive Touch Panel 800×480 NX8048T050 is a powerful 5.0” HMI, which is a member of the Nextion family. Features include a 5.0″ TFT 800×480 resistive touchscreen display, 16M Flash, 2KByte RAM, and 65k colours.
Specifications:
| Model No. |
NX8048T050 |
| Display Type |
011R(R:Resistive Touchscreen) |
| Operating Voltage |
4.75 ~ 7V DC |
| Max. Operating Current |
410mA |
| Touch Type |
Resistive |
| Colours |
65K (65536) |
| USB Interface |
No |
| Micro-SD Card Slot |
Yes (FAT32 format), support maximum 32G Micro SD Card |
| Flash Memory |
16 MB |
| RAM |
3584 BYTE |
| Working Temperature Range |
-20 to 80°C |
| Working Humidity Range |
10% to 90% RH |
Features:
- Compatible with Raspberry Pi A+, B+, and Raspberry Pi 2, Arduino
- 800 x 480 Resolution
- RGB 65K true-to-life colours
- TFT Screen with integrated 4-wire Resistive Touch Panel For Raspberry Pi and Arduino
- Easy 4-pin interface to any TTL Serial Host For Arduino
- 16M Flash memory for User Application Code and Date
- Onboard micro-SD card for firmware upgrade
- Visual Area:108mm(L)×64.8mm(W)
- Adjustable Brightness:0~230 nit, the interval of adjustment is 1%
- 5V410mA power consumption

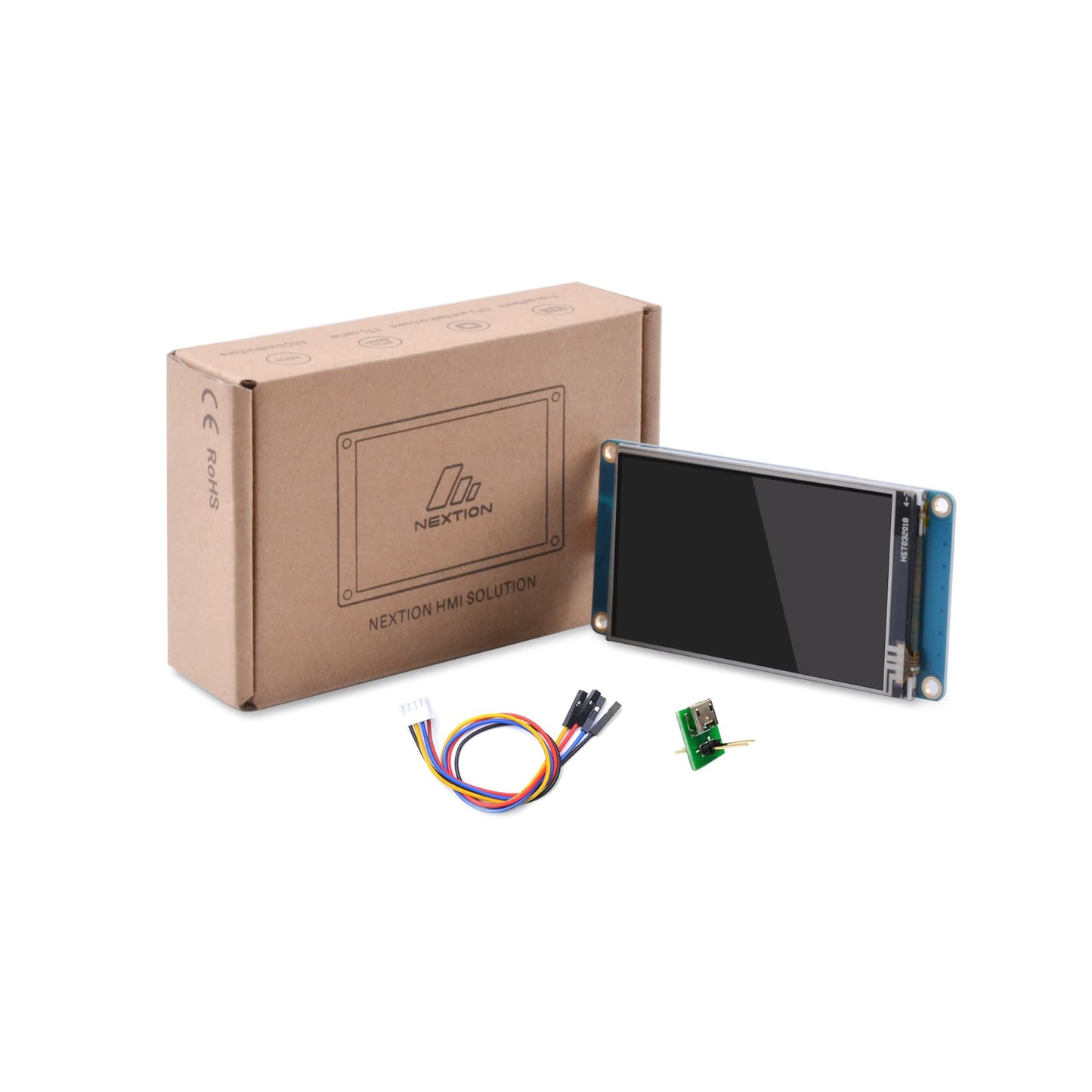

Package Included:
- 1 x Nextion NX8048T050 – 5.0″ LCD TFT HMI Intelligent Touch Display
- 1 x Connecting Wires
- 1 x Power Supply Test Board
