Description:
The LM2596 4-Way Buck Converter is a switching voltage regulator of a step-down power management monolithic integrated circuit, capable of outputting a drive current of 3A, with good linearity and load regulation characteristics.

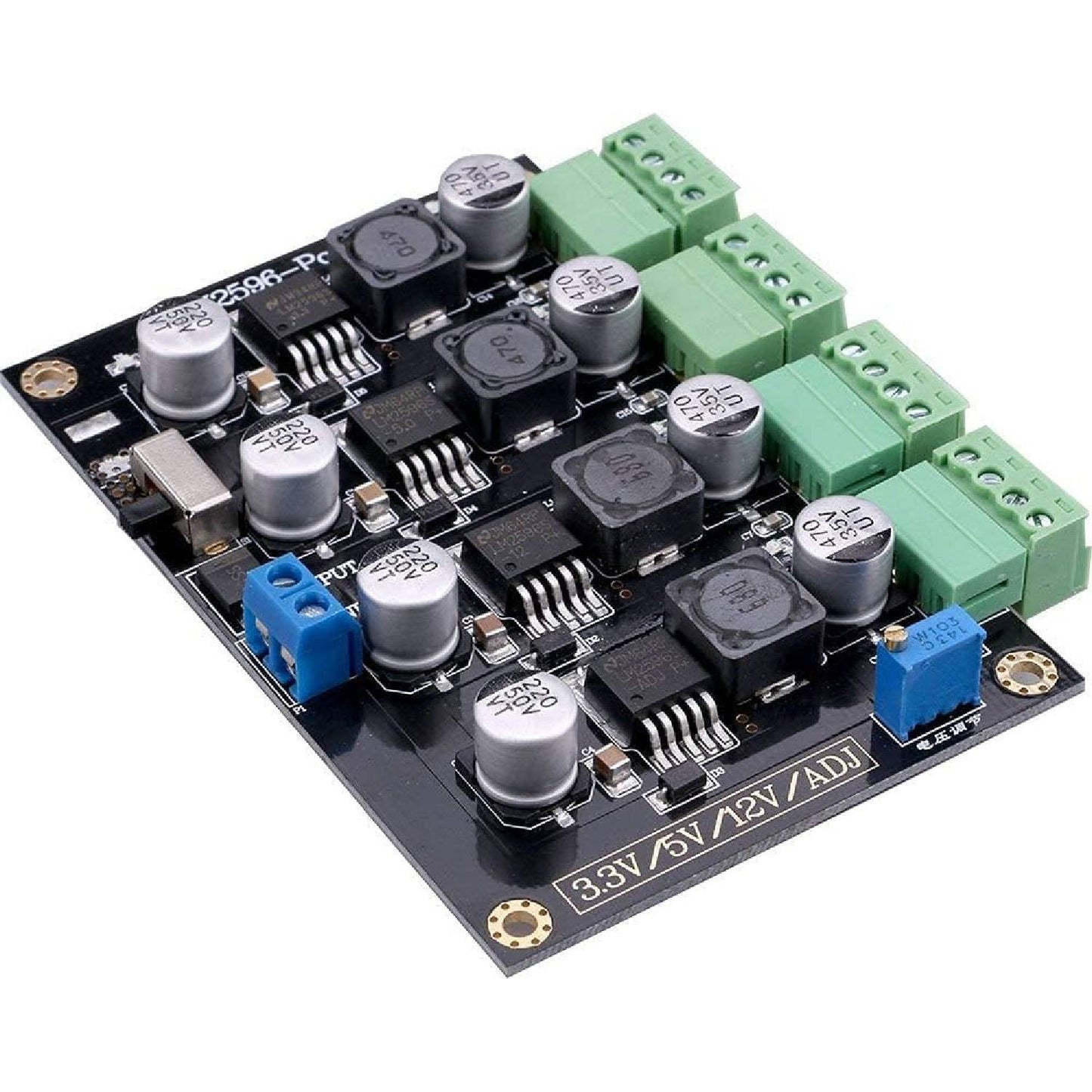

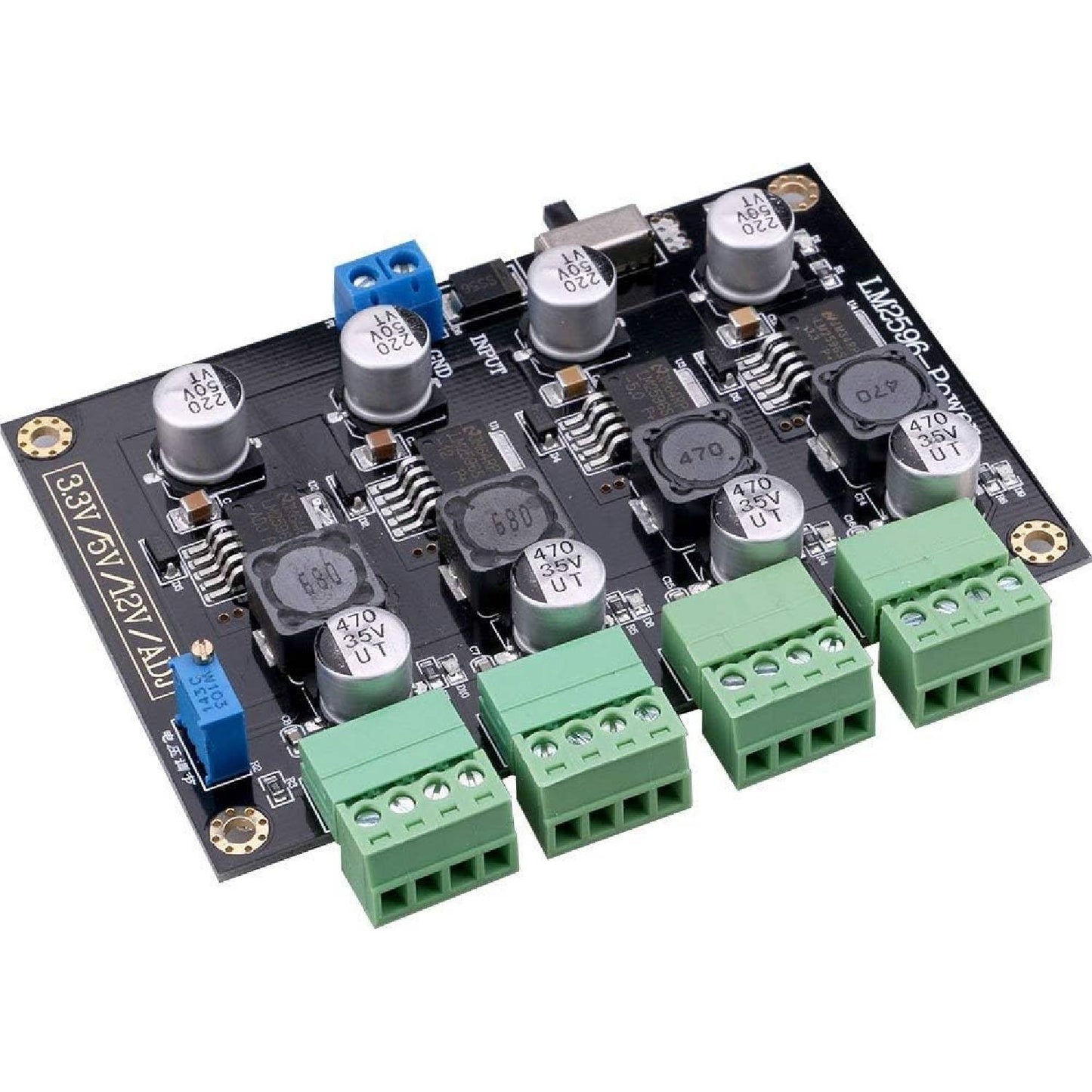

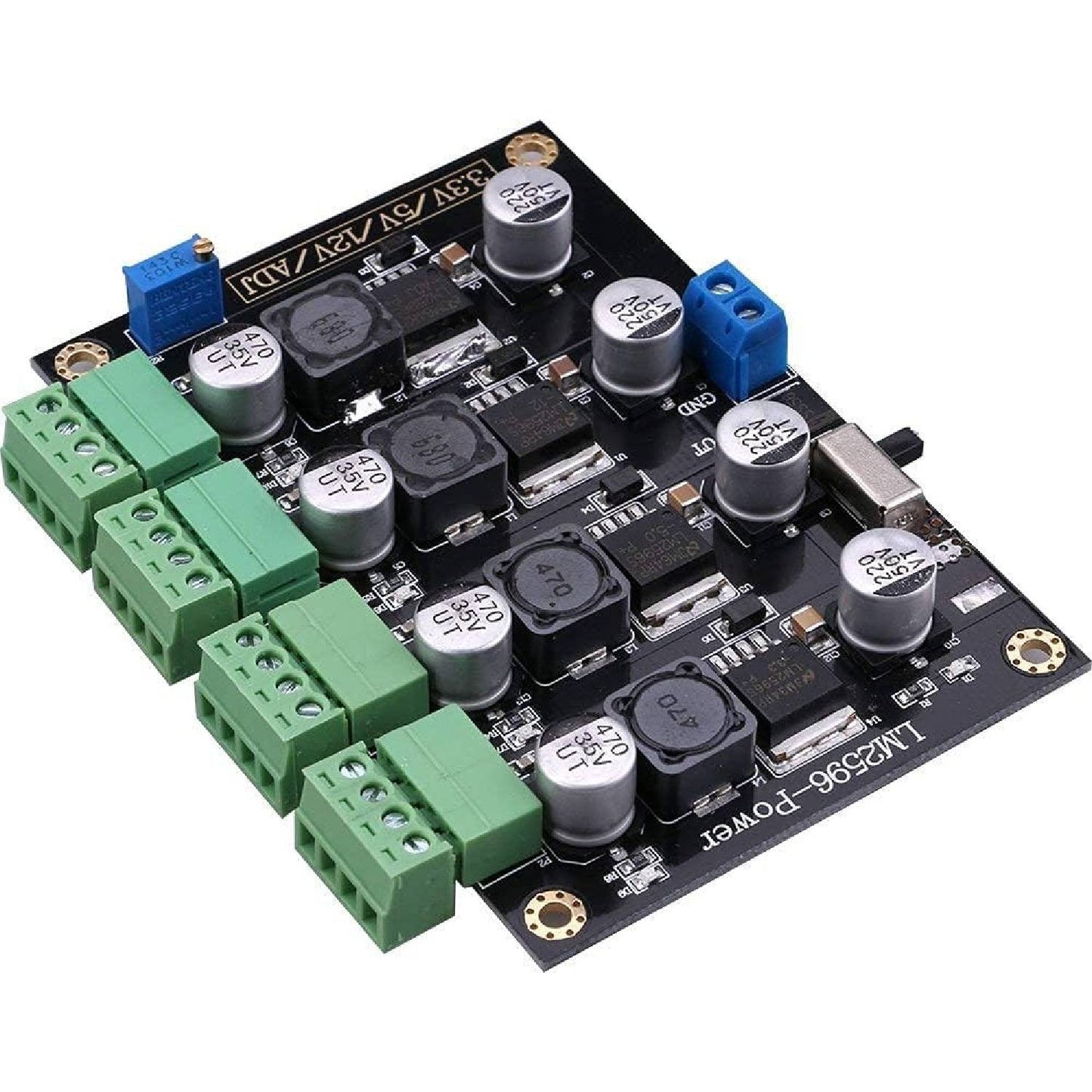

LM2596 4-Way Buck Converter module integrates 4 pieces of LM2596, which can output 3.3V, 5V, 12V, and ADJ four sets of power at the same time. The module is laid out and wired in strict accordance with the design specifications of the power circuit.
LM2596 4-Way Buck Converter with weldless input and output interface, you can easily connect wire with the board; Power supply reducer module with short circus protection, protect your electronics and ensure you to use in safety.
Specifications:
- Input Voltage: 5V-40V
- Output Voltage: multiple 3.3V, 5V, 12V, Adjustable
- Output Current: 3A (MAX), the maximum single-channel current of the module is 3A, and the total current does not exceed 5A
- Static Power Consumption: 26mA
- Switching Frequency: 150KHz
Features:
- LM2596 4-Way Buck Converter integrates 4 pieces of LM2596, which can output 3.3V, 5V, 12V, ADJ four sets of power at the same time.

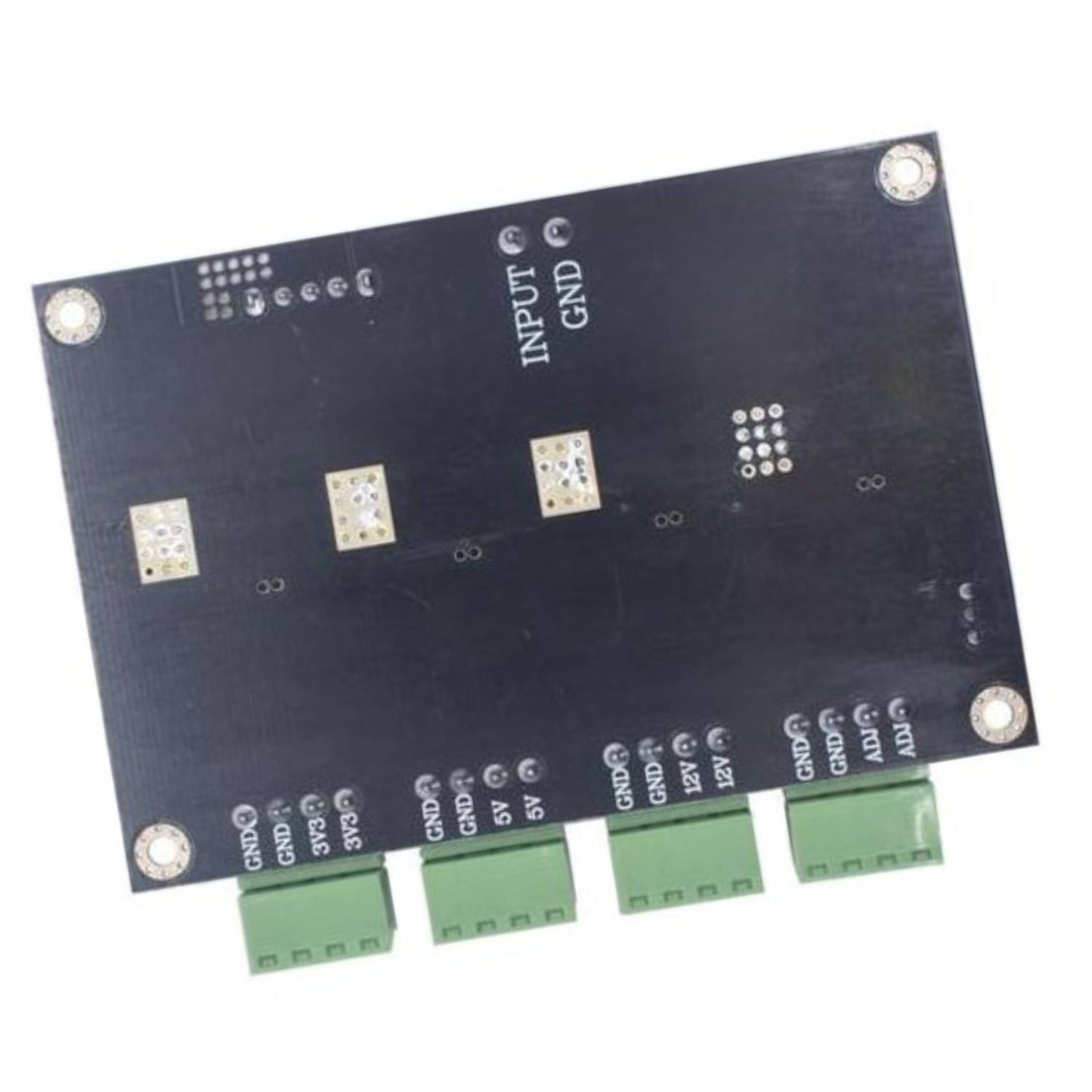

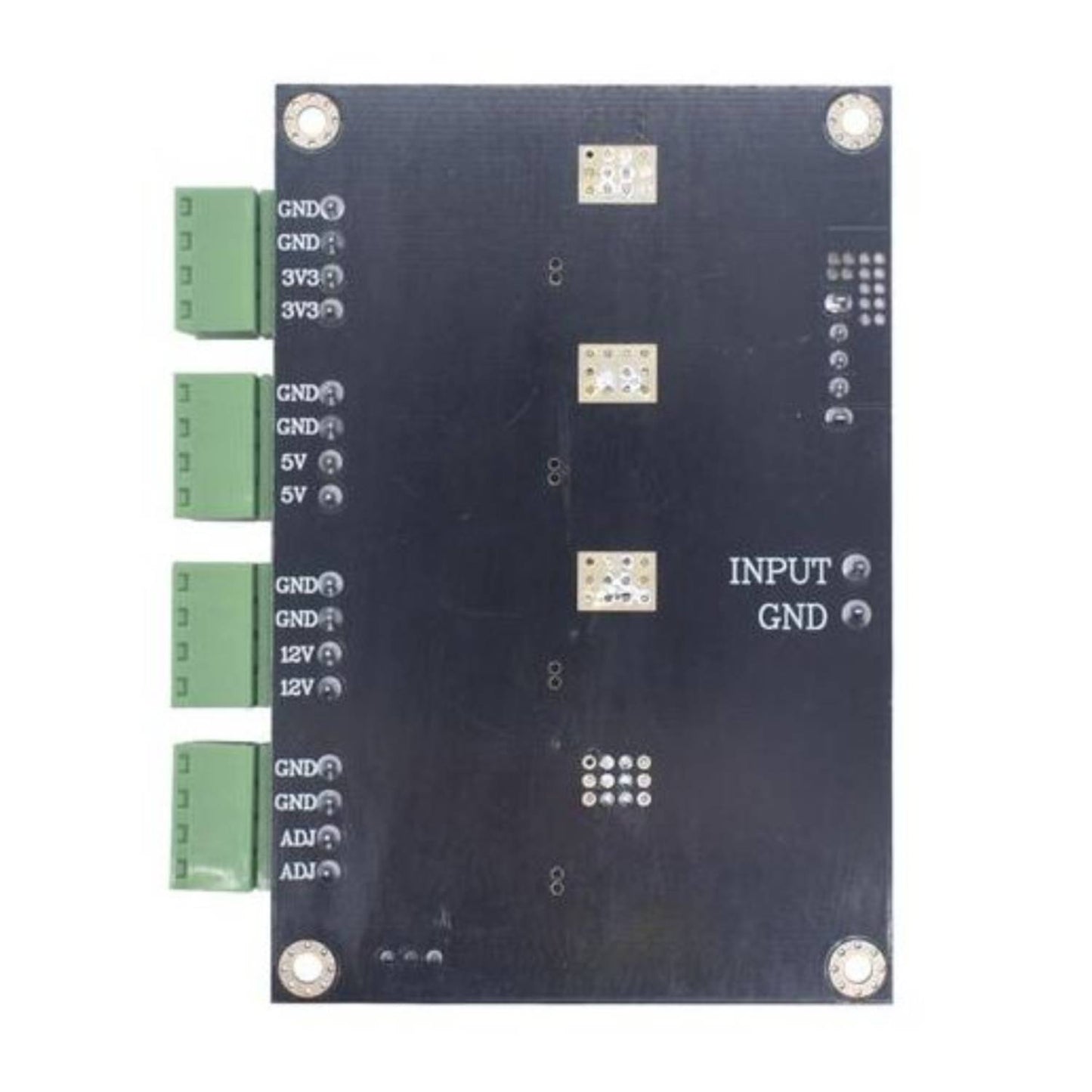

- The window processing on the back of the PCB board is more conducive to the heat dissipation of the LM2596 chip.
Package Included:
1 x LM2596 4-Way Buck Converter DC-DC 5V-40V to 3.3V/5V/12V DC-DC Step Down Voltage Regulator Converter 3A Adjustable Volt Transformer Board Power Supply Module
