Description:

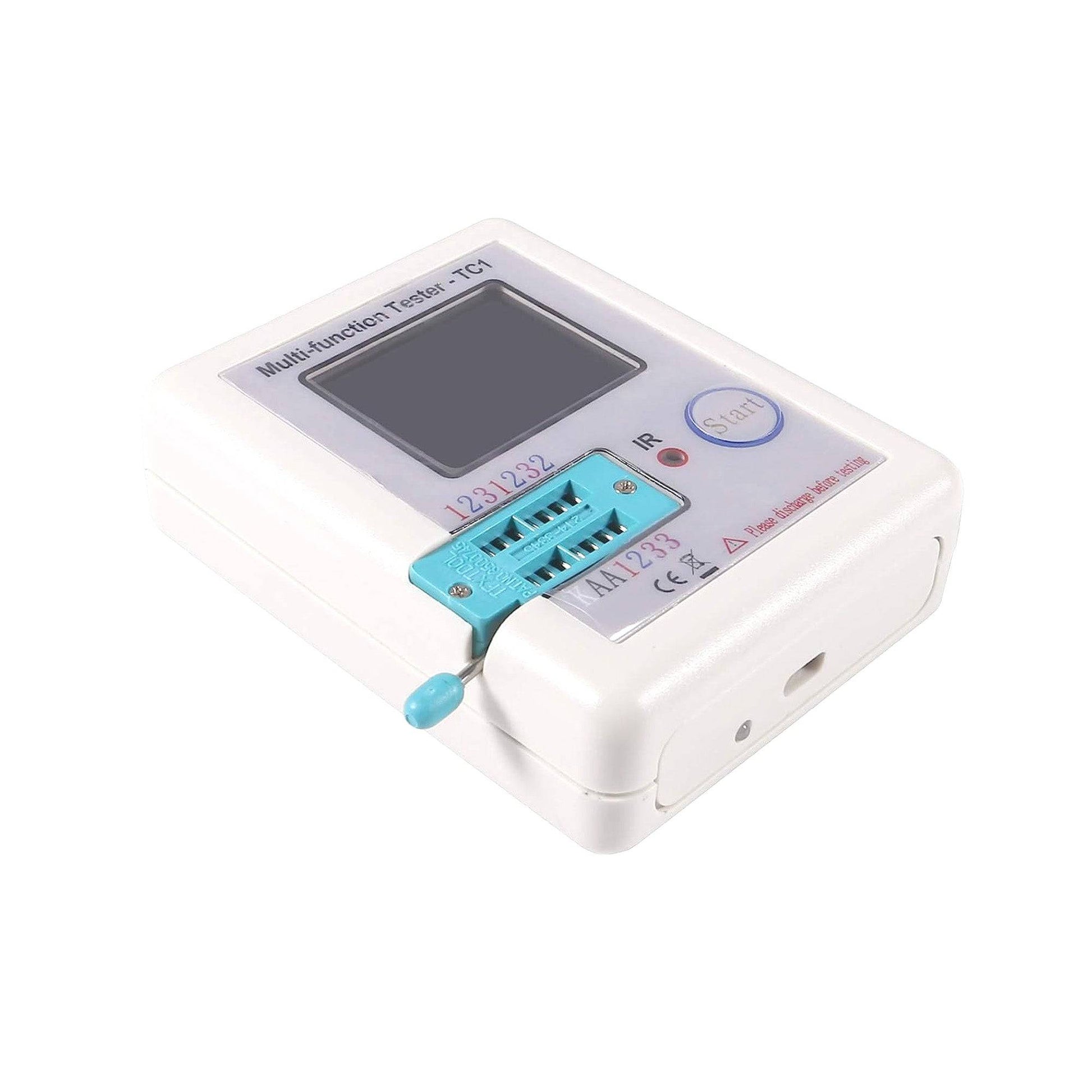

LCR-TC1 Transistor Tester is a new multi-functional practical durable NPN PNP LCR-TC1 TC-1 transistor tester. LCR-TC1 Transistor Tester can be widely used to detect NPN and PNP transistors, capacitors, resistors, diodes, triodes, N-channel and P-channel MOSFET, IGBT, JFET, triac and battery etc. LCR-TC1 Transistor Tester can also be used to detect infrared waveforms. It also can detect Zener diode and has the function of self-calibration.

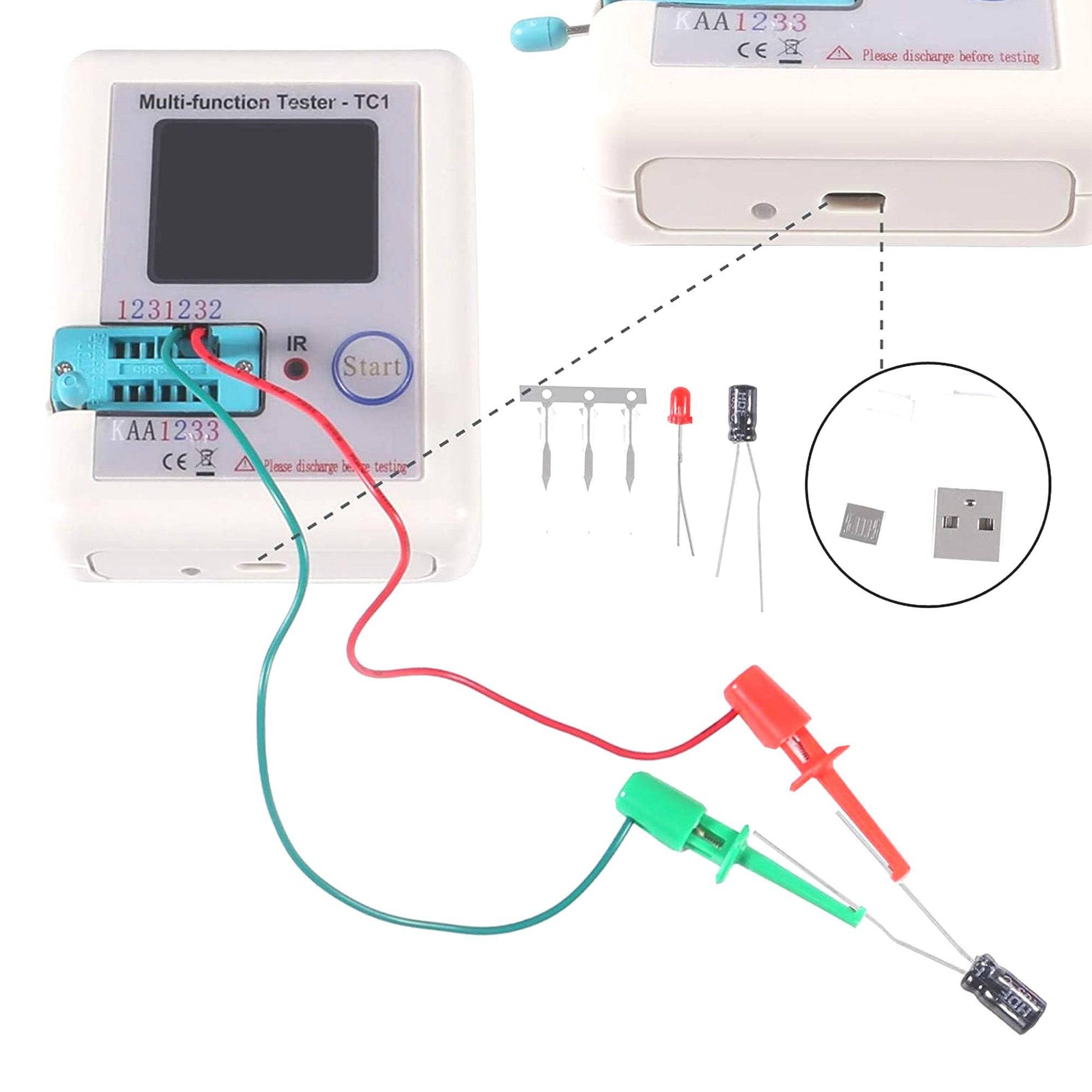

After detection, align the infrared remote control with the "IR" light, then press the button in the remote control, if the detector successfully decodes it, the LCR-TC1 Transistor Tester will display the data code and infrared waveform. One button operation automatically detects and shuts down, and you can press the multi-functional button to close the detector too. Put the pins of the component in the corresponding area, then dial the little handle and the detector will test it automatically, finally, the results will display on the backlight TFT screen.
Specifications:

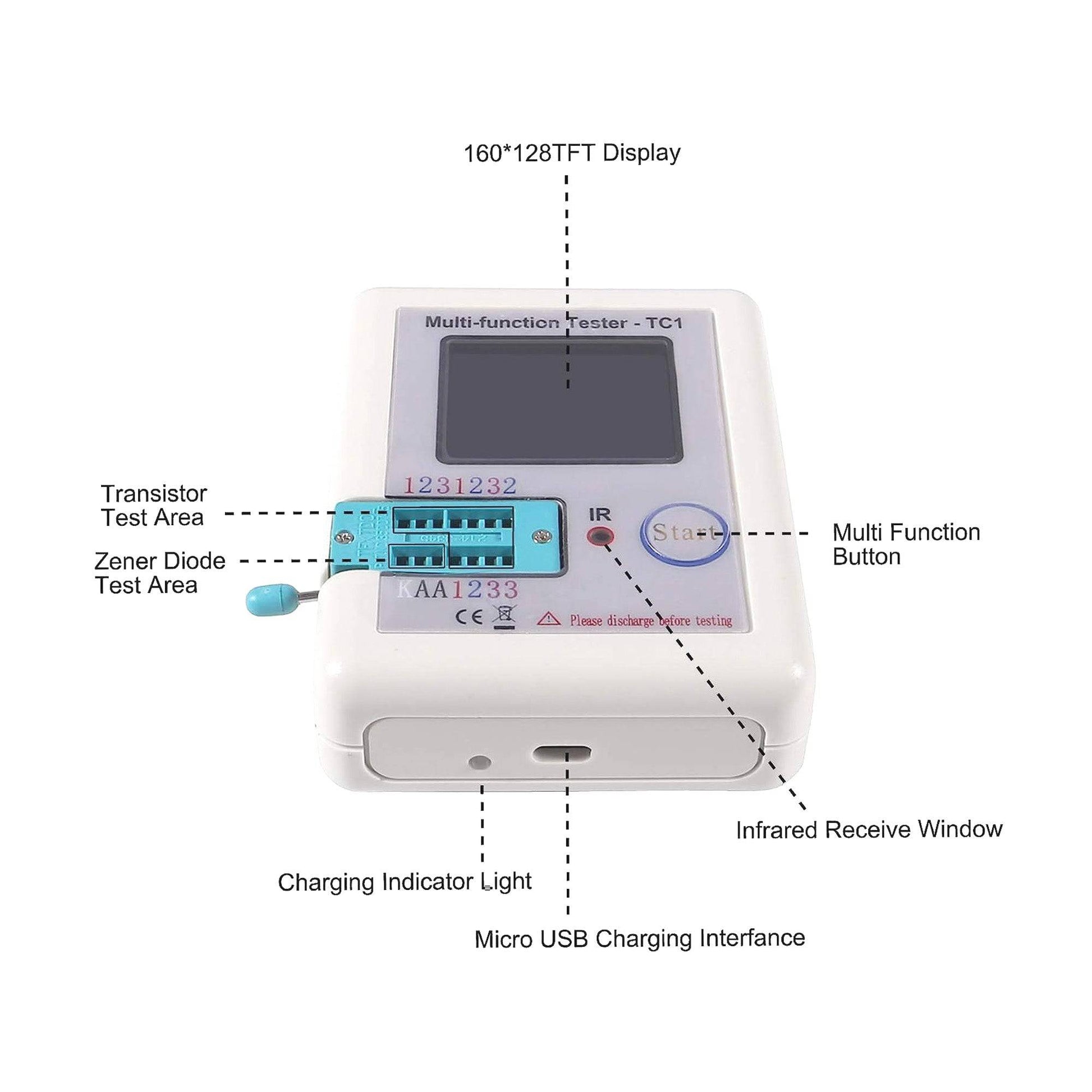

- Display: 3.5-inch TFT screen
- Diode Range: <4.5 V
- Transistor Detection Area: 0.01-4.5 V
- Zener Diode Detection Area: 0.01-30 V
- Triac: IGT <6mA
- Capacitance: 25pF-100mF
- Resistance: 0.01-50MΩ
- Inductance: 0.01 mH-20 H
- Battery: 0.1-4.5 V
- Power Mode: Rechargeable lithium battery
Features:
- LCR-TC1 Transistor Tester can also be used to detect infrared waveforms.
- It also can detect Zener diode and has the function of self-calibration.
- Not like the usual black and white display, this detector will show results in colour.

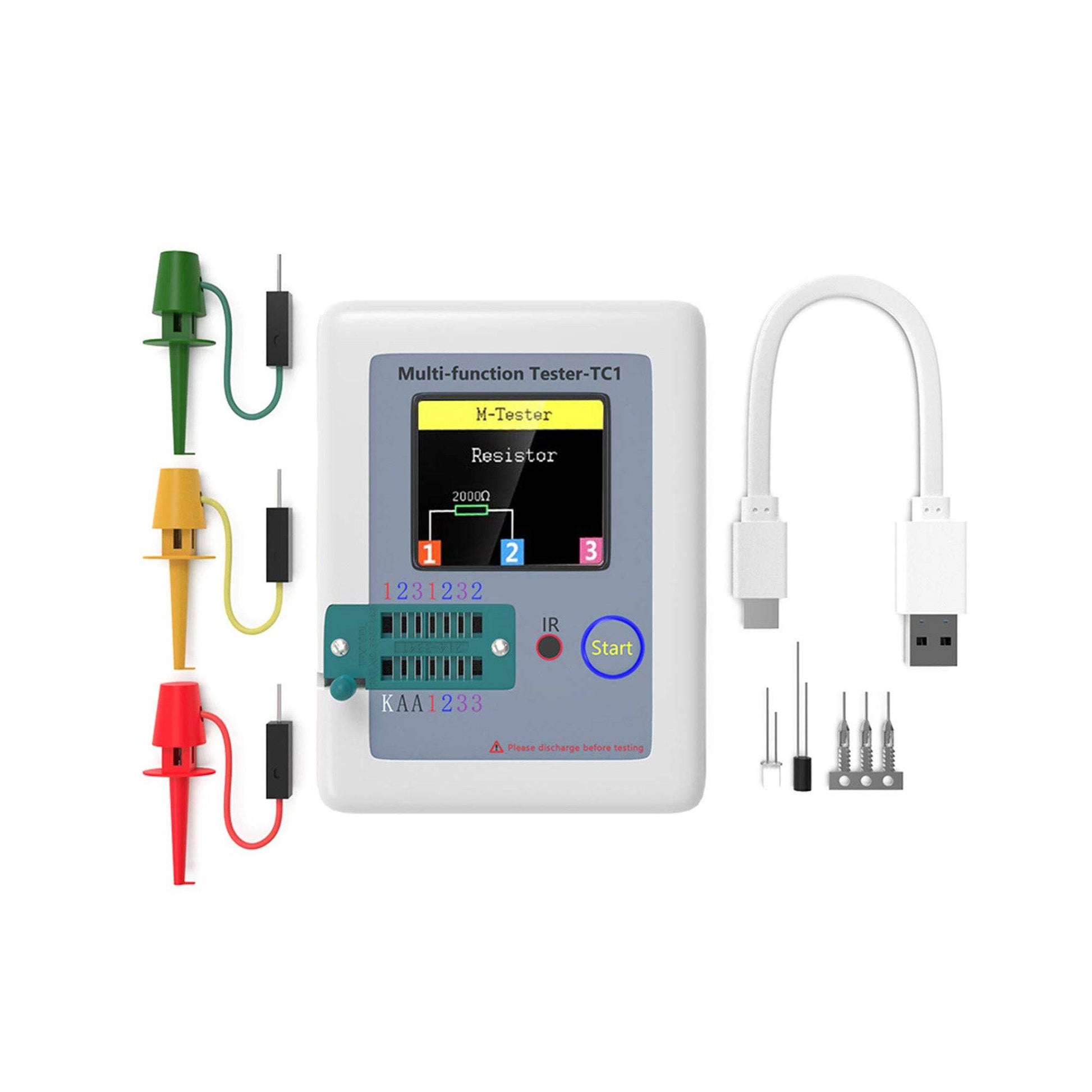

Package Included:
- 1 x Tester
- 1 x USB Cable
- 1 x Test Clip
- 1 x LED
- 1 x Capacitance
