Description:

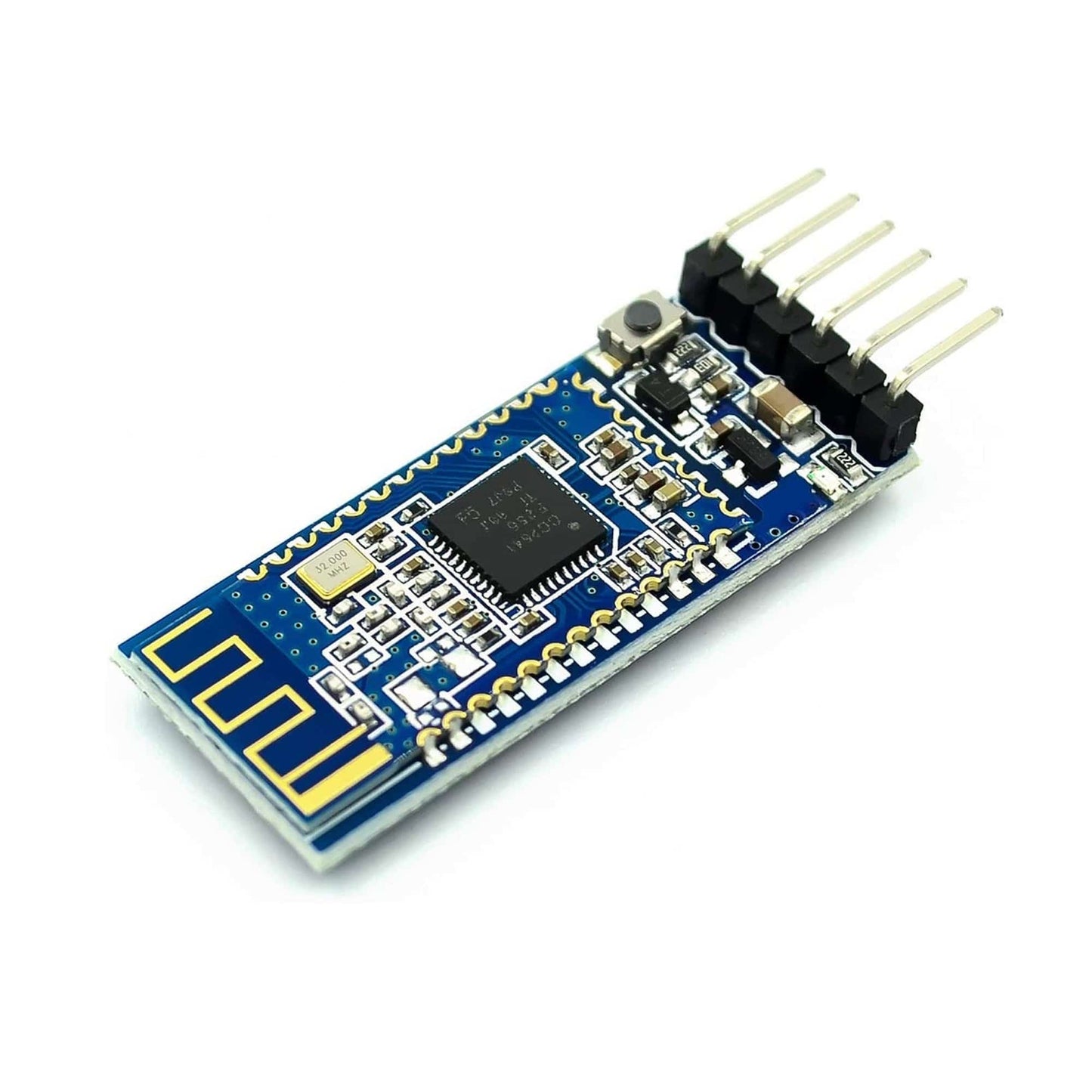

The HM-10 Bluetooth Module is a small Bluetooth 4.0 module that utilizes the Texas Instruments CC2540 or CC2541 BLE System SoC (System on Chip). It operates on 3.3v SMD and can be controlled through the serial UART connection by sending AT commands. The main purpose of the HM-10 Bluetooth Module is for wireless data communication, but it is crucial to note that it can only connect with Bluetooth 4.0-based modules, and not with Bluetooth 2/2.1 modules like HC-05 and HC-06.
Due to its standard UART serial connection, the HM-10 Bluetooth Module is widely used with the Arduino and is available in two versions: HM-10C and HM-10S. The HM-10S is primarily for data transmission, whereas the HM-10C serves as a remote control version with PIO status. The HM Bluetooth modules use CSR TI CC254x or Cypress chips, allowing them to operate in both master and slave roles.
Specifications:
- Input Supply Voltage: 5V
- USB Protocol: USB V2.0
- Operating Frequency: 2.4GHz ISM Band
- Modulation Mode: GFSK
- Transmitting Power: ≤4dBm
- Coverage Range: 60m
- Sensitivity: ≤-84dBm at 0.1% BER
Features:
- HM-10 Bluetooth Module is based on the TI CC2540 or CC2541 Bluetooth SOC (System On Chip)
- Small 3.3v SMD Bluetooth 4.0 BLE module
- Bluetooth 4.0 module that includes Bluetooth Low Energy (BLE) and transmits over the 2.4 GHz ISM band
- This HM-10 Bluetooth Module doesn't get connected to mobile Bluetooth directly but can be connected using the BLE Scanner App on mobile.
- Controlled via AT commands and designed for establishing wireless data communication
- Popular for use with the Arduino due to its standard UART serial connection that makes it easy to connect to an Arduino
Package Included:

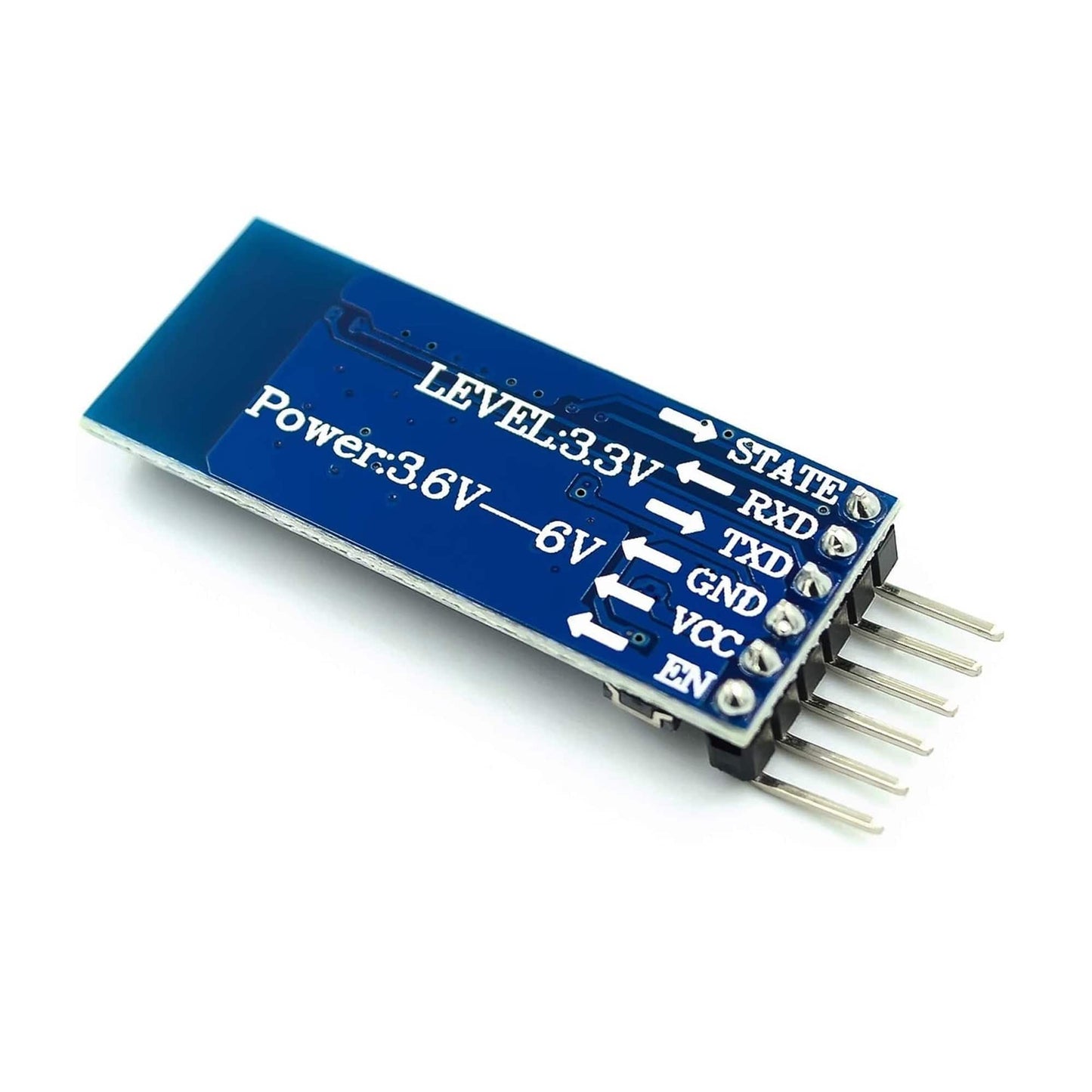

1 x HM-10 Bluetooth Module HM-10 BLE Bluetooth 4.0 CC2541 Wireless Module
