Description:

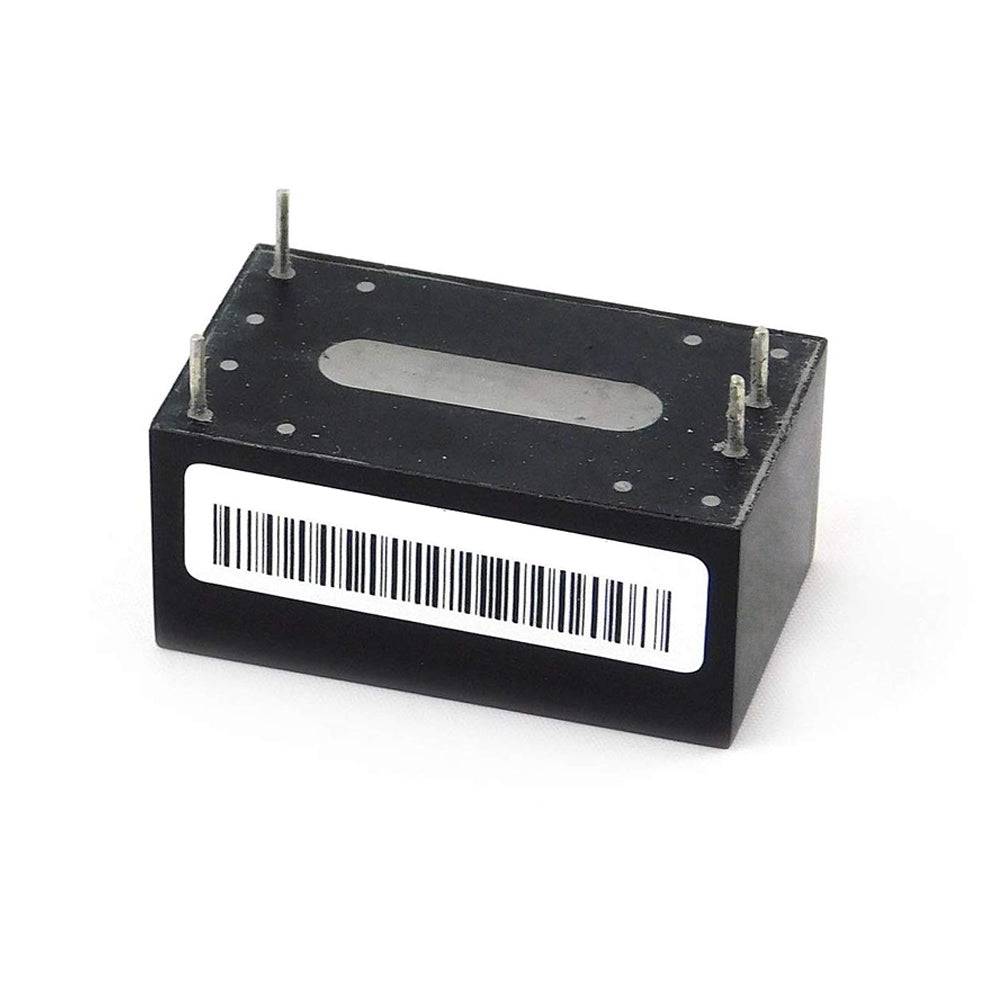

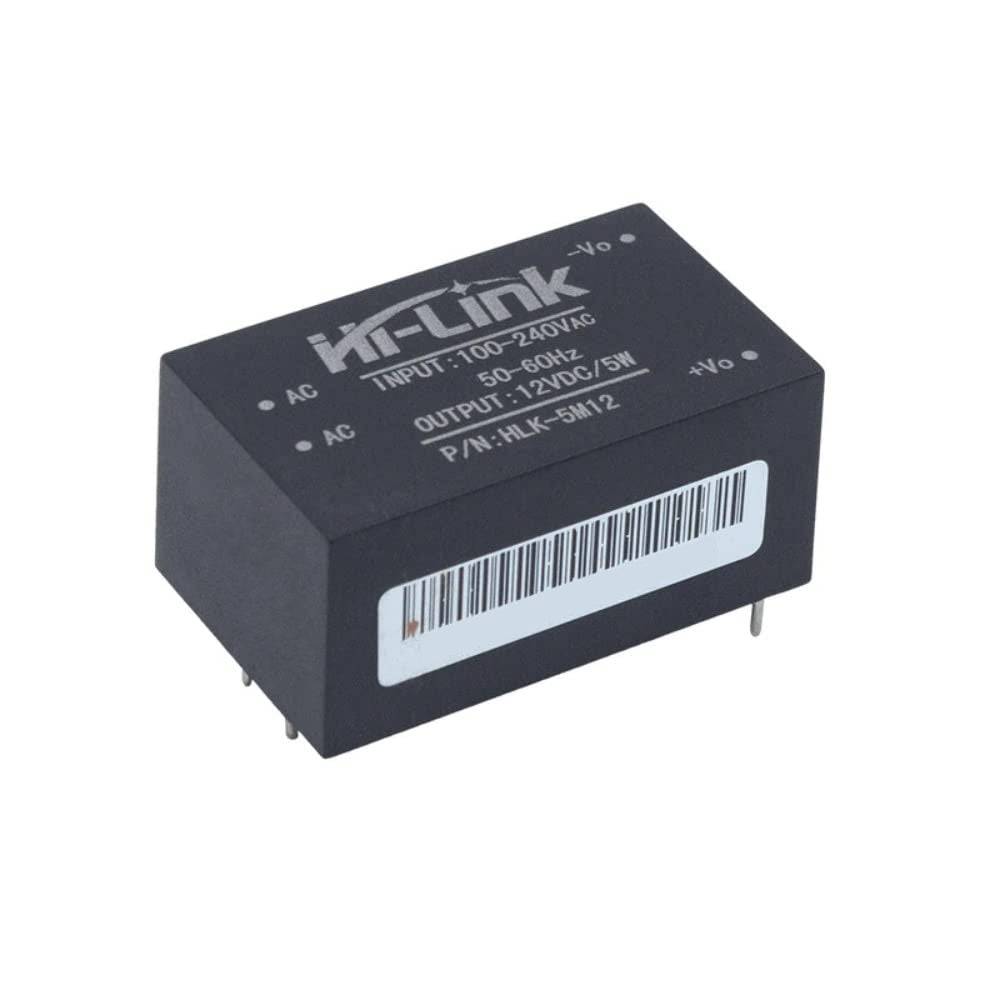

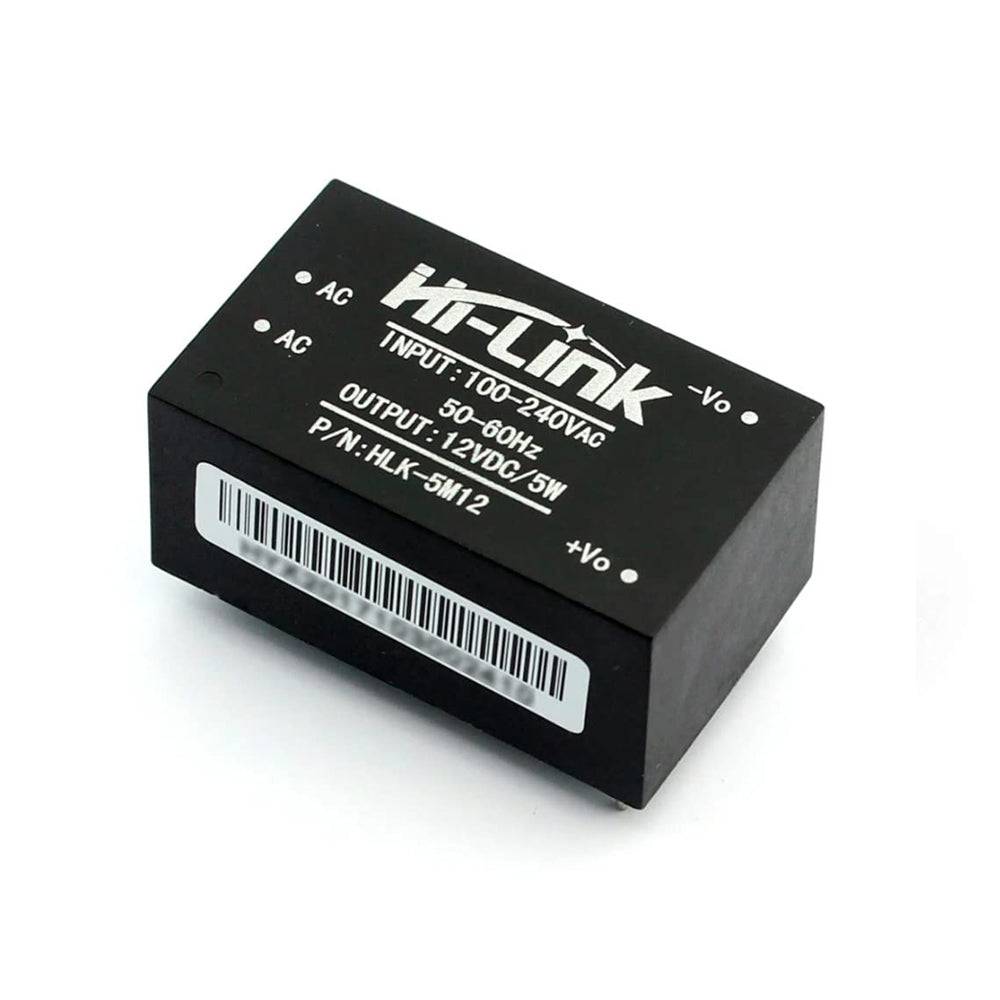

The HLK-5M12 Module is a compact and isolated switch-mode power supply module that can be mounted on a PCB. HLK-5M12 converts 120V AC – 230V AC input to 12V DC output and has a power rating of 5 Watts. This is ideal for small projects that require a 12-volt supply from mains. This power supply module simplifies the traditional power supply design by eliminating the need for diodes, voltage regulators and transformers. HLK-5M12 also offers many benefits, such as low-temperature rise, low power consumption, high efficiency, high reliability and high-security isolation.
Specifications:
- Rated input voltage: 100-240 VAc
- Input voltage range: 90-264 VAc
- Maximum input current: ≤0.2 A
- Input current surge: ≤10 A
- Input Low Voltage Efficiency: Vin=110VAc,Output full-load≥69 %
- Input High Voltage Efficiency: Vin=220VAc,output full-load≥70 %
- Long-term reliability: MTBF≥100,000 h
- Load-rated output voltage: +12±0.1 VDc
- maximum input voltage: ≤270 VAc
- Enter slow start: ≤50 mS
- Full rated output voltage: 12±0.2 VDc
- Short-term maximum output current: ≥540mA
Features:
- The product is designed to meet the requirements of EMC and Safety Test
- Low power consumption, environmental protection, no-load loss <0.1W
- Output overload and short circuit protection
Package Included:
1 x Hi-Link HLK-5M12 12V/5W Switch Power Supply Module HLK-5M12 AC to DC Power Supply
