Description:

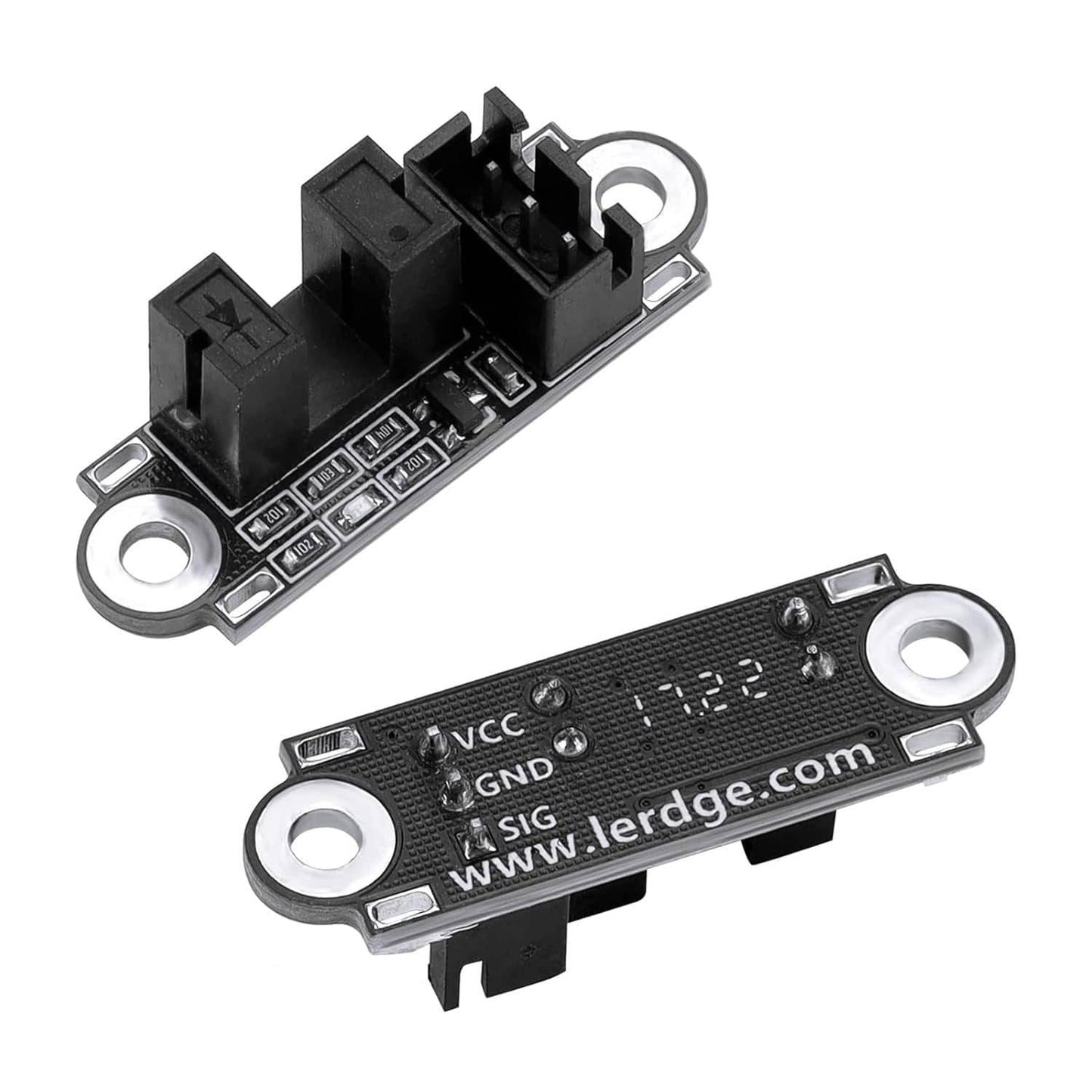

An Optical Endstop Switch is an electronic component used in 3D printers, CNC machines, and other automated systems to accurately determine the position of moving parts.
This fully assembled plug-and-play Optical Endstop Switch is very suitable for your 3D printing or CNC project. The Optical Endstop Switch will immediately output the digital control when the light is blocked and turn the LED on.
The optical end-stop is a reliable end-stop / switch solution for any type of 3D printer and other CNC and 3D tools. Using the optical transmission principle designed, no loss, no noise, and longer service life reached more than one hundred thousand times.
The primary function of an optical endstop switch is to detect the presence or absence of an object (usually a moving component, like an axis) at a specific point in its travel. It uses an optical sensor to perform its function. The sensor typically consists of an infrared light source and a receiver.
Specifications:
- Operating Voltage: 2.7~5V
- Sensor: TCST2103
- Dimensions : 33 x 11 x 10 mm
Features:
- Increased reliability
- Increased precision
- Optical Endstop Switches help to protect your 3D printer or machine from moving past its intended range and damaging itself.
Package Included:

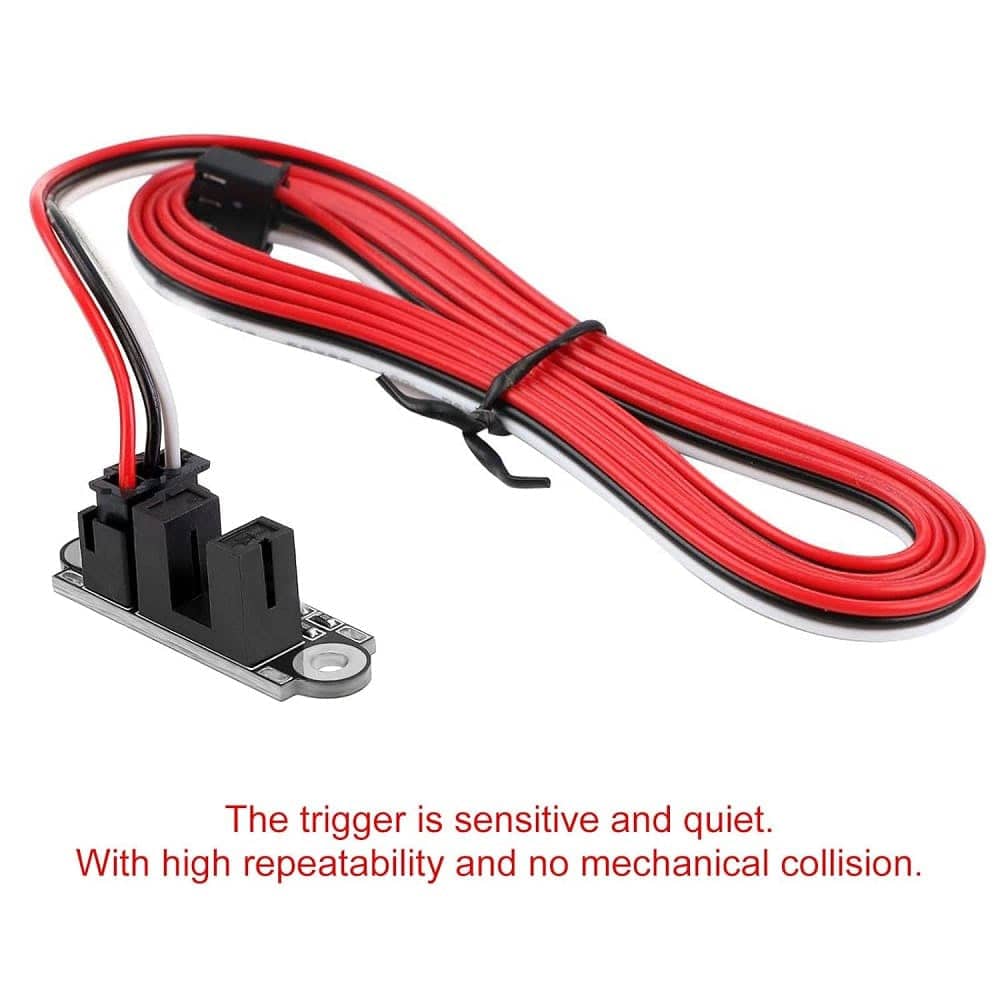

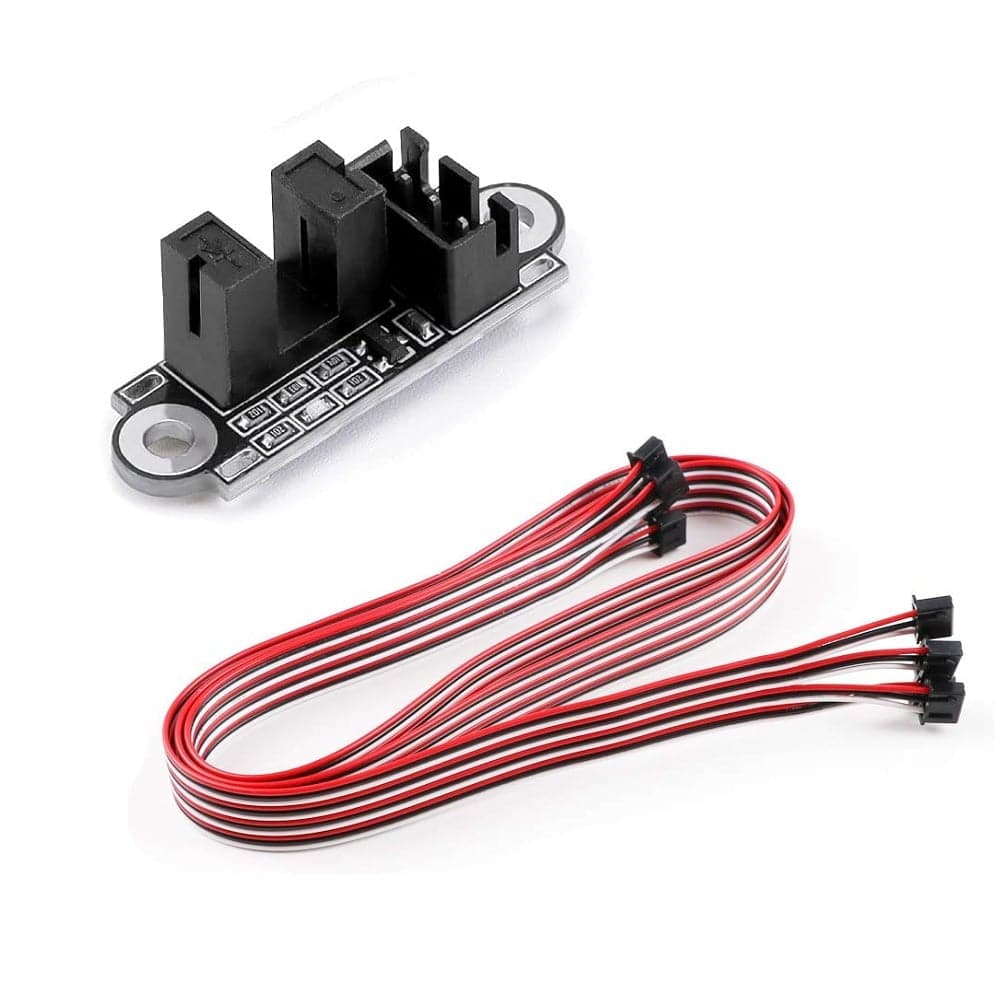

- 1 x Optical Endstop Switch Light Control Limit Optical Switch
- 1 x 1m 3-pin wire
