- Model: GT2205
- Motor KV: 2300
- No-Load Current: 0.6 A @10V
- Max Power: 495W
Description:

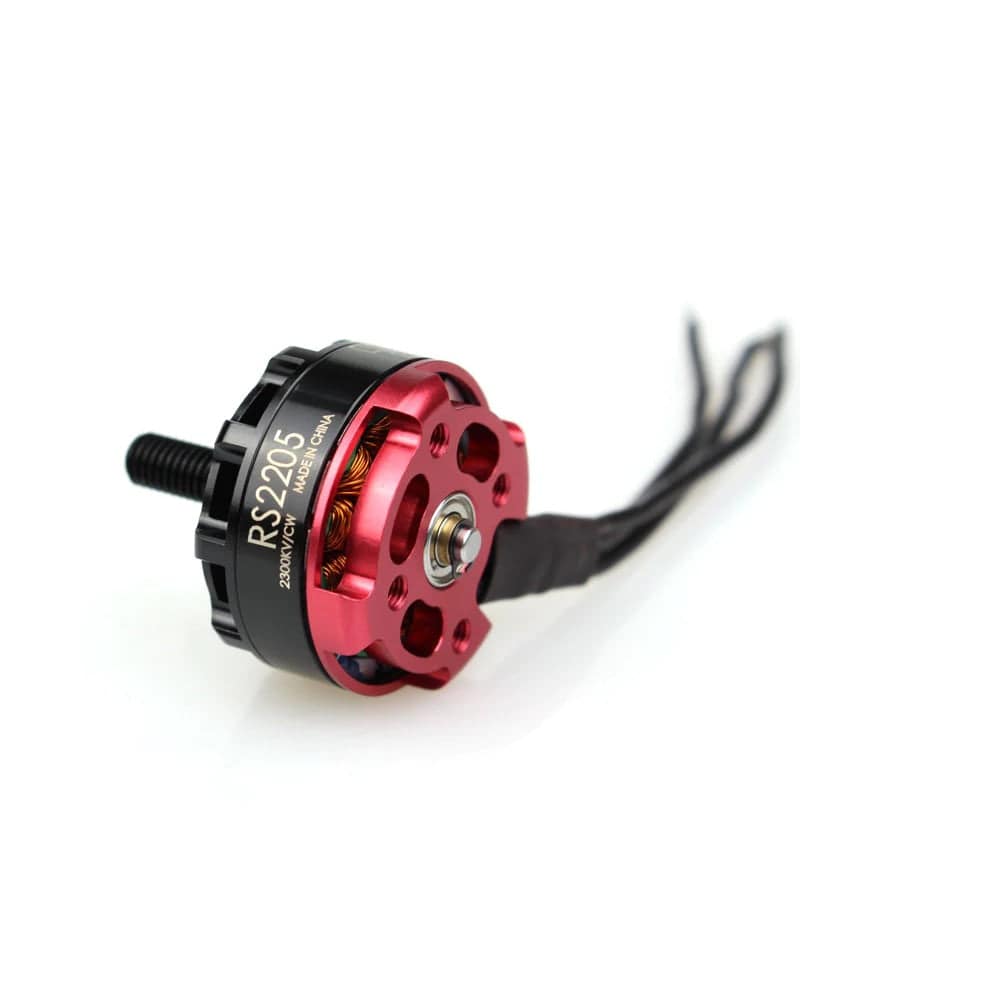

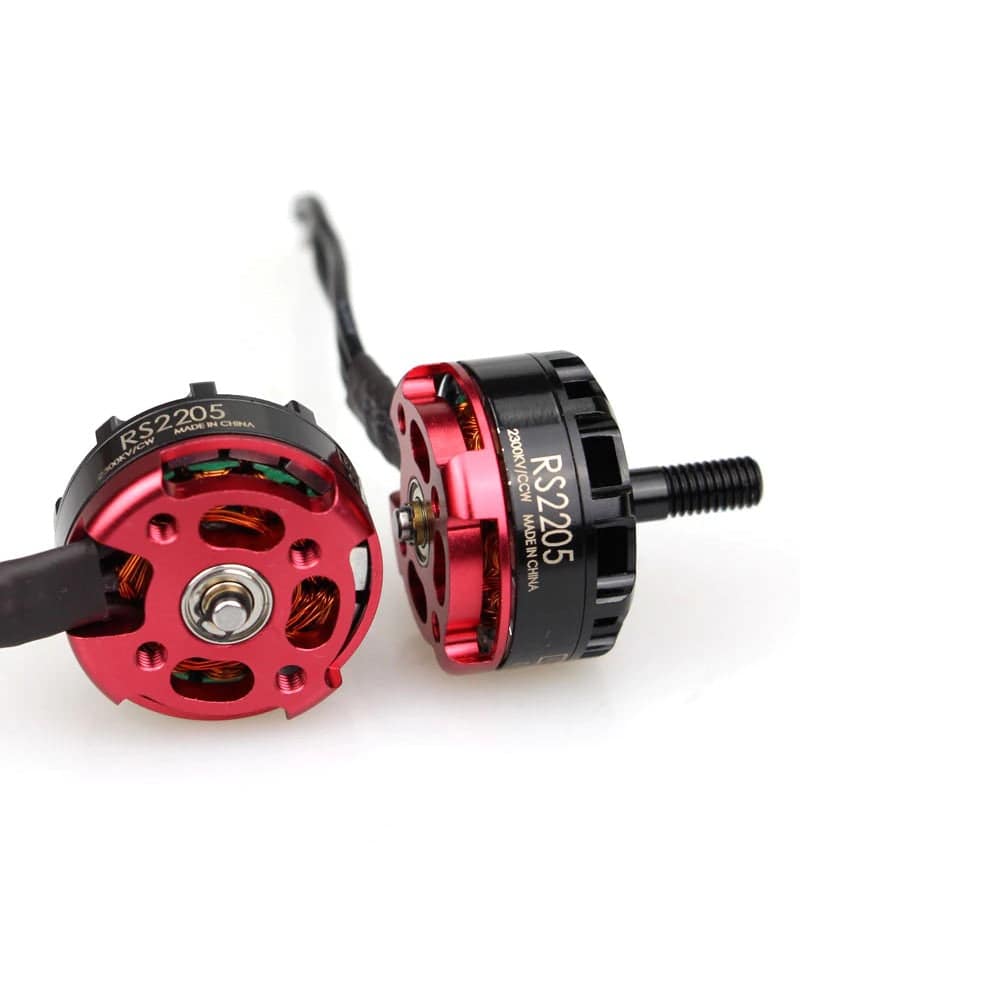

This GT2205 2300KV Brushless DC Motor is of good quality, the light-weight multirotor motor with a very nice design both aesthetically and in terms of build quality. This Brushless DC Motor is very smooth and the tolerances are very tight. It comes with a strong c-clip for reliable operation. The GT2205 2300KV Brushless DC Motor has curved high-temperature N52 magnets and quality proven bearings to improve the operational characteristics of the motor. The only drawback of this motor is the problem with self-cooling technology. It shows the lack of exposed fins which are really important for cooling purposes.
Specification:
- Model: GT2205
- Motor KV: 2300
- No-Load Current: 0.6 A @10V
- Max Power: 495W
- Current Handling Capacity: 15 ~ 20 A
- Max. Efficiency Current: 30A
- Maximum Efficiency: >81%
- Internal Resistance: 65m
- LiPO Batteries: 3 ~ 4 Cell
- ESC: 40 ~ 60 A
- Propeller: 5 inch
Features:
- The build quality on these is really top-notch.
- The motor is extremely smooth
- The motor weighs around 35 grams.
- The use of a very strong c-clip makes the motor durable.
- Thin, wide and curved magnets for unique flight characteristics.
Package Included:

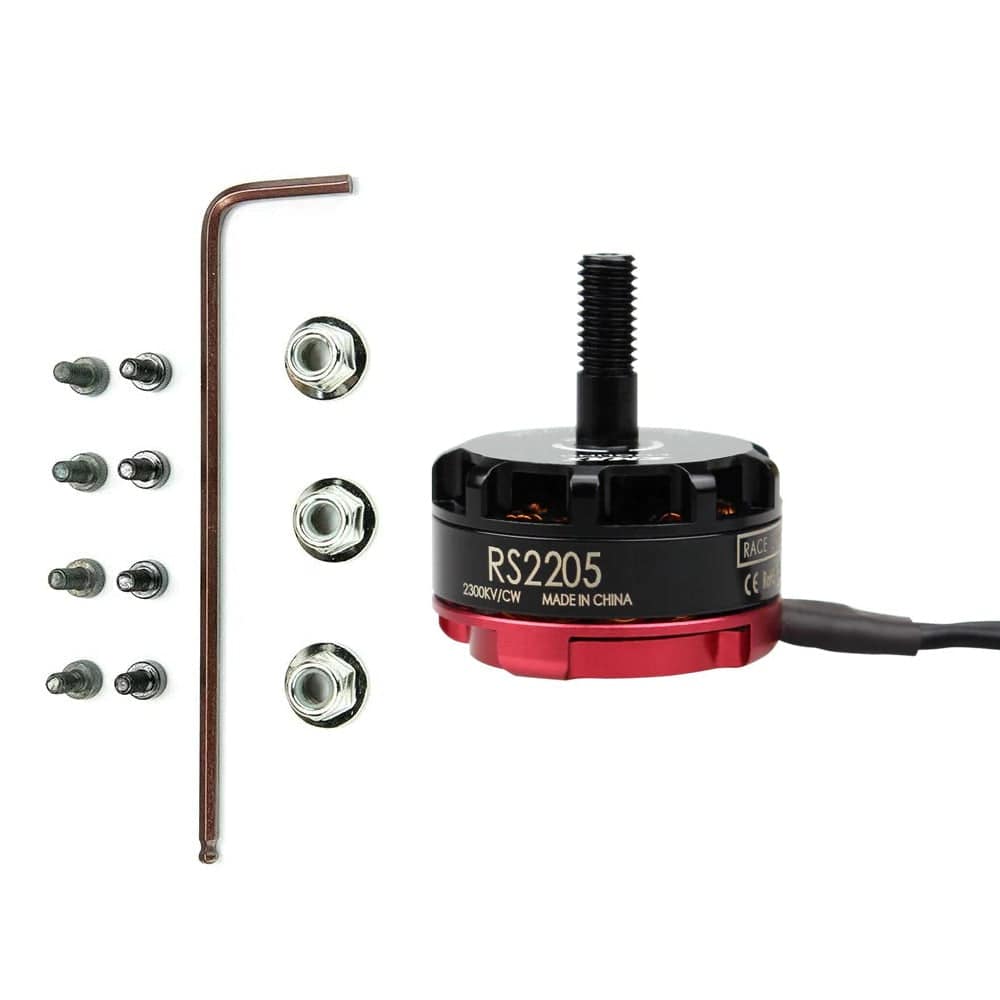

1 x GT2205 2300KV Brushless DC Motor - RED Cap (CW Motor Rotation)
