- Brand: Emax
- Item Name: EMAX Pulsar LED Motor – 2207 1750KV Brushless Motor -
- KV : 1750KV
- MAX Thrust: 1980g
- Framework: 12N14P
- No.of cells: 3-6S 1700KV
- Compatible Propeller: 5″-5.5″
- Weight: 33.4g(W/O Silicone Wire) 1700KV
- Prop adapter shaft thread: M5
- Bearing Shaft: 4mm
- Shaft Thread: CW
Description :
The engineers at EMAX are always seeking ways to design the ultimate motor with brushless technology. In their efforts, they produced the ECO II Series, a new line of brushless motors further improving on the performance and durability while retaining the same affordability.
Redesigned from the ground up, the ECO II boasts an all-new architecture. With a more rounded design paired together with thicker reinforcements, maximum durability is achieved. Finished with a reflective surface, the ECO II offers a sleek modern design destined to satisfy the need for both aesthetics and durability.
In order to improve the performance of its predecessor, the ECO II utilizes N52SH arc magnets over prior N48 magnets, allowing more powerful throttle response and higher RPMs to be achieved. More torque and thrust is generated, allowing pilots the flexibility to comfortably meet the demands of any racetrack or flight situation.
The ECO II Series marks the next evolution in affordable brushless motor technology, bringing in a new era of performance for everyone.
Specification :
- Framework: 12N14P
- KV: 1750KV .
- LiPO Batteries: 3-4 S.
- Max Thrust: 1710 gm (on 4s)
- Prop. Adapter Shaft Size (mm): 5

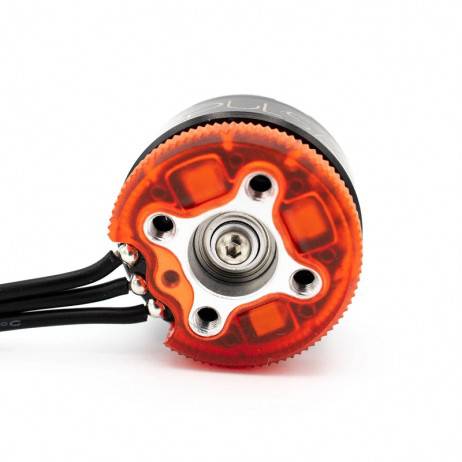

- Bright White LED Illuminated Motor Base
- Propeller: 5″-5.5″
Features:
- Bright White LED Illuminated Motor Base w/ Interchangeable Coloured Covers
- Motor Wire Solder Pads on Motor Base
- N52 Arc Magnets
- Precision EZO 9x4x4 Bearings
- Hollow Steel Shaft
- Multi-Stranded Motor Winding
Package Includes:

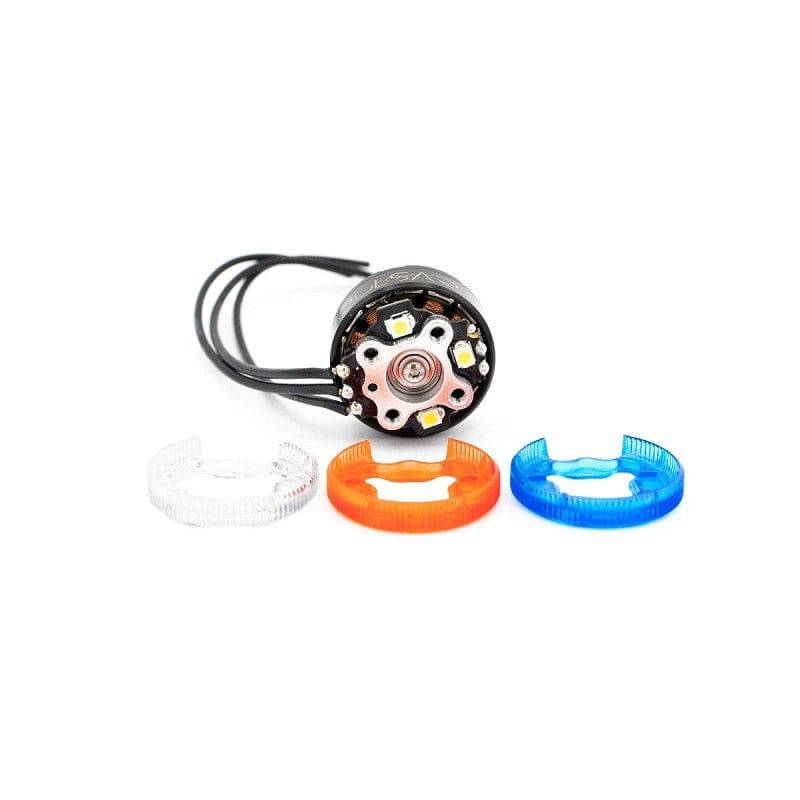

- 1 x Red Translucent Motor Base
- 1 x Blue Translucent Motor Base
- 1 x Clear Translucent Motor Base
- 5 x M3*7mm Screws
- 5 x M3*6mm Screws
- 1 x Aluminium M5 Nylock Nut
- 1 x Washer and Screw for Bell
