Description:

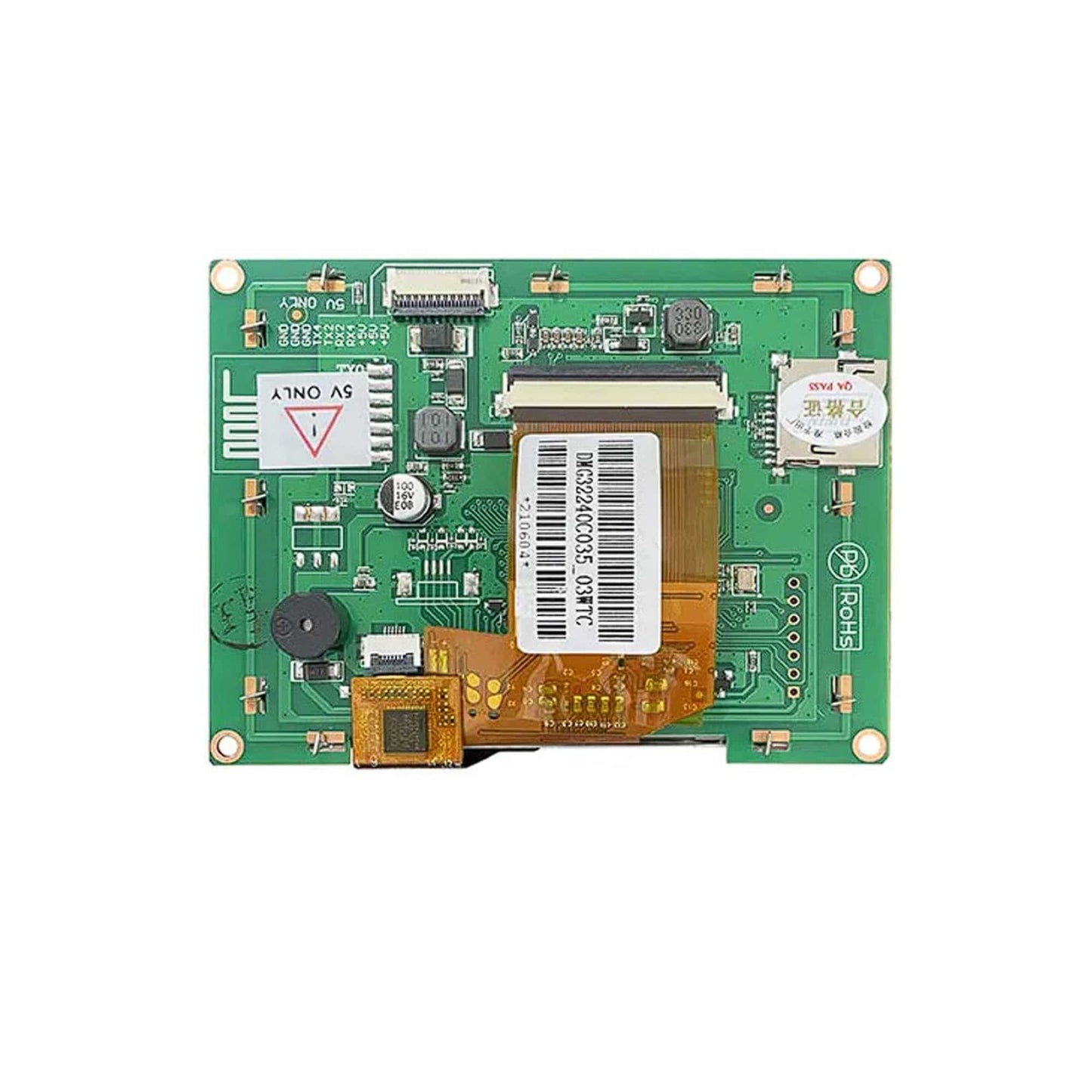

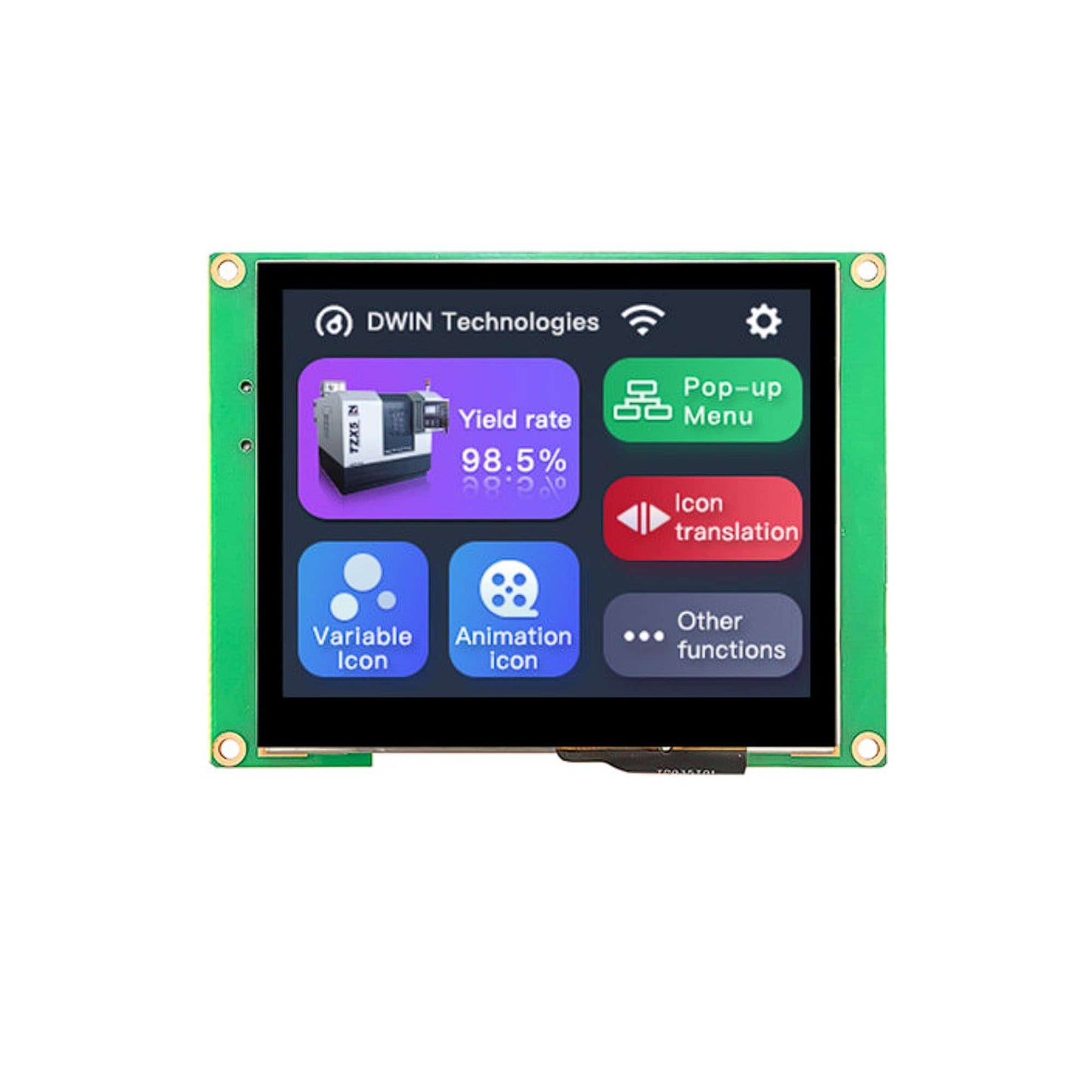

The DWIN 3.5inch HMI SMART LCD, 16MB Flash Buzzer SD interface is developed by DWIN. The NOR Flash memory in the display is available to store the user database.
The DWIN 3.5inch HMI SMART LCD,is integrated with a running DGUS II system, a GUI (Graphical User Interface) development software. The pre-installed UI user interface development software can be used to develop your design and customise features like buttons, text displays, graphs sliders etc. The T5L1 DWIN development software is a human-machine interface dedicated to ASIC designed by DWIN Technology for AIoT application applications. This software is based on a T5L chip that is a low-power, cost-effective dual-core 8051 processor.
Specifications:
- Power Voltage: 4.5~5.5V
- Color: 16.7M（16777216） colors
- LCD Type: IPS, TFT LCD
- Viewing Angle: Wide viewing angle, 85°/85°/85°/85° (L/R/U/D)
- Resolution: 320×240
- Type: CTP (Capacitive touch panel)
- Structure: G+G structure with surface cover of Asahi tempered glass
- Touch Mode: Support point touch and drag
- Surface Hardness: 6H
- Light Transmittance: Over 90%
- Life Over: 1,000,000 times touch
- Brightness: DMG32240C035_03WTC：300nit
- Working Temperature: -20℃~70℃
- Storage Temperature: -30℃~80℃
- Working Humidity: 10%~90%RH
- Working Temperature: -20℃~70℃ (5V @ 60% RH)
- Storage Temperature: -30~80℃
- Working Humidity: 10%~90%RH, typical value of 60% RH

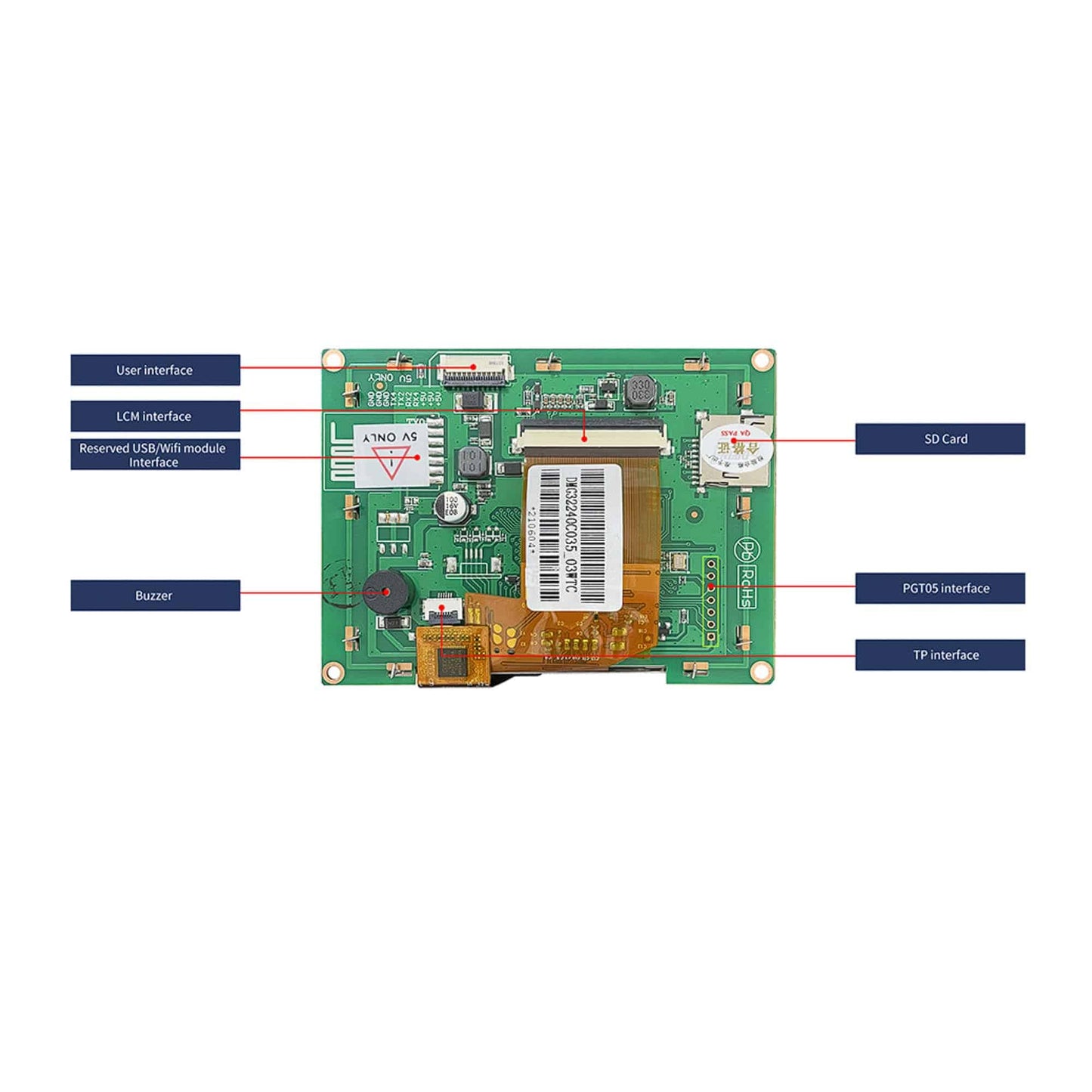

Features:
- DWIN 3.5inch HMI SMART LCD based onT5L ASIC, IPS-TFT-LCD,16.7M Colors, 24-bit, 320*240 pixel
- DWIN 3.5inch HMI SMART LCD has Capacitive touch screen
-
TTL/CMOS interface,10Pin_1.0mm
- Download via SD card or online serial port
-
3150~3225600bps, typical value of 115200bps
-
DWIN 3.5inch HMI SMART LCD Wide viewing angle: 85°/85°/85°/85°(L/R/U/D)
- Separate GUI and OS CPU, No code for GUI design. DWIN OS language or Keil C51 development mode for OS CPU
Package Included:
1 x DWIN 3.5inch HMI SMART LCD, Capacitive Touch, IPS TFT 320x240 300nit LCD Display (DMG32240C035_03WTC)
