Description:

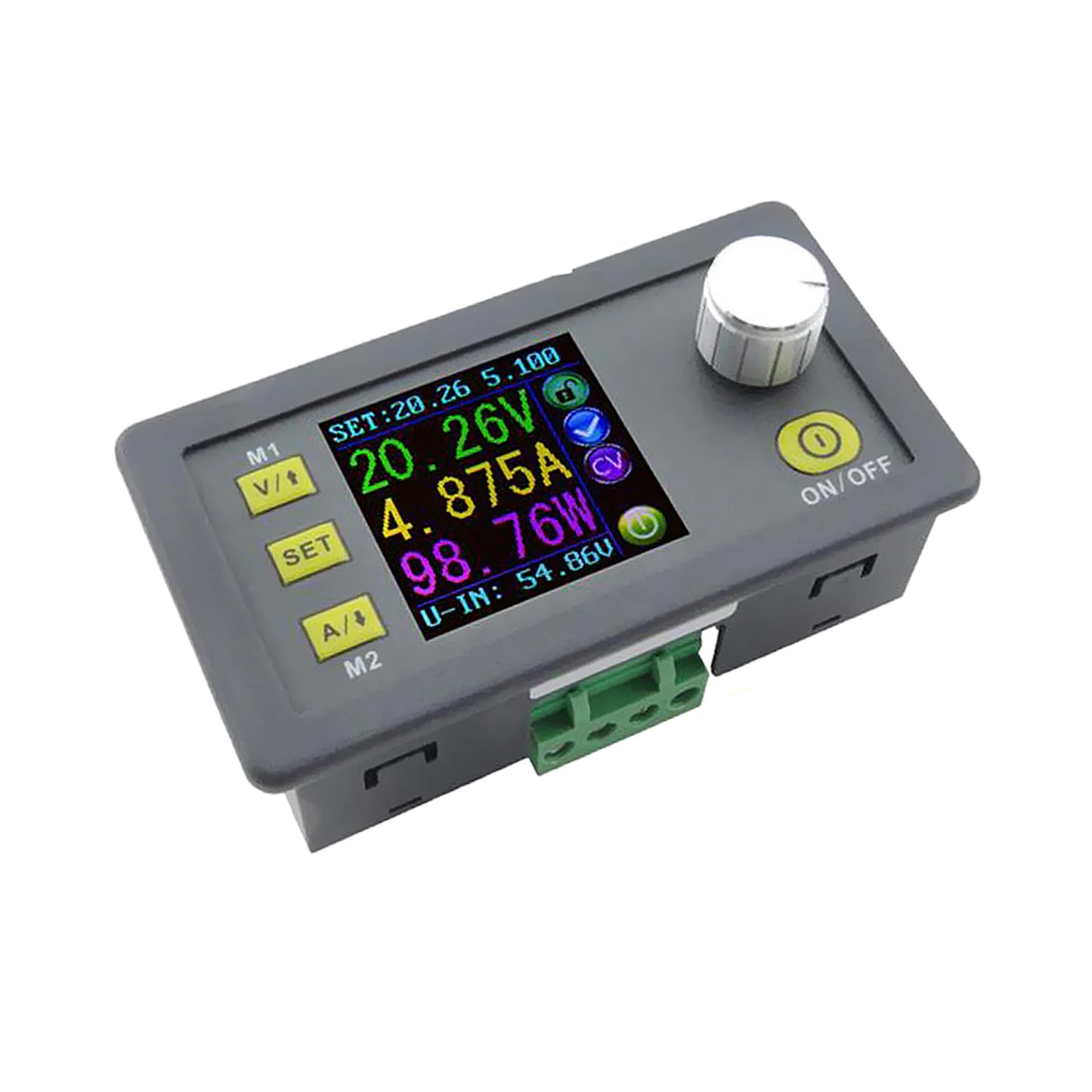

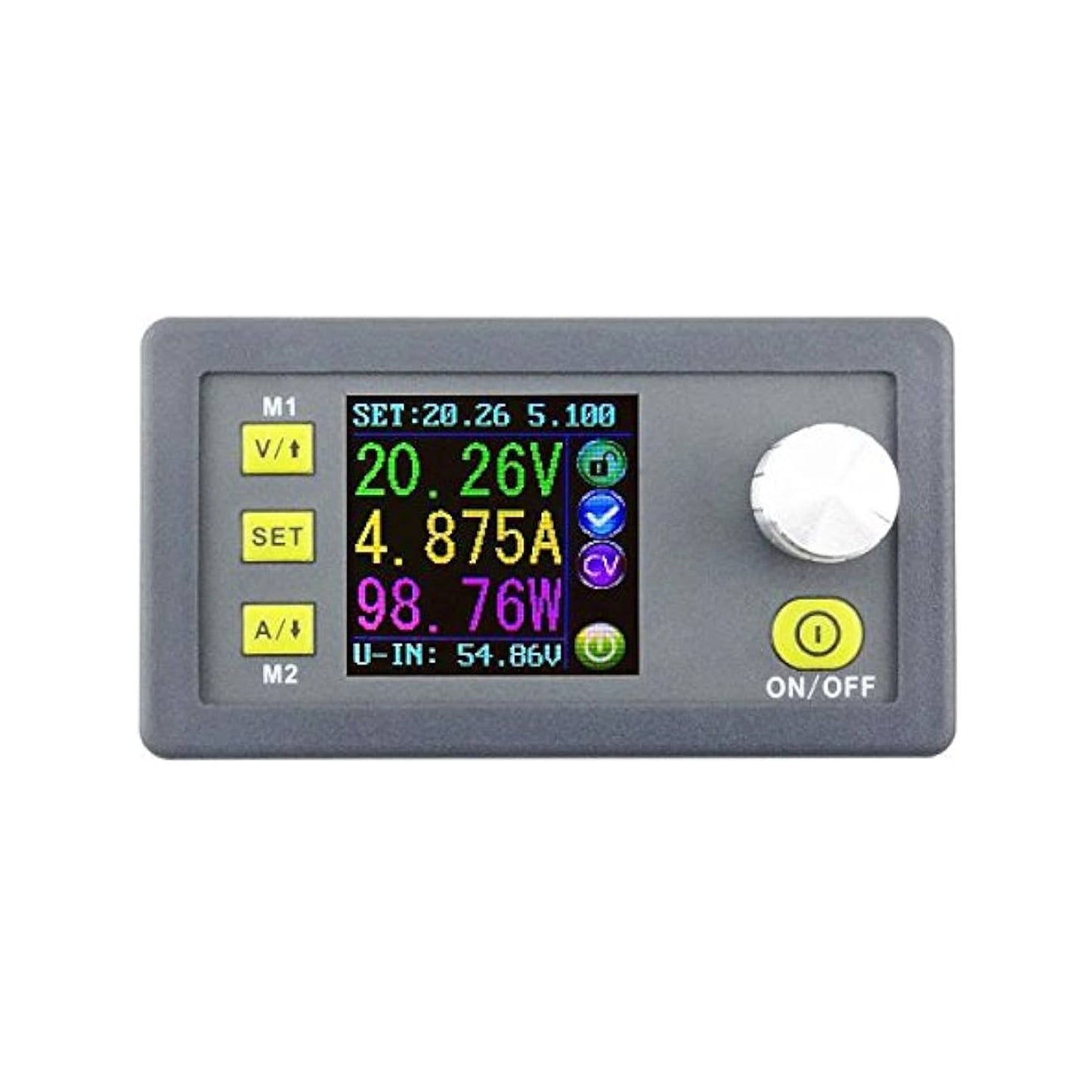

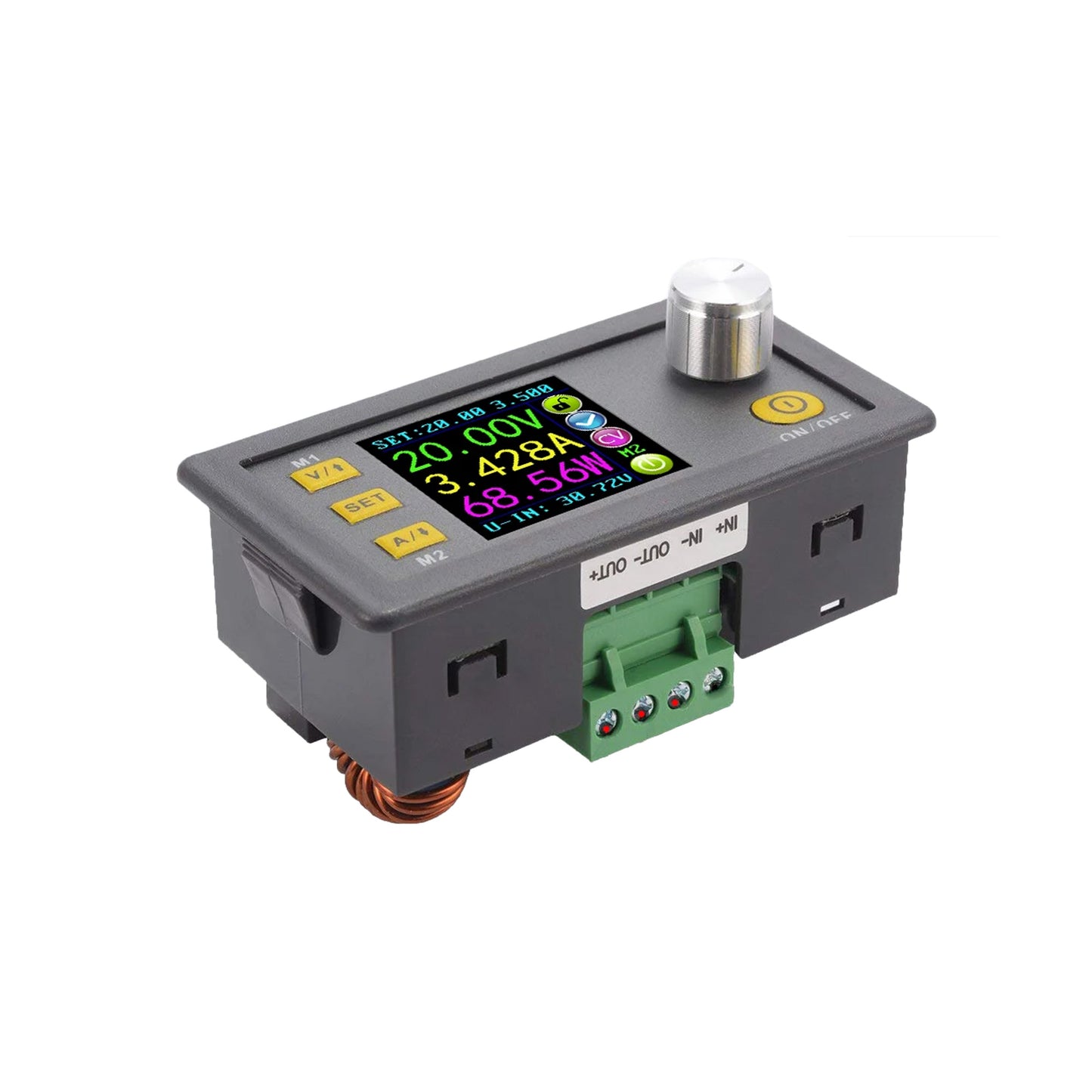

This is a DPS5005 50V 5A Buck Adjustable DC Constant Voltage Power Supply Module Integrated Voltmeter Ammeter With Color Display. Its adjustable output voltage range is 0-50.00V, step by 0.01V. Its adjustable output current range is 0-5.000A, step by 0.001A. This module has a power-down stored function and can store 10 groups' preset values. It also has the function of extracting quickly two groups of stored value. It has an LCD on the module that has the function of a digital voltmeter and ammeter. You can view the preset voltage, input voltage, output voltage, preset current, output current, output power, etc. On the output state reminder area, you can see whether the output opens or not, the state of constant voltage and constant current, output is normal or not, whether the key is locked or not, and the current data groups being used.
Specifications:
- Output voltage range: 0V-50.00V
- Output voltage resolution: 0.01V
- Output current: 0-5.000A.
- Output current resolution: 0.001A
- Output power range: 0-250.0W
- Output Voltage Accuracy: ± (0.5% + 1 digits)
- Output Current Accuracy: ± (0.5% + 2 digit)
Features:
- This module has power-down stored function and can store 10 groups' preset values. It also has the function of extracting quickly two groups of stored value.
- The LCD display on the module has the function of a digital voltmeter and ammeter. You can view the preset voltage, input voltage, output voltage, preset current, output current, output power, etc.
- On the output state reminder area, you can see whether the output opens, the state of constant voltage and constant current, output is normal or not, whether the key is locked or not, and the current data groups being used.
- On the setting data interface, you can adjust overvoltage value, overcurrent value, over-power value, data set and LCD brightness.
Package Included:
1 x DPS5005 50V 5A Buck Adjustable DC Constant Voltage Power Supply Module Integrated Voltmeter Ammeter With Color Display
