DJI NAZA-M Lite V1.1 with GPS Kit DJI NAZA Flight Controller Kit - RS4037

Description:

The DJI NAZA-M Lite V1.1 with GPS Kit is a simplified version, inheriting the high reliability and stability of the Naza M flight controller’s heritage. The Naza M Lite controller has an all-in-one design which means the installation is easy while saving space and weight. In the DJI NAZA-M Lite flight controller, you will find inner damping, a 3-axis gyroscope, a 3-axis accelerometer and a barometer. The DJI NAZA-M Lite measures flying altitude and attitude which is used for autopilot / automatic control for altitude hold, the GPS provides a position hold capability enjoyed on the Naza M V2 and DJI Wookong M flight controllers. The DJI NAZA-M Lite GPS is the most cost-effective solution to offer so much from the DJI Innovations line of flight controllers.

The DJI NAZA-M Lite v1.1 GPS offers three flight modes, GPS Atti. Mode, Atti. Mode and Manual Mode. The pilot can switch between these modes to achieve different flight characteristics. A new feature for the DJI NAZA-M Lite GPS is the automatic adjustment while in the flight of the flight modes, the DJI NAZA-M Lite v1.1 GPS will gently switch between GPS Atti. Mode and Atti. Mode to make sure the flight is safe and secure without user intervention.

Intelligent Orientation Control (IOC) means that no matter where the nose is pointing the forward direction is still the forward direction, and has nothing to do with the nose direction, there is no need to be concerned with the loss of orientation when using the IOC mode, the front will always be front, even when it’s back.

If you have a transmitter which supports failsafe features compatible with the DJI NAZA-M Lite, like the Futaba 8J, you can set the failsafe through port U on the flight controller. The DJI NAZA-M Lite controller has built in an auto level failsafe function, if the communication between Naza and the transmitter is lost, the outputs of all command sticks from the RC controller will default to the centre position, and the GPS module also allows you also set RTH (Return To Home) in the event of the failsafe being used. If your transmitter has only 4 channels, then MC will work in Atti—mode by default without the failsafe function.

The DJI NAZA-M Lite GPS also has outputs for use with a servo-operated gimbal. Adding a gimbal to the system is easy with an easy-to-follow setup and calibration procedure. Please note the Lite will not work with the DJI Zenmuse H3 3D Brushless Gimbal.

Specifications:

Features:

• All-in-One Design

• Advanced attitude stabilizes Algorithm

• Multiple flight control mode/intelligent switching
• Intelligent Orientation Control (IOC)
• Low voltage protection

• Motor Arm and Motor Dis-arm

• DJI NAZA-M Lite supports Futaba S-Bus and PPM receiver
• DJI NAZA-M Lite has a built-in Gimbal stabilization function

• Remote adjustment


Basic Performance:

• Supported Multi-Rotor: Quad-rotor I4, X4 / Hex-rotor I6, X6, IY6, Y6

• Supported ESC Output: 400Hz refresh frequency

• Recommended Transmitter: PCM or 2.4GHz with a minimum of 4 channels

• Working Voltage Range:MC:4.8V~5.5V; VU: 7.2V ~ 26.0 V (recommend 2S ~ 6S LiPo)

• Power Consumption: MAX1. 5W (0.3A@5V) Normal:0.6W (0.12A@5V)

• Operating Temperature: -10°C ~ 50°C

• Assistant Software System Requirement: Windows XP sp3 / Windows 7 / Windows 8


Flight Performance:

• Hovering Accuracy(GPS Mode): Vertical:±0.8m; Horizontal:±2.5m:

• Max Yaw Angular Velocity of 200°/s

• Max Tilt Angle: 45°

• Ascent / Descent: ±6m/s


Hardware:

• Built-In Functions: Three Modes Autopilot; Enhanced Fail-safe; Low Voltage Protection; S-Bus Receiver Support 2-axle Gimbal Support.

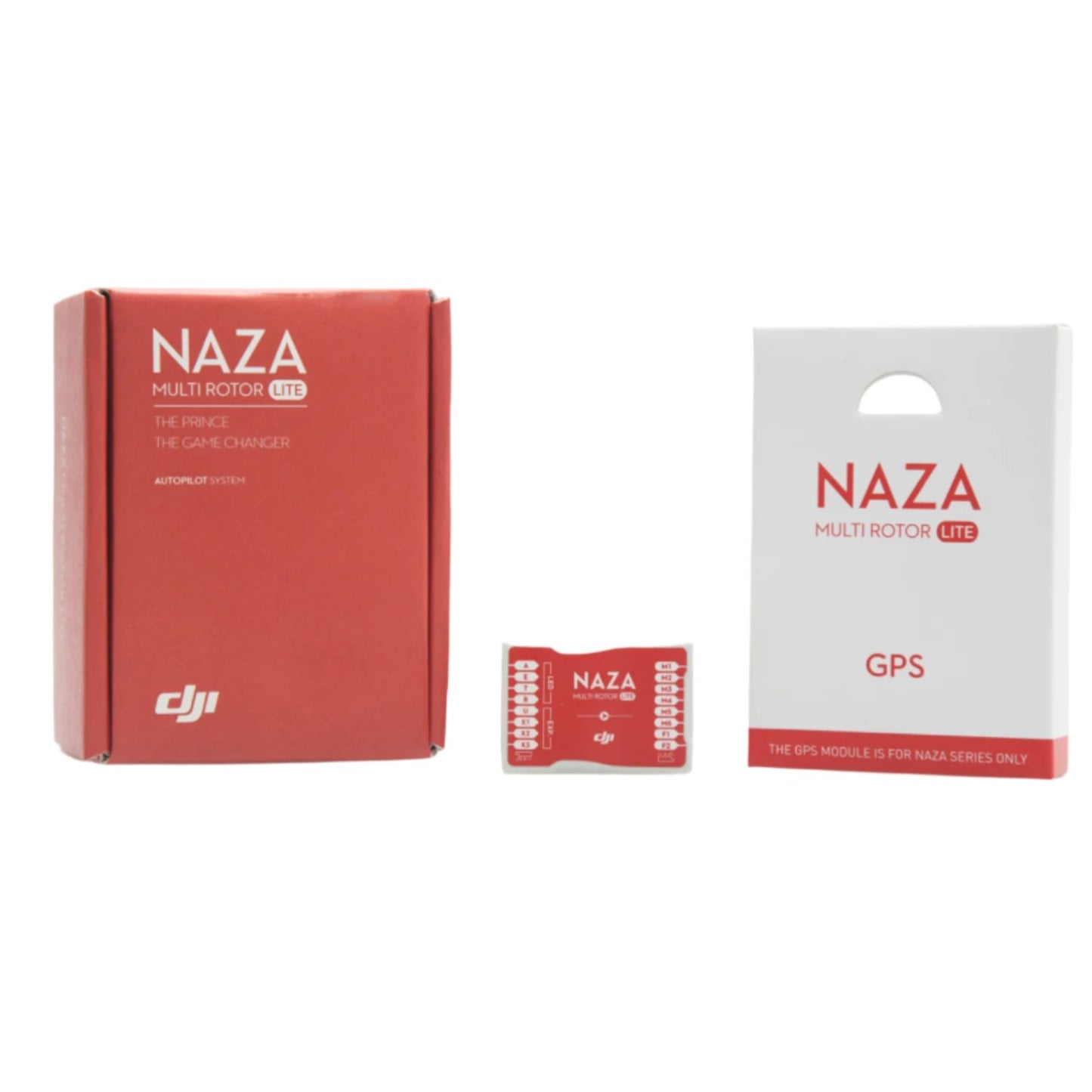

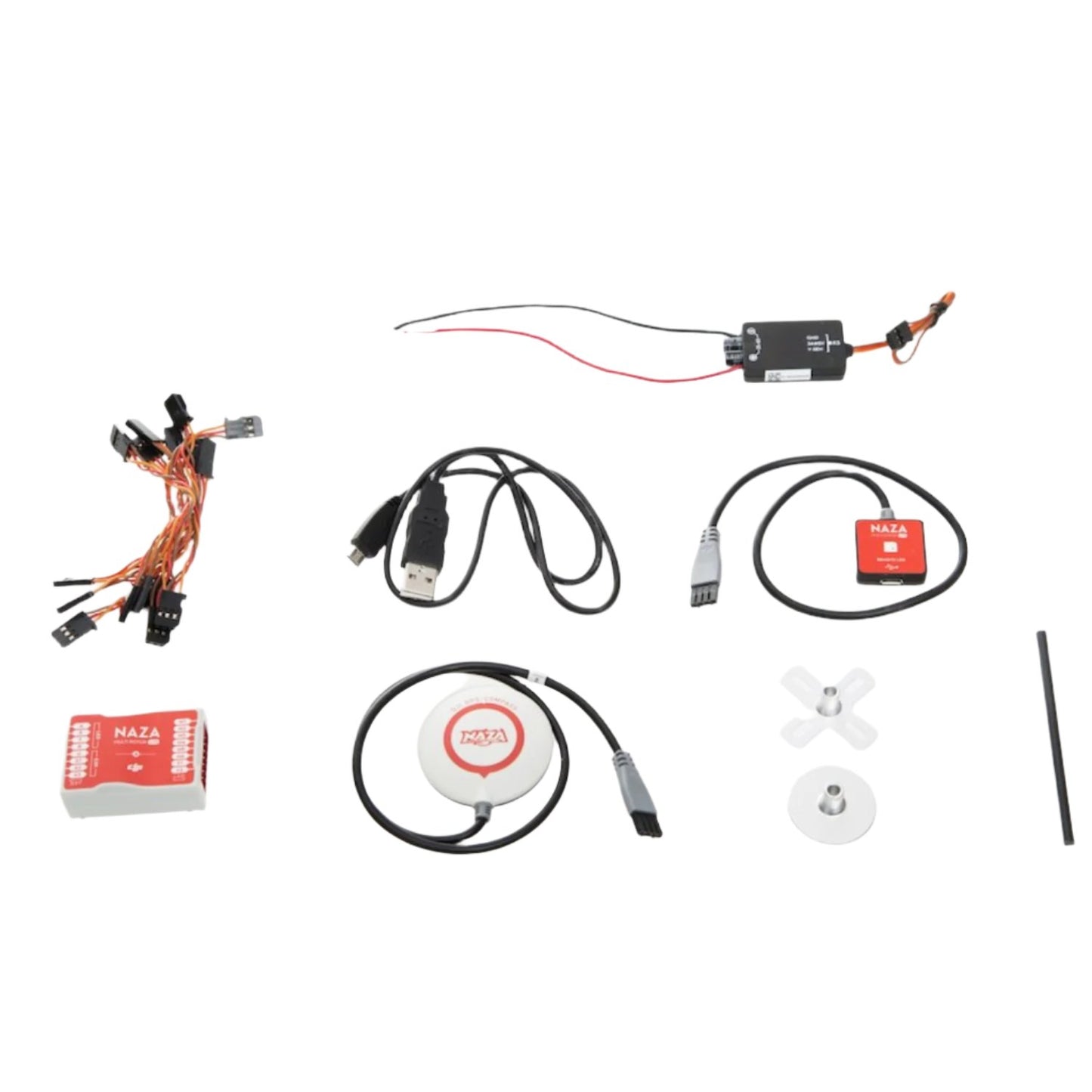

Package Included:

• 1 x DJI NAZA-M Lite Controller Unit

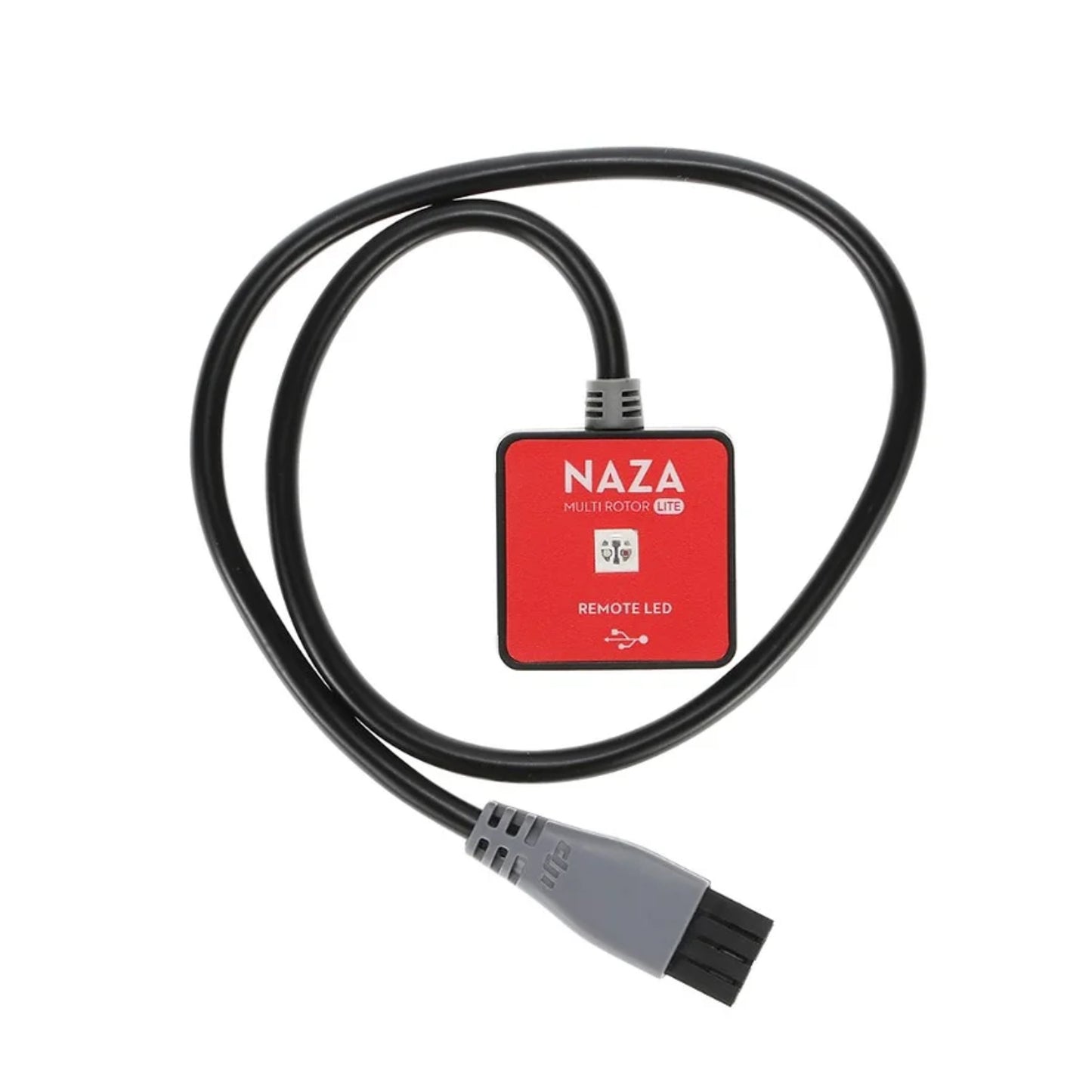

• 1 x DJI Remote LED module for Coding and Interfacing with PC

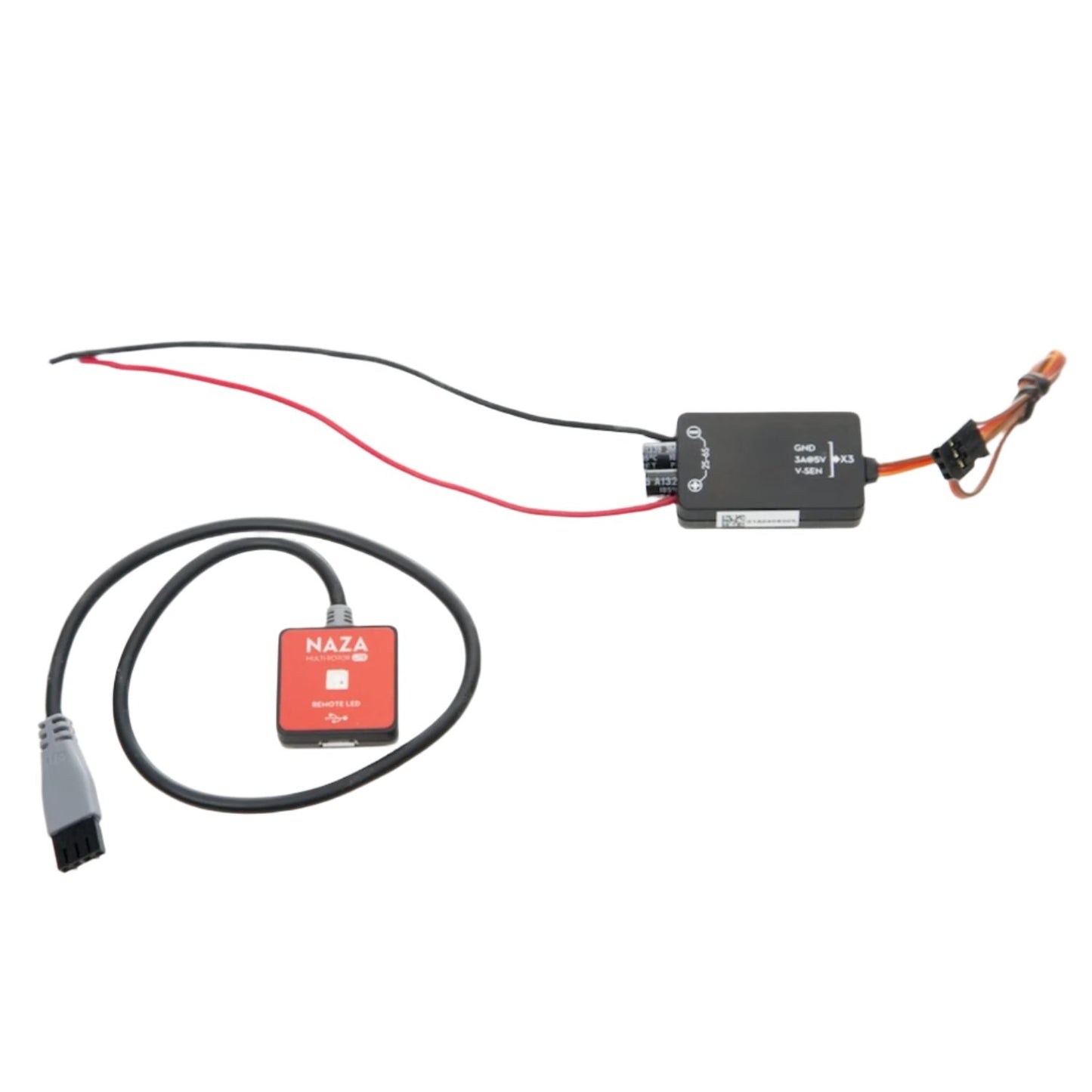

• 1 x DJI Power Module
• 1 x DJI USB to MicroUSB Cable (18 inches)

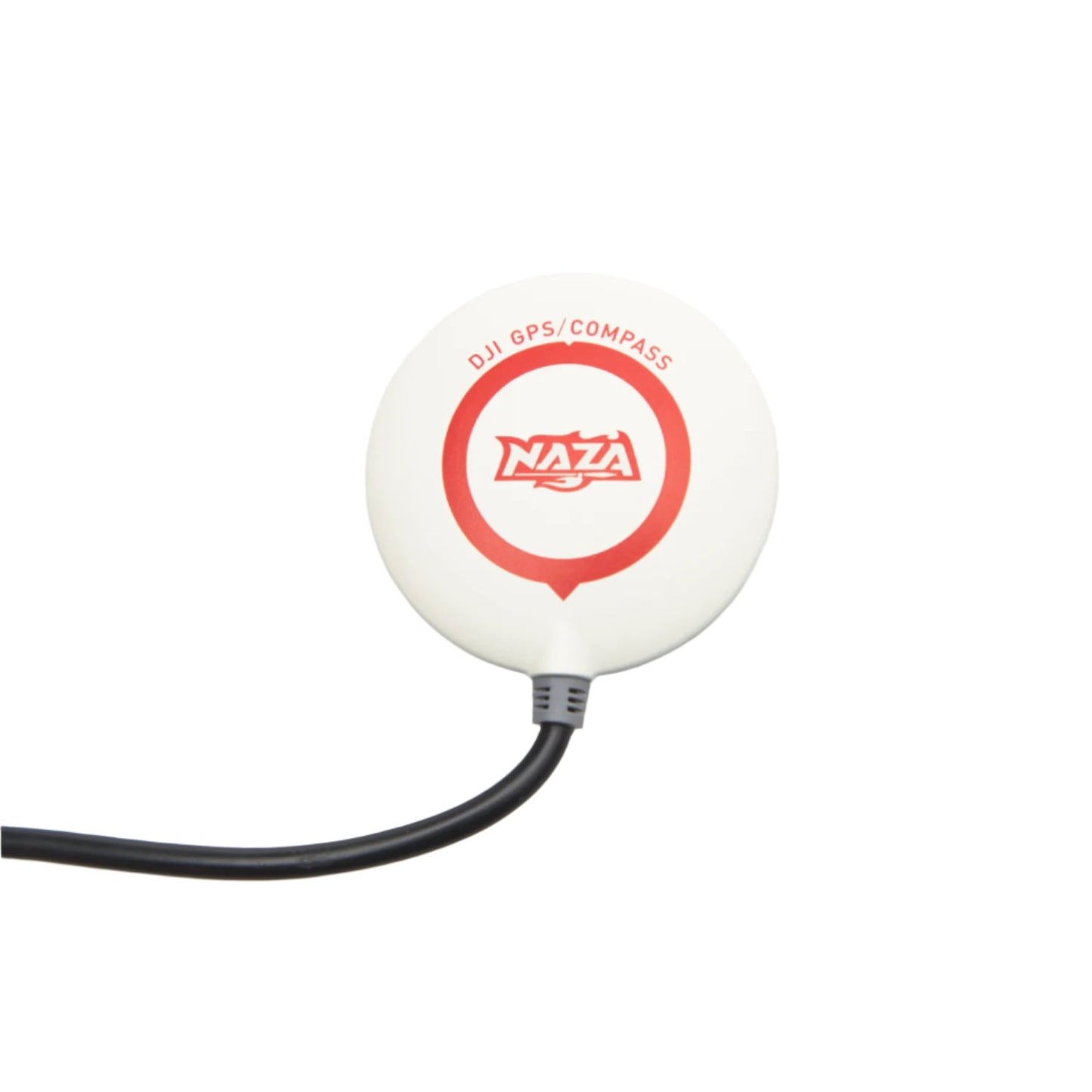

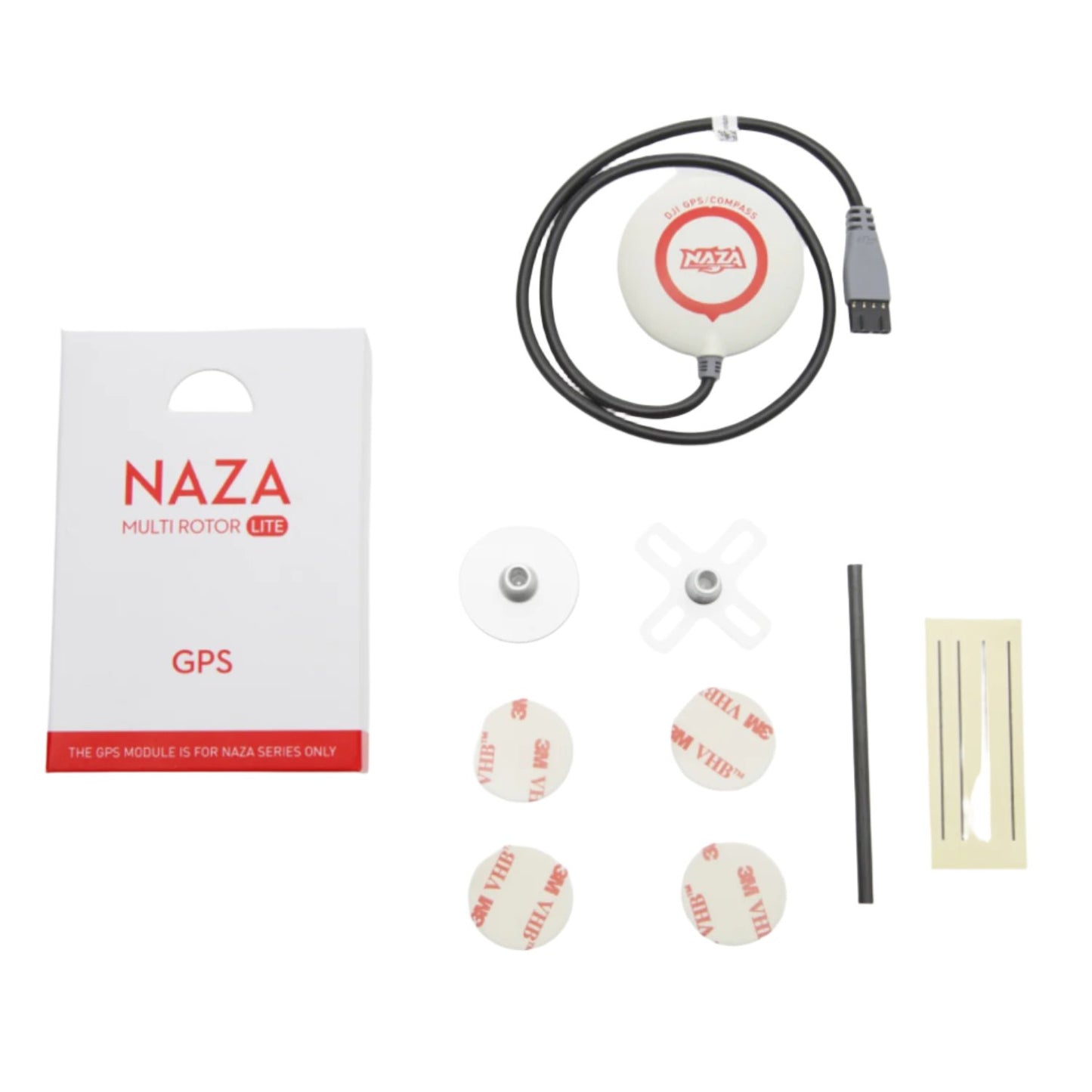

• 1 x GPS Module
• 1 x GPS Module Stand
• 8 x Servo Cables (5 Inches Each)
• 1 x Set of Precise Double sided tape
