Description:
DC-DC Buck Boost Converter Module is a non-isolated step-down and step-up, constant voltage module (CV) charging module. This is a Buck Boost Converter Module with an output voltage greater or less than the input voltage. Compared to linear regulators, DC/DC Buck Boost Converter Module is primarily focused on efficiency and can achieve efficiencies of over 95% when boosted, thus reducing power consumption.
Note: Output voltage and input voltage are independent. Because the switching frequency is low, when the input current is large the inductance will be some high-frequency noise, which does not affect the use.
Specification:
Boost Mode:- Input voltage: 3.5-28V
- Output voltage: 1.25-26V(Adjustable)
- Output voltage independent of input voltage (3.5V-28V input, any value output 1.25V-26V).
Buck Mode:
- Maximum input current 3A
- Maximum output 3A
- Input current: Rated current is 1A
- Output current: The rated current is 1A
Package Included:

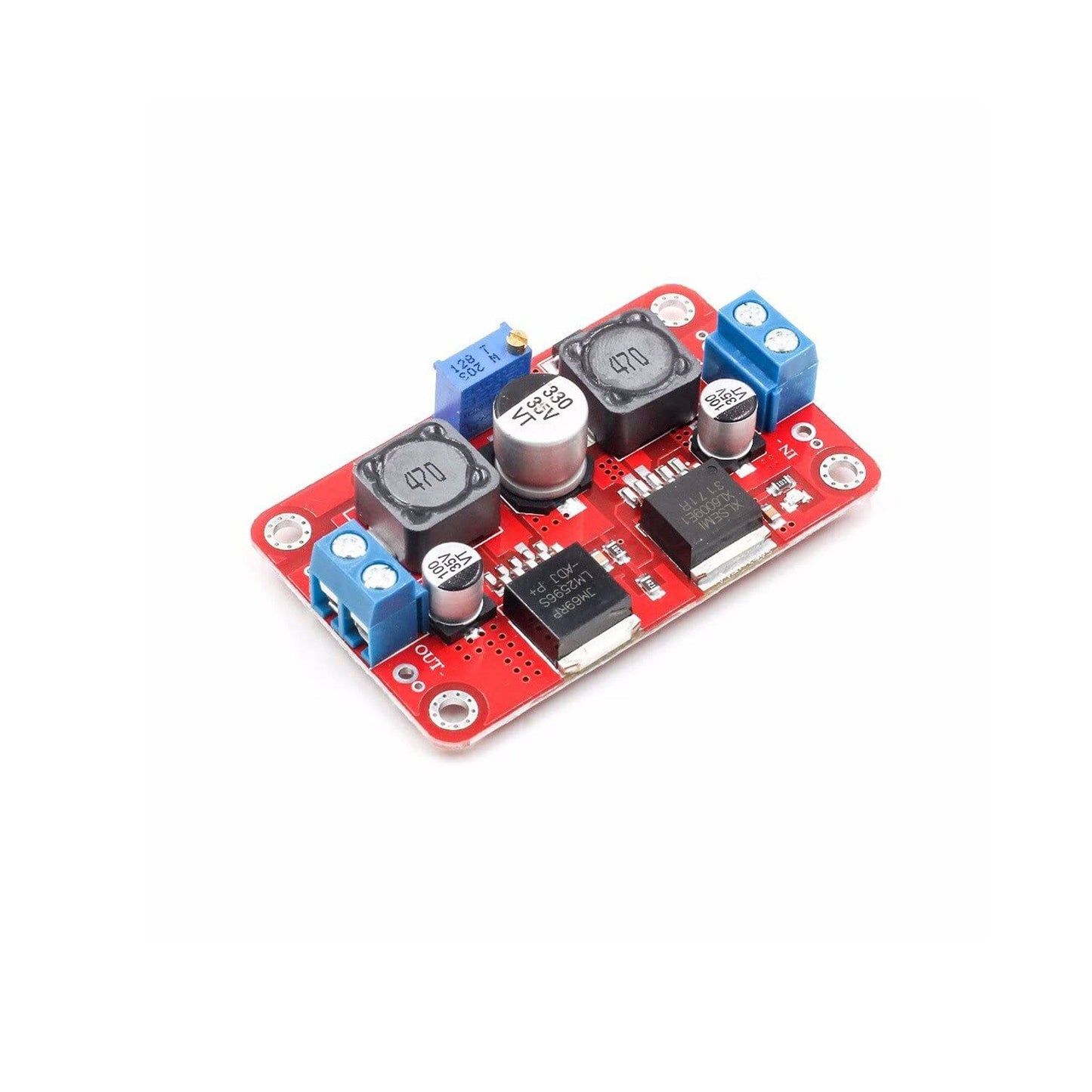

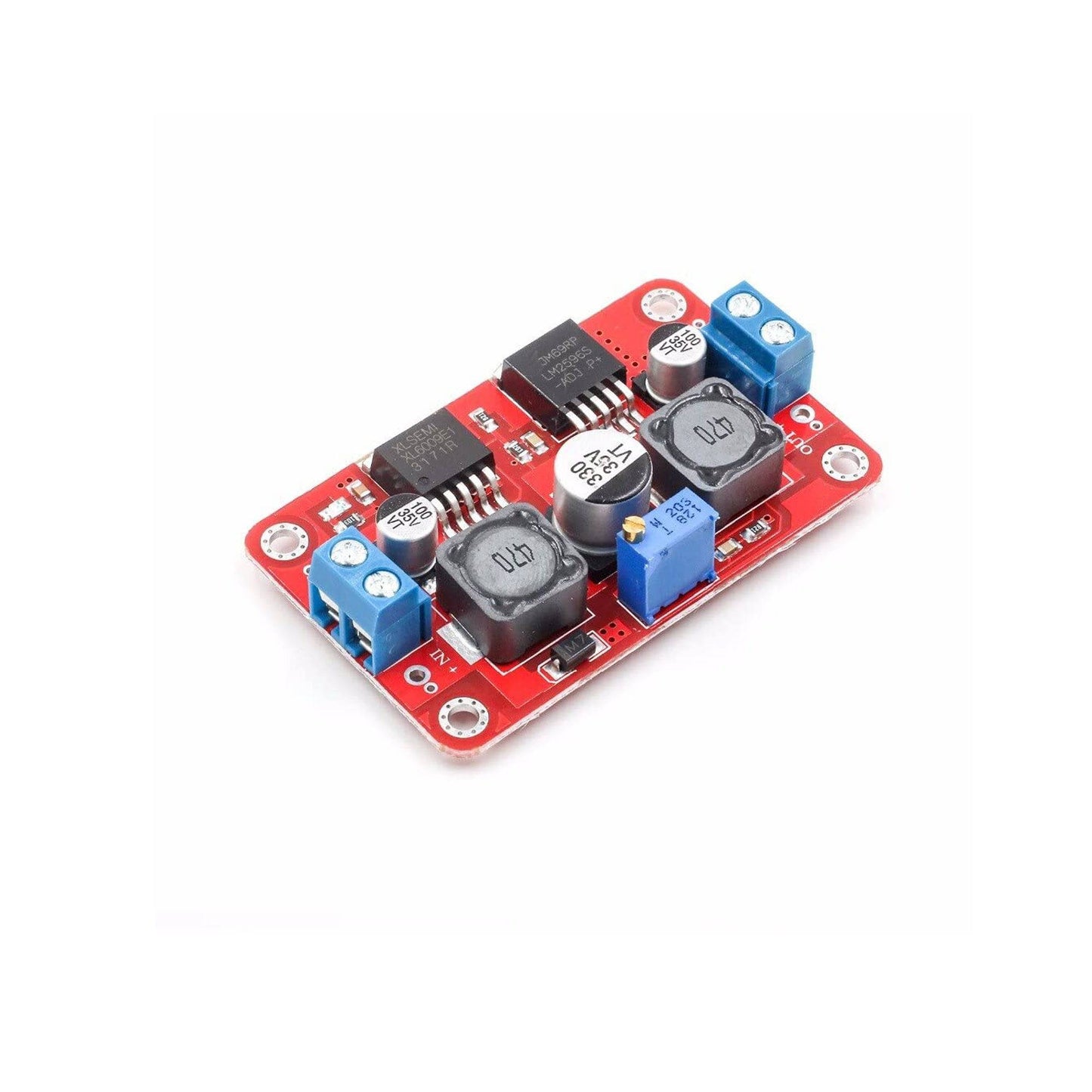

1 x DC-DC Buck Boost Converter Module Solar Energy Step Up and Step Down In 3.5-28V Out 1.25-26V Adjustable (XL6009 +LM2577S)
