Description:

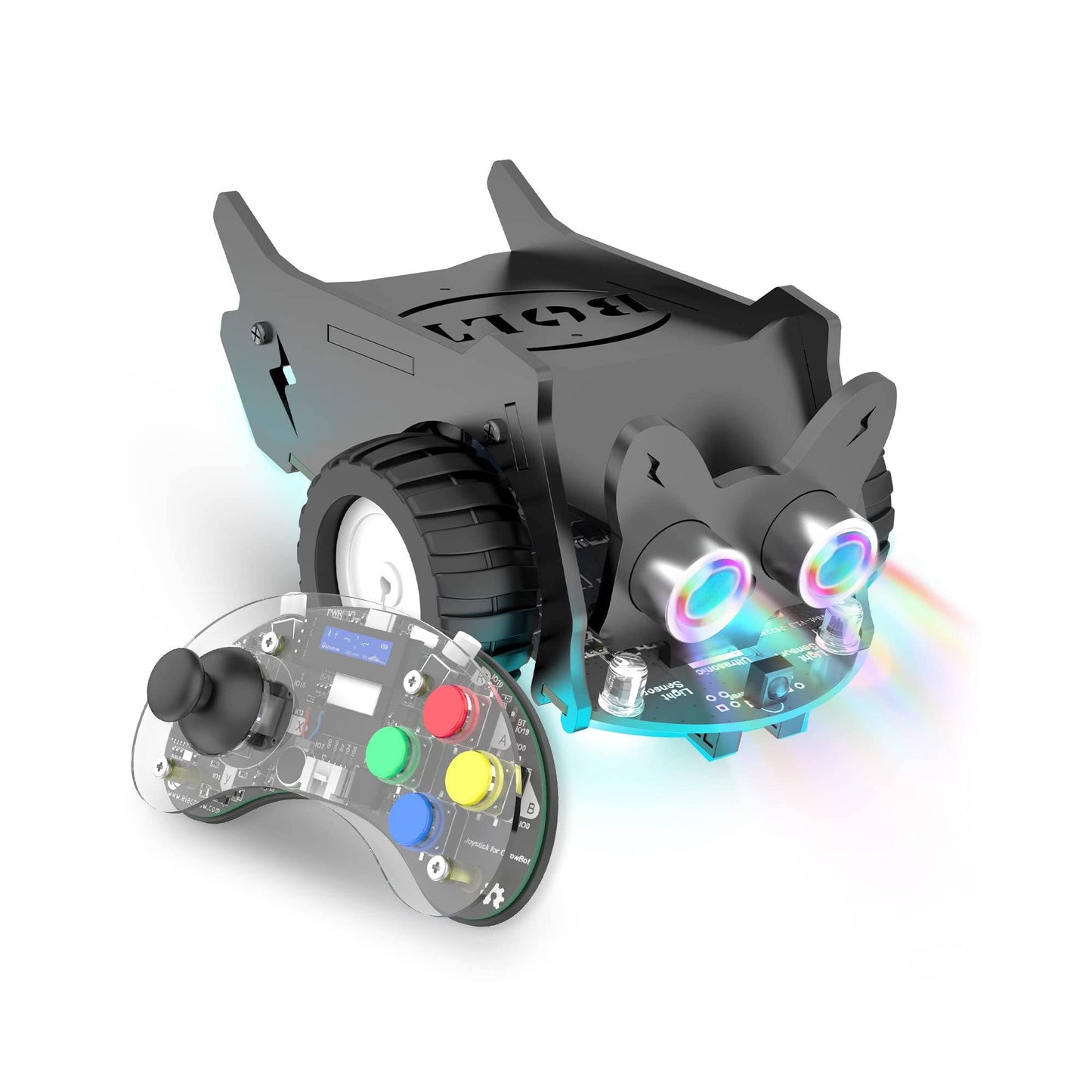

CrowBot BOLT is an open-source smart programming car powered by an ESP32 chip. CrowBot BOLT has a wealth of sensors(such as a light sensor, ultrasonic sensor, and line Tracking Sensor), comes with Wifi and Bluetooth functions, and can meet a variety of programming environments like Letscode, Micropython, and Arduino. CrowBot BOLT can quickly realize functions such as light tracking, line tracking, obstacle avoidance, remote control, and light show. As an entry-level STEAM educational robot, the cool and cute BOLT makes robot programming learning and teaching easy and fun. CrowBot BOLT comes with 16 lessons in three languages (Letscode, Arduino, MicroPython), provides rich graphical programming, and allows programming beginners to learn to program in the fun of creativity. CrowBot BOLT has reserved 2 expansion interfaces, which can be expanded and used with 150+ kinds of Crowtail modules. Unlimited creativity, waiting for you to discover!
Specifications:
|
Processor |
Esp32-Wrover-b（8MB） |
|
Programmatically |
Letscode, Arduino, Micropython |
|
Control method |
Bluetooth Remote Control/Infrared Remote Control |
|
Input |
Button, Light sensor, Infrared Receiving Module, Ultrasonic Sensor, Line Tracking Sensor |
|
Output |
Buzzer, Programmable RGB Light, Motor |
|
Wifi&Bluetooth |
Yes |
|
Light sensor |
Can realize the function of chasing light or avoiding light |
|
Ultrasonic Sensor |
When an obstacle is detected, the driving route of the car can be corrected to avoid the obstacle |
|
Line Tracking Sensor |
Can make the car move along the dark/black lines, intelligently judge and correct the driving path |
|
Buzzer |
Can make the car sound/whistle, bringing a more direct sensory experience |
|
Programmable RGB Light |
Through programming, it can show colourful lights in different scenes |
|
Infrared receiver |
Receive infrared remote control signals to realize remote control |
|
Interface |
Type c x1, I2C port x1, A/D port x1 |
|
Motor type |
GA12-N20 Micro DC Gear Motor |
|
Work Temperature |
-10℃~+55℃ |
|
Power supply |
1.5V dry batteries x4 (Battery not included) |
|
Battery life |
1.5 hour |
|
Dimension |
128*92*64mm |
Features:
- CrowBot BOLT have 16 lessons in three languages（Letscode, Arduino, Micropython）, fast learning and fun experiments.
- CrowBot BOLT is compatible with Arduino, MicroPython development environment, using
- Letscode graphical programming, easy to use.
- CrowBot BOLT has strong scalability, with a variety of interfaces, can be expanded and used with Crowtail modules.

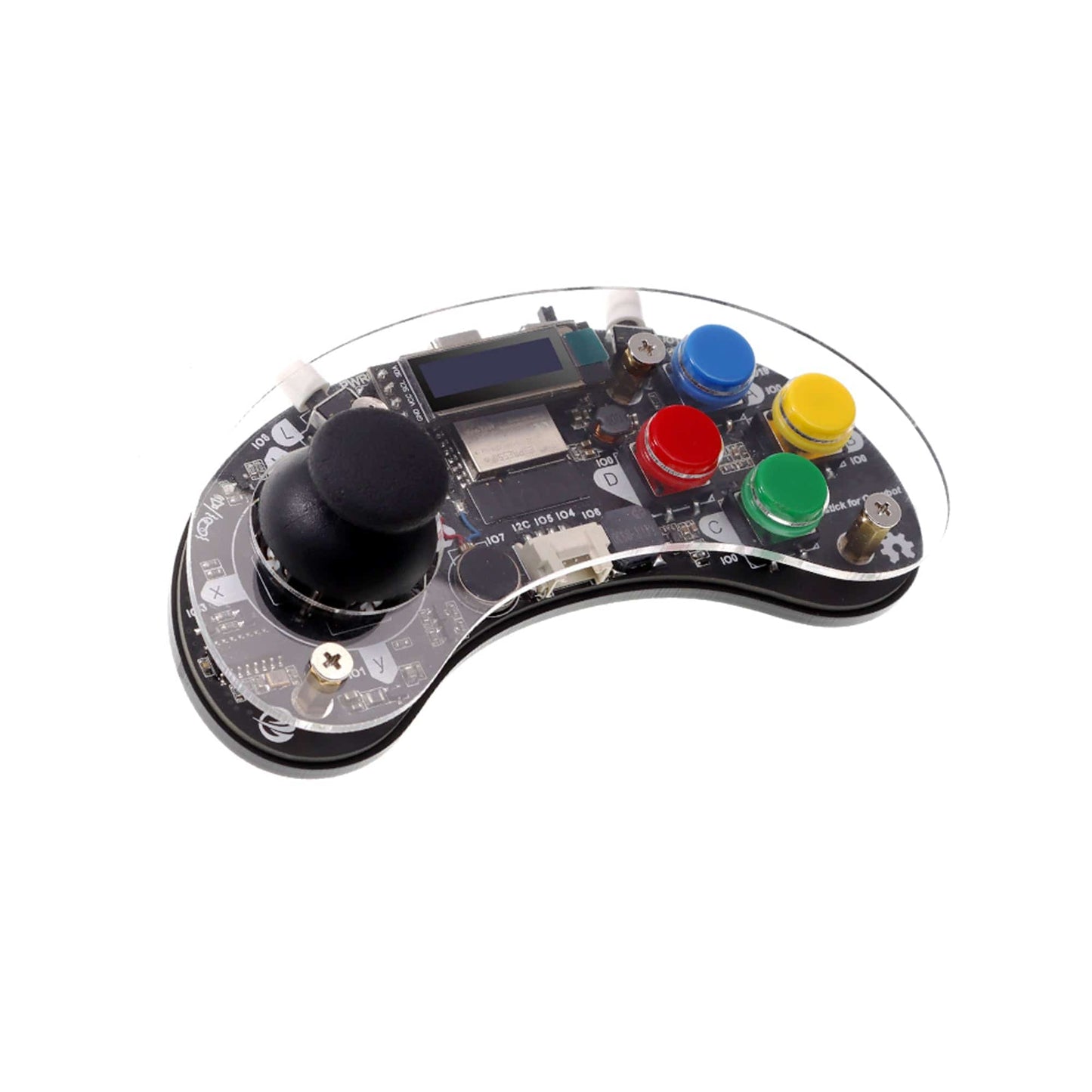

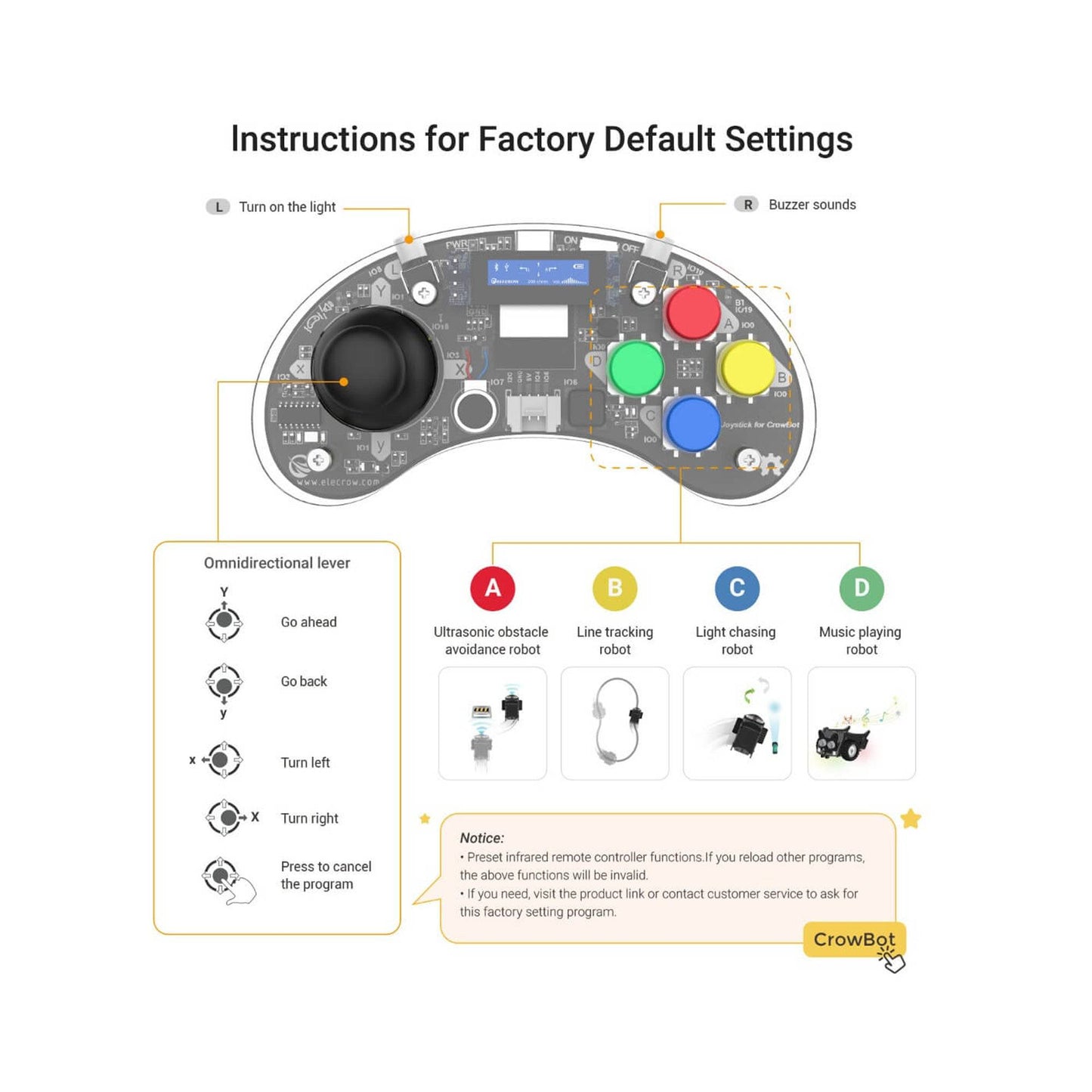

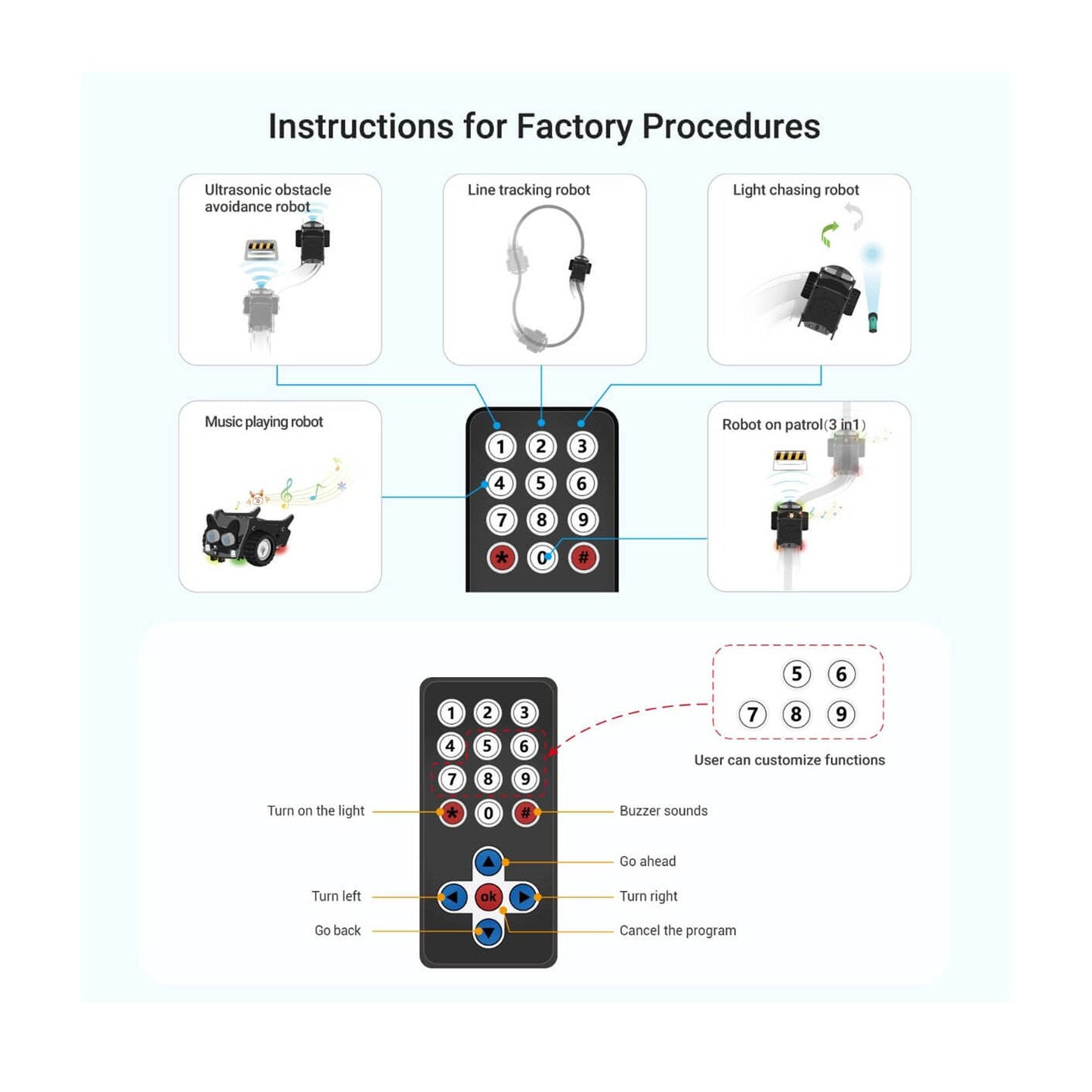

- A variety of remote control modes, you can use the infrared remote control and joystick to control the car.
