Description:

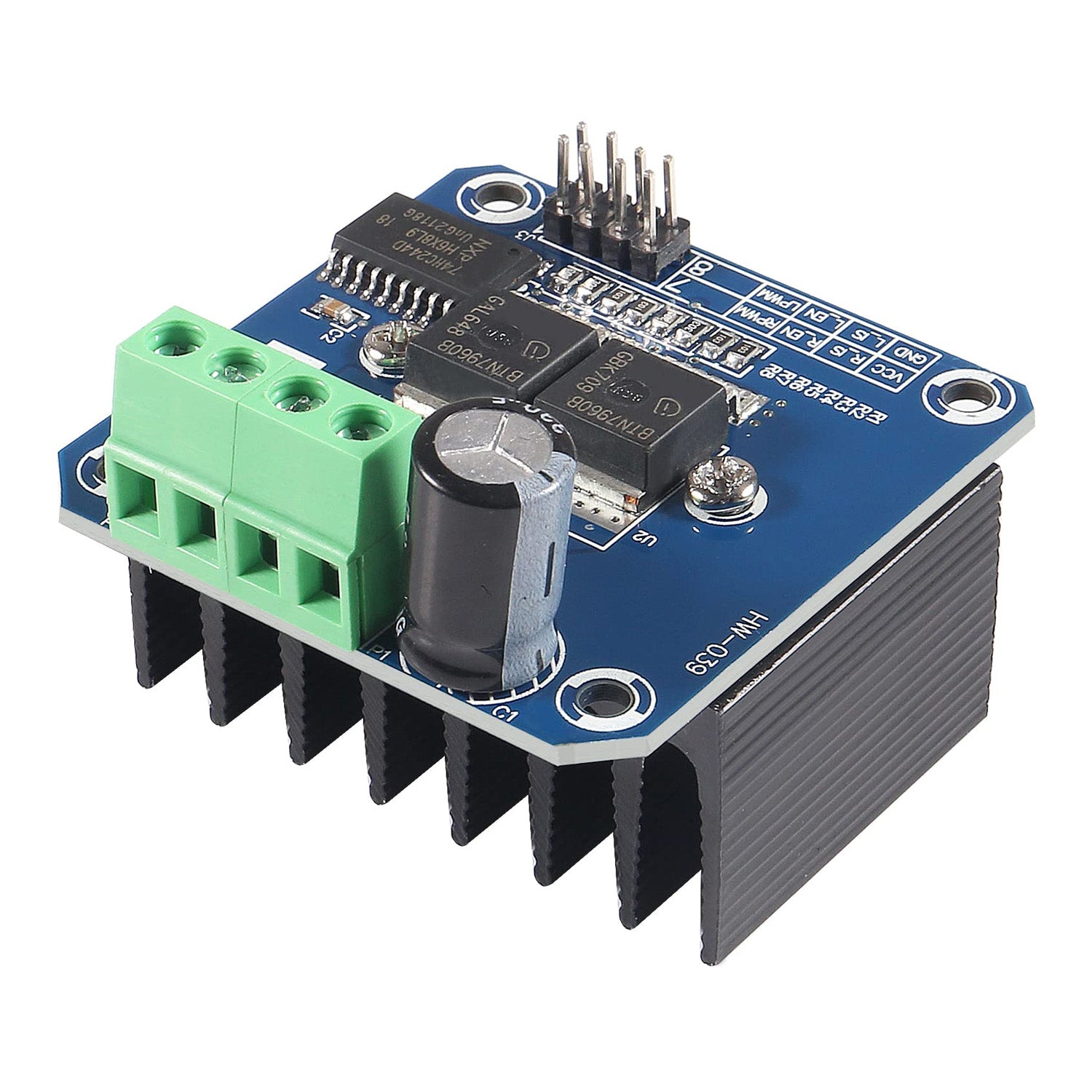

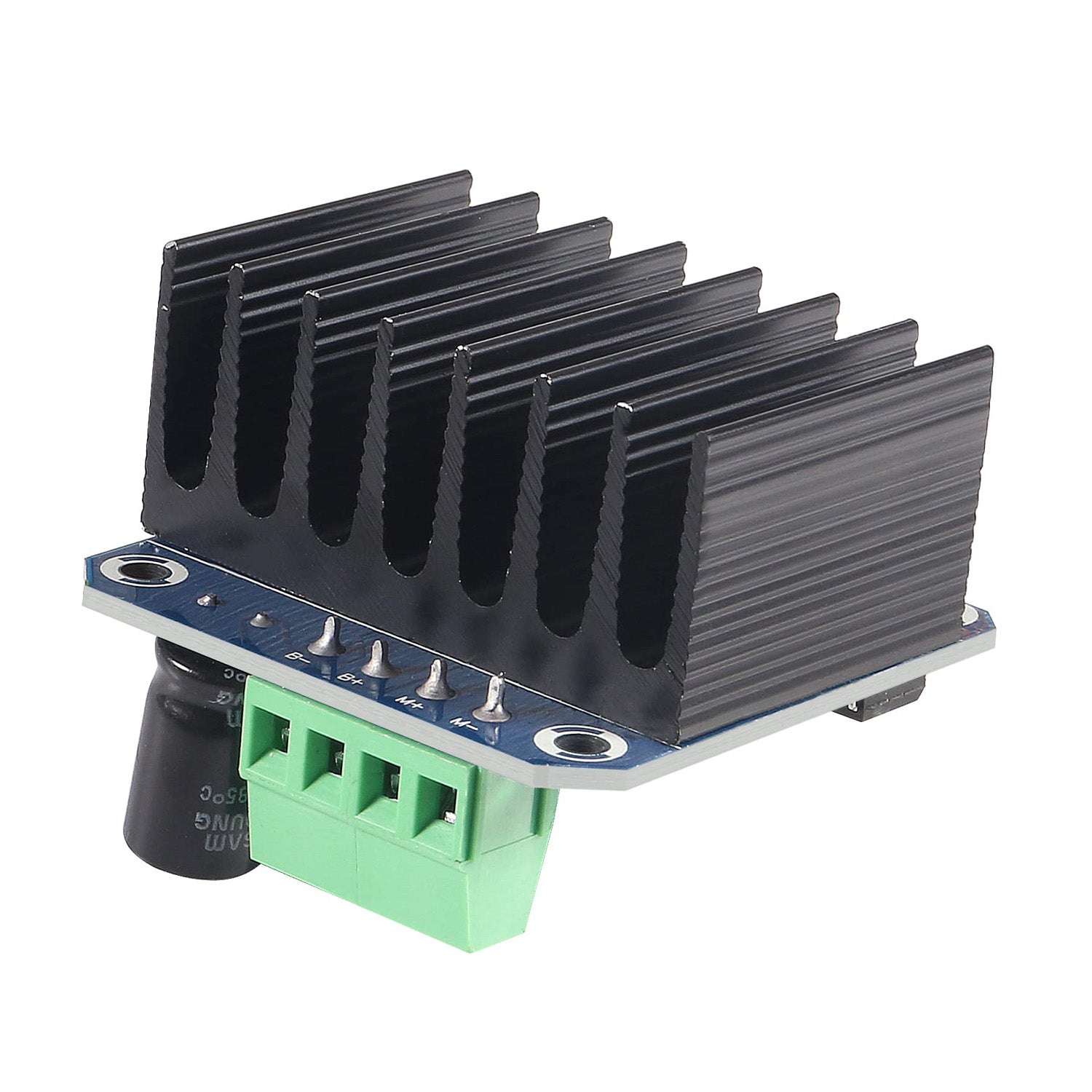

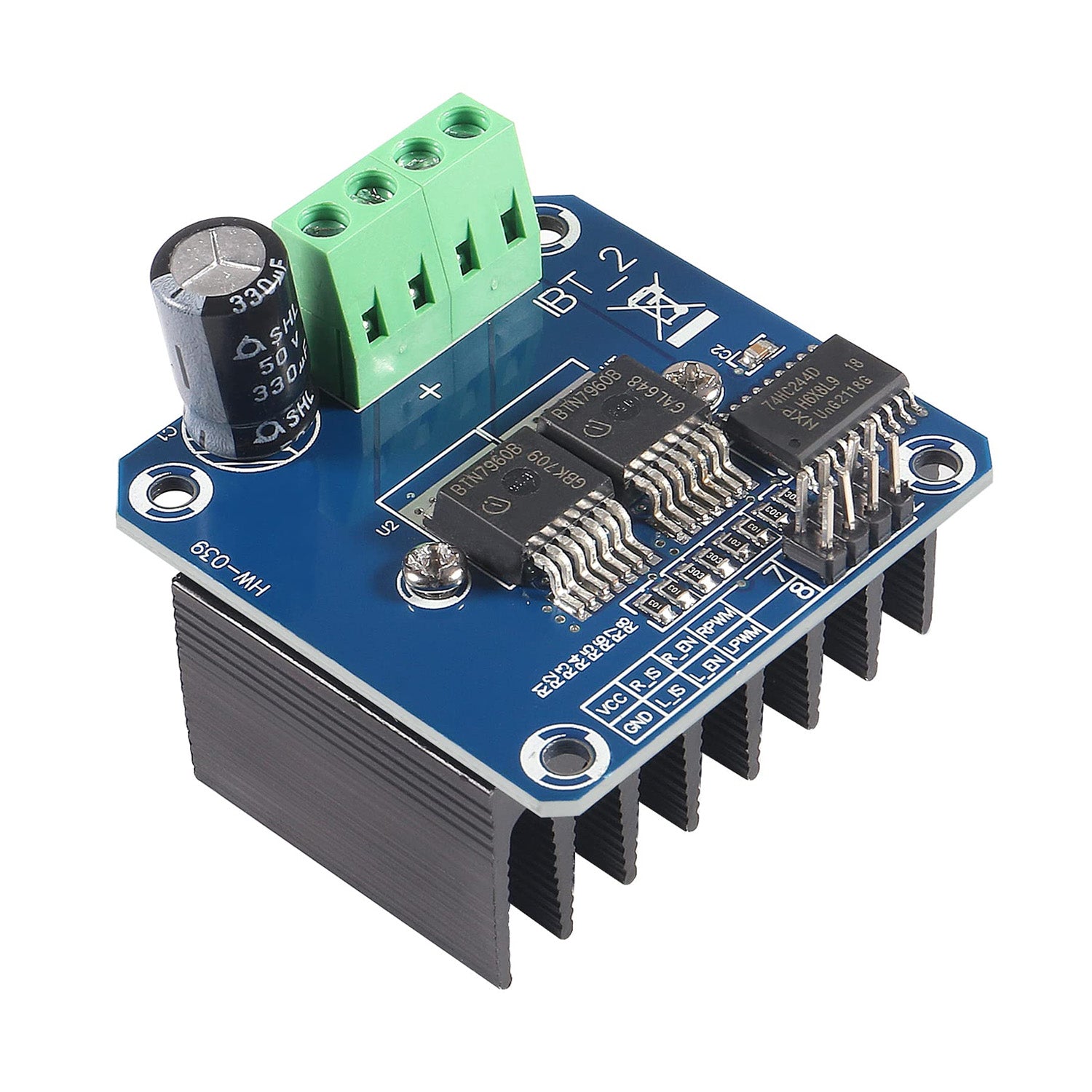

The BTS7960 Driver Module is a fully integrated high current H bridge for motor drive applications using the BTS7960 high current half bridge. the BTS7960 is part of the NovalithI CTM family. BTS7960 Driver Module contains one p-channel high-side MOSFET and one n-channel low-side MOSFET; with an integrated driver IC in one package. Due to the p-channel high-side switch; the need for a charge pump is eliminated thus minimizing EMI.
Interfacing to a microcontroller is made easy by the integrated driver IC which features logic level inputs; diagnosis with current sense, slew rate adjustment; dead time generation and protection against overtemperature, overvoltage, under voltage; overcurrent, and short circuit.
The Double BTS7960 Driver Module provides a cost-optimized solution for protected high-current PWM motor drives with very low board space consumption.
Note: HW-039 on board working remains the same.
Specifications:
| Maximum Current |
43A |
| Input Level |
3.3 – 5V |
| Duty Cycle |
0 – 100% |
| Path Resistance |
16 mΩ at 25°C |
| Low Quiescent Current |
7 µA at 25°C |
| Operating Frequency |
25 KHz |
Features:
- PWM capability of up to 25 kHz combined with active freewheeling.
- Status flag diagnosis with current sense capability.
- Switched mode current limitation for reduced power dissipation in overcurrent.
- Overtemperature shut down with latch behaviour.
- BTS7960 Driver Module has an overvoltage lockout.
- BTS7960 Driver Module has an under-voltage shutdown.
- Driver circuit with logic level inputs.
- BTS7960 Driver Module has adjustable slew rates for optimized EMI.
- 74AHC244 Schmitt-trigger Octal buffer/line driver for ESD protection (Inputs accept voltages higher than VCC).

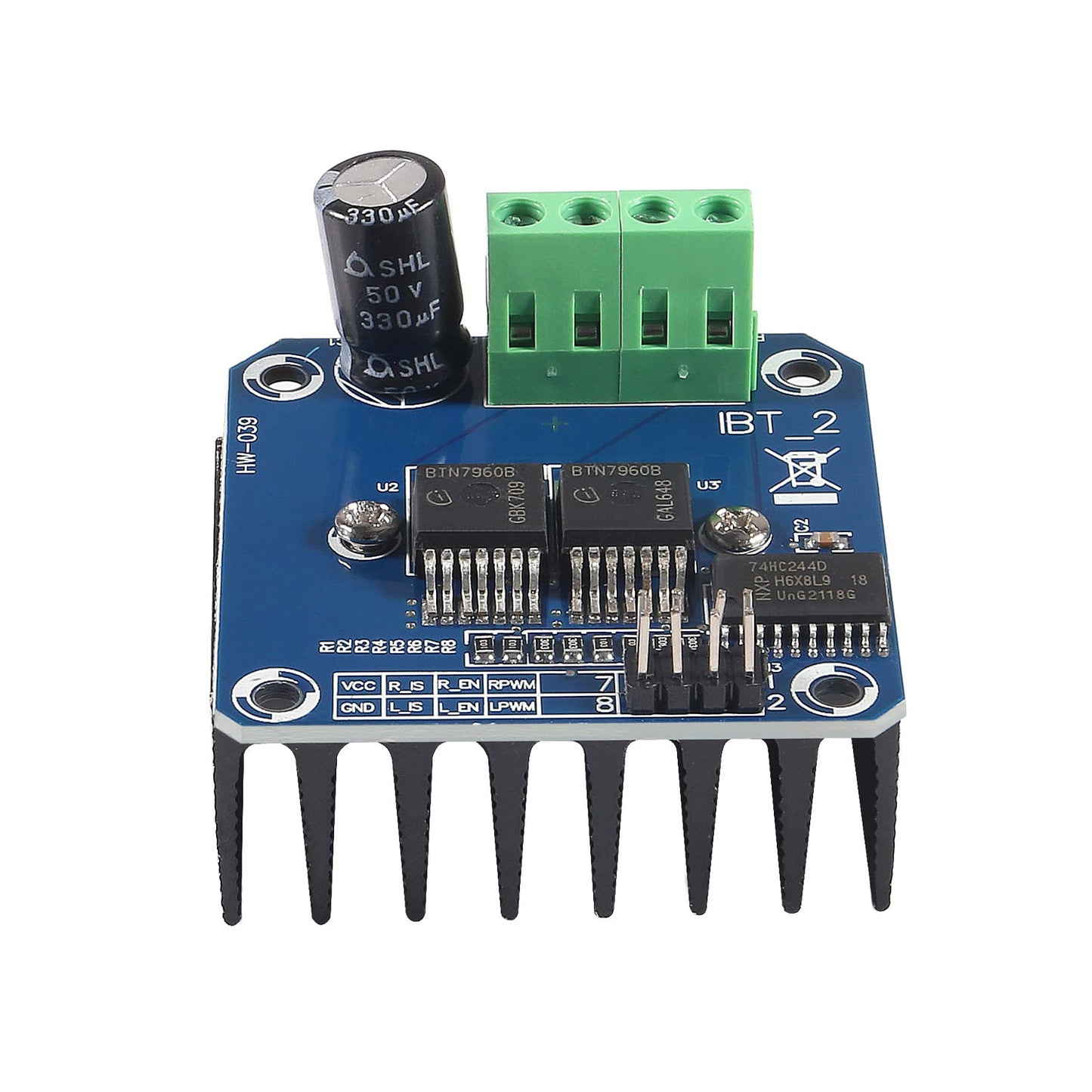

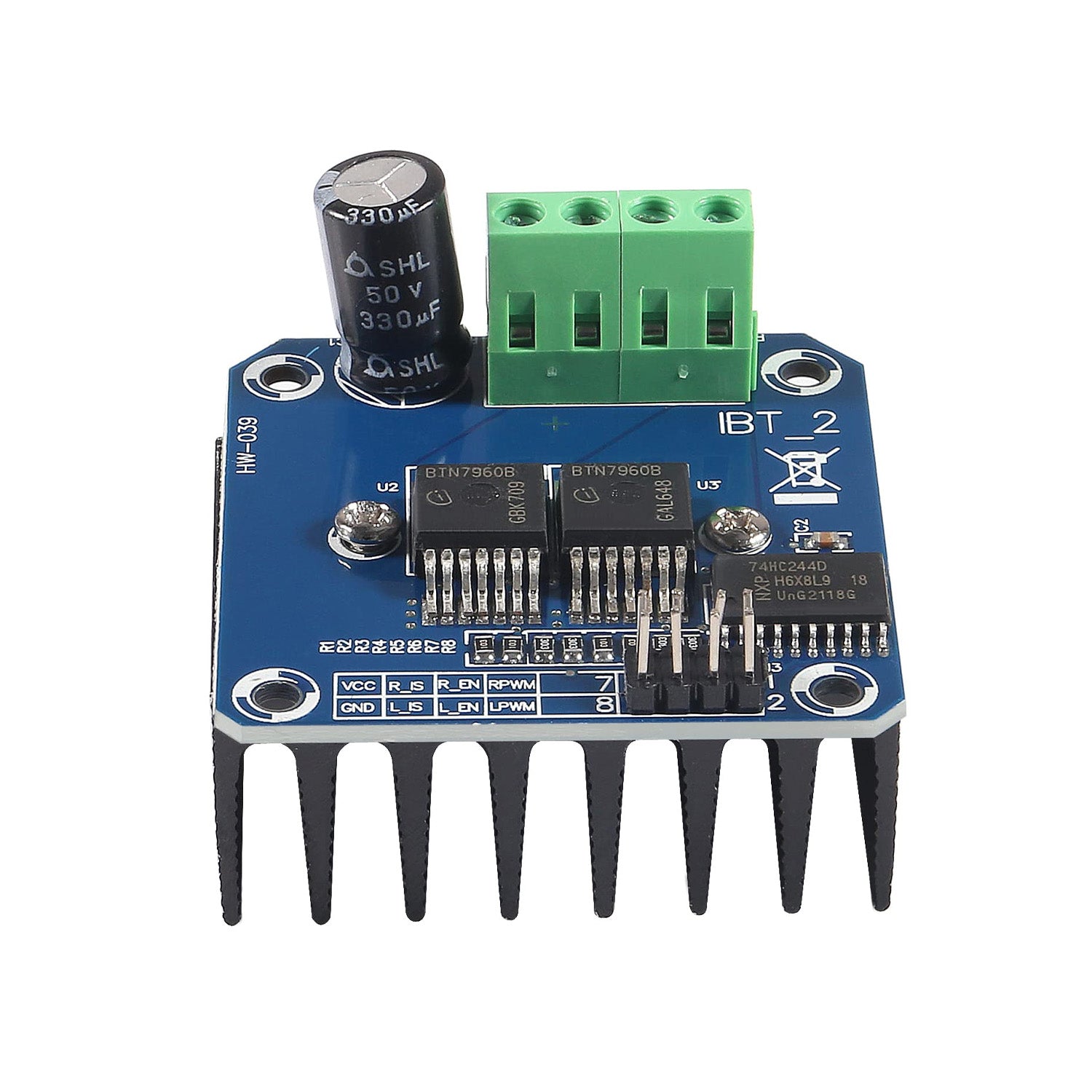

Pin Description:
- RPWM: Forward level or PWM signal input, active high.
- LPWM: Reverse level or PWM signal input, active high.
- R_EN: Forward drive enable input, high-level enable, low-level off.
- L_EN: Reverse drive enable input, high-level enable, low-level off.
- R_IS: Forward drive current alarm output.
- L_IS: Reverse drive current alarm output.
- VCC: +5 V power output, 5V power supply connection with the microcontroller.
- GND: Signal the common low end.
Package Included:

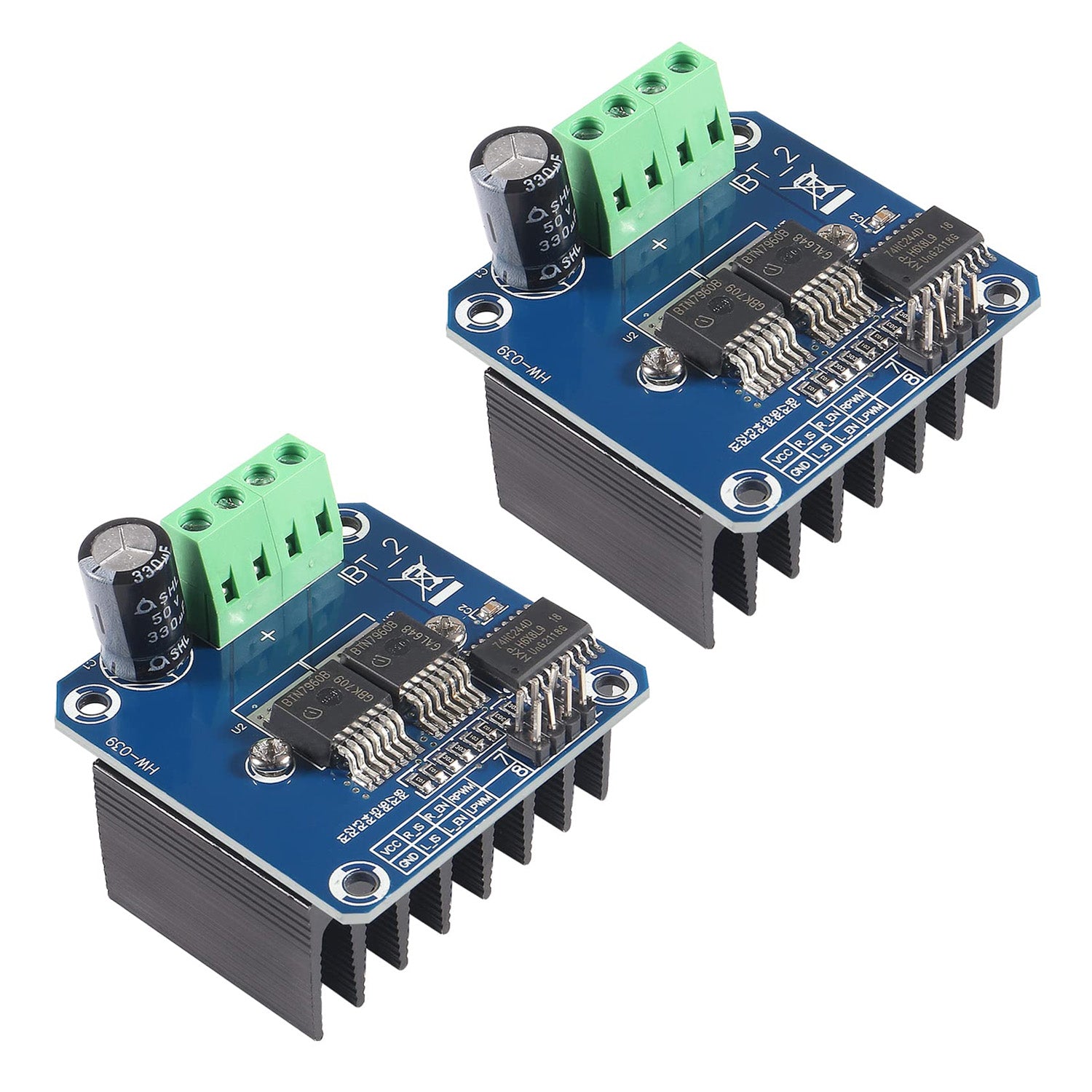

1 x BTS7960 Driver Module Double BTS7960 43A H-Bridge High-Power Stepper Motor Driver Module
