Description:

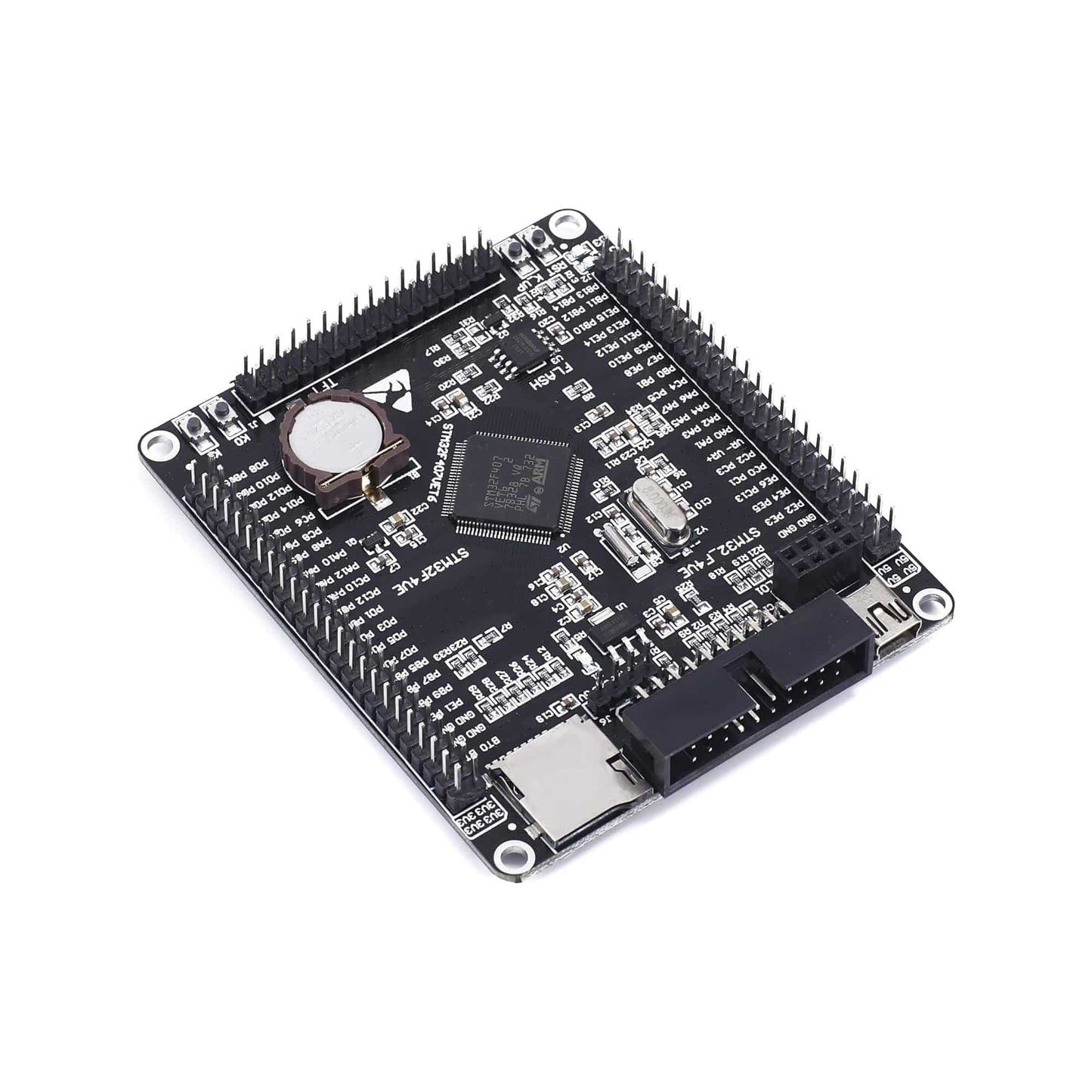

The STM32F405xx and STM32F407xx family is based on the high-performance ArmCortex-M4 32-bit RISC core operating at a frequency of up to 168 MHz. The Cortex-M4 core features a Floating point unit (FPU) single precision which supports all Arm single-precision data-processing instructions and data types. ARM Microcontroller STM32F407VET6 also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.
The STM32F405xx and STM32F407xx family incorporates high-speed embedded memories (Flash memory up to 1 Mbyte, up to 192 Kbytes of SRAM), up to 4 Kbytes of backup SRAM, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, three AHB buses, and a 32-bit multi-AHB bus matrix.
All devices offer three 12-bit ADCs, two DACs, a low-power RTC, twelve general-purpose 16-bit timers including two PWM timers for motor control, and two general-purpose 32-bit timers. a true random number generator (RNG). They also feature standard and advanced communication interfaces.
Specifications:
| Model |
STM32F407VET6 |
| Core |
ARM 32 Cortex M4 CPU |
| Debug Mode |
SWD |
| Number of I/O |
140 |
| Memory |
192+4 Kbytes SRAM |
| D/A Converters |
2 x 12-bit |
| Timer |
17 |
Features:
- Core: Ar 32-bit Cortex-M4 CPU with FPU
- LCD parallel interface, 8080/6800 modes
- Low-power operation
- 312-bit, 2.4 MSPS A/D converters
- 212-bit D/A converters
- General-purpose DMA
- Up to 17 timers
- Up to 140 I/O ports with interrupt capability

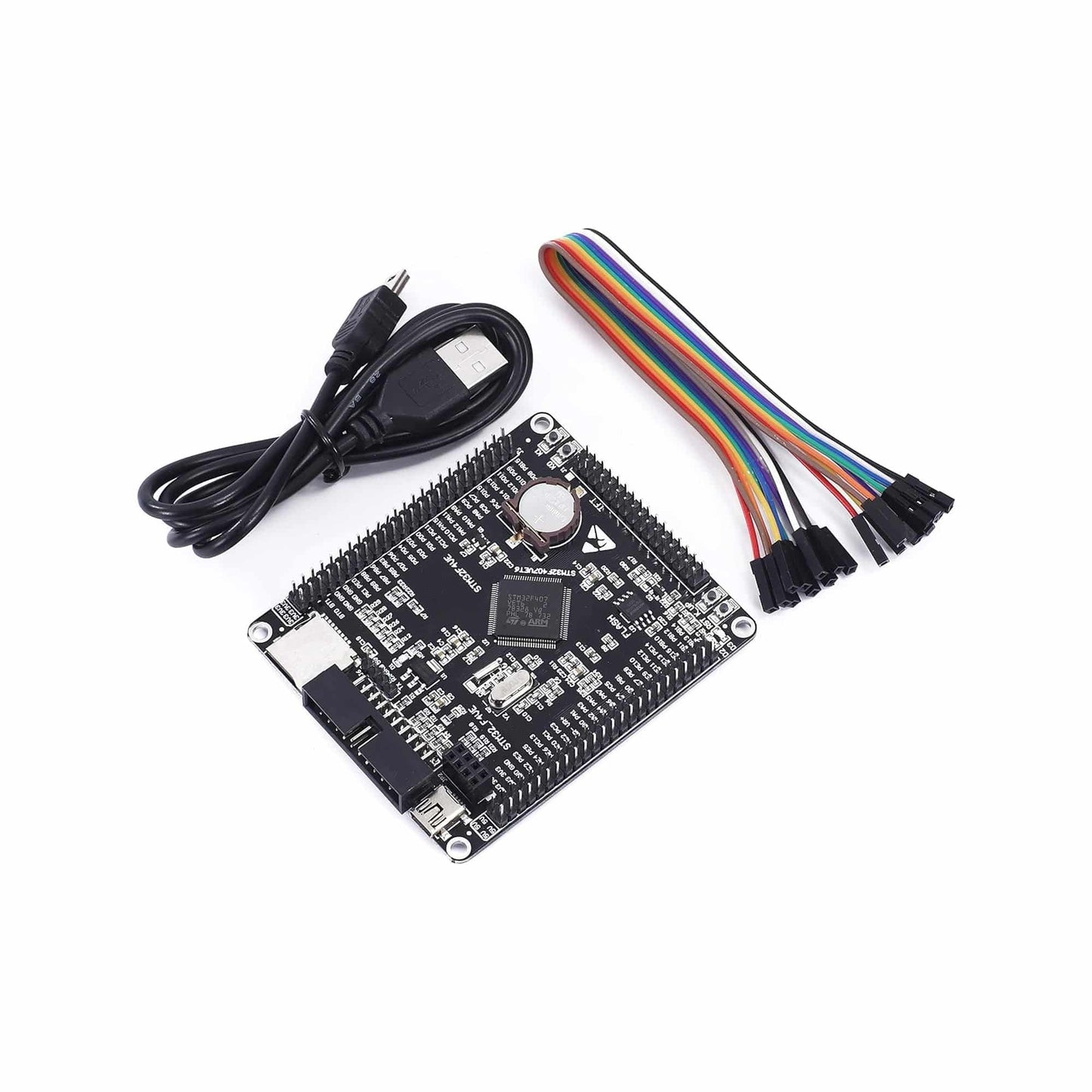

Package Included:
- 1 x ARM Microcontroller STM32F407VET6
- 1 x USB Cable
- 10 x Female-Female Jumper Cable
