Description:

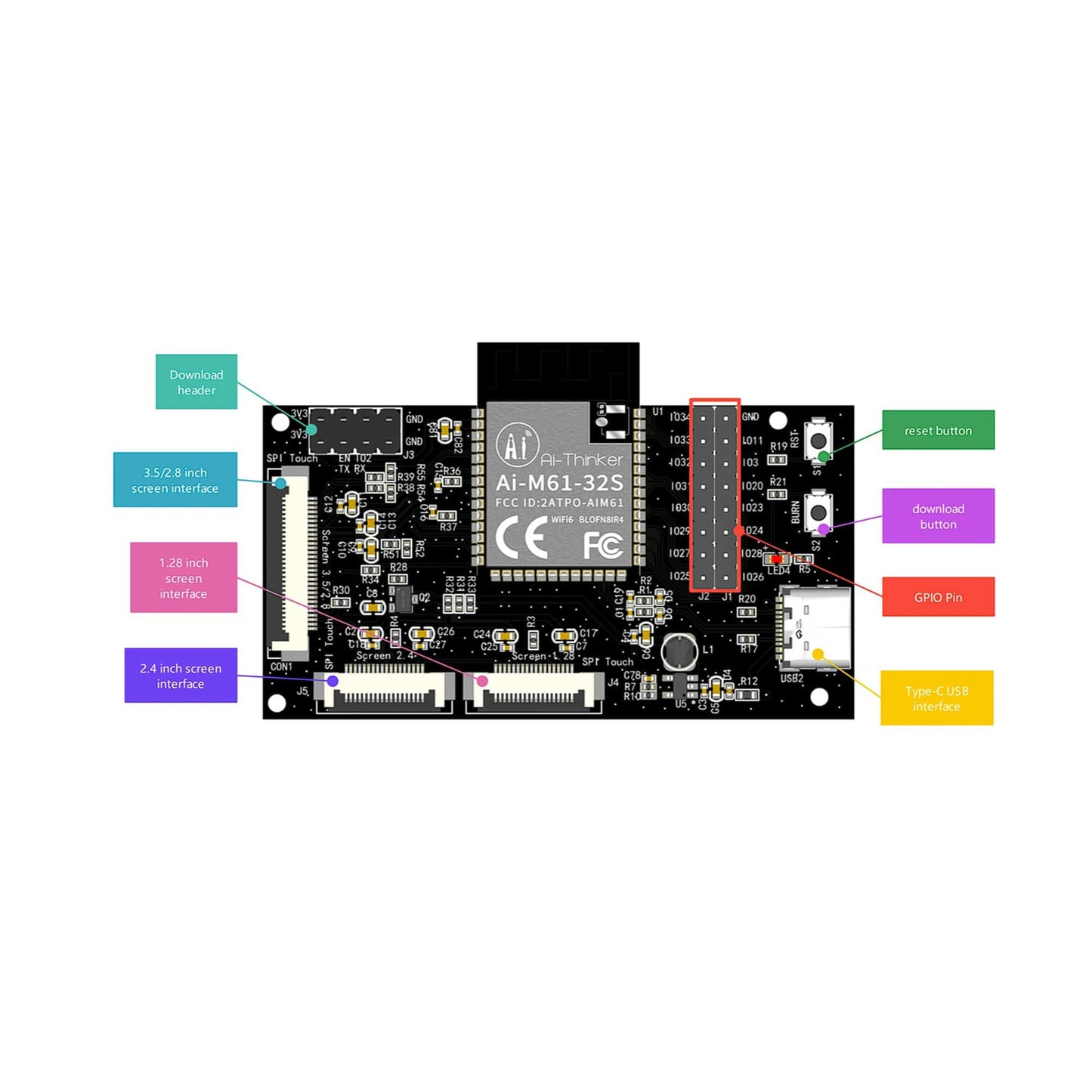

AiPi-DSL is a screen driver development board specially designed by Ai-Thinker open-source team for Ai-M61-32S. It supports 2.8/3.5-inch and other 30Pin SPI displays, 2.4-inch and 1.28-inch and other 18Pin SPI displays.
It has passed the test of 3.5-inch capacitive touch screen (GC9307), 2.4-inch capacitive touch screen (GC9307), and 1.28-inch circular capacitive touch screen (GC9A01).
The Ai-M61-32S module equipped has rich peripheral interfaces, including DVP, MJPEG, Display, AudioCodec, USB2.0, SDU, Ethernet (EMAC), SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, GPIO, etc.
Specifications:
| Model |
AiPi-DSL |
|---|---|
| Product Type |
Open-source hardware |
| Chip |
BL618(Ai-M61-32S module) |
| Display |
1.28inch |
| Display Module |
Ai-M61-32S |
Features:
- Compact screen size.
- Details on display resolution.
- Explore supported interfaces.
Package Included:
1 x Ai-Thinker AiPi-DSL Open Source Hardware with 1.28 Inch Display Round
