Description:

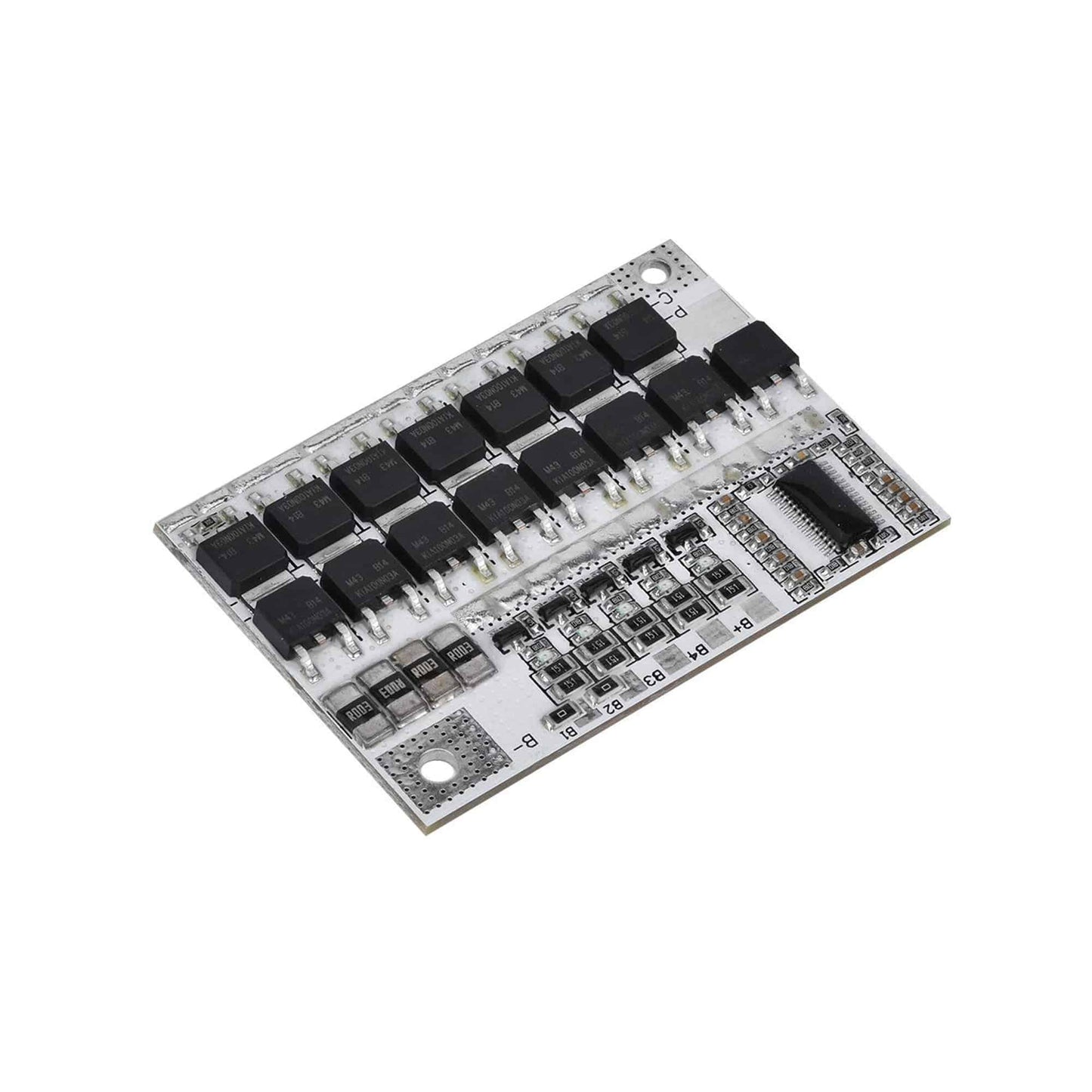

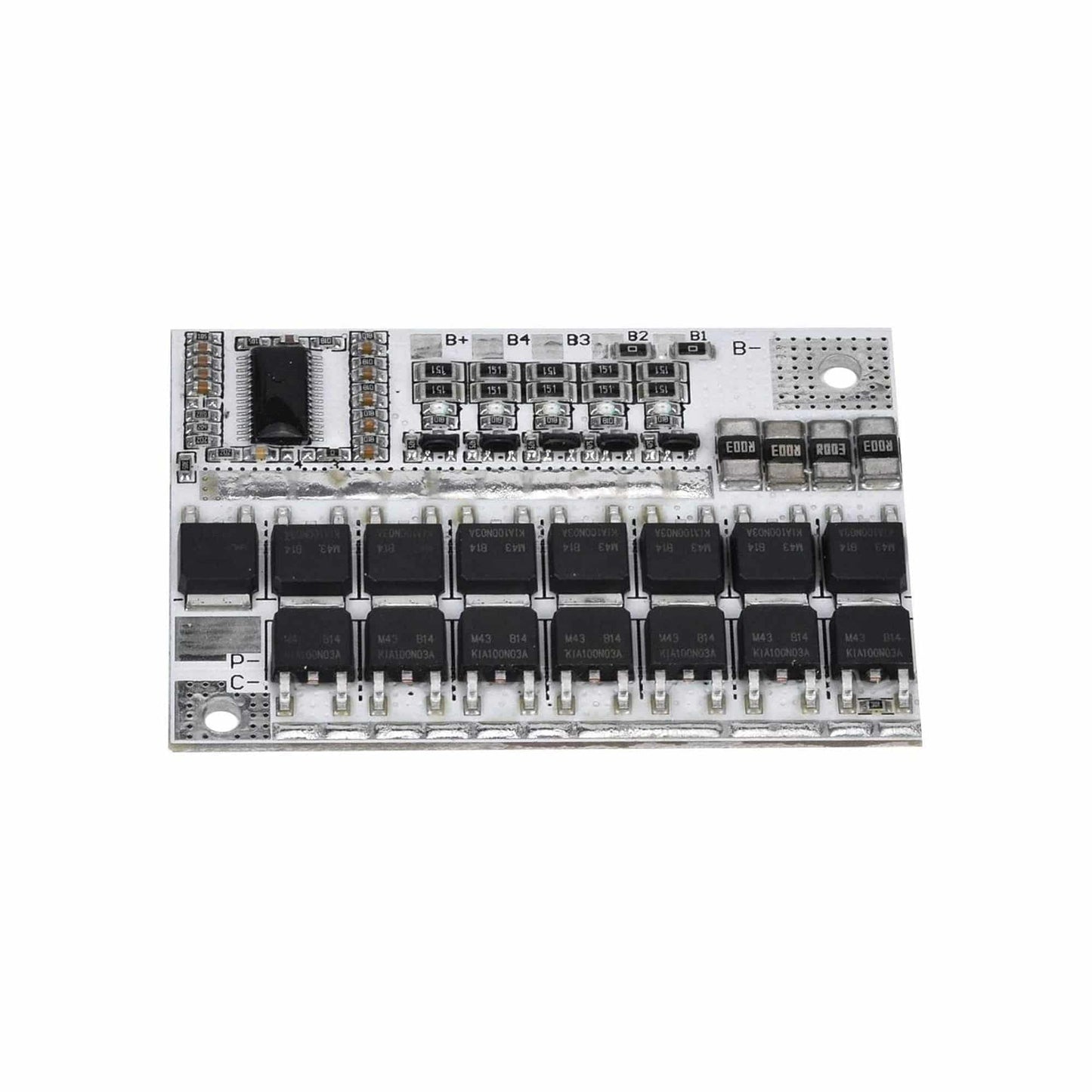

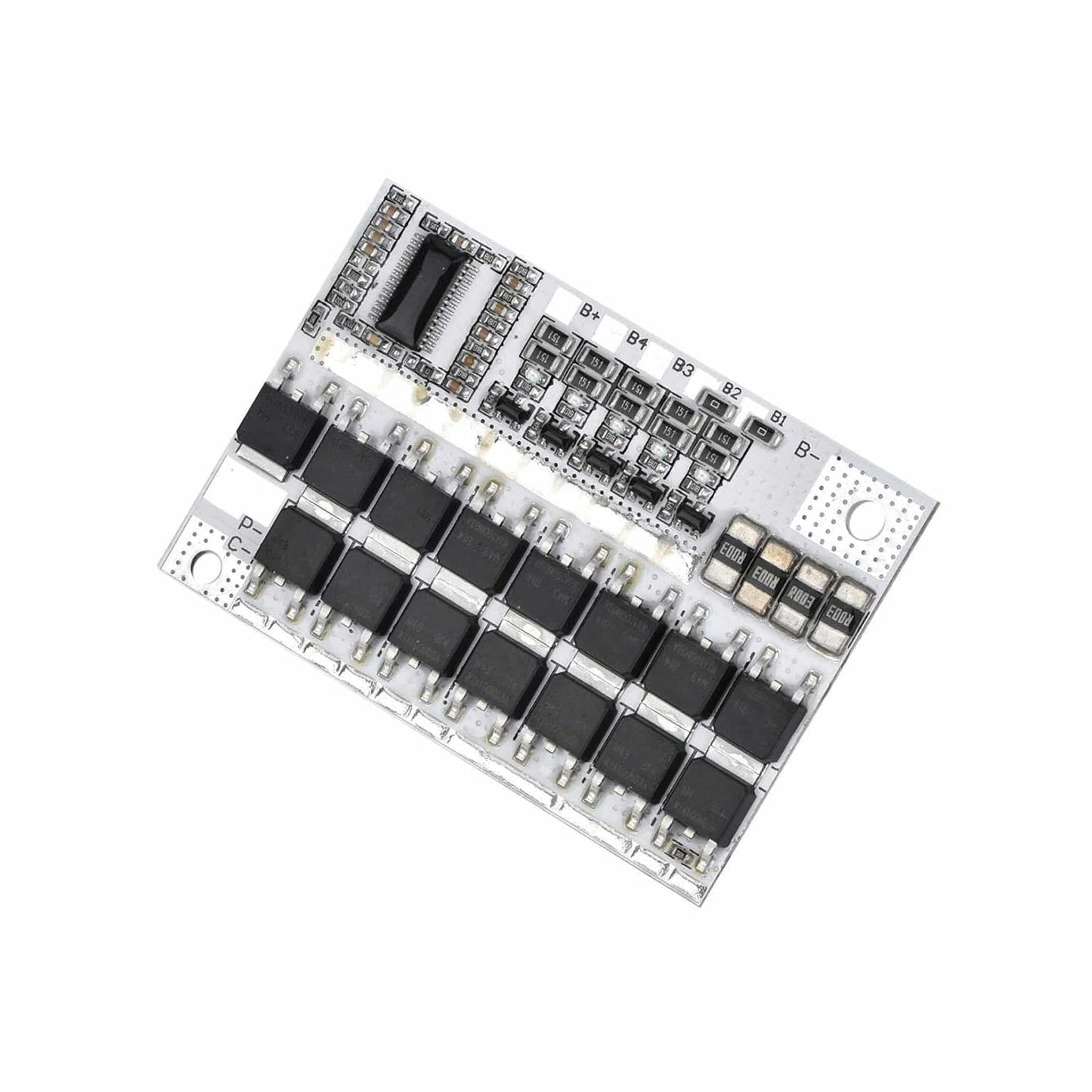

This 4S 100A BMS Board is 4s in common use lithium battery protection board (you can adjust how many strings to be used) Specified chip, stable performance, support disconnection protection, over-current protection, over-discharge protection, overcharge protection, with balance, etc.
A common use for “same port” and “different port”, the protection board uses 15 high-power ultra-low resistance MOS tubes (discharge of 8, charging 7), in the same port mode that can support the discharge current 60A, charging current 60A, different port mode discharges current 80A, charging current 60A. Can use for LMO. Ternary lithium battery. LCO(3.7V)battery packs etc. battery. LCO(3.7V)battery packs etc.
Specifications:
- Single-cell battery overcharge protect voltage: 3.61~3.69V
- Single-cell battery overcharge protect recover voltage: 3.5~3.6V
- Overcharge Protect Delay: 1.5-2.5S
- Overcharge Protect Current: 100A
- Over-discharge Protect Current: 100A
- Disconnect Protect: Yes
- Shortage Protect: Yes
- Charging Current: 60A
- Voltage Balance Accuracy: 3.355-3.455V
Features:
- 4S 100A BMS Board is easy to connect
- Best for your LifePo4 battery
- 4S 100A BMS Board is easy to use
- Low power consumption
Package Included:

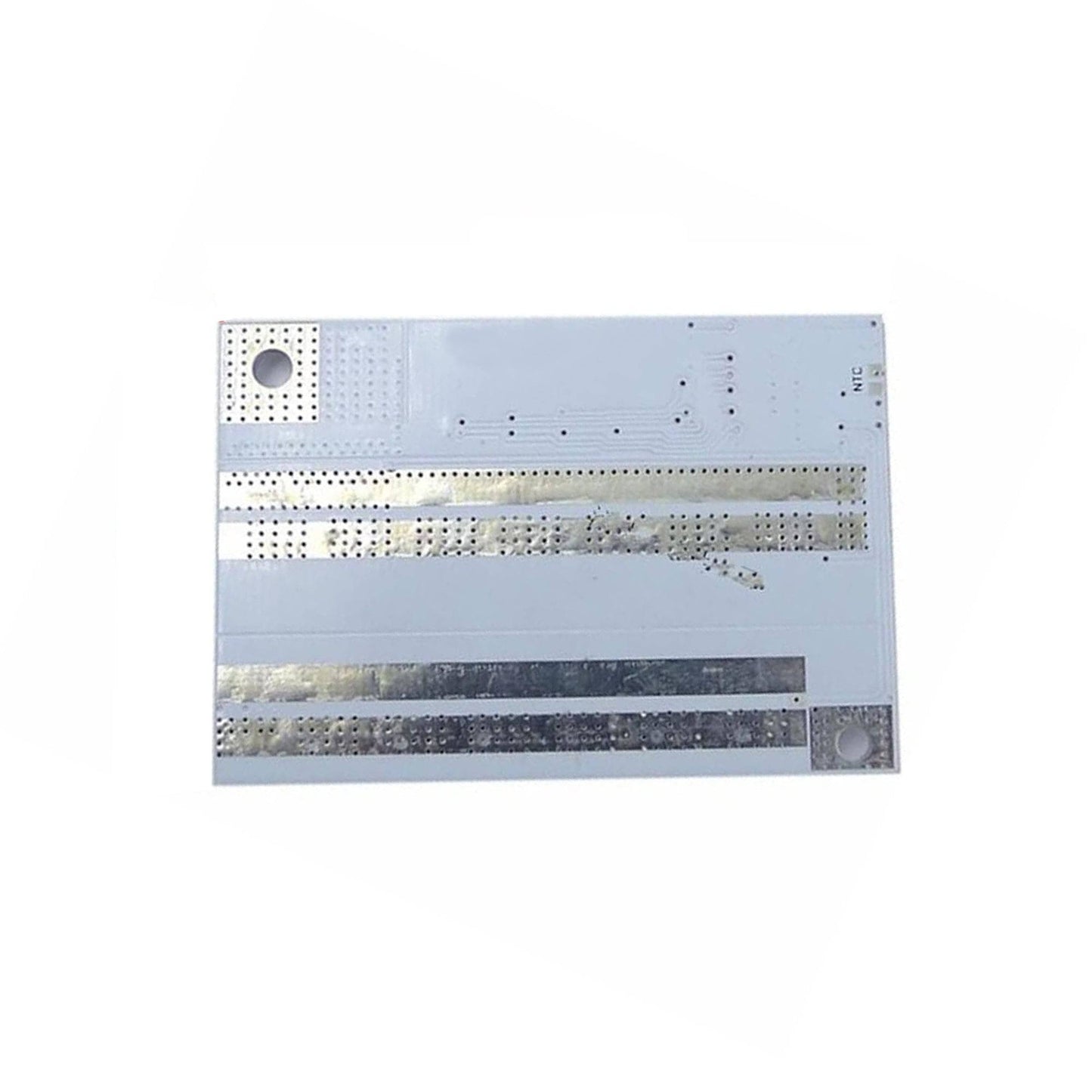

1 x 4S 100A BMS Board White 4S 100A LiFePO4 Lithium Battery Protection Balance Charging BMS Protection PCB Board
