Description:

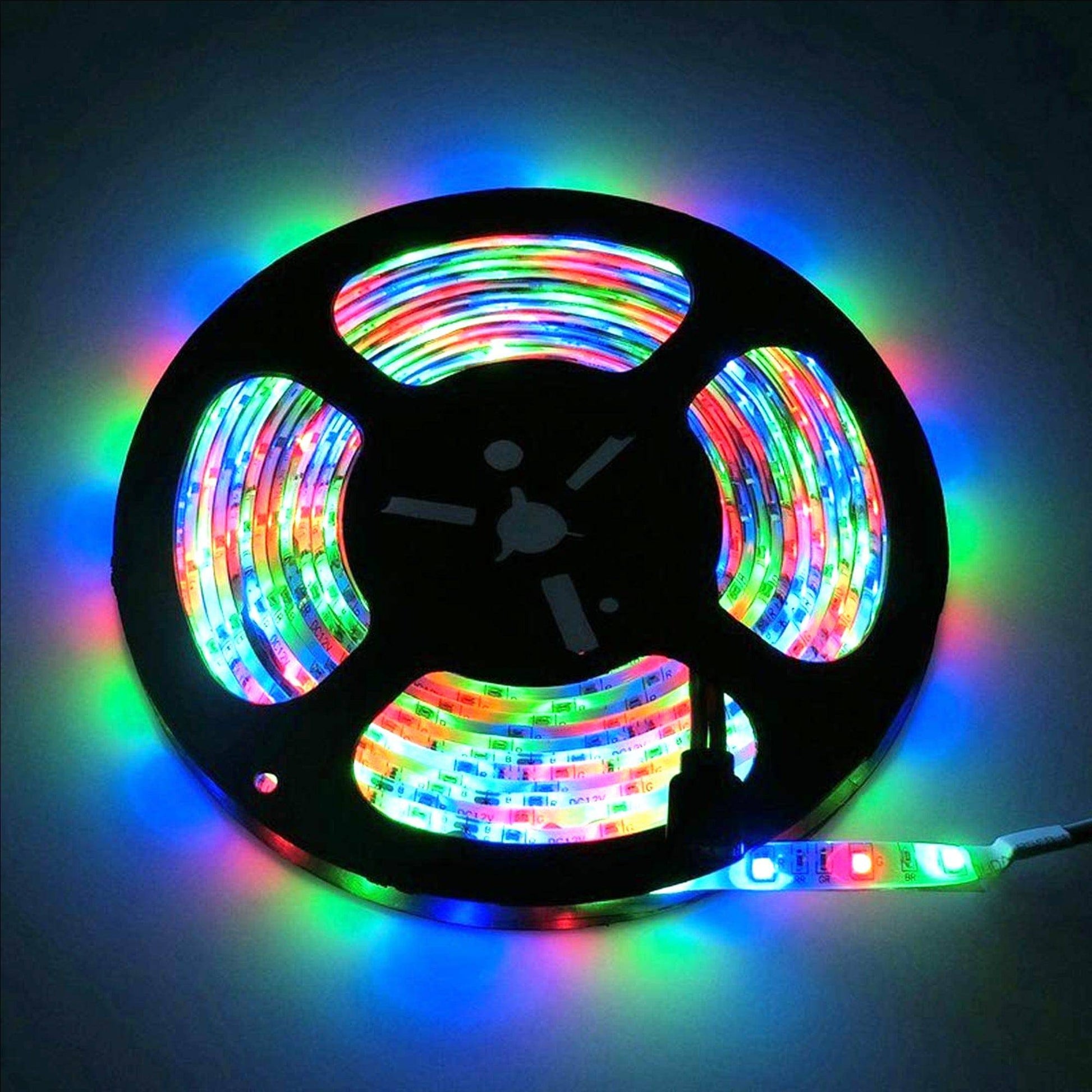

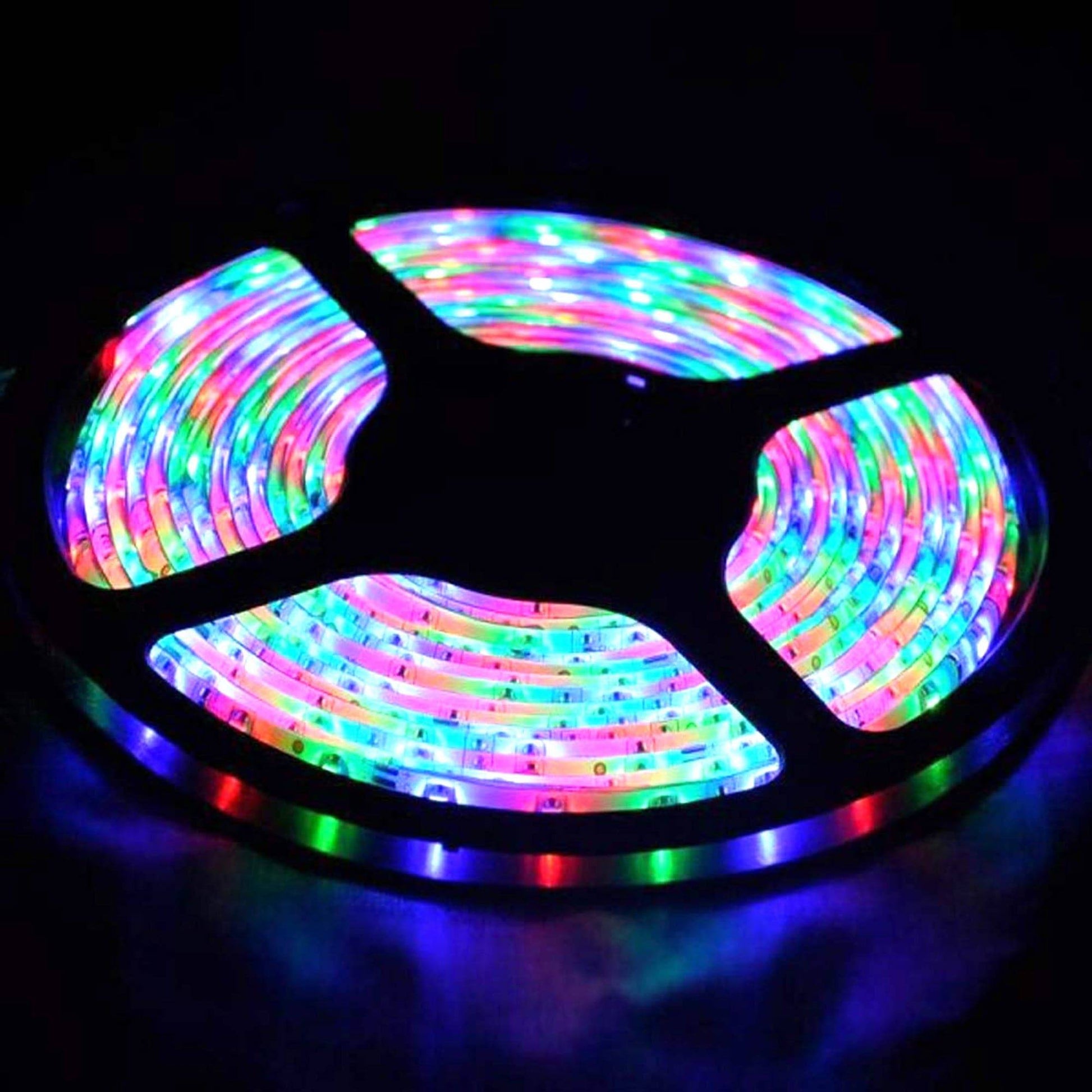

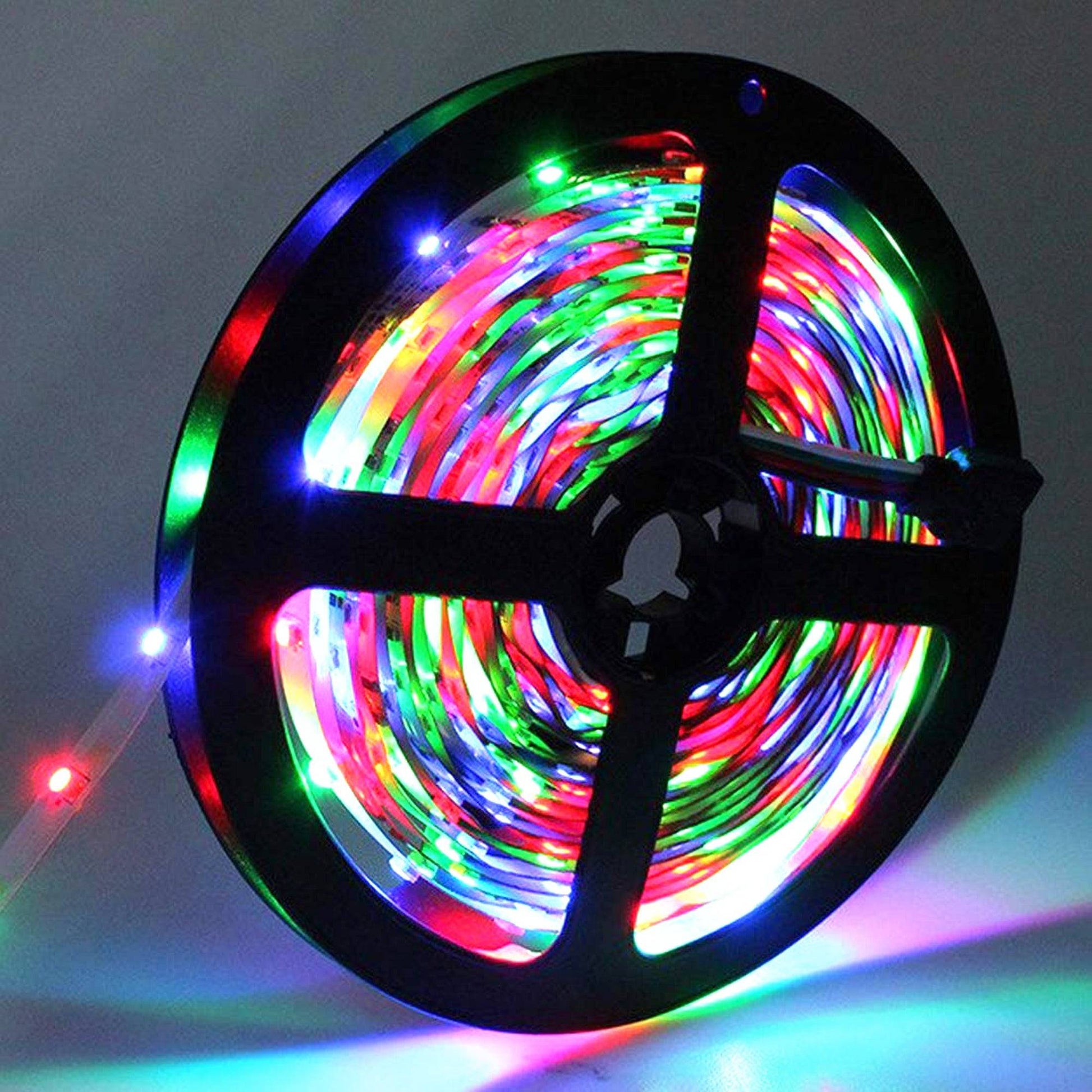

24V RGB SMD LED Strip with 1Meter length has 300 Bright, RGB LEDs on the single strip! The strip is comprised of 5050-sized SMD RGB LEDs and draws a total of 22.5 Watts of Power. This 24V RGB SMD LED Strip is flexible and can be bent to conform to curves and corners. Runs from 24VDC. (Power supply and controller not included)
You need a minimum output of 2 AMP adapters to power this 24V RGB SMD LED Strip. Using an underpowered power supply on these strips will result in power loss down the line and mismatched colours due to a certain colour of diodes not receiving enough power.
These strips are a bit different because, though they have the same number of LED modules (300) in another Cold white or Warm White roll, they have three times the light-emitting diodes as regular LED strips. This is because each of the 300 modules on the 24V RGB SMD LED Strip each contains three colours. A red, a blue and a green LED. This means that, when set to white, at full brightness, the RGB strips use almost three times the power as the regular white strips. A 1-meter 24V RGB SMD LED Strip uses roughly 2.8 Amps at 24VDC. So connecting three of these strips, end-to-end would result in roughly an 8.4 Amp requirement.
Specifications:
- LED Glow Color: RGB (Red-Green-Blue)
- Max. Operating Current: 2000mA (for 1 Meter Length)
- Operating Voltage: 24V DC
- Power required per Meter: 14.4W
- Protection Standard: IP20
- Total Luminous Flux: 30-40LM/Meter
Features:
- Flexible can be bent to any shape.
- LED quantity and length can be made customizable
- High brightness and long life (over 40,000hrs)
Package Included:
1 x 24V RGB SMD LED Strip 24V RGB 5050 SMD LED Strip - 1Meter
