Description:

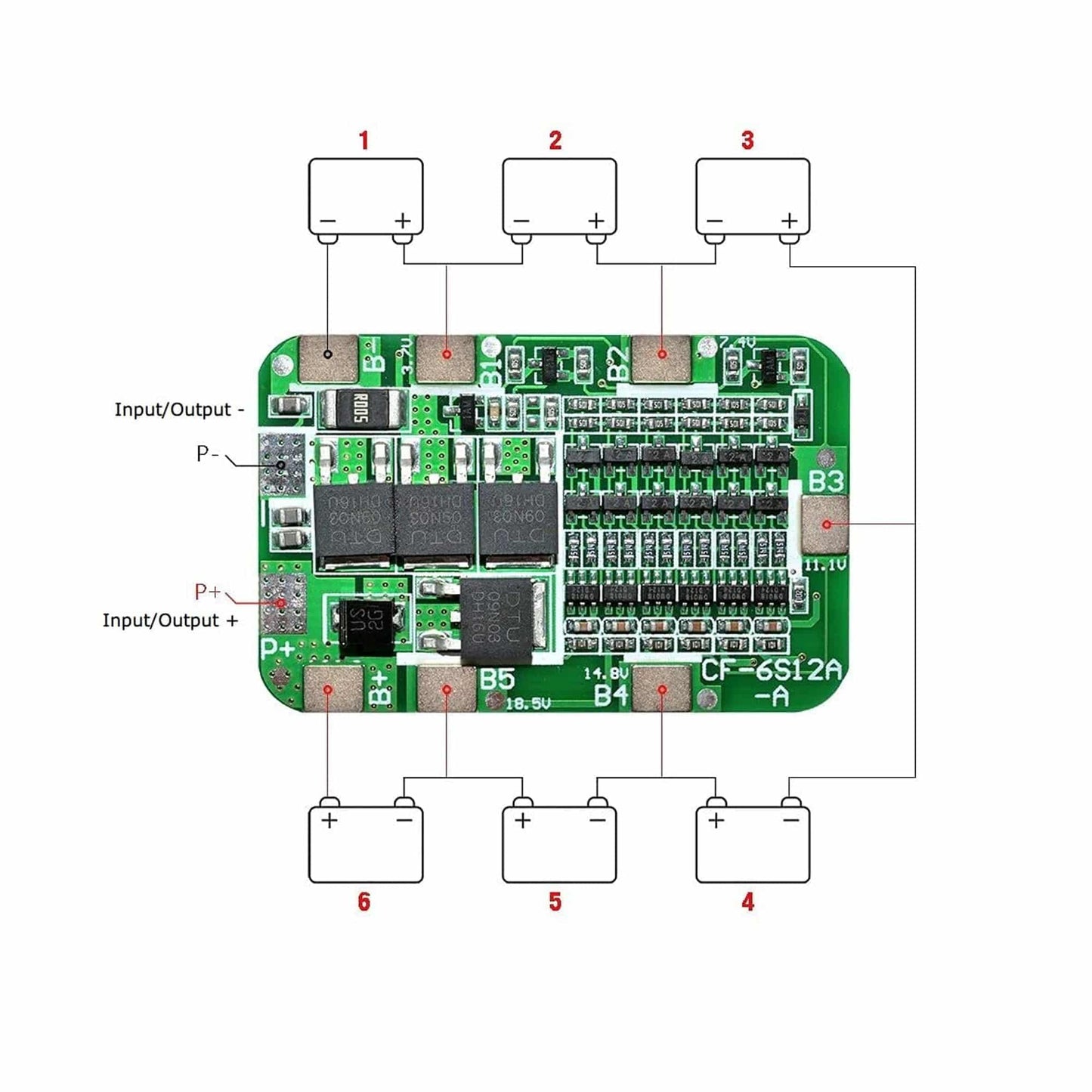

24V 6S 15A BMS Board, as the name suggests battery protection board is mainly rechargeable (Refers to the lithium battery) and protects the integrated circuit board. As the lithium battery, its material determines itself can not be overcharged, over-discharge, overcurrent, short-circuit, or ultra-high temperature charge and discharge, so lithium battery lithium components will always follow A protective plate with sampling resistor, and a current fuse. Providing all the above features this 24V 6S 15A BMS Board can combine a 6 x 18650 battery to form a battery pack to provide up to 24V DC output at 15A current which can be used for heavy applications such as Drilling machines, Car washers etc.
Specifications:
- Lamp shift maximum discharge current: 15A
- Instantaneous discharge current: 25A
- Charging voltage: 25.5V
- Charging current: 15A (MAX)
- Overcharge detection voltage: 4.28 ± 0.05V
- Overcharge protection delay: 0.1S
- Overcharge release voltage: 4.08 ± 0.05V
- Over discharge detection voltage: 2.55 ± 0.08V
- Over discharge detection delay: 0.1S
- Over discharge release voltage: 2.9 ± 0.1V
- Overcurrent detection voltage: 150mV
- Overcurrent detection delay: 9MS
- Overcurrent protection current: 30 ± 3A
- Overcurrent protection release condition: Disconnect the load
- Short circuit detection delay: 250uS
- Short circuit protection Release condition: disconnect negative open
- Main circuit conduction resistance: ≤20mΩ
- Working current: ≤30uA
- Sleep current (battery over-discharge) ≤10uA
- Temperature range: -30 / + 80°C
Features:
- 24V 6S 15A BMS Board has fine workmanship and durable.
- 24V 6S 15A BMS Board is for the rechargeable (generally refers to the lithium battery) from the protection of the integrated 24V 6S 15A BMS Board. Lithium battery (rechargeable type) so needs protection.
Package Included:
1 x 24V 6S 15A BMS Board BMS 6S 15A 24V Battery Protection Board For 18650 Li-ion Battery Cell Protection Board For 18650 Lithium Battery
