- Stroke Length : 300mm (apprx. 12inches)
- Permanent magnet DC motor drive : Voltage 12VDC
- Working temperature : -20C to +63C
- Motor Diameter(mm) : 36
- Mounting hole diameter (both ends) : 1/4 (6.4mm)
- Protection Level : IP55
- Noise level : 45dB
- Speed at no load : 0.28in/sec (7 mm/sec)
- Speed at full load : 0.22in/sec (5.5 mm/sec)
- Maximum static load : 337.2 lbs. (1500 Newtons)
- Maximum current draw : 2A
Description :

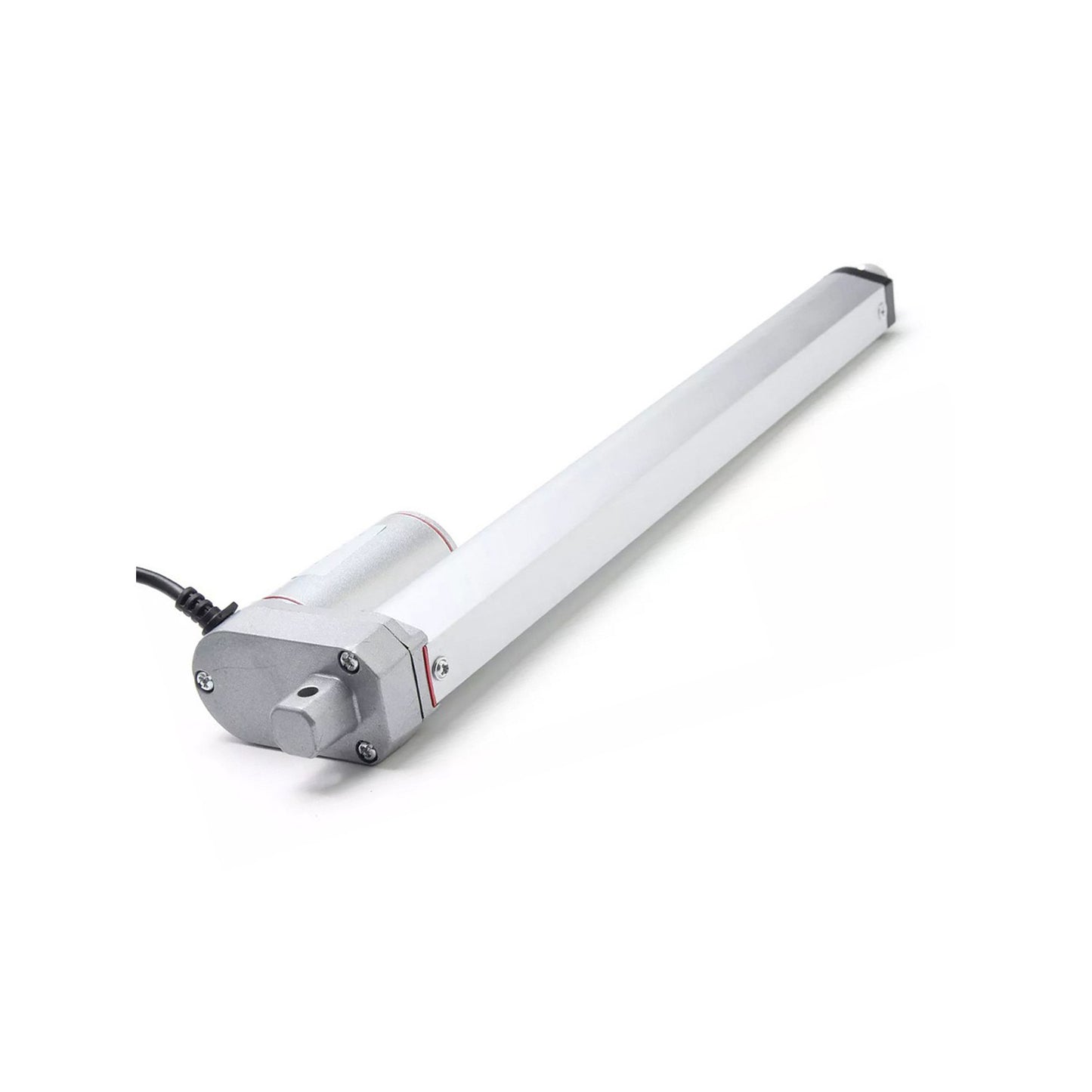

This Miniature Linear Actuator Stroke Length 300MM,7mm/S,1500N,12V is an electric push rod and an ideal solution for industrial, agricultural machinery, construction, clean sweeping vehicles, vessels, cargo and many other applications. This electric push rod is a kind of electric driving device which transforms the rotary motion of the motor into the linear reciprocating motion of the push rod. It can be used in various simple or complex processes as executive machinery to realize remote control, centralized control or automatic control. The electric push rod is composed of drive motor, reduction gear, screw, nut, guide sleeve, push rod, sliding seat, shell, micro motion control switch, etc.
Features:
- Aluminium frame and extension tube
- Compact Design
- Built in Limit Switch
- Low Noise
- Moisture-proof Surface
- Long life: The drive motor adopts a new carbon brush structure, with a service life of more than 50000 times.
- Permanent magnet DC motor drive: Voltage 12VDC
- Self Locking Force: 1500N
Applications:
- Autos, solar tracking system, agricultural machinery, the wedding system, industrial electric lifting system
- The medical electric bed, surgical bed, traction bed
- Electric equipments: Electric sofa, electric lifting lever, electric booth, electric sunroof, etc;
- Chair for medical use: Electric wheelchair, massage chair, dental chair.
- Product Applications: TV lift tables, massage beds, electric beds, medical chairs, electric equipment, micro-devices, electric sofas, camera frames, cameras and more.
Specifications :
- Stroke Length : 300mm (apprx. 12inches)
- Permanent magnet DC motor drive : Voltage 12VDC
- Working temperature : -20C to +63C
- Motor Diameter(mm) : 36
- Mounting hole diameter (both ends) : 1/4 (6.4mm)
- Protection Level : IP55
- Noise level : 45dB
- Speed at no load : 0.28in/sec (7 mm/sec)
- Speed at full load : 0.22in/sec (5.5 mm/sec)
- Maximum static load : 337.2 lbs. (1500 Newtons)
- Maximum current draw : 2A
Package Included:
1 x Linear Actuator Stroke Length 300MM,7mm/S, 1500N,12V
