Description:

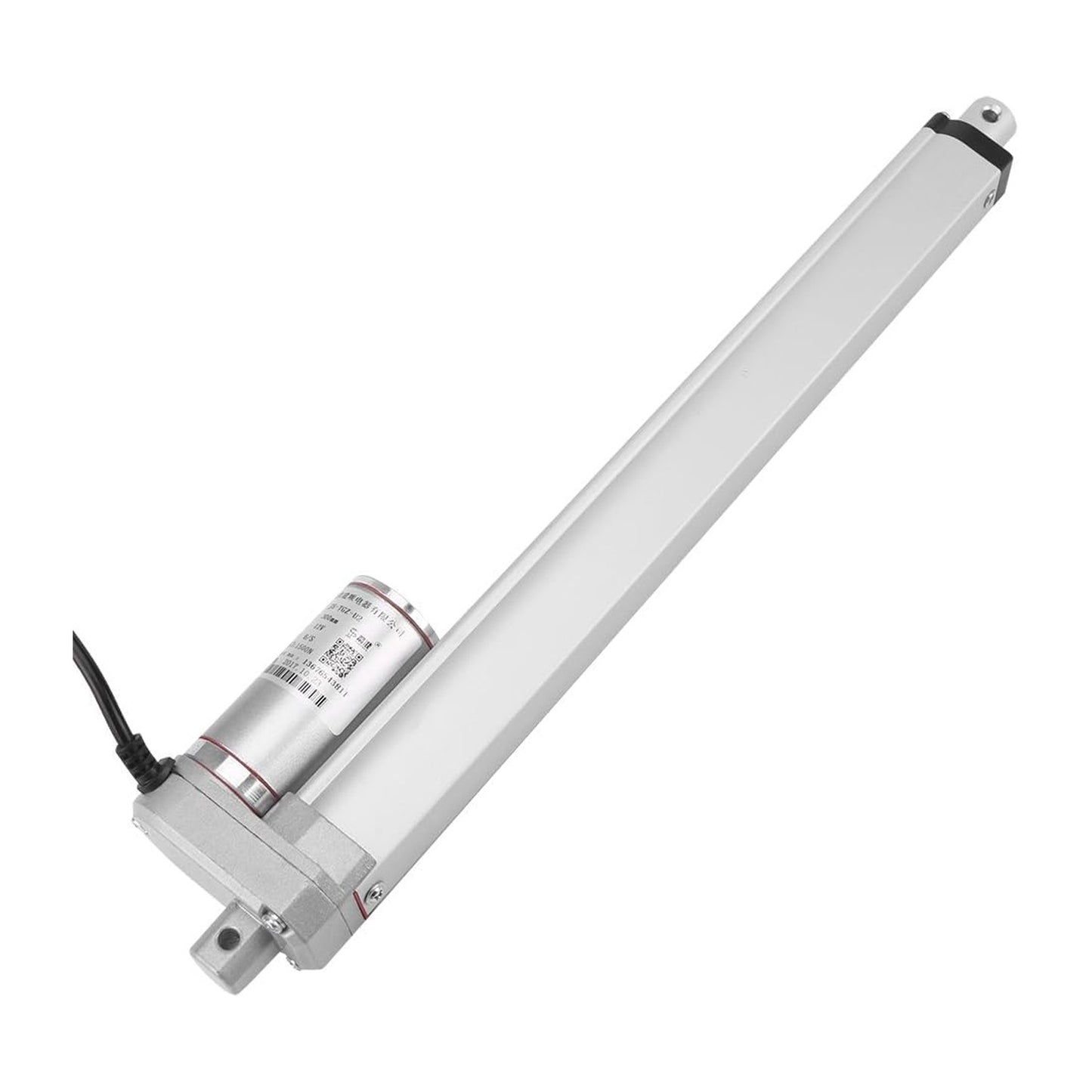

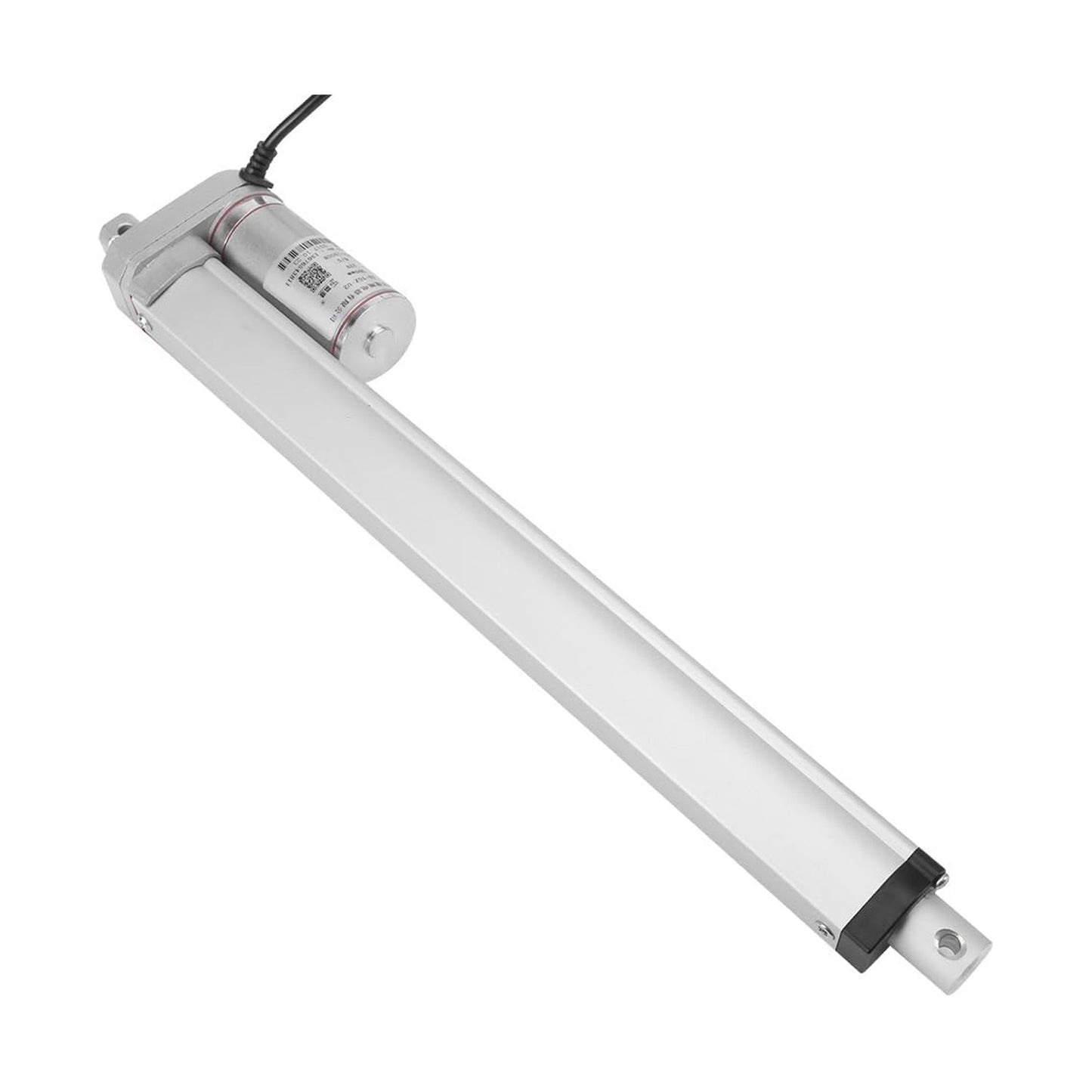

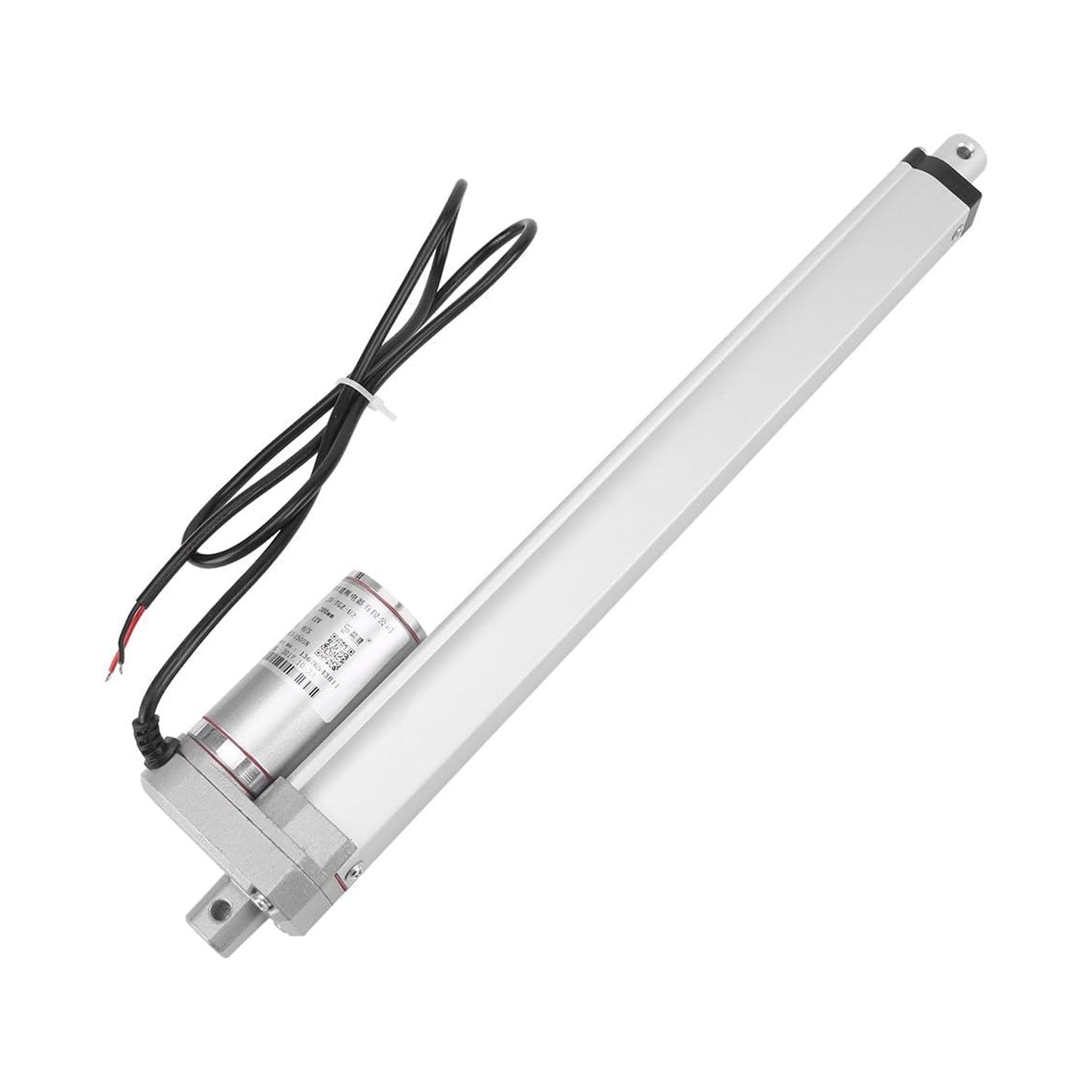

This Miniature Linear Actuator with Stroke Lengths 300MM, 50mm/S, 180N, and 12V is an electric push rod and an ideal solution for industrial, agricultural machinery, construction, clean sweeping vehicles, vessels, cargo and many other applications. This electric push rod is a kind of electric driving device which transforms the rotary motion of the motor into the linear reciprocating motion of the push rod. It can be used in various simple or complex processes as executive machinery to realize remote control, centralized control or automatic control. The electric push rod is composed of the drive motor, reduction gear, screw, nut, guide sleeve, push rod, sliding seat, shell, micro-motion control switch, etc.
Specifications:
- Stroke Length: 300mm(approx. 12inches)
- Permanent magnet DC motor drive: Voltage 12VDC
- Operating Temperature: -20C to +63C
- Maximum static load: 39 lbs. ( 180 Newtons )
- Body Material: Aluminium Alloy
- Noise Level: 40dB
Features:
- Aluminium frame and extension tube
- Compact Design
- Built-in Limit Switch
- Low Noise
- Moisture-proof Surface
- Long life: The drive motor adopts a new carbon brush structure, with a service life of more than 50000 times.
- Permanent magnet DC motor drive: Voltage 12VDC
- Self-Locking Force: 180N
Applications:
- Autos, solar tracking system, agricultural machinery, the wedding system, industrial electric lifting system
- The medical electric bed, surgical bed, traction bed
- Electric equipment: Electric sofa, Electric lifting lever, Electric booth, electric sunroof, etc;
- Chair for medical use: Electric wheelchair, massage chair, dental chair.
- Product Applications: TV lift tables, massage beds, electric beds, medical chairs, electric equipment, micro-devices, electric sofas, camera frames, cameras and more.
Note:
- The actual product may vary in terms of colour and markings.
- The following conditions can cause serious damage to the product.
-
Direct connection with AC power
-
Use in the above standard voltage environment
-
Push/Pull exceed the maximum value of the product show
-
The stroke did not finish, still with power, forced to cease.
- The following conditions may shorten the product life.
-
High-frequency operation
-
High temperature
Package Included:
1 x 12V 300MM Stroke Length Linear Actuator 50mm/S 180N
