- High Resolution: 128*64 Viewing Angle: > 160 °
- Driver IC: SSD1306; I2C/IIC Interface, need 2 IO only.
- Ultra-low power consumption: full screen lit 0.08W
- Supports many control chip: Fully compatible with For Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.
What is OLED?
- OLED (Organic Light-Emitting Diode) is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode.
- In contrast to LCD technology, OLED does not require a backlight. Self-emitting light, in contrast to the required backlight for TFT-LCD.
- OLED possesses high application potential for virtually all types of displays and is regarded as the ultimate technology for the next generation of flat-panel displays.
How Does OLED Emit Light?
- OLED"s basic structure consists of organic materials positioned between the cathode and the anode, which is composed of electric conductive transparent Indium Tin Oxide (ITO).
- The organic materials comprise a multi-layered thin film, which includes the Hole-Transporting Layer (HTL), Emission Layer (EML) and the Electron-Transporting Layer (ETL).
- By applying the appropriate electric voltage, holes and electrons are injected into the EML from the anode and the cathode, respectively.
- The holes and electrons combine inside the EML to form excitons, after which electroluminescence occurs.
- The transfer material, emission layer material and choice of electrode are the key factors that determine the quality of OLED components.
Specification:
- High Resolution: 128*64 Viewing Angle: > 160 °
- Driver IC: SSD1306; I2C/IIC Interface, need 2 IO only.
- Ultra-low power consumption: full screen lit 0.08W
- Supports many control chip: Fully compatible with For Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.
Note:
If you decide to buy OLED display, you must confirm that you can make it work by yourself, we'll haven't any technology support except all the datasheet. Thanks for your understanding and support.
Package Included:

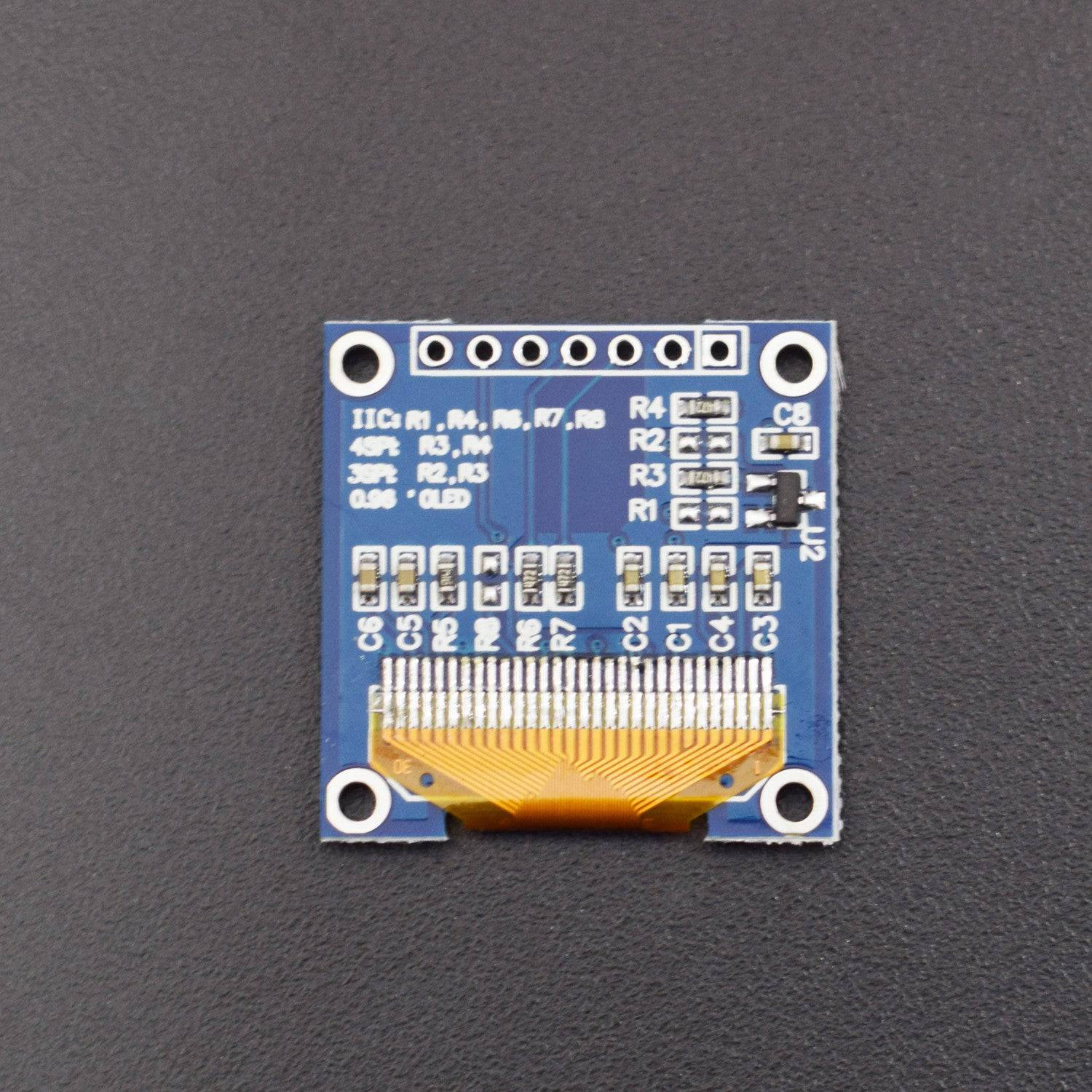

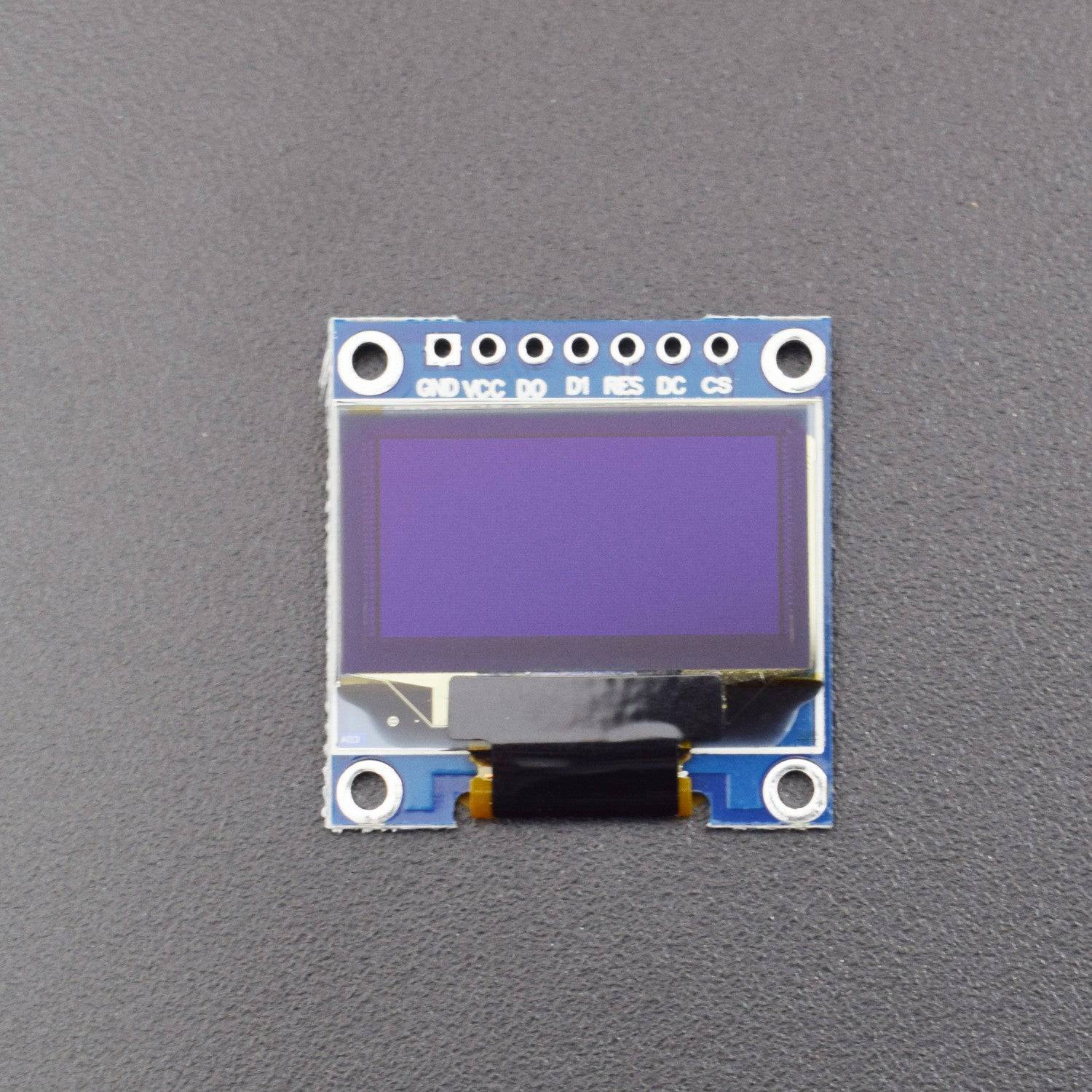

1 x 3-5V 0.96" SPI Serial 128X64 Blue OLED LCD LED Display Module
