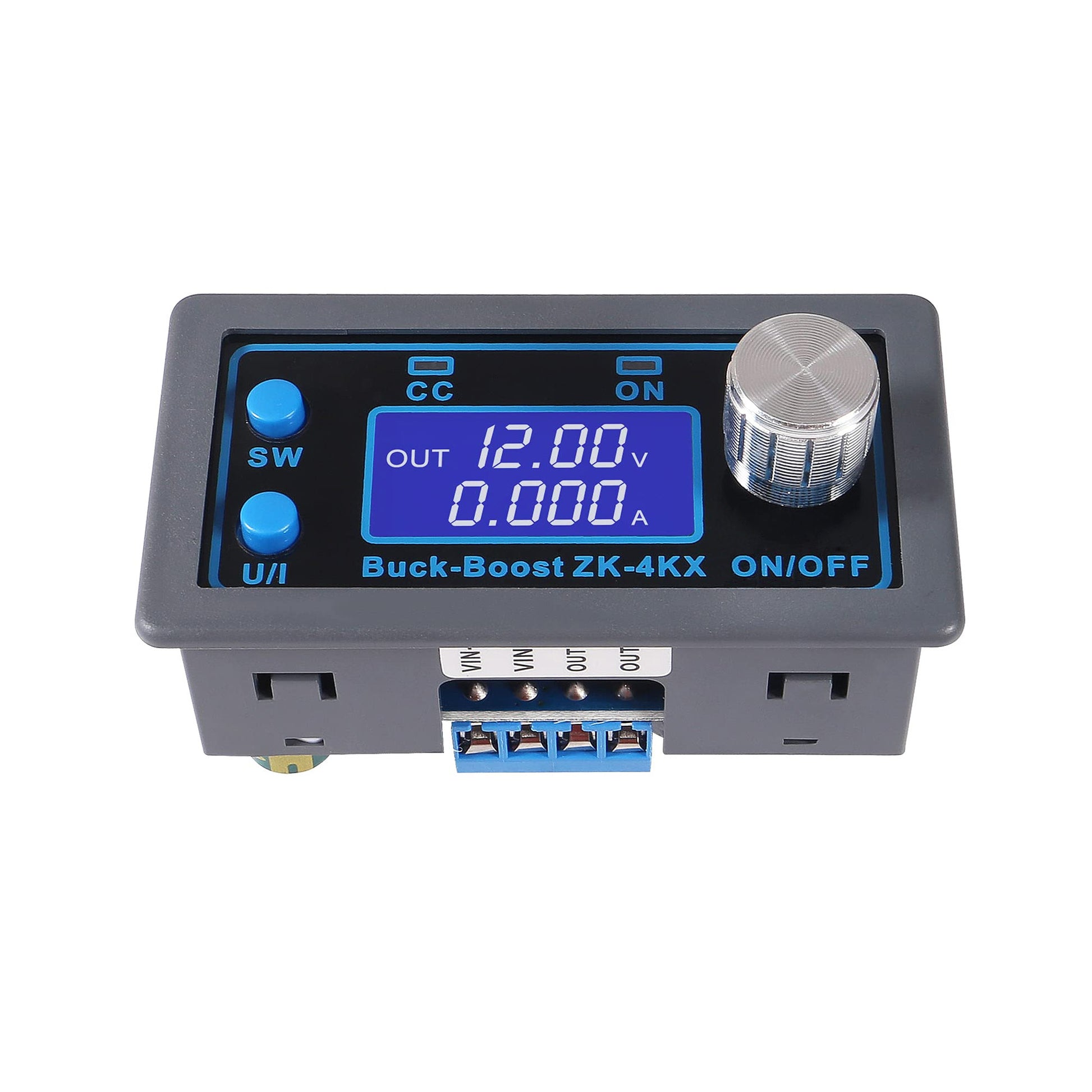

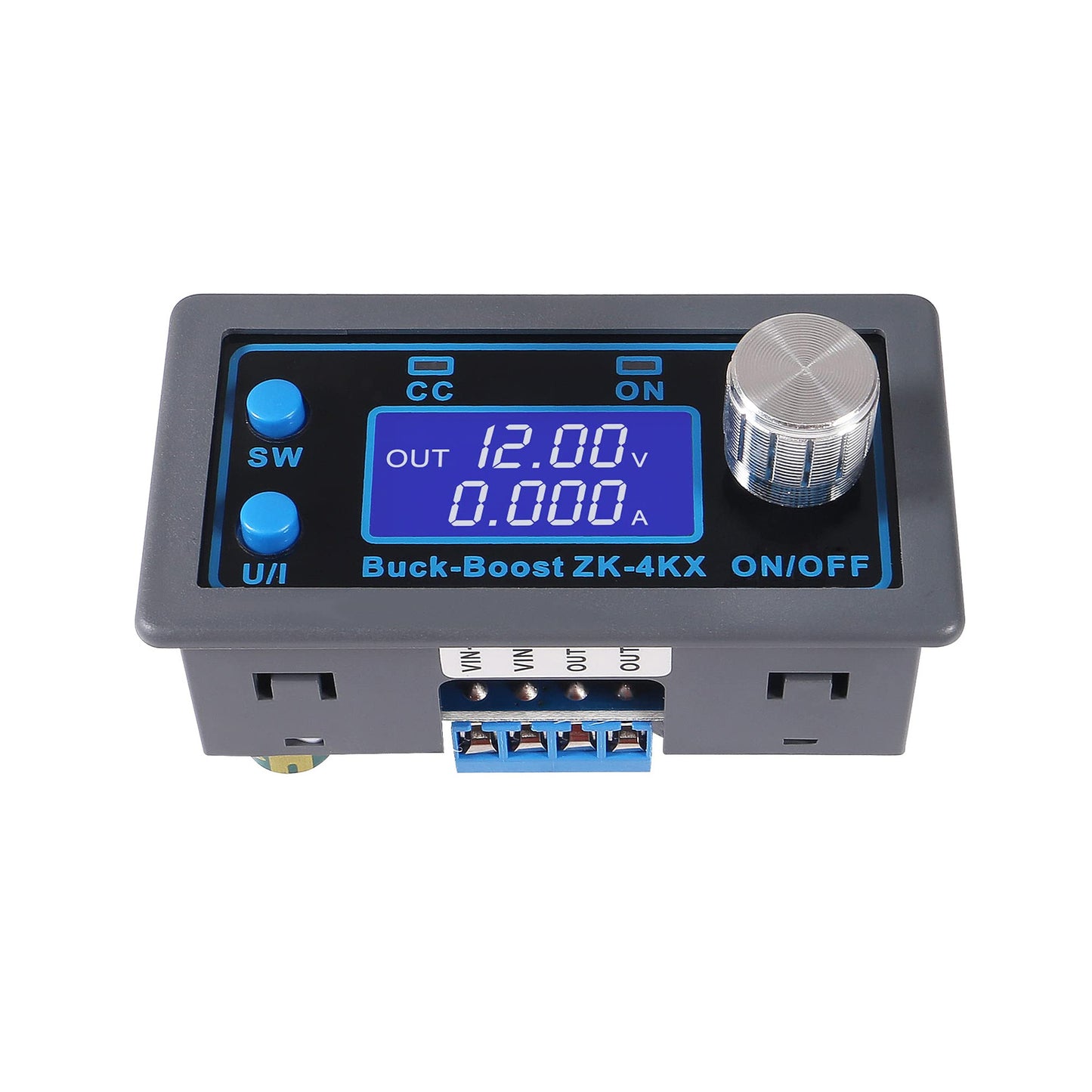

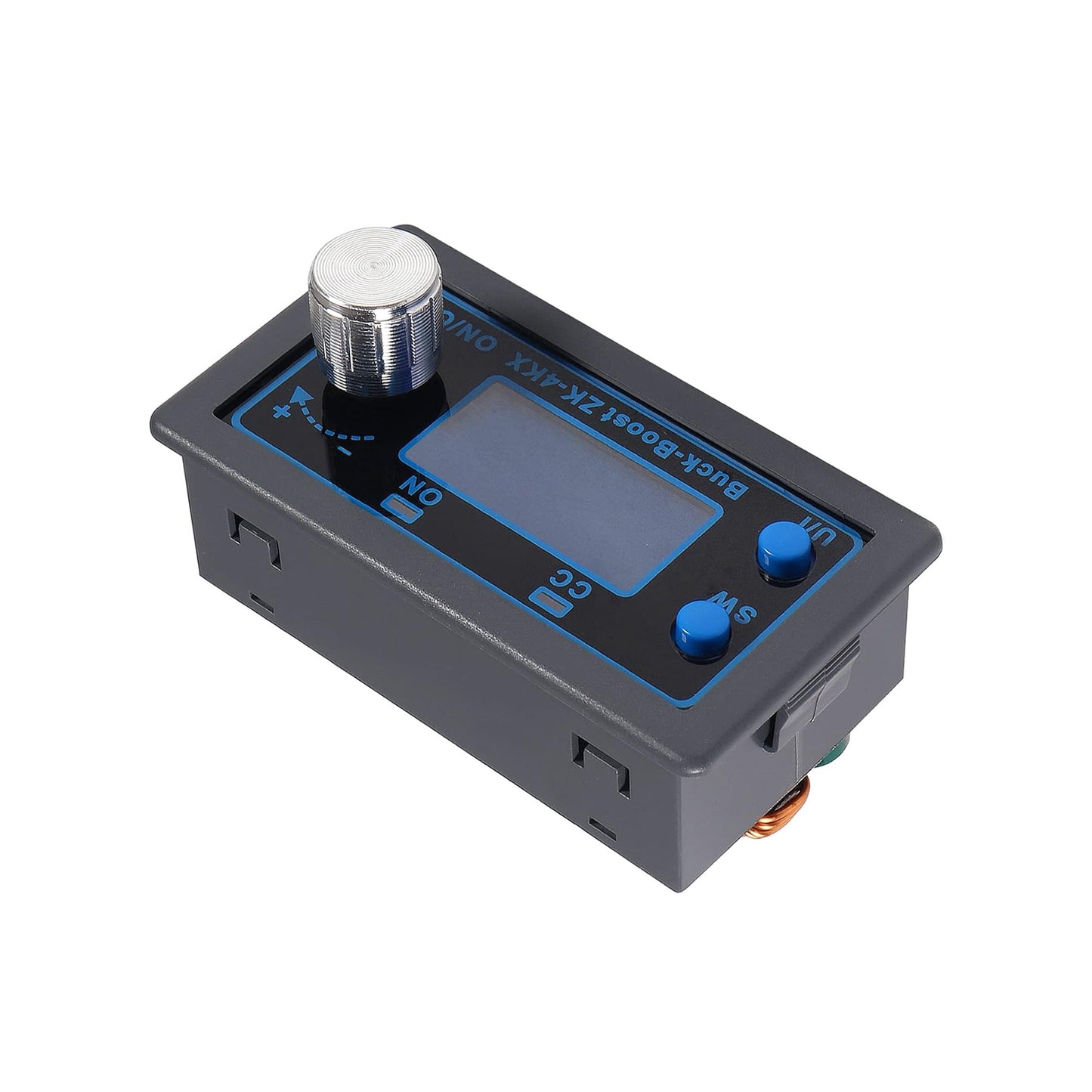

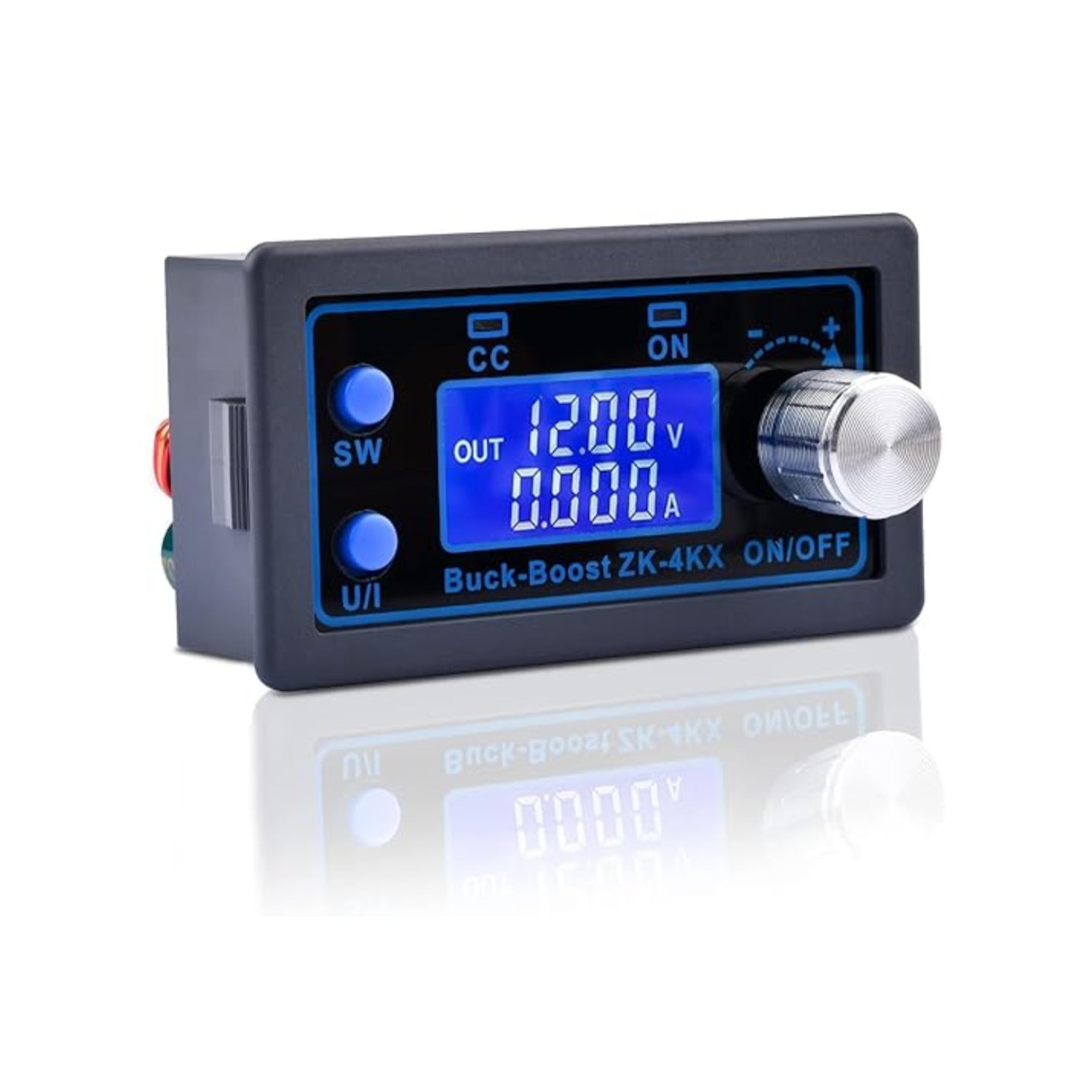

ZK-4KX CNC DC DC Buck Boost Converter CC CV 0.5-30V 4A Power Module Adjustable Regulated Power Supply for Solar Battery Charging - RS2728

• Input voltage: 5.0-30v
• Output voltage: 0.5-30v
• Output current: can work stably at 3A for a long time, and can reach 4A under enhanced heat dissipation
• Output power: natural heat dissipation 35W, strengthened heat dissipation 50W
• Voltage display resolution: 0.01V
• Current display resolution: 0.001A
• Conversion efficiency: about 88%
• Soft start: yes (with high power and load module may fail when starting)
• Protection mechanism:
• Input anti-reverse connection
• Output anti-reverse irrigation
• Input undervoltage protection (4.8-30V adjustable, default 4.8v)
• Output overvoltage protection (0.5-31V adjustable, default 31V)
• Output overcurrent protection 0-4.1a (adjustable, default 4.1a)
• Overpower protection (0-50w adjustable, default 50W)
• Overtemperature protection (80-110℃ adjustable, default 110℃)
• Timeout protection (0-100h adjustable, off by default)
• Super capacity protection (0-60ah adjustable, off by default)
• Operating frequency: 180KHZ

Features:

• LCD can display input/output voltage, output current/output power/output capacity/output time.
• CNC adjustment, accurate and fast, can boost and lower voltage, output voltage can be adjusted at will from 0.5-30v, and limit current 0-4a can be adjusted at will.
• Anti-reverse connection protection of input end, which will not burn out.
• Anti-reverse irrigation at the output end, no additional anti-reverse irrigation diode is needed to charge the battery.
• The module can be set to open/close by default.
• Multiple software protection mechanisms are available, and the protection threshold is adjustable. When the working parameters of the module exceed the protection threshold, the output will be automatically closed.

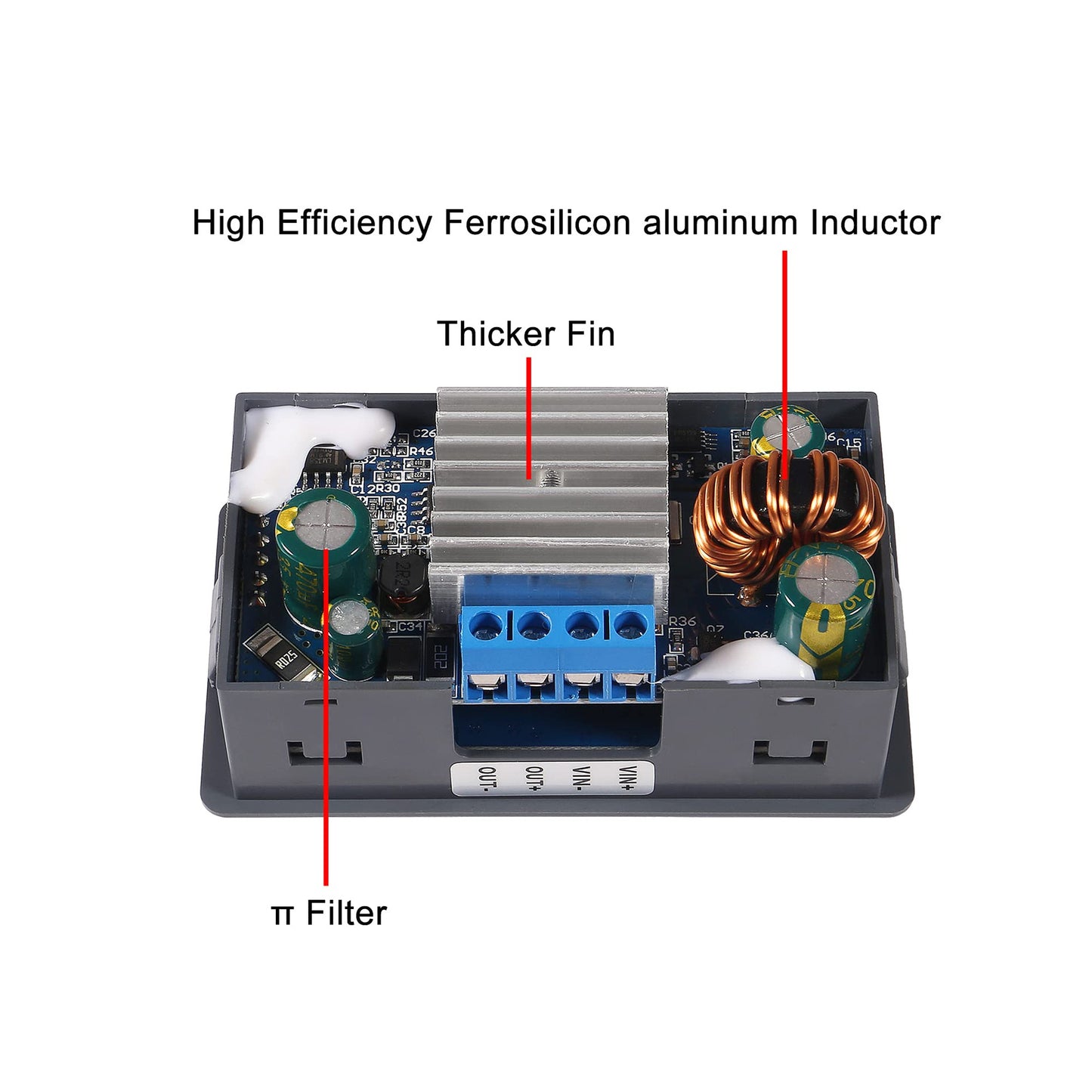

• Output ripple is small and a PI filter is available.

How to Use:

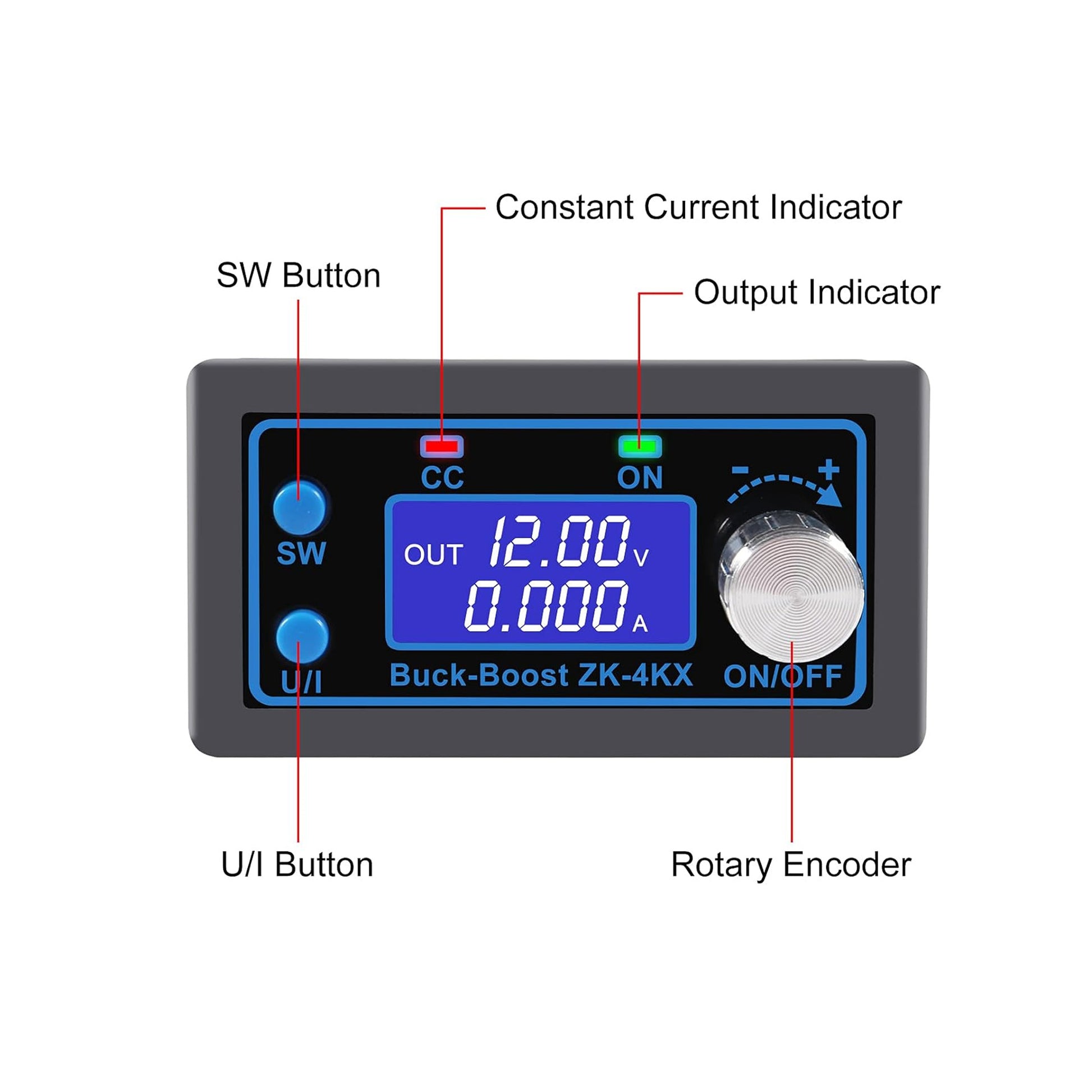

• Switch display parameters- in the normal interface, press SW to switch the display below the display screen, and switch the display content between current A power W capacity Ah time h.Long press the SW button to switch the uplink display on the display screen and switch the display content between input voltage IN and output voltage OUT.
• Set output voltage- press U/I button in the normal interface to enter the interface of setting voltage constant current.It can be seen that a certain digit of the output voltage value is flashing. Rotate the encoder left and right to adjust the major and minor.Short press the rotary encoder to choose which bit of output voltage to set. After setting, press U/I button 2 times to return to the normal interface. Or automatically return to the normal interface after stopping operation for 10s.
• Set constant current value (that is, the maximum current value allowed to output by the module)- press the U/I button in the normal interface to enter the setting voltage constant current interface.Then press the U/I button and switch to setting a constant current value. You can see a bit of the setting constant current value flashing. Rotate the rotary encoder left and right to adjust the major and minor.Short press the rotary encoder to choose which bit to set the constant current value. After setting, press U/I to exit the setting voltage constant current interface and return to the normal interface.Or automatically return to the normal interface after stopping operation for 10s.
• Set the default on/off state of module power-on- long press U/I in the normal interface to enter the parameter setting interface. You can see that it shows "OPEN OFF" or "OPEN ON". "OPEN OFF" means the output is turned OFF by default when power is ON, and "OPEN ON" means the output is turned ON by default when power is ON.Long press rotates encoder to switch two states. After setting, long press U/I to return to the normal interface.
• Setting of protection parameters on state and threshold- long press U/I to enter the parameter setting interface in the normal interface.Press SW until the protection you want appears.LUP -- undervoltage protection threshold; OUP -- overvoltage protection threshold; OCP -- overcurrent protection threshold;OPP -- over power protection threshold; OAP -- ultra-capacity protection threshold; OHP timeout protection threshold; OTP -- overtemperature protection threshold.Short press rotate the encoder to select which bit you want to set the protection parameter. Long press the rotary encoder to set the protection parameters on or off (only timeout protection and supercapacity protection can be set to turn on/off, and other protection parameters are turned on by default.).Rotate the encoder left and right to make the parameters bigger and smaller.After setting, long press U/I to return to the normal interface.

Caution:

• A short connection between input IN and output OUT of the module is forbidden, or the constant current function will fail.
• Please ensure that the power moment of the power supply exceeds the required power of the output load!
• If the module wants to output with full load, the input voltage should be above 8V. When the input voltage is 5V, the output power is about 15W. The maximum module current value is 4A, subject to the maximum output power, such as 17V, the current should not be greater than 2A.
• When this module is used over 3A and 35W, please strengthen heat dissipation!!!
• The module has input undervoltage protection function, which is about 4.8v by default (it can be set), and the output will be automatically disconnected after the value is lower than this value (note that the voltage at the module port is lower than the undervoltage protection threshold, and when the input current is relatively large, do not ignore the partial voltage on the input wire).

Package Included:

1 x ZK-4KX CNC DC DC Buck Boost Converter CC CV 0.5-30V 4A Power Module Adjustable Regulated Power Supply for Solar Battery Charging
