Description:
This module allows you to finely tune the output voltage from 4-40VDC to 1.25-36VDC providing great flexibility for a wide range of electronic projects and applications. With its compact size and high efficiency, this power supply module is perfect for space-constrained projects and ensures minimal energy loss during voltage regulation
The output current for the module can be increased to 8A with the addition of an external fan onto the heatsinks to cool the IC. Equipped with the advanced XL4016E1 chip, this module delivers reliable and efficient DC-DC voltage regulation, ensuring stable performance and accurate output voltage. Over-current protection, over-voltage protection, and short circuit protection are integrated to safeguard your electronic devices from potential damage or malfunctions, ensuring safe and reliable operation.
Specifications:
- Output Power (W): 200
- Input Voltage (V): 4 to 40VDC
- Output Voltage (V): 1.25 to 36VDC
- Efficiency: 0.94
Features:
- Adjustment method: first correct input power (between 4-40V) then multimeter to monitor the output voltage and adjust the potentiometer (usually clockwise turn boost, buck turn counterclockwise),

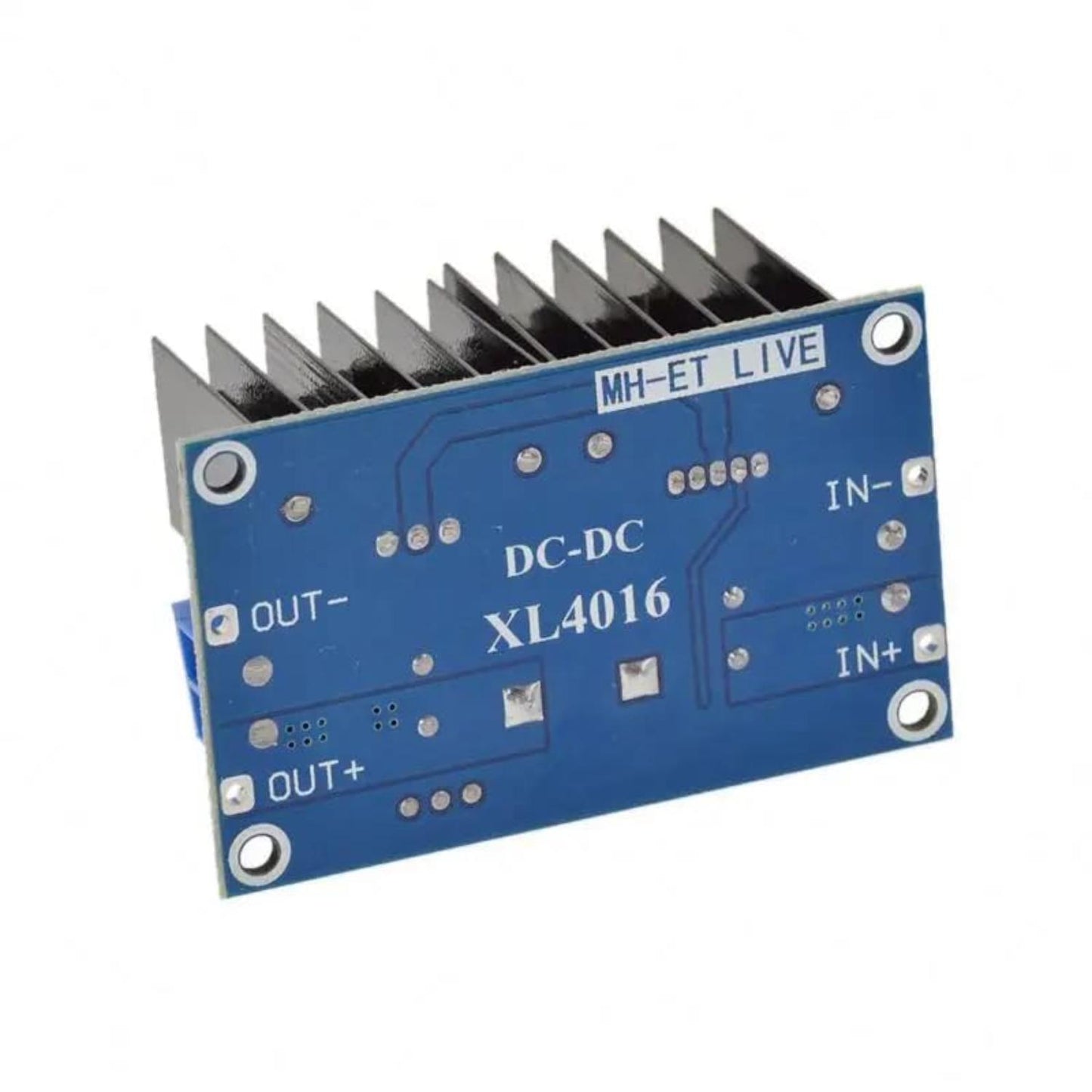

- Input: IN+ input positive IN- input negative
- Output: OUT+ output positive OUT- output negative
- Static power consumption is only about 6mA.
- Connection: Welding, plus pin can be directly soldered after the PCB.
- Short circuit protection: current limiting, thermal protection, self-recovery.
- Non-isolated step-down (BUCK) switching regulator.
- Short circuit protection: Current limiting, self-recovery
- The potentiometer adjustment direction is Clockwise (increase) and Anti-clockwise (decrease)
- Non-synchronous rectification
Package Included:

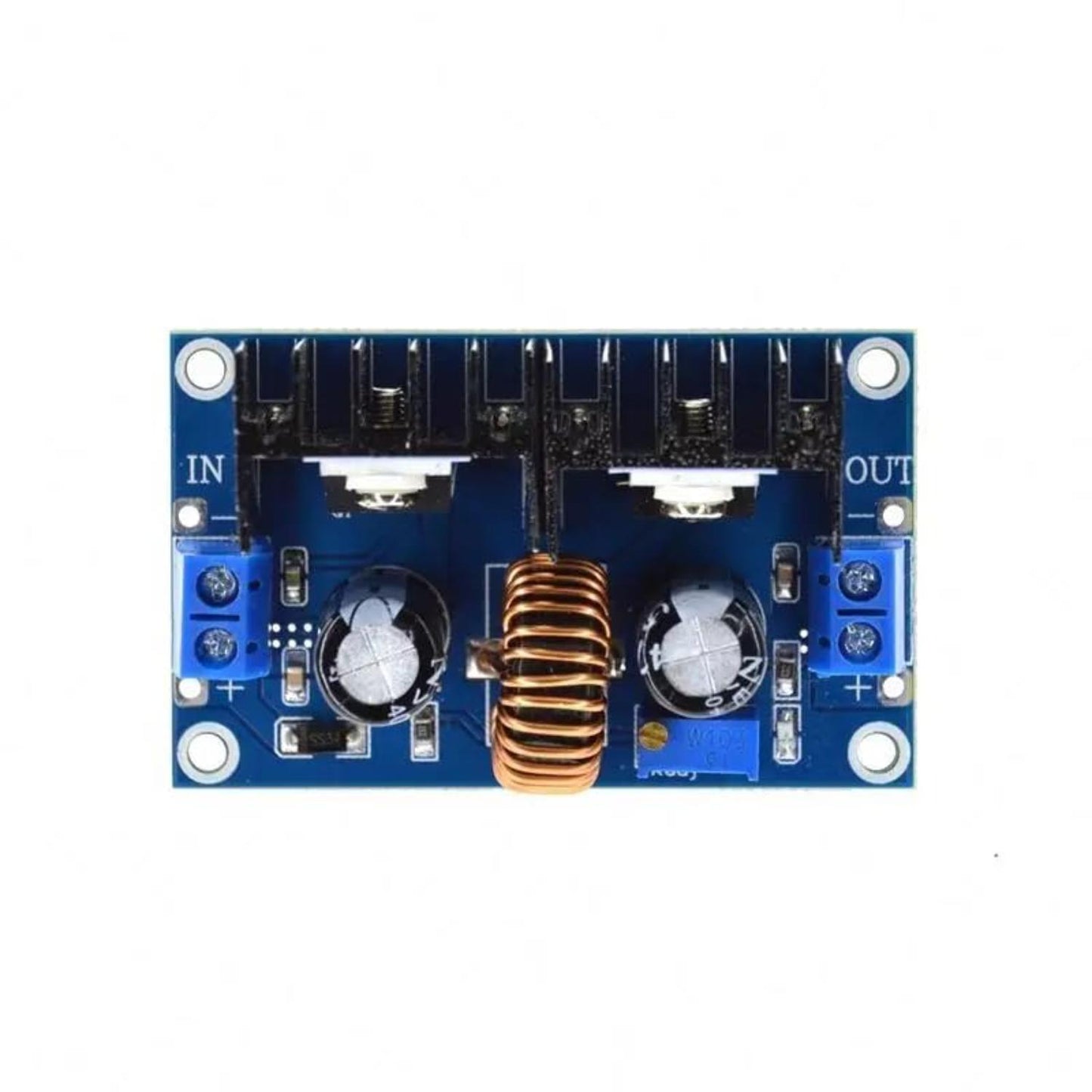

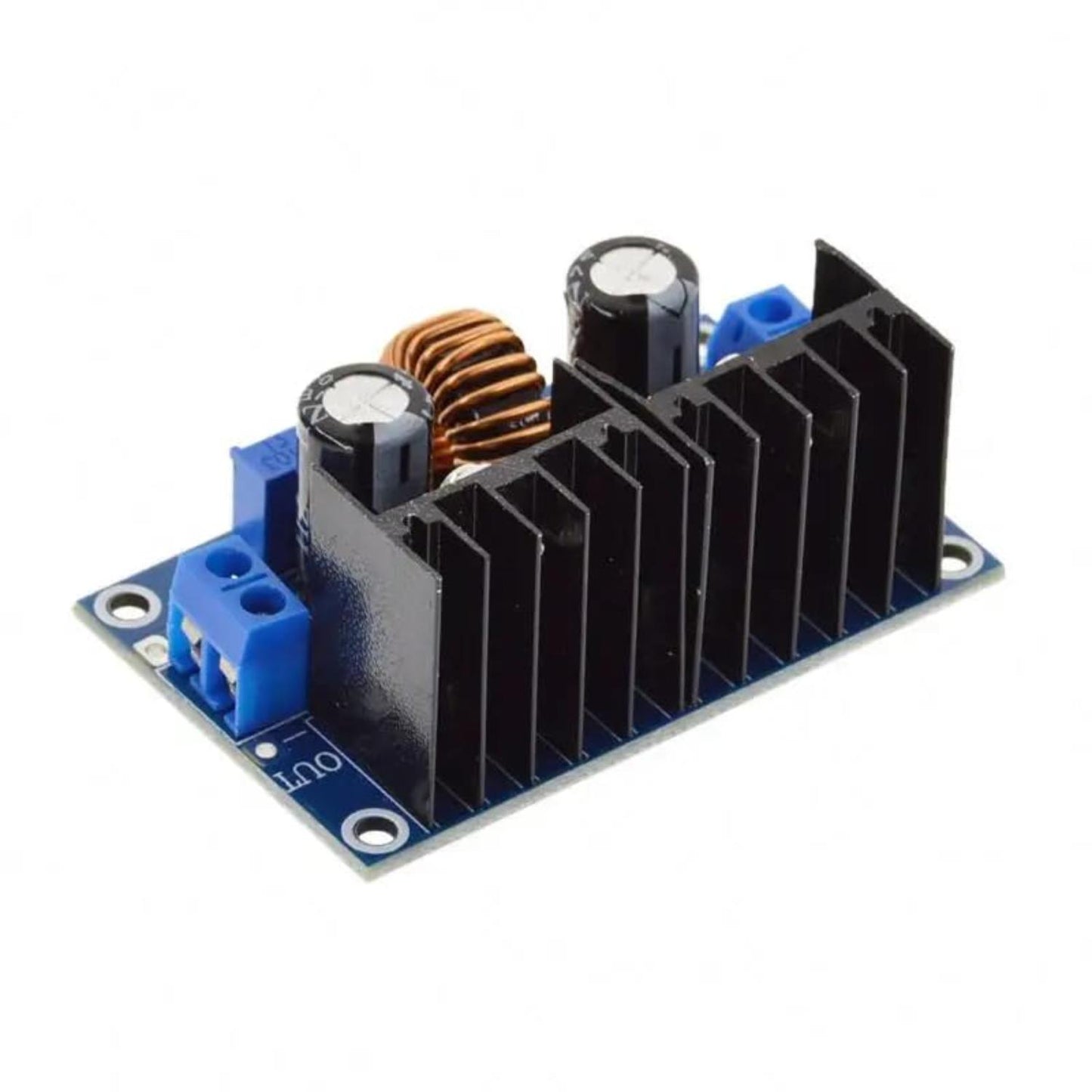

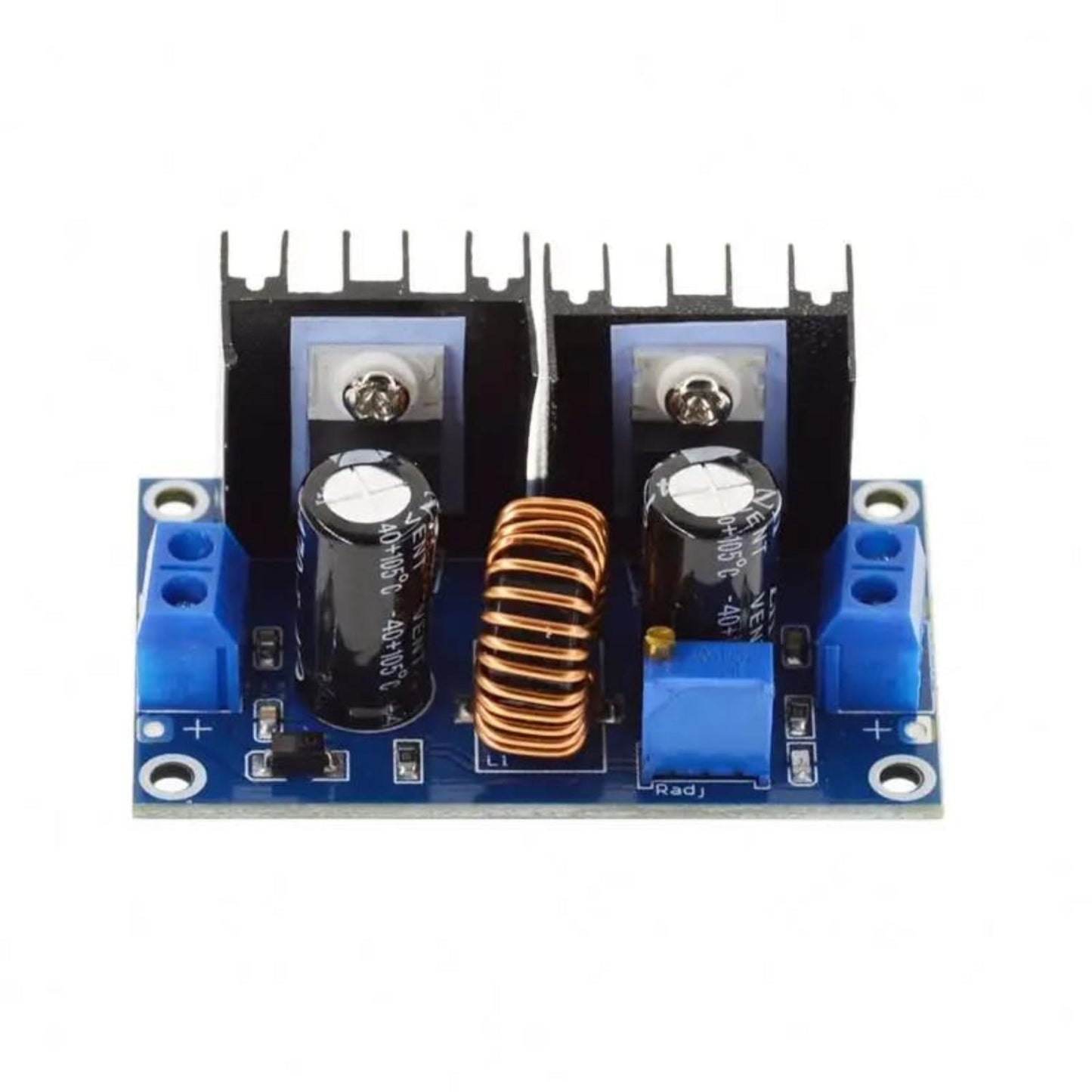

1 x XL4016E1 Power Supply Module
