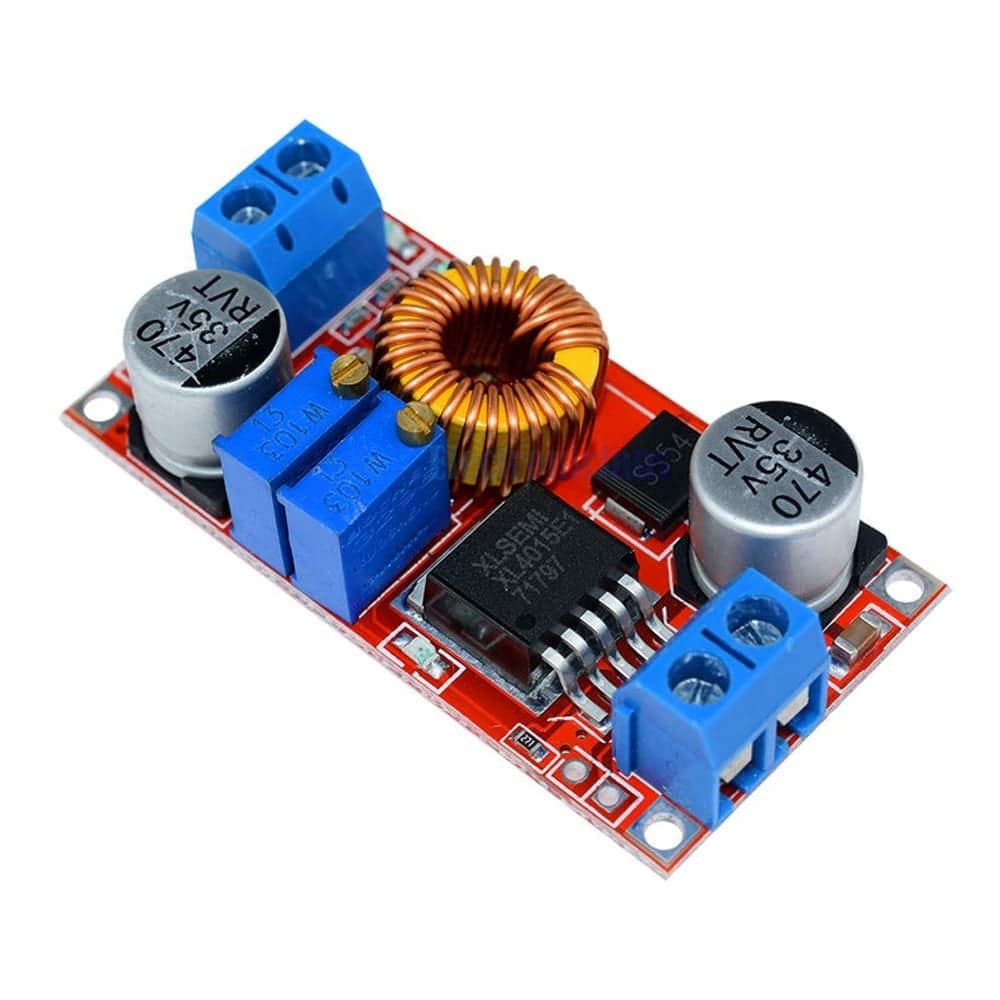

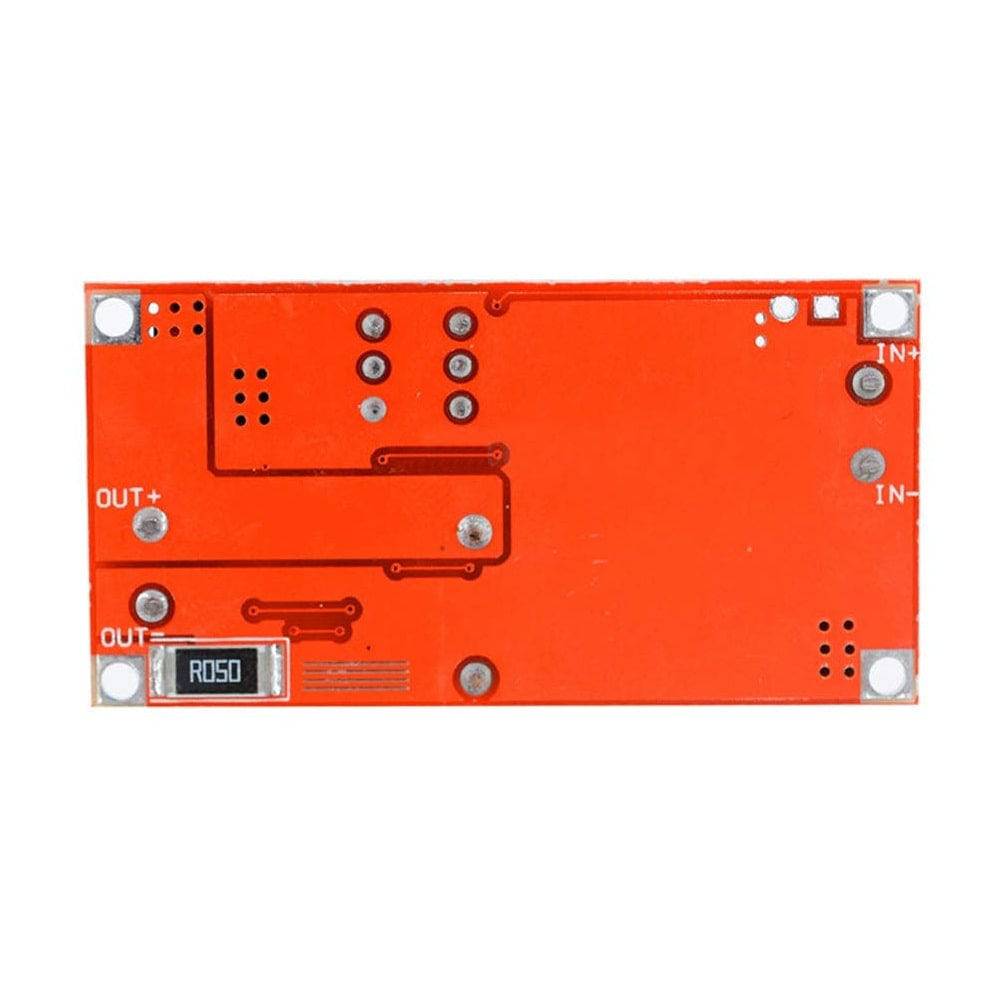

XL4015 CC/CV Buck Converter XL4015 5A Constant Current / Voltage LED Drives Lithium Battery Charging Module - RS196

XL4015 CC/CV Buck Converter XL4015 5A Constant Current / Voltage LED Drives Lithium Battery Charging Module - RS196

SKU:RS196

765 in stock

Regular price Rs. 109.00
Regular price Sale price Rs. 109.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

View full details

Description:

The XL4015 CC/CV Buck Converter is an electronic module designed to regulate and control the output voltage and current in power supply applications. The XL4015 CC/CV Buck Converter is capable of both Constant Current (CC) and Constant Voltage (CV) regulation. This means it can maintain a stable output current or voltage, depending on the specific configuration.

The XL4015 CC/CV Buck Converter comes with two modes of constant voltage and constant current, and there are indicators to indicate which mode the module is currently in. When used as a lithium battery charger, you can set the float voltage and charge current to show it is charging or already full. With current limiting protection, the module will not burn out even if the output is short-circuited.

This XL4015 CC/CV Buck Converter can be used as a normal step-down module with overcurrent protection capability for various applications. XL4015 CC/CV Buck Converter is used as a charger for various voltage lithium batteries, batteries, nickel-cadmium nickel-hydrogen batteries (battery packs), solar panels, wind turbines, etc. This buck converter can also be used as a high-power LED driver module.

XL4015 CC/CV Buck Converter supports a wide input voltage range of 4-38V DC, which allows it to be used with various power sources, including batteries, DC power supplies, and solar panels. The output voltage and current can be adjusted using onboard potentiometers or trimmers, allowing for customization based on the specific requirements of the application.

Specifications:

  • Input Voltage Range: 4-38V
  • Output Voltage Range: 1.25-36V Continuously Adjustable
  • Output Current: Adjustable, up to 5A
  • Output Power: up to 75W
  • Working Temperature: -40 ~ + 85 °C
  • Working Frequency: 180KHz
  • Conversion Efficiency: up to 96%
  • Rectification Method: Asynchronous Rectifier

Features:

  • Short circuit protection: Yes(limited current 8A)
  • Over-temperature protection: Yes (automatically turn off the output after over-temperature)
  • Installation method: 4 3mm silk
  • Wiring method: terminal block or soldering terminal,
  • V-IN is input.
  • Input reverse connection protection: None, (If necessary, please input a large current diode in the input string)

Package Included:

1 x XL4015 CC/CV Buck Converter XL4015 5A Constant Current / Voltage LED Drives Lithium Battery Charging Module
