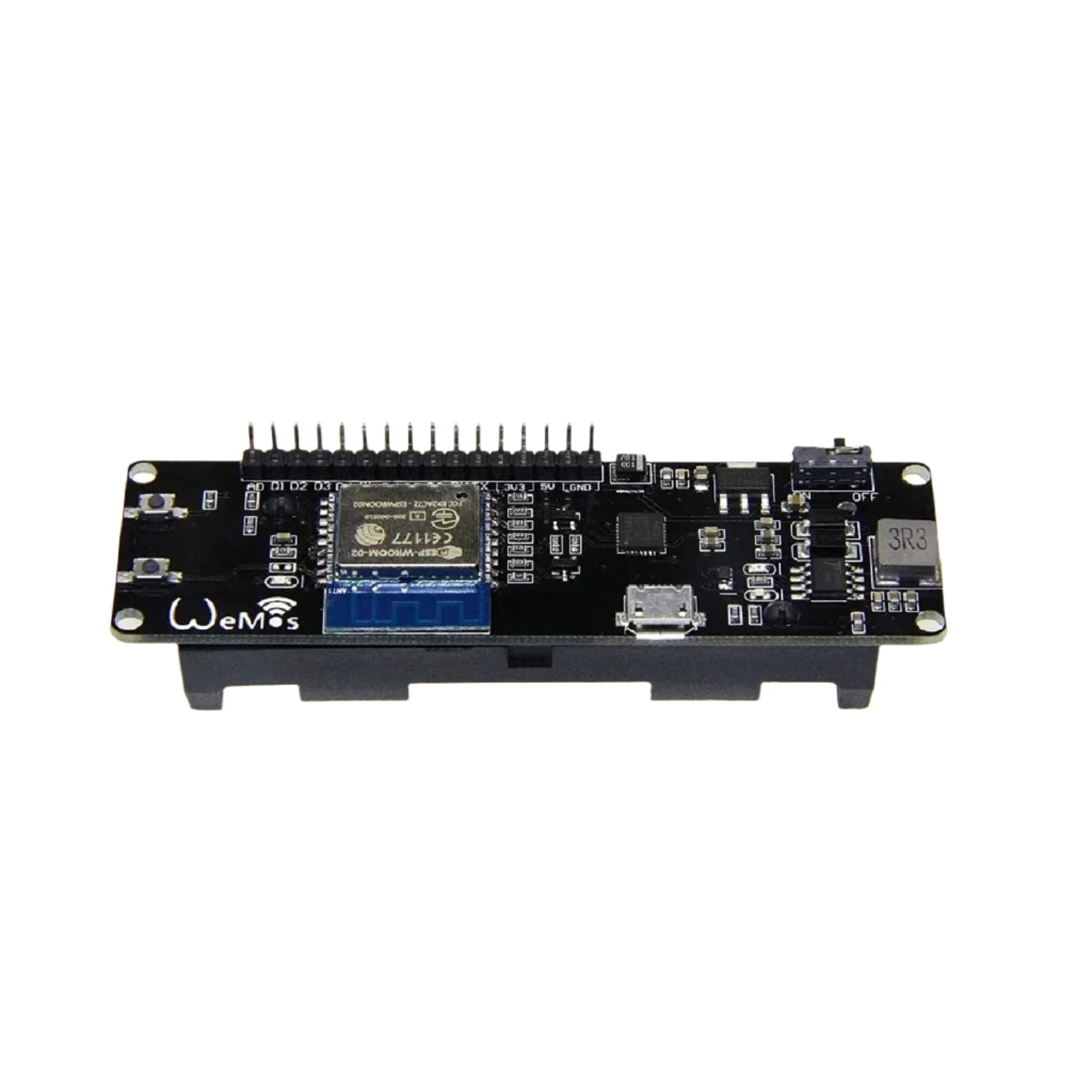

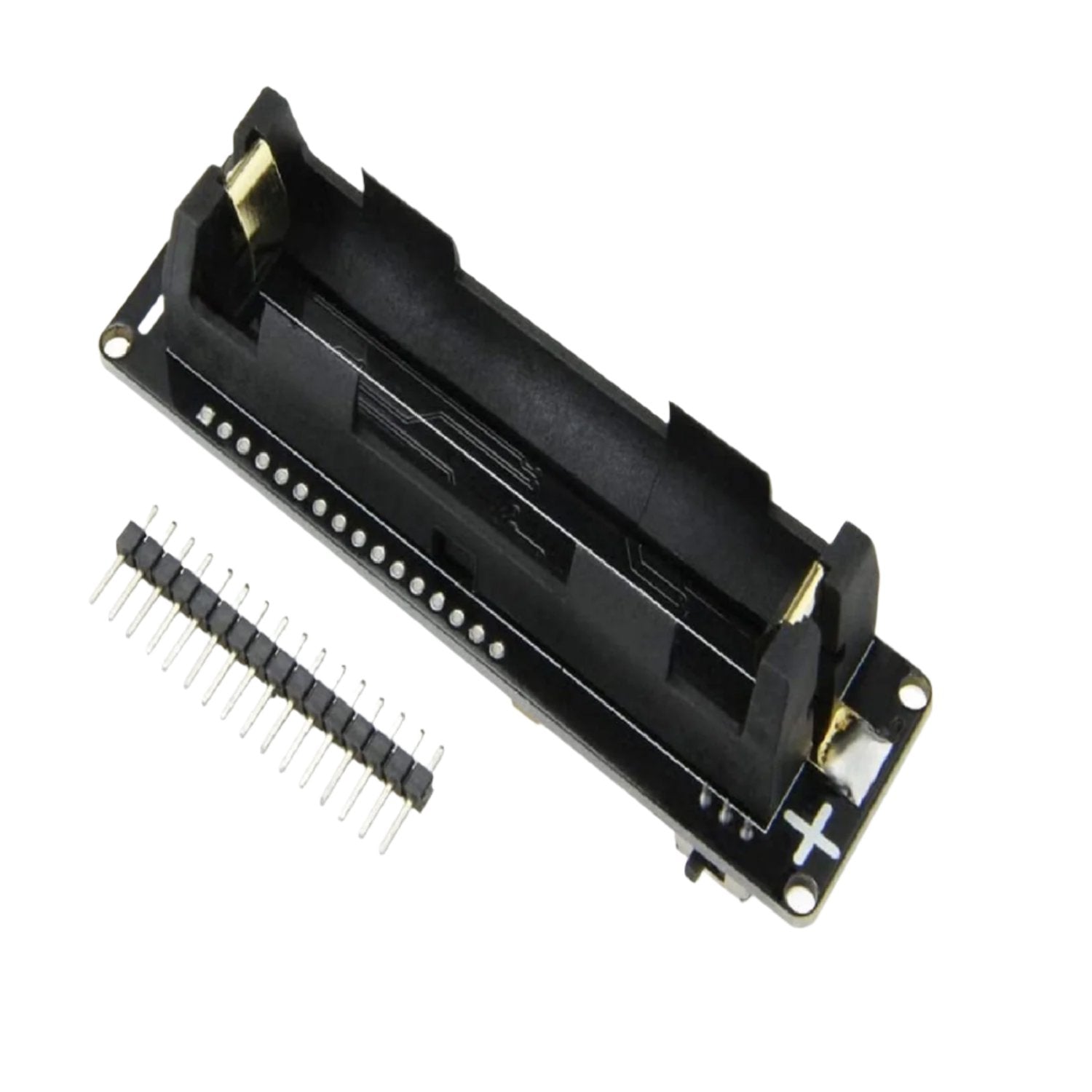

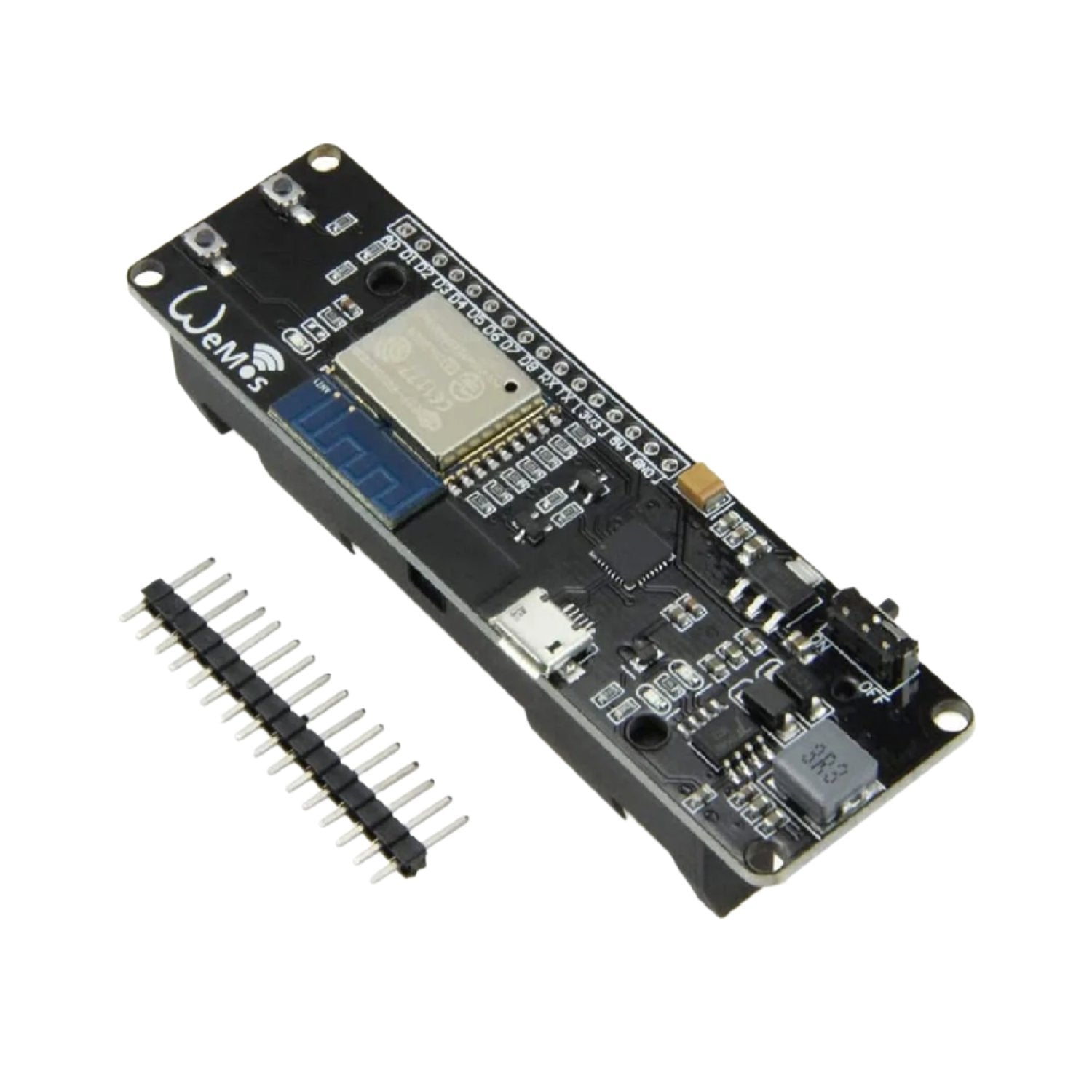

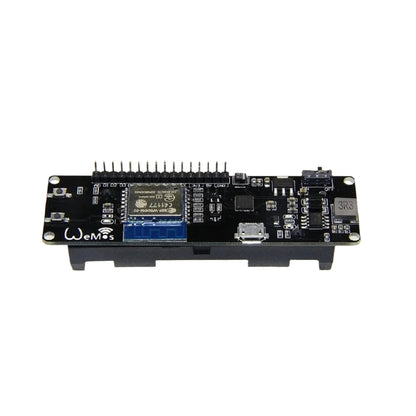

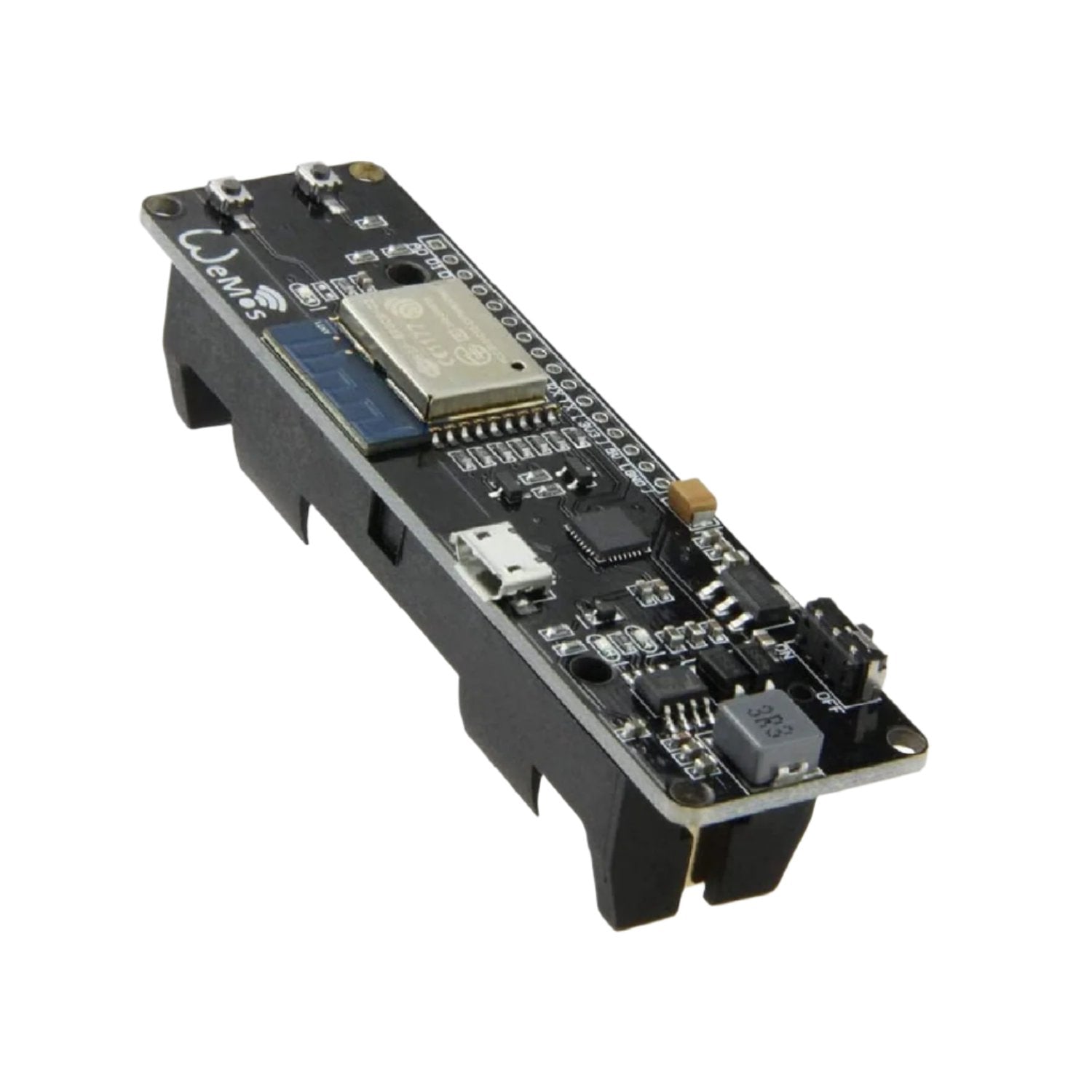

WeMos D1 Mini ESP8266 WiFi Module With 18650 Battery Shield WiFi Development Board Compatible Mini WiFi Nodemcu Module - RS4614
WeMos D1 Mini ESP8266 WiFi Module With 18650 Battery Shield WiFi Development Board Compatible Mini WiFi Nodemcu Module - RS4614
SKU:RS4614
In stock
Regular price
Rs. 364.00
Regular price
Sale price
Rs. 364.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:
The development board integrates the ESP8266 18650 battery. A Sony 3000mah 18650 battery can run for 17 hours.
The Sony 3000mah 18650 battery can make the ESP8266 run for 17 hours or more. IoT Development Board With nodeMCU, 18650 charging system integration, and Indication LEDs (green means full and red means • Charging) Charge and work can be done easily at the same time.
To buy a Li-Ion 18650 Battery, click below
Specifications:
- Components: WeMos d1 ESP Wroom 02 Board ESP8266 Mini Wifi Nodemcu Module 18650 Battery
- Connectivity Technology: USB
- Manufacture: Bombay Electronics
Features:
- One AD inputs.
- Micro USB inputs.
- One programmable LED (D0).
- AUTO PROGRAM circuit.
- ESP8266 (ESP-WROOM-02 With TELEC) is equivalent to the NodeMCU.
- Analog Input (AD): Built-in dividing resistor (AD = 220K – ADC – 100K = GND).
- There is a SOLDER terminal for SLEEP MODE.
- Compatible With Arduino and NodeMCU.
- Operation and charging are possible at the same time.
- 18650 charging circuit including the 5V boosting circuit with TP5410.
- Overcharge protection, over-discharge protection built-in.
Notes:
- This product does not contain an 18650 battery. If the battery is in the wrong direction, the charging chip will be destroyed.
- Please do not burn the program during charging. When you burn the program, please unplug the battery and verify the switch is in the ON position.
- Recommend the use of a 5V 500mA charging charger, for more than 5V 1A there will be fever, which does not affect the normal work, but in the process of charging chip does not touch or carry, the measured charge charging will rise to about 60 degrees with the diode chip, no heat during normal working hours, rest assured to carry.
- Important!!! The charging tip (TP 5410) will be destroyed if the battery is connected reveres.
Package Included:
1 x WeMos D1 Mini ESP8266 WiFi Module With 18650 Battery Shield
