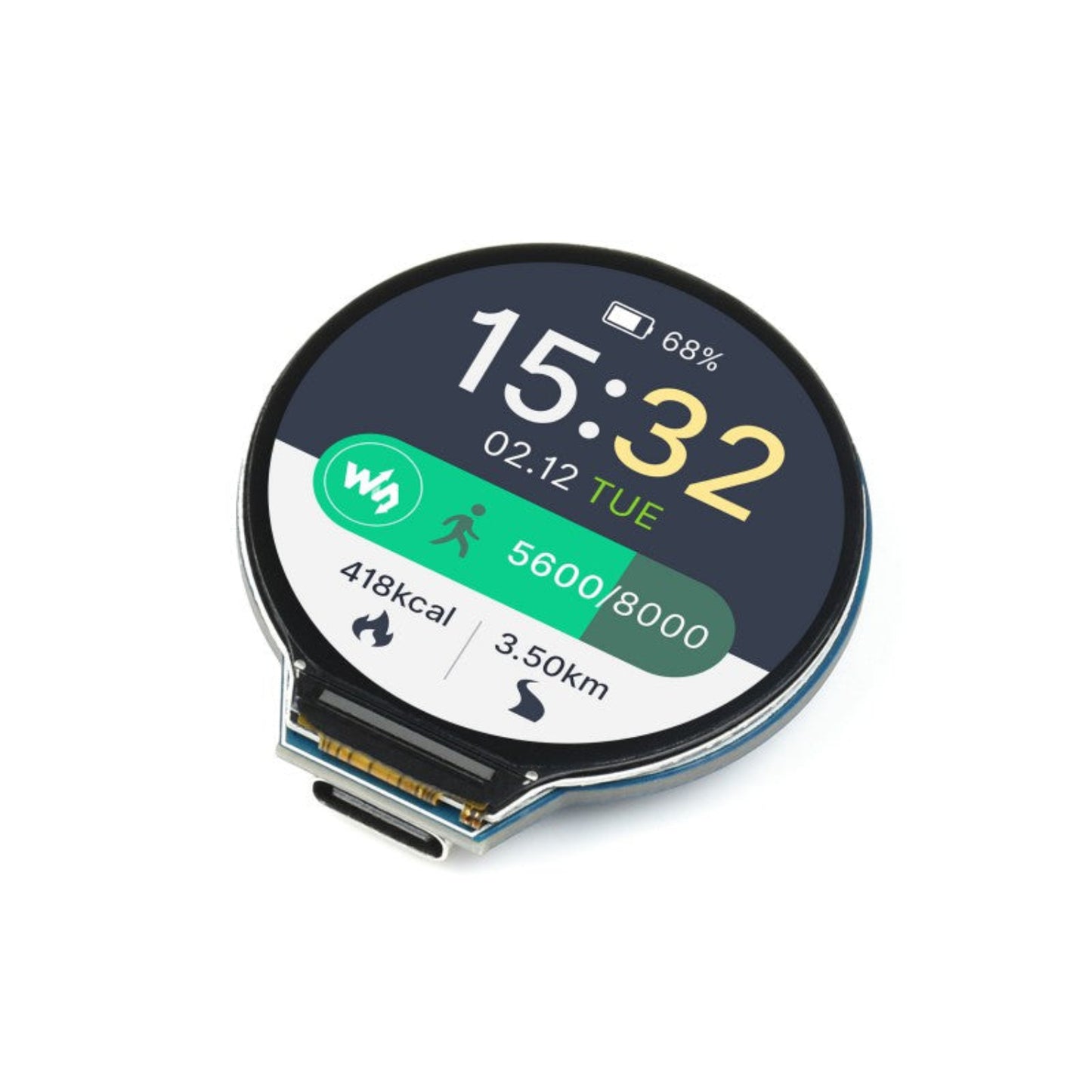

Waveshare RP2040 MCU Development Board with 1.28-inch Round LCD Display and Built-in Accelerometer & Gyroscope Sensor For IoT, Robotics - RS5906

Description:

RP2040-LCD-1.28 is a low-cost, high-performance MCU board designed by Waveshare. Tiny size with onboard 1.28-inch LCD round display, Li-ion battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), and so on, adapting all GPIO and Debug pins, which makes it easy for you to develop and integrate it into products quickly.

Specifications:

• Controller: GC9A01A
• Communication interface: SPI
• Display Panel: IPS
• Sensor: QMI8658
• Accelerometer: Resolution: 16 bits
  Measurement Range (optional): ±2, ±4, ±8, ±16g
• Gyroscope: Resolution: 16 bits
  Measurement Range (optional): ±16, ±32, ±64, ±128, ±256, ±512, ±1024, ±2048°/sec
• Resolution: 240 (H) RGB x 240(V)
• Display Size: Φ32.4mm
• Pixel Size :0.135 (H) x 0.135 (V) mm

Features:

• RP2040 microcontroller chip designed by Raspberry Pi (3B, 3B+, 4B, 5)   in the United Kingdom
• Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
• 264KB of SRAM, and 2MB of on-board Flash memory
• Type-C connector, keeps it up to date, easier to use
• Onboard 1.28-inch 240×240 pixels 65K colorful IPS LCD display for clear color pictures
• Lithium battery recharge/discharge header, suitable for mobile devices
• All GPIO pins are adapted through 1.27 pitch female headers (There are 30 pins in total, but some pins have been connected to the internal circuit, please refer to the wiki for details when multiplexing)
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• 2 × SPI, 2 × I2C, 2 × UART, 4 × 12-bit ADC, 16 × controllable PWM channels
• Accurate clock and timer on-chip
• Temperature sensor
• Accelerated floating-point libraries on-chip
• 8 × Programmable I/O (PIO) state machines for custom peripheral support

Pin Description:

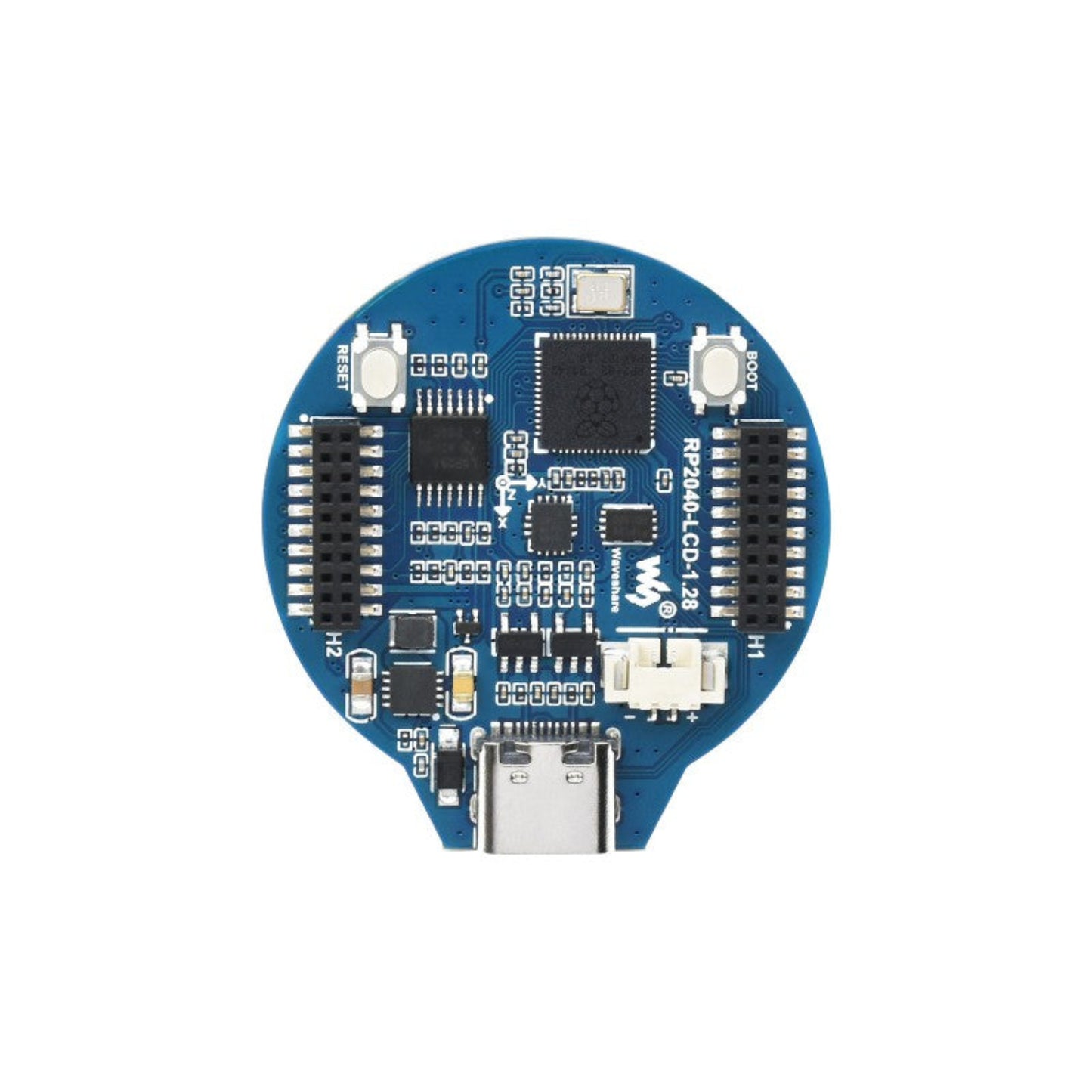

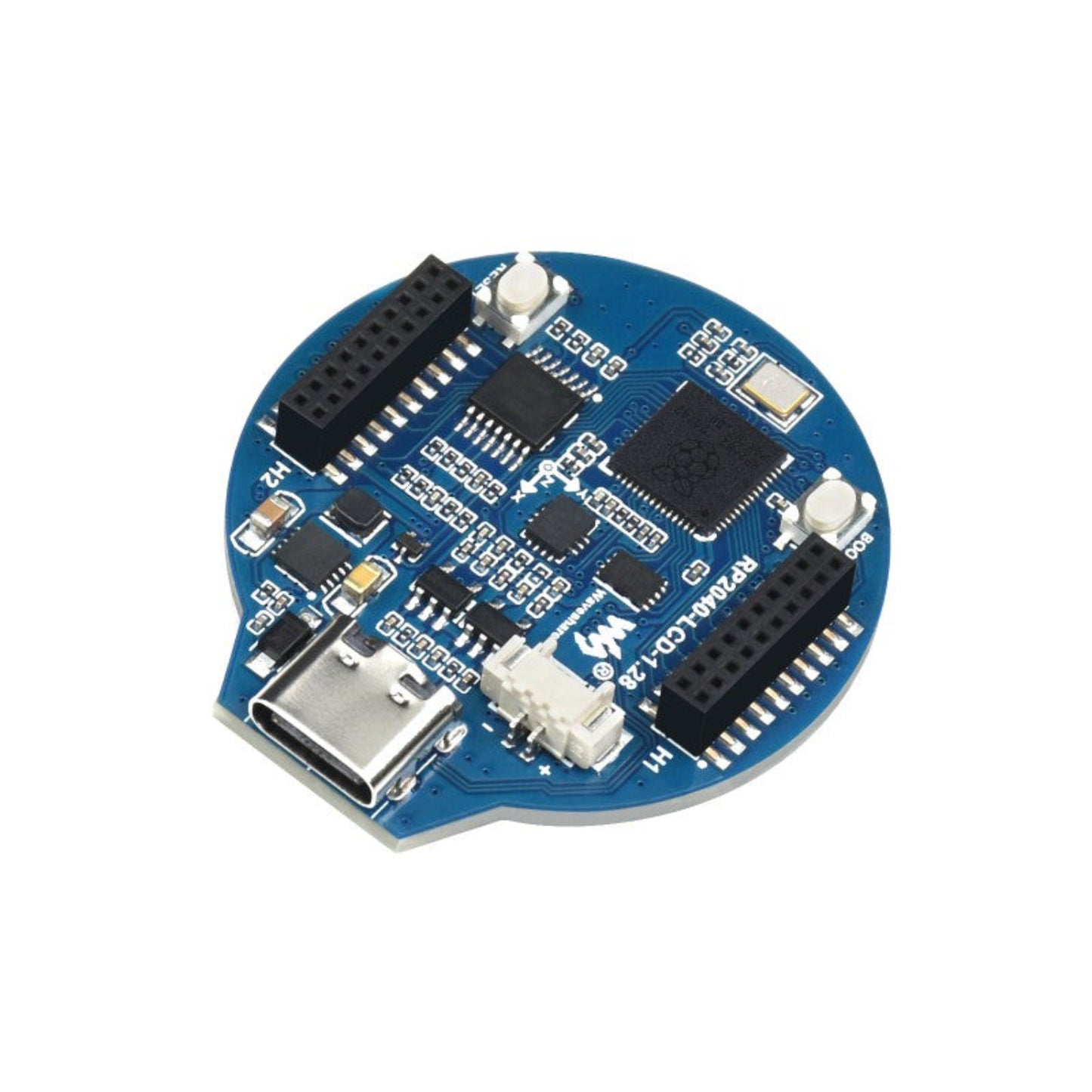

Product Interface:

1. USB Type-C connector
   USB 1.1 with device and host support
2. ETA6096
   high efficiency Lithium battery recharge manager
3. Battery Header
   MX1.25 header, for 3.7V Lithium battery, allows recharging the battery and powering the board at the same time
4. QMI8658
   IMU, includes a 3-axis gyroscope and a 3-axis accelerometer
5. 1.27mm pitch headers
   Adapting all GPIO and Debug pins
6. W25Q16JVUXIQ
   2MB NOR-Flash
7. RP2040
   Dual-core processor, up to 133MHz operating frequency
8. RESET Button
9. BOOT Button
   press it when resetting to enter download mode

Useful Link:

Waveshare RP2040 MCU Board with 1.28-inch Round LCD

Package Included:

1 x RP2040 MCU Board, With 1.28inch Round LCD
