- Working Voltage:DC 5V
- Working Temperature range:-20℃~85℃
- Working Humidity range:0%-95%RH
Description:

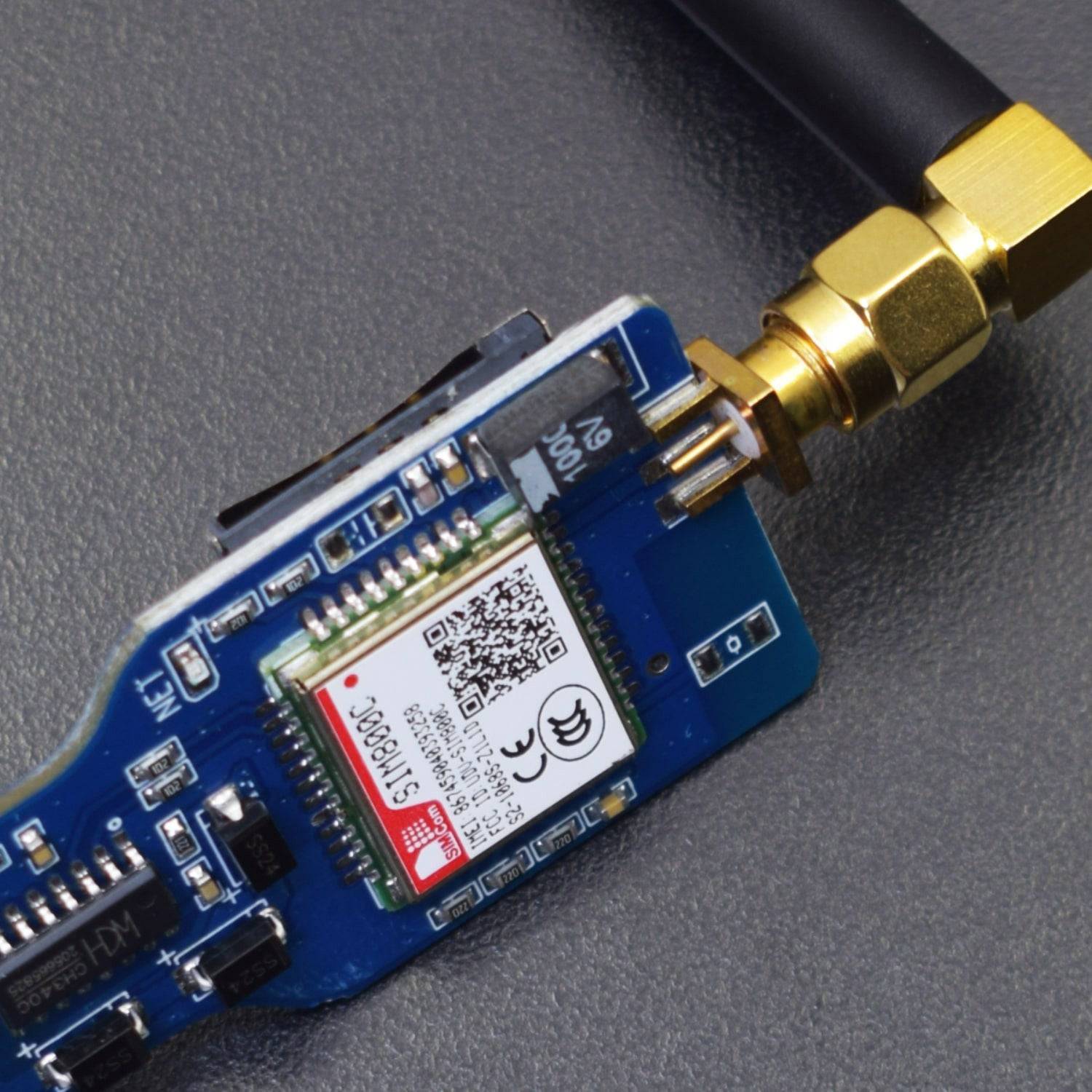

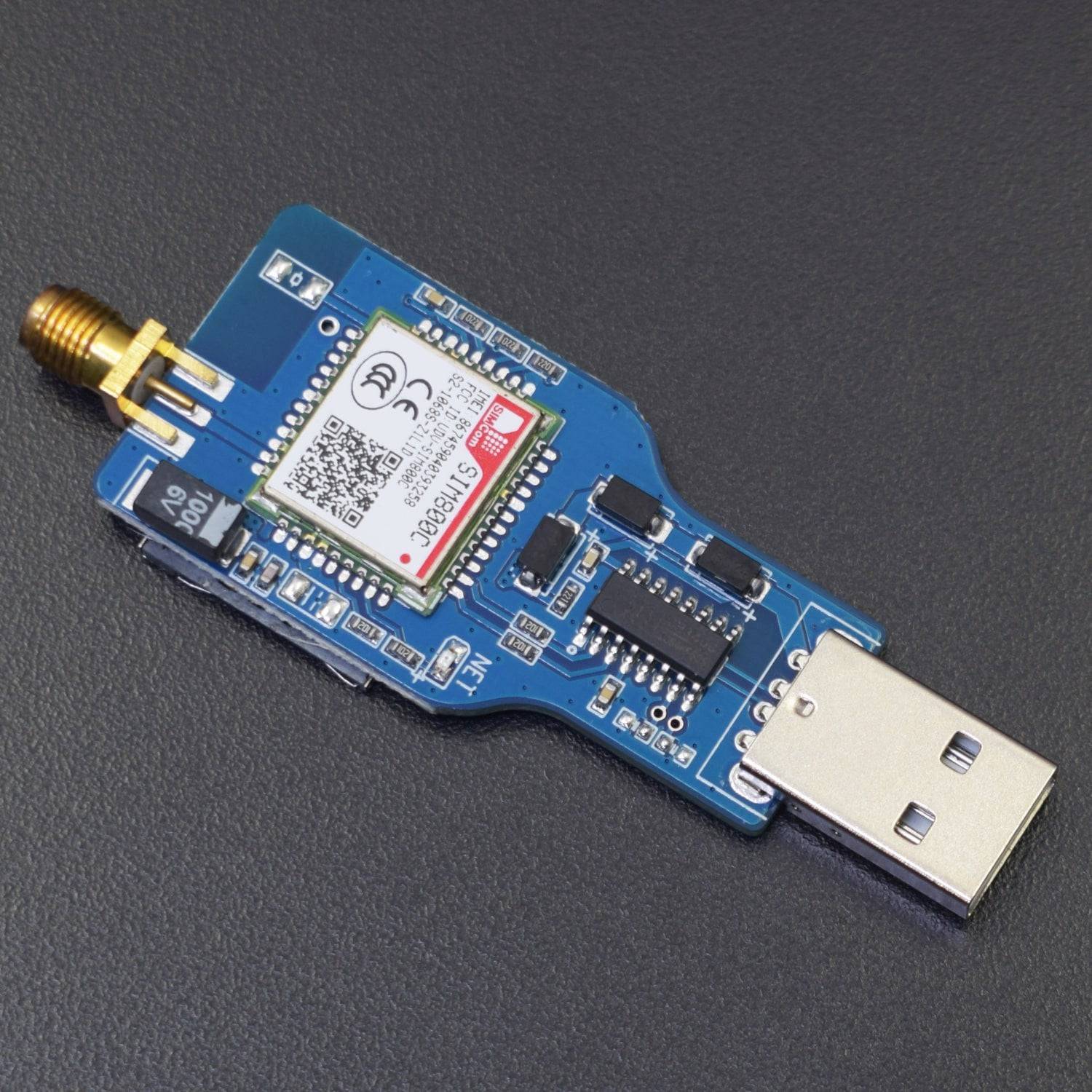

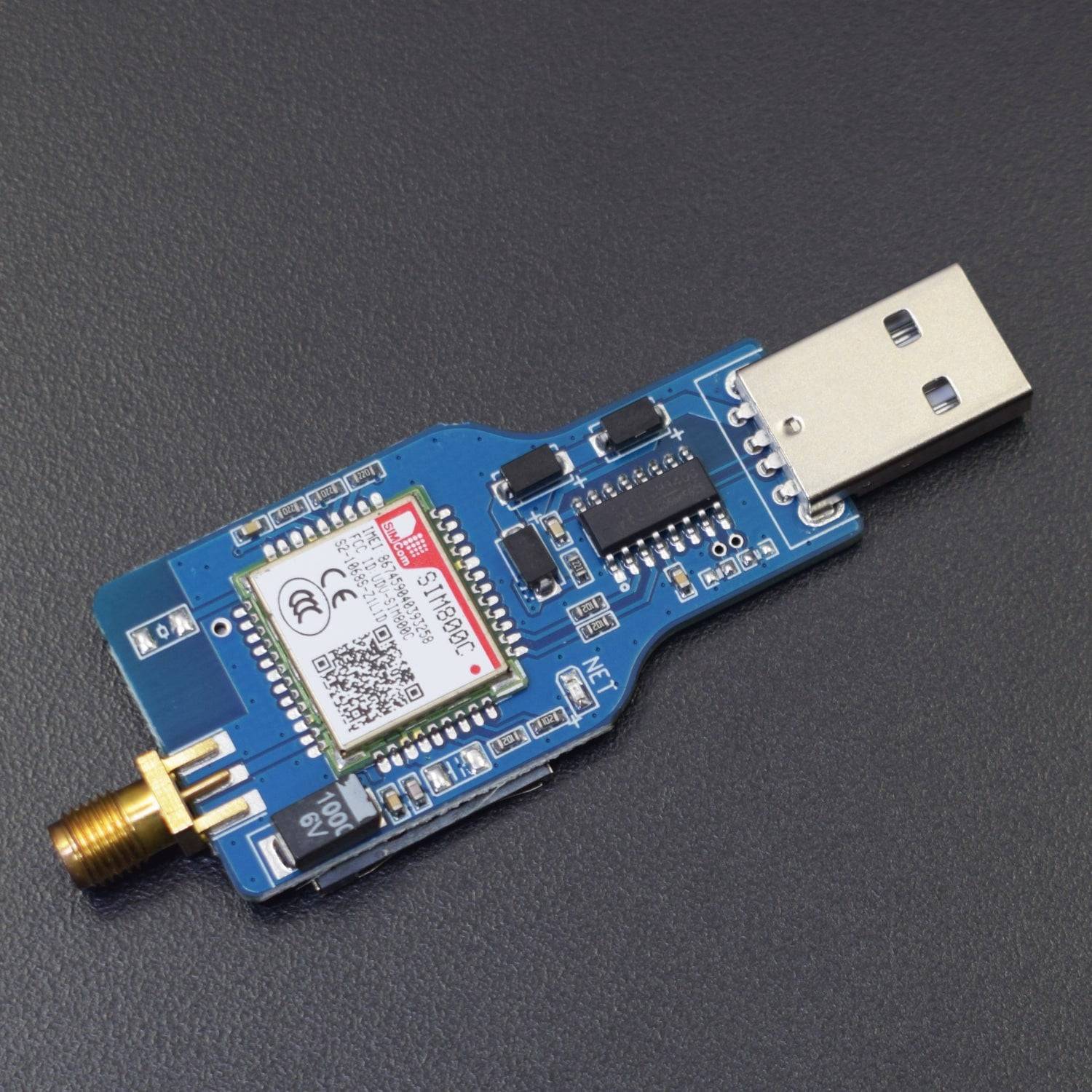

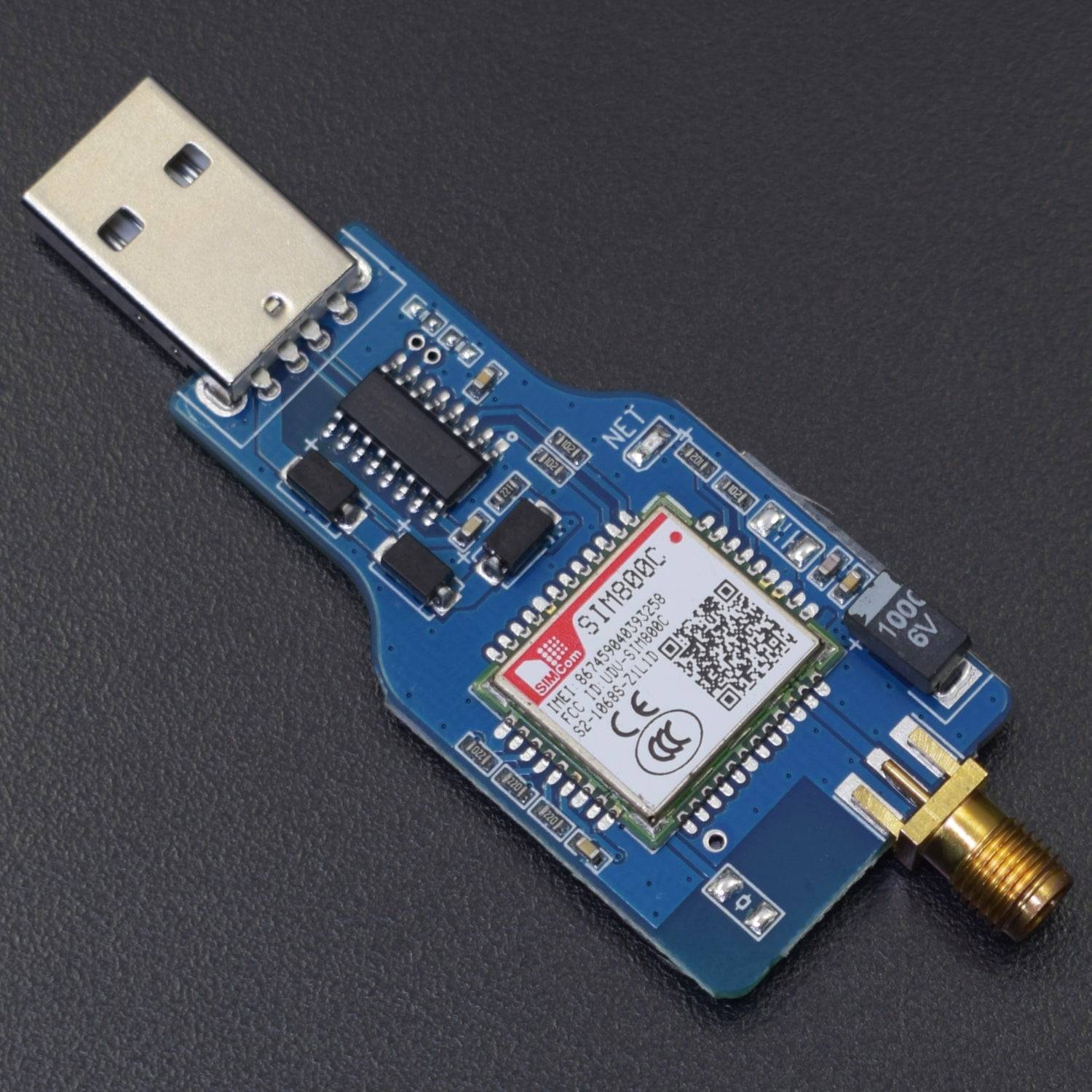

GSM-SIM 800C USB to GSM is a quad-band GSM/GPRS module with stable performance, compact appearance and high-cost performance, which can meet the various needs of customers. Integrated USB to serial port chip, you can plug directly into the computer to debug. SIM800C operates at GSM/GPRS 850/900/1800/1900MHz which support being used worldwide. It can transmit voice, SMS information and data information with low power consumption, and can be applied to different design requirements of many compact products.
Specification:
- Working Voltage: DC 5V
- Working Temperature range:- 20℃~85℃
- Working Humidity range: 0%-95%RH
- Connectivity Support: 2G/3G/4G
- Bluetooth standard: IEEE802.15
- Working frequency: 2.4 GHz
- Chip: CH340G
Features:
- SMS send and receive: Provide management software to facilitate the sending and receiving of SMS
- Telephone function: One instruction can get ATD10086
- GPRS transmission data: Small amount of data transmission suitable for industrial use, such as wireless meter reading, weather monitoring, etc.
- Bluetooth transmission data (with high support): The Bluetooth standard is IEEE802.15, operates in the 2.4GHz band and can be used for file transfer and data transmission with other BlueTooth devices.
- TTS voice synthesis (with high support): During the call, send a text to the device, the device will convert the text into voice and output to the mobile phone end.
Using Steps:
- Connect 2.4GHz GSM antenna

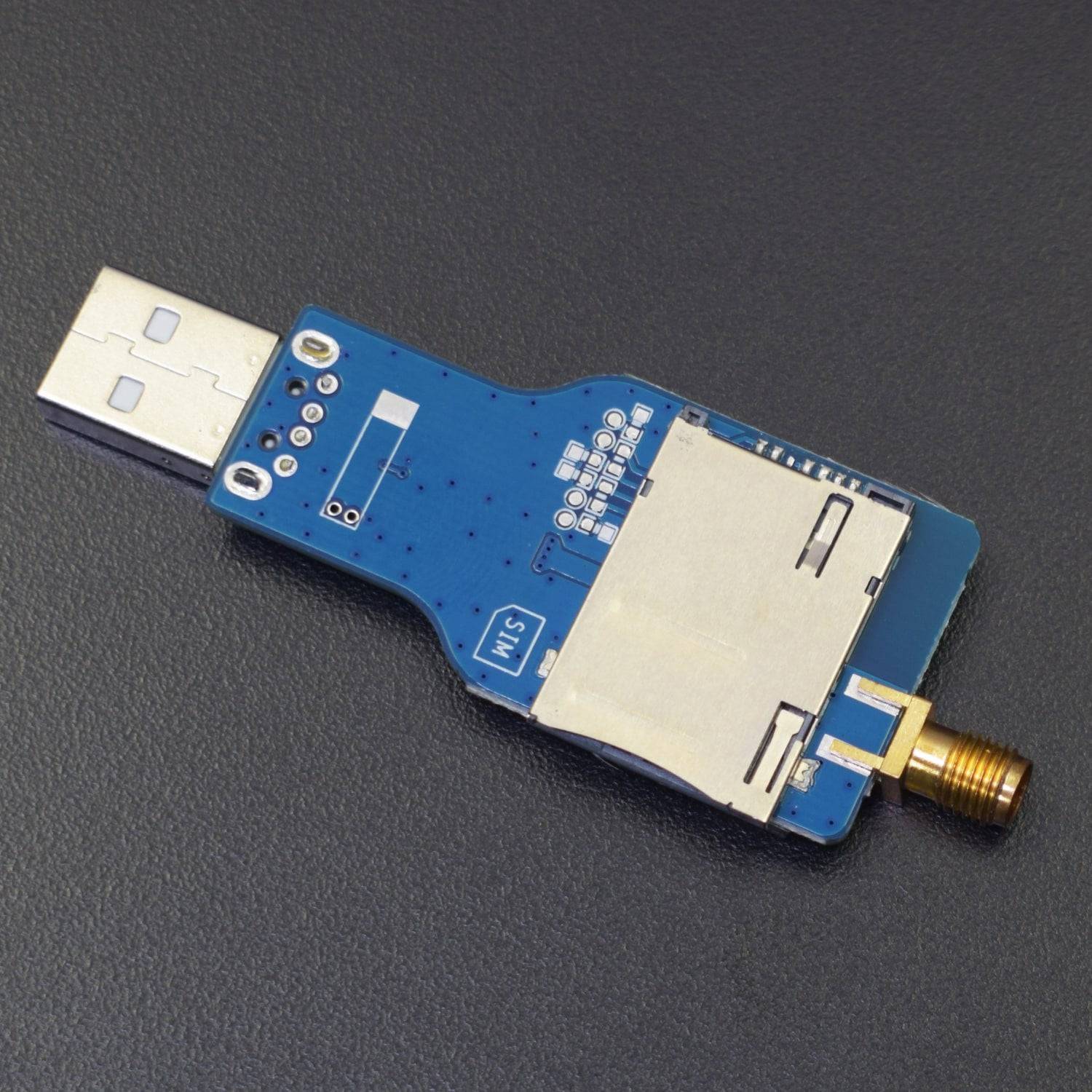

- Insert the SIM card
- Connect module to PC
- Install CH340 drive software
- The module starts initializing and the LED indicator will Flashes once every second
- The LED indicator will Flashes once every 3 seconds after initialization successful
Application:
- Voice communication
- SMS information transmission
- Data communication
- Intelligent remote control
- Intelligent control
- Model control
- Robot control
Package Included:

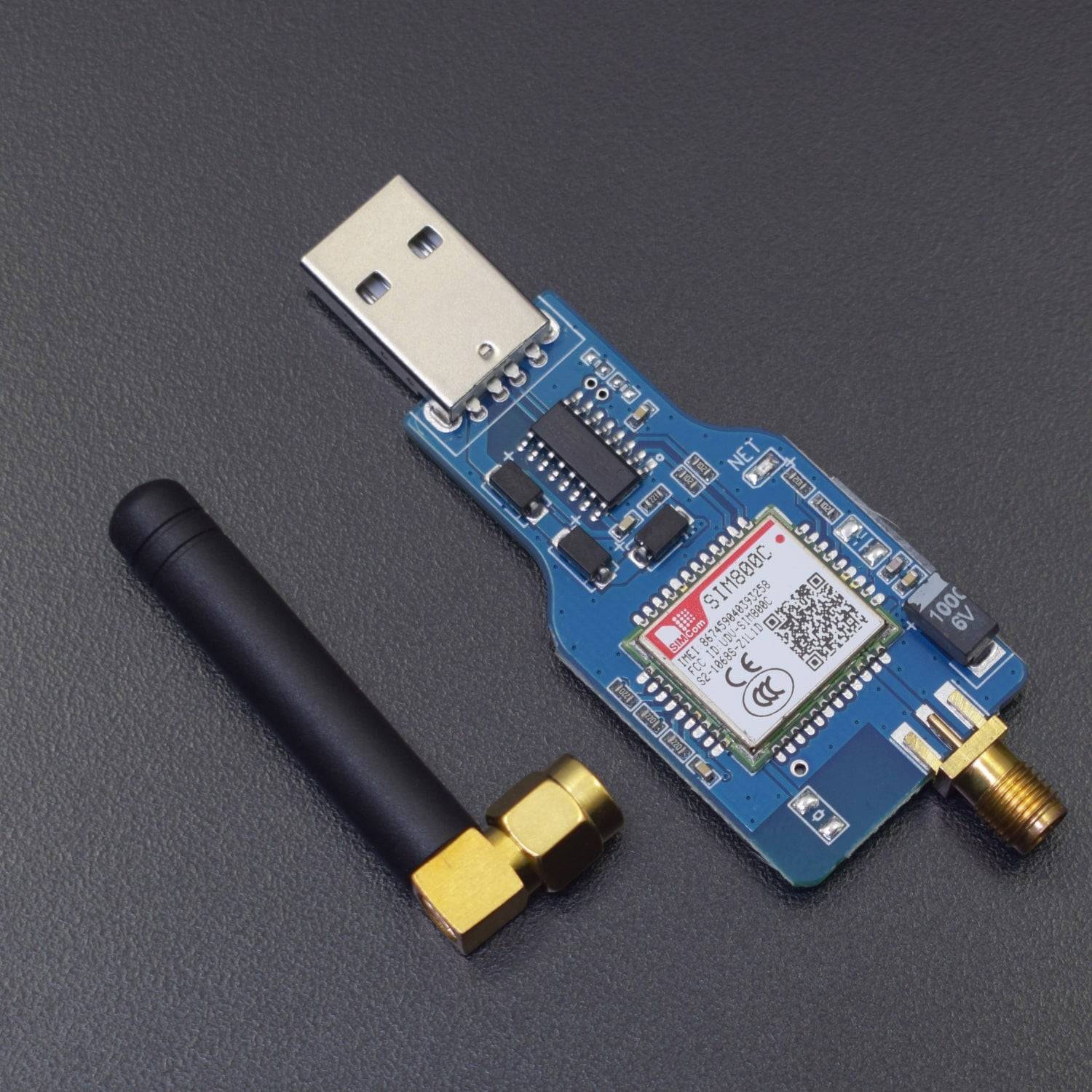

- 1 x SIM800C USB to GSM Module

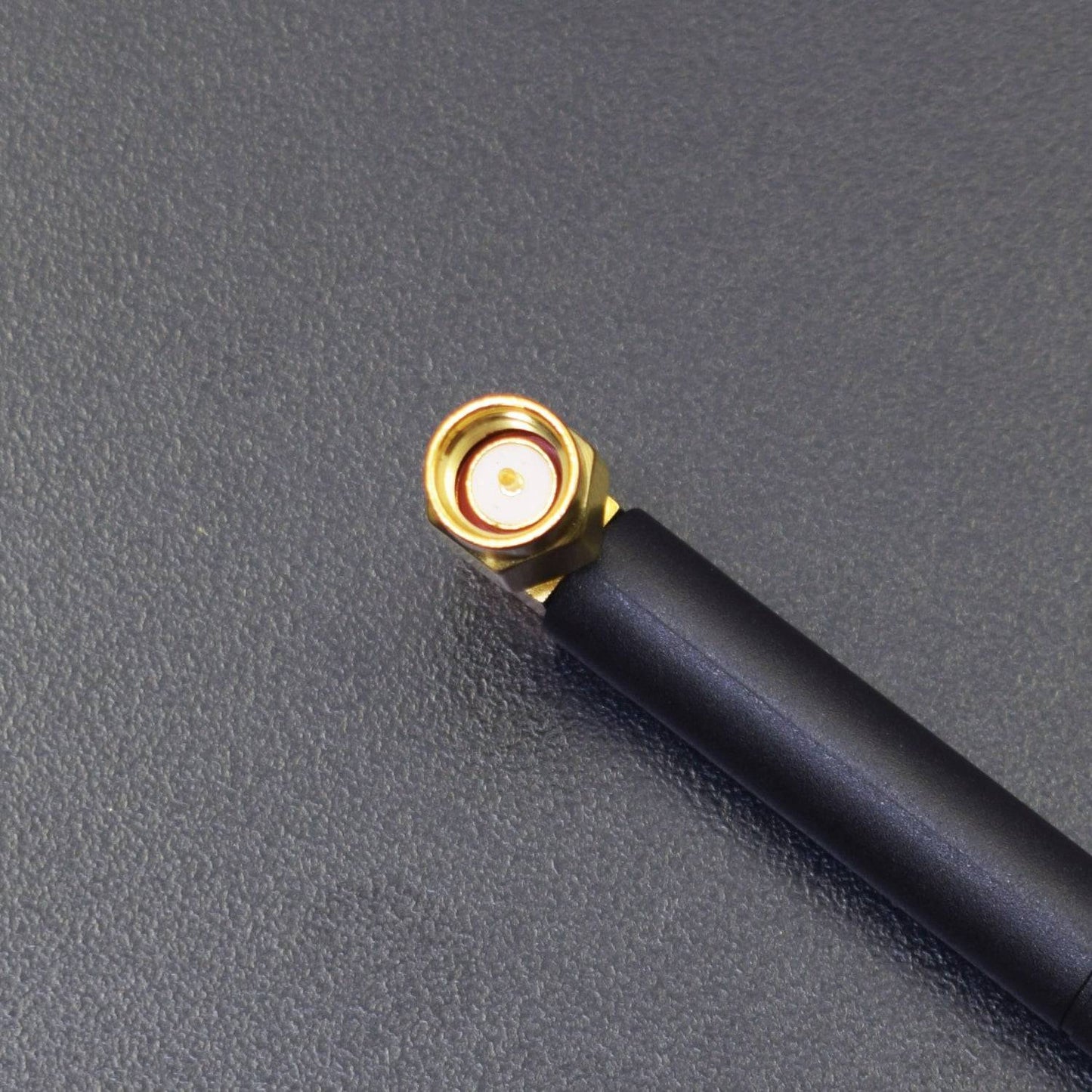

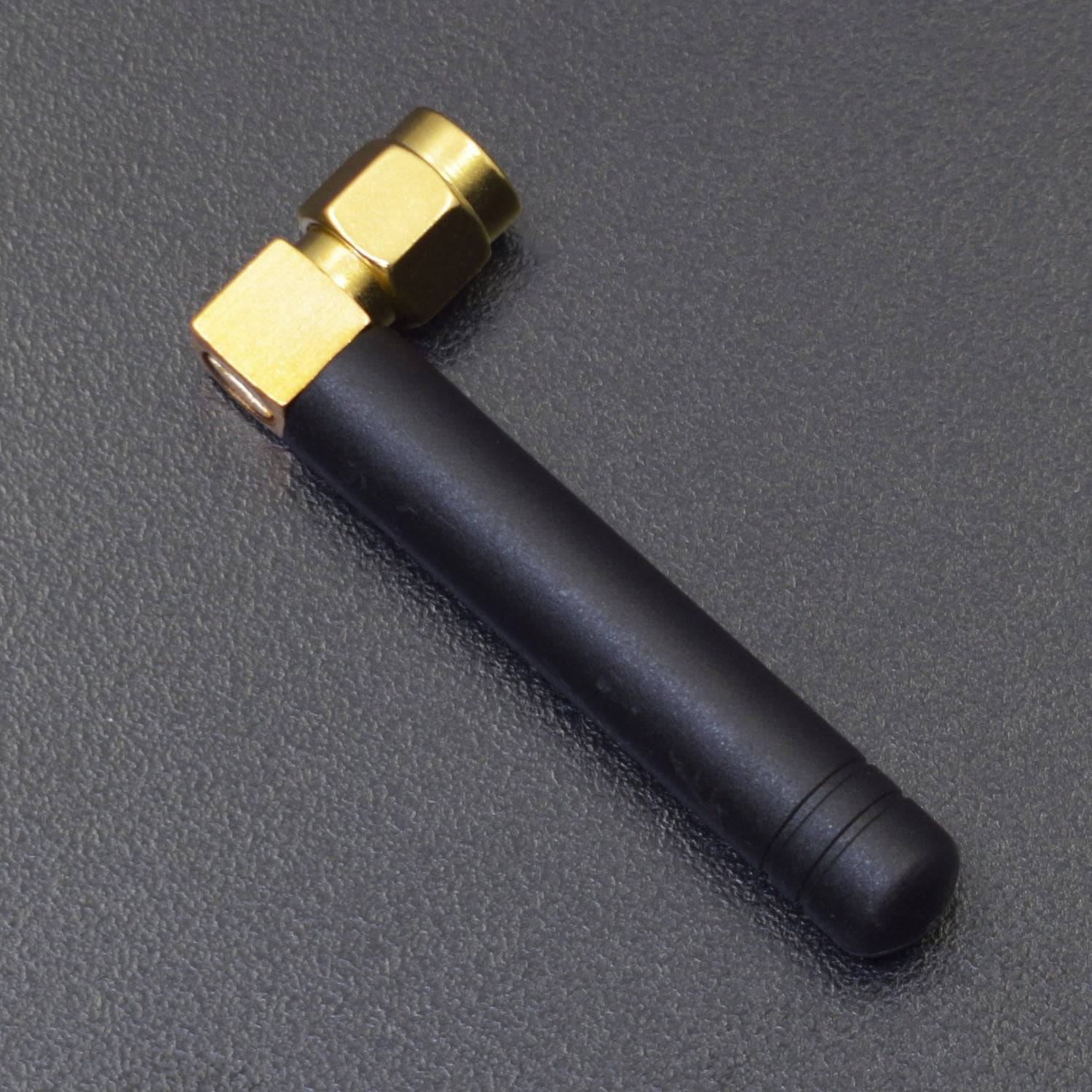

- 1 x Antenna
