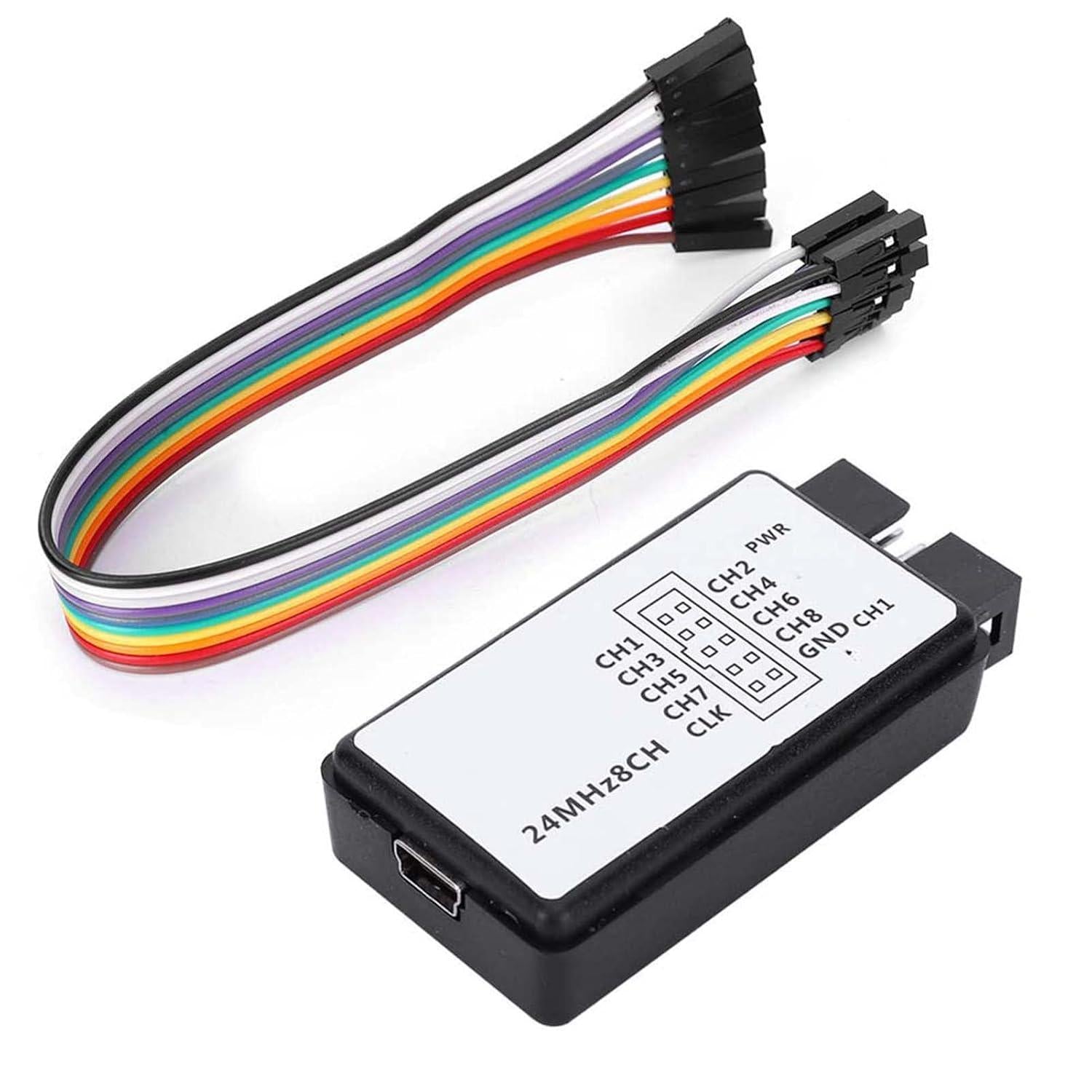

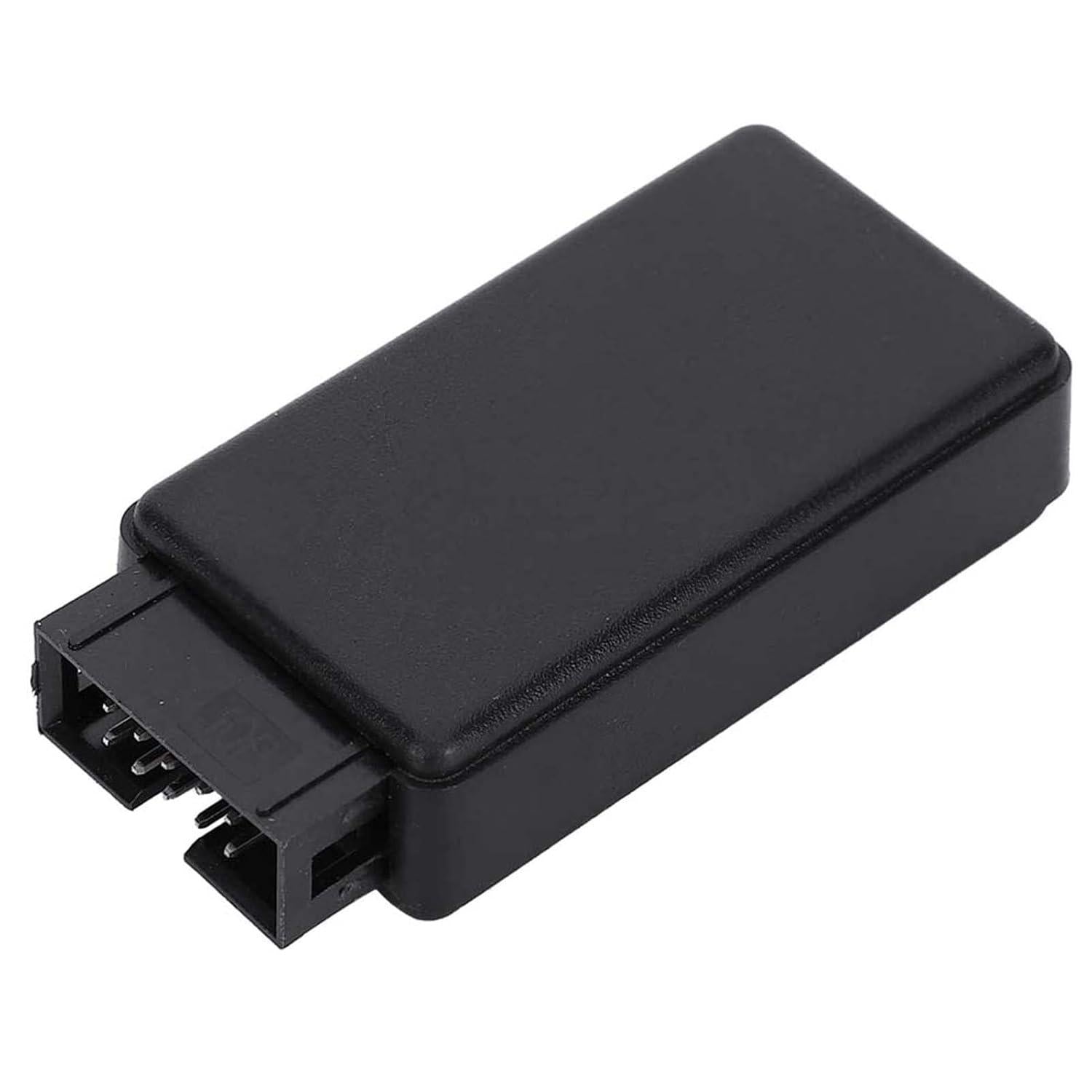

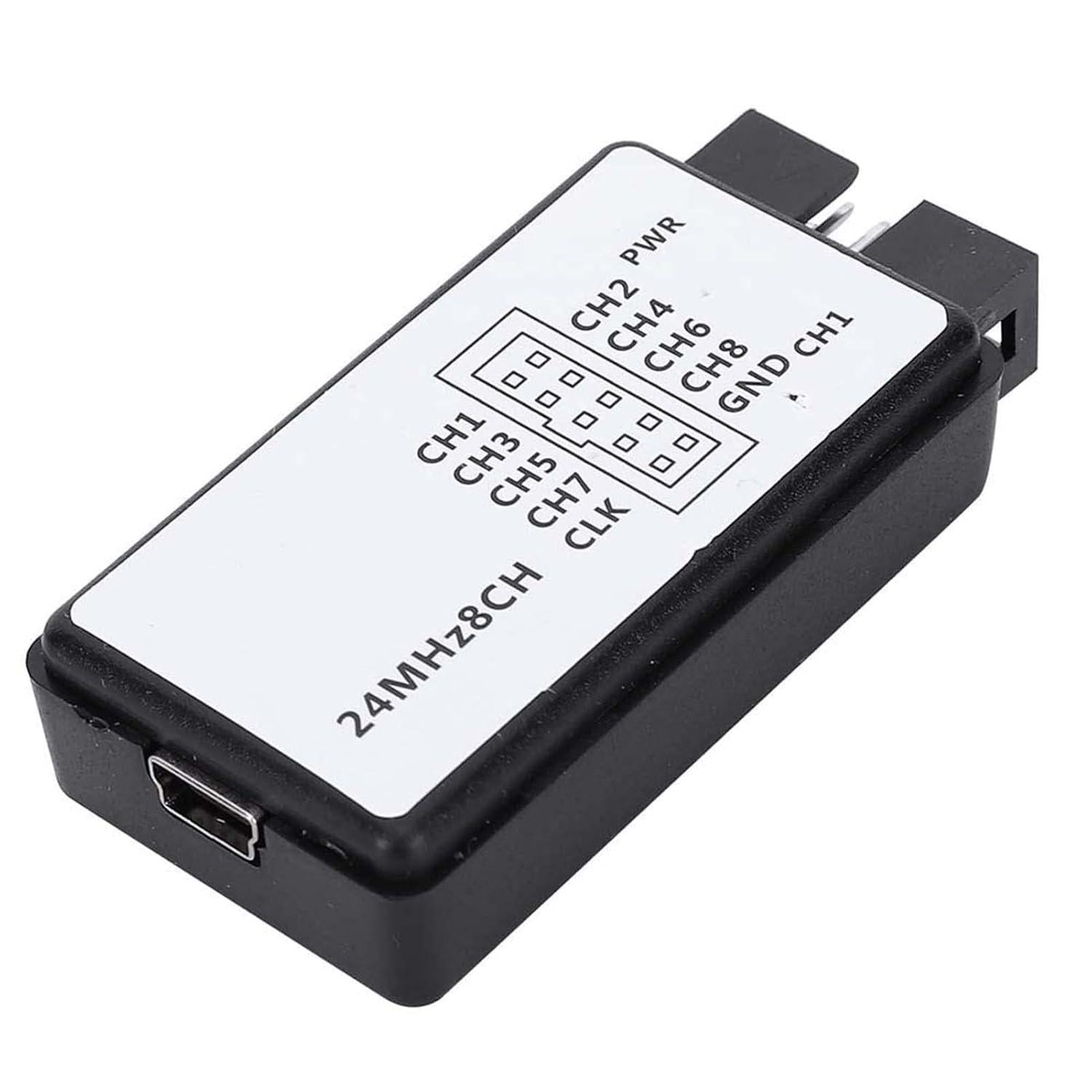

USB Logic Analyzer Device USB Cable Analyzer Device Set USB Cable 24MHz 8CH 8 Channel UART IIC SPI Debug for Compatible With Arduino Embedded System Development Hardware Debugging Tool For USB - AA161

USB Logic Analyzer Device USB Cable Analyzer Device Set USB Cable 24MHz 8CH 8 Channel UART IIC SPI Debug for Compatible With Arduino Embedded System Development Hardware Debugging Tool For USB - AA161

SKU:AA161

89 in stock

Regular price Rs. 480.00
Regular price Sale price Rs. 480.00
Sale Sold out
Shipping calculated at checkout.

Pickup available at REES52 OFFICE

Usually ready in 24 hours

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.
  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

USB Logic Analyzer Device USB Cable is a device that lets you watch digital signals in your electronics project. Using this device you can track 8 signals at a time! So it's a good complementary tool. This logic analyzer plugs into a computer and has easy-to-use, cross-platform software.

Specifications:

  • 8 Channel input
  • Voltage: 0-5.5V
  • Threshold Voltage: 1.5V
  • Dupont Cable Length (cm): 20
  • USB Cable Length (cm): 50

Features:

  • Logical light indication: a small light indicates CHO's electrical level.
  • USB power supply; USB logic analyzer for monitoring, analyzing, and debugging digital circuits
  • 8-Channels USB logic analyzer with a 24Mhz sampling frequency
  • Can analyze UART, IIC, SPI, etc automatically
  • Great for MCU, ARM system, and FPGA development

Sampling rates can be set as follows:

24MHz*, 16MHz*, 12MHz*, 8MHz*, 6MHz*, 4MHz*, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz, 20KHz

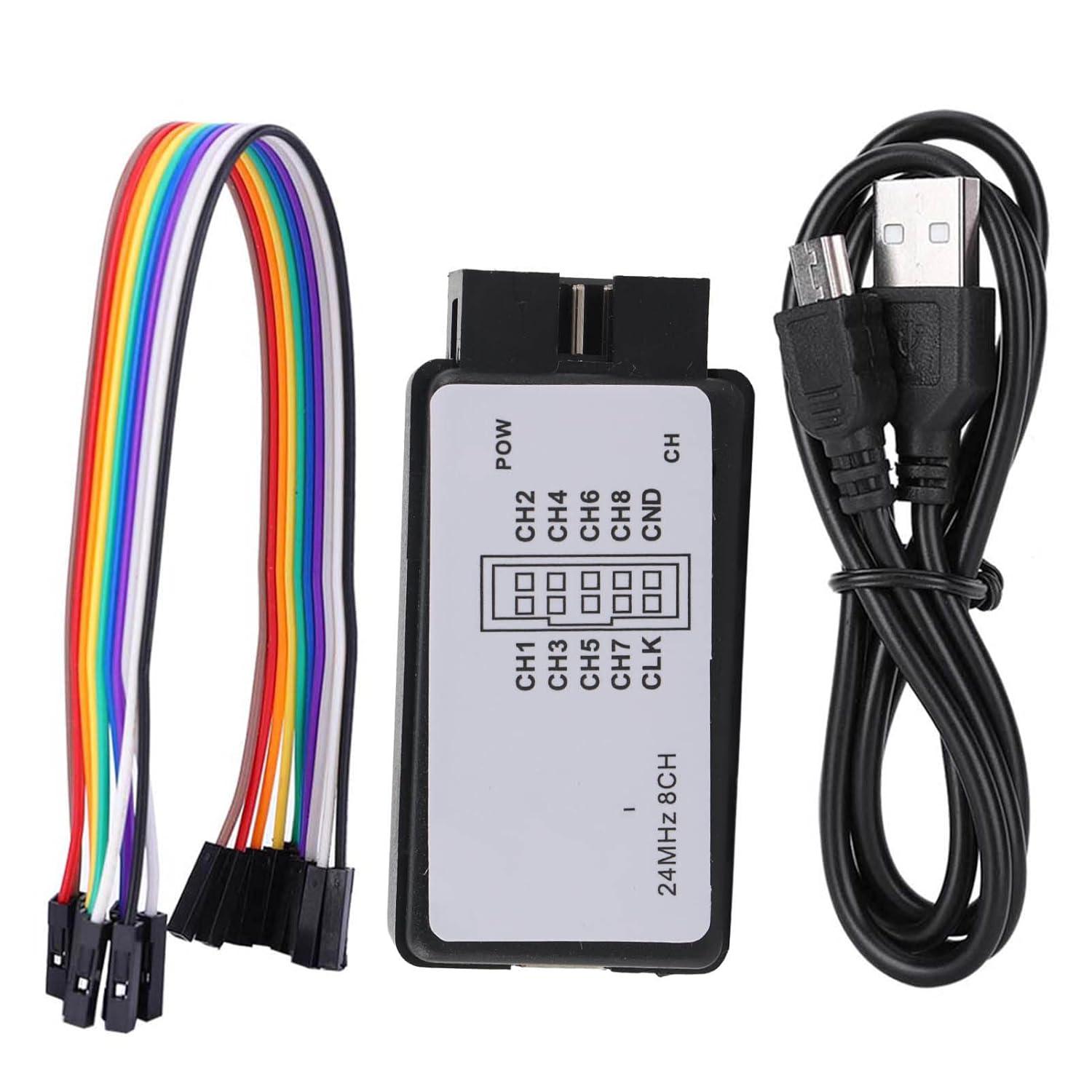

Package Included:

  • 1 x logic analyser device

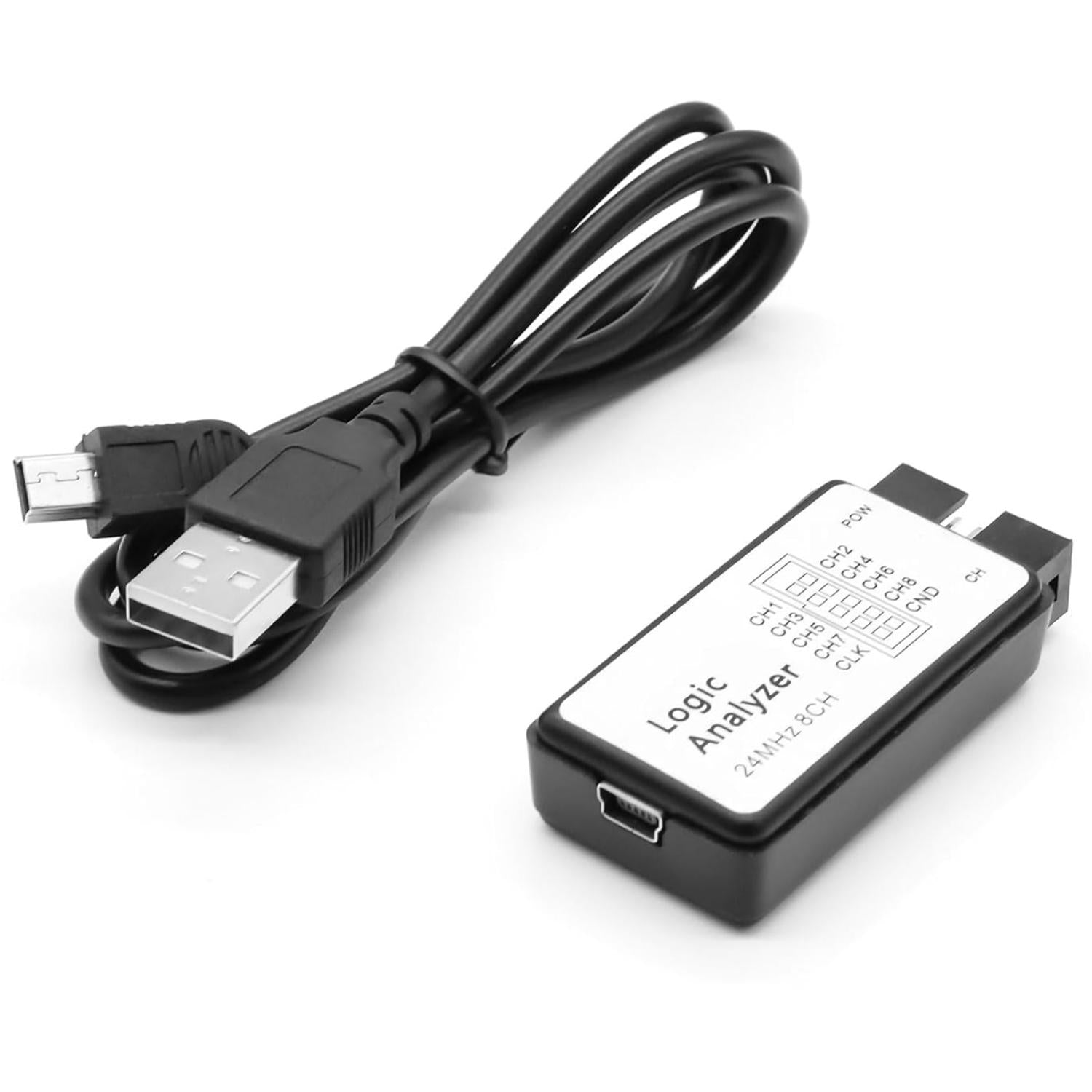

  • 1 x USB cable

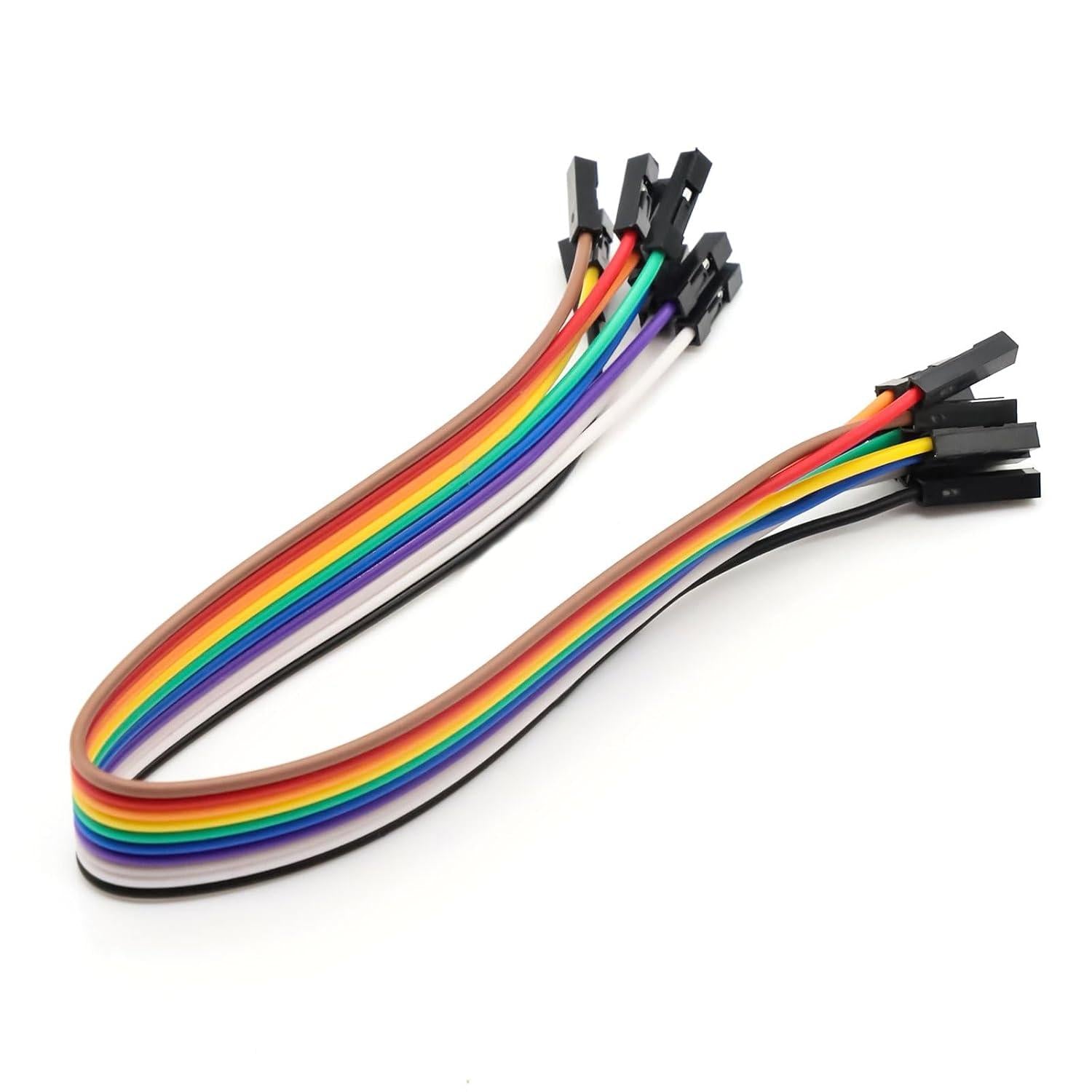

  • 1 x 10-piece female-to-female DuPont cable
