UNO Prototype Shield with Mini Breadboard compatible With Arduino - AR024

UNO Prototype Shield with Mini Breadboard compatible With Arduino - AR024

SKU:AR024

100 in stock

Regular price Rs. 72.00
Regular price Sale price Rs. 72.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Small soldering area.
  • All Arduino pins are brought to the top level.
  • 1 reset button, 1 general use button, and 2 LED circuits can be used directly.

Description:

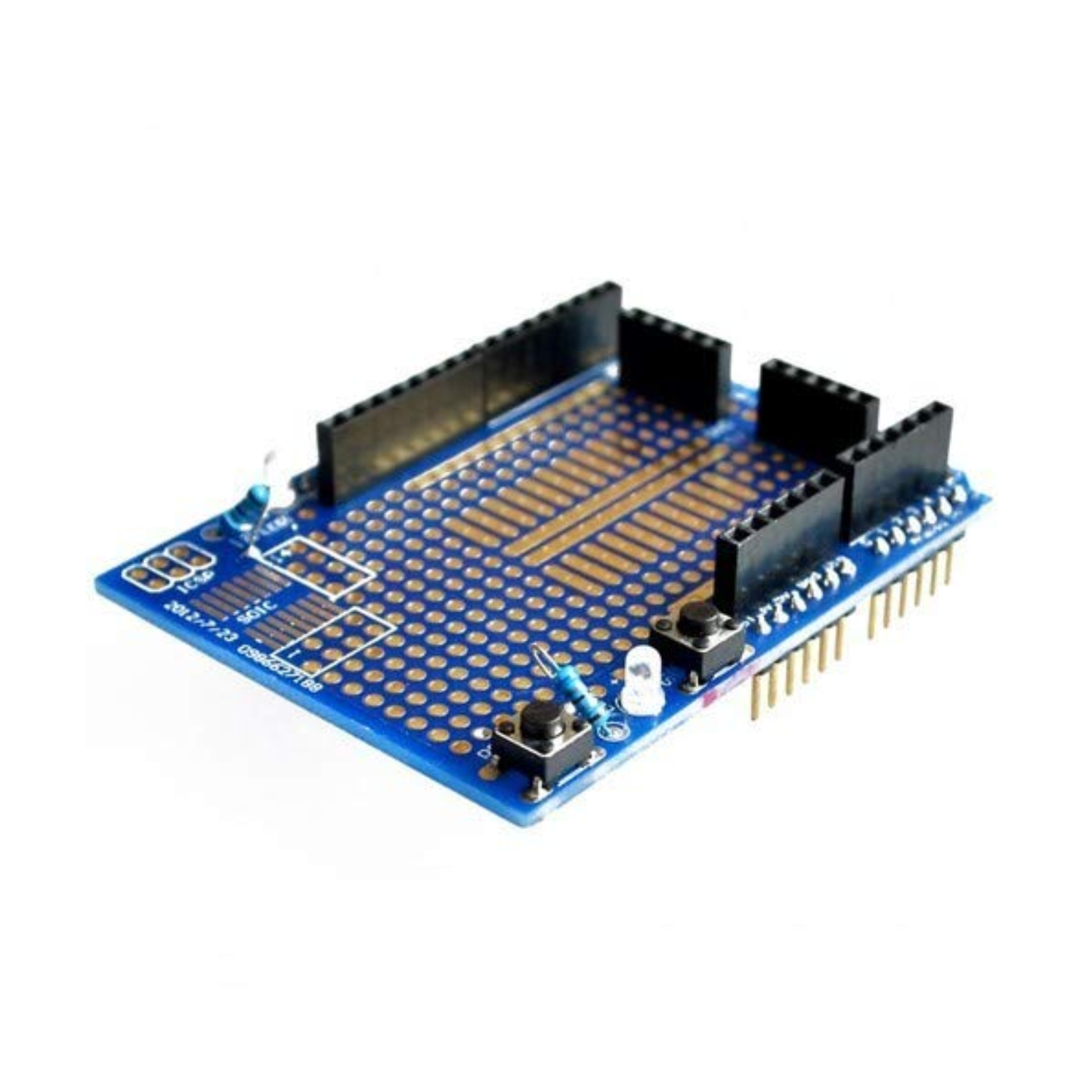

In addition to the protoboard surface, this shield also comes complete with 2 general purpose push button switches and 2 general purpose red LEDs. It also has solder pads for a 14-Pin SOIC SMD IC. Vetco also includes a mini solderless breadboard with double-sided mounting tape. It can mount directly onto the protoboard area - You can turn your Arduino into a true prototyping platform. This item is just the Arduino Uno Prototype Shield with a Breadboard. No additional shields, power supplies, cables, software or other accessories are included. Vetco sells an ever increasing selection of Arduino shields and Arduino sensors. This prototyping shield should be considered an essential accessory for anyone who has an Arduino Duemilanove used in conjunction with ProtoShieldprototype extension boards used to build the circuit prototypes directly on the board welding components, mini bread plate above can also be connected to the circuit. Sided adhesive connection between the breadboard and the board, breadboard and the circuit board is sold separately. The ProtoShield prototype expansion board with two LEDs and two buttons circuit can be used directly, pin and power have been elicited, very fit and For Arduino with the build circuit prototype.

Features:

  • Small soldering area.
  • All Arduino pins are brought to the top level.
  • 1 reset button, 1 general use button, and 2 LED circuits can be used directly.
  • 5V, GND, and Raw pins are exposed as well. SOIC place for IC.
  • The mini breadboard has 170 tie points.
  • It works with UNO, NG, Diecimila and Duemilanove Arduinos
  • Every pin is brought out, including the new 3V and Reset header pins
  • 2 0.1uF capacitors on either side for extra power stability

Package Included:

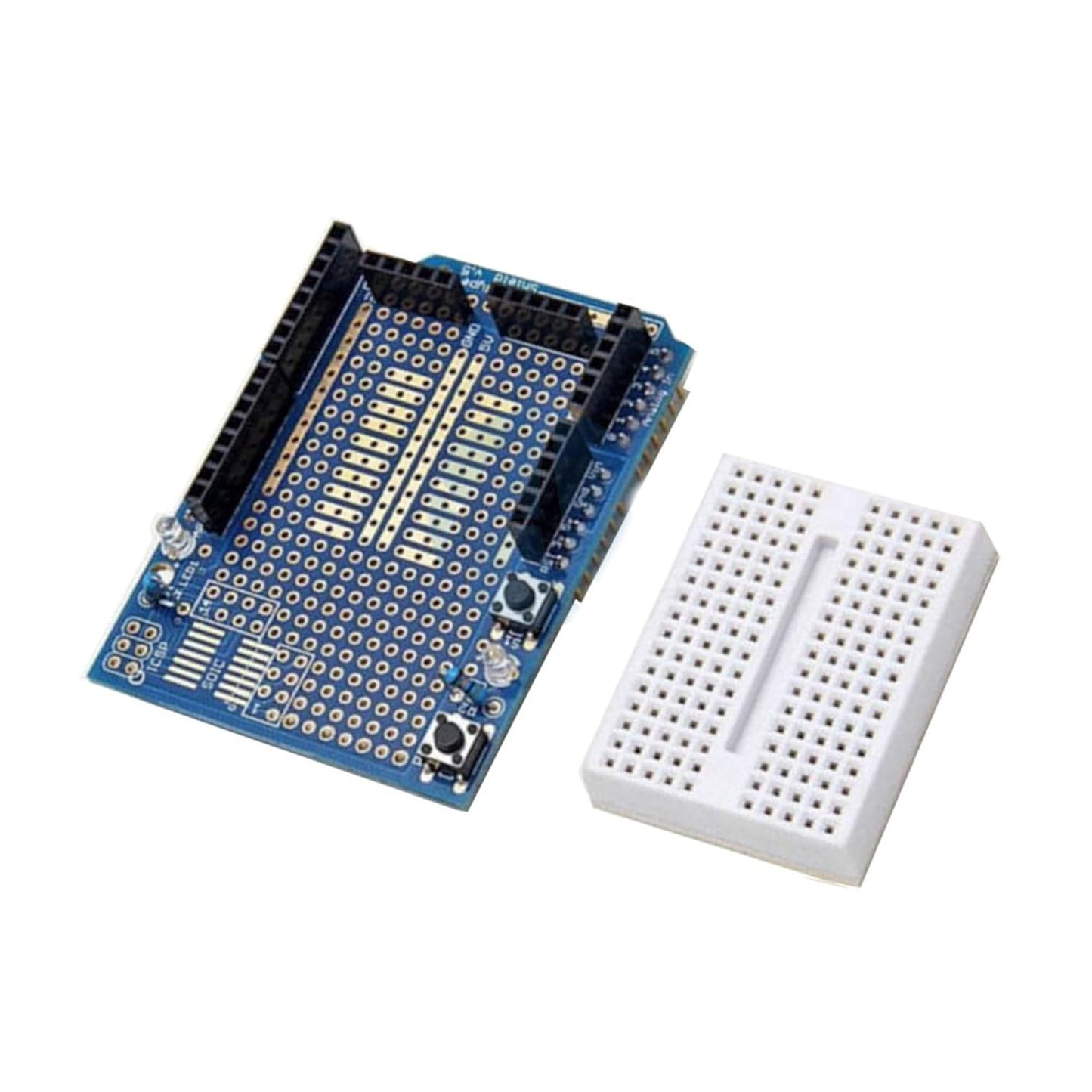

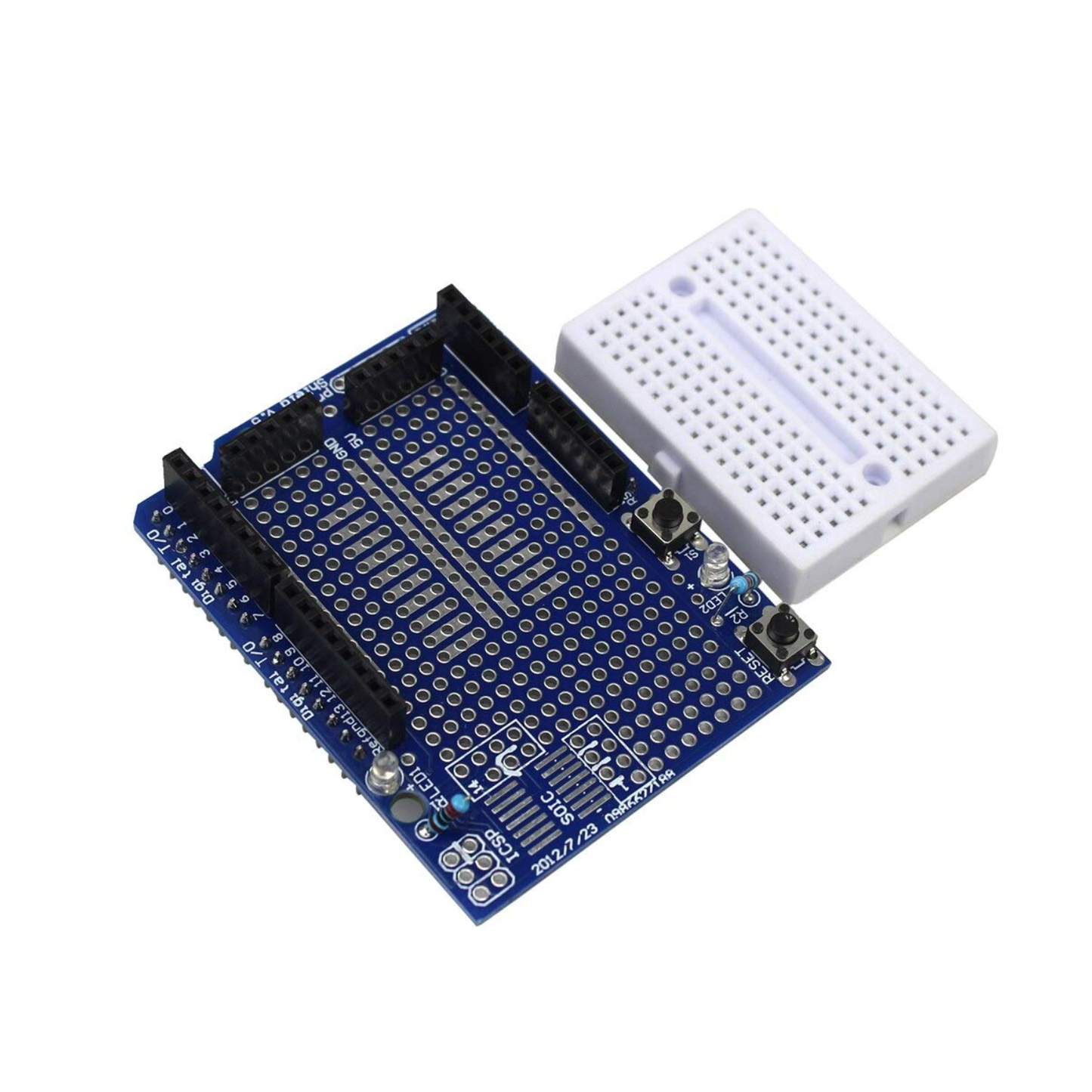

  • 1 x UNO Proto Shield prototype expansion board
  • 1 x Mini breadboard
