Description:

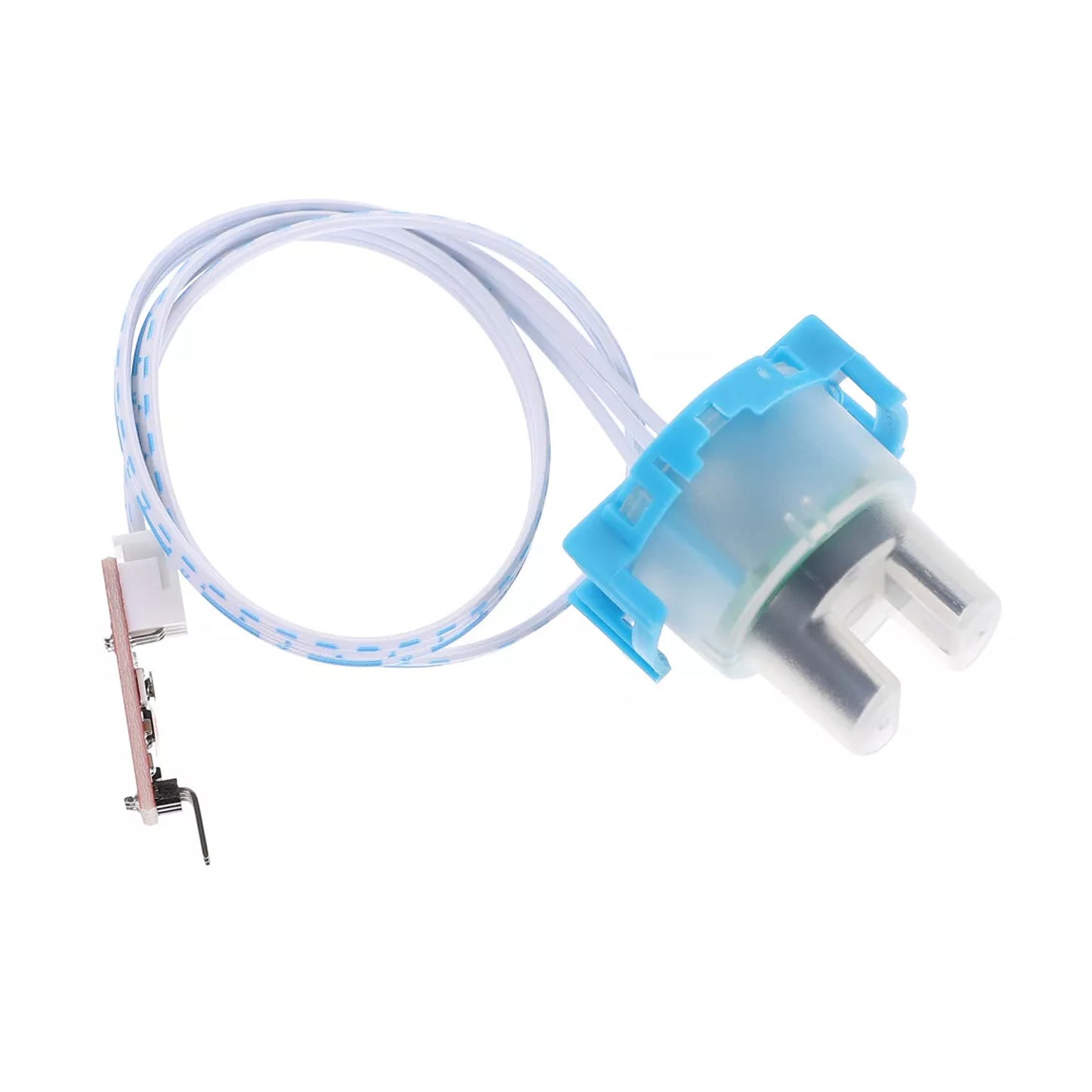

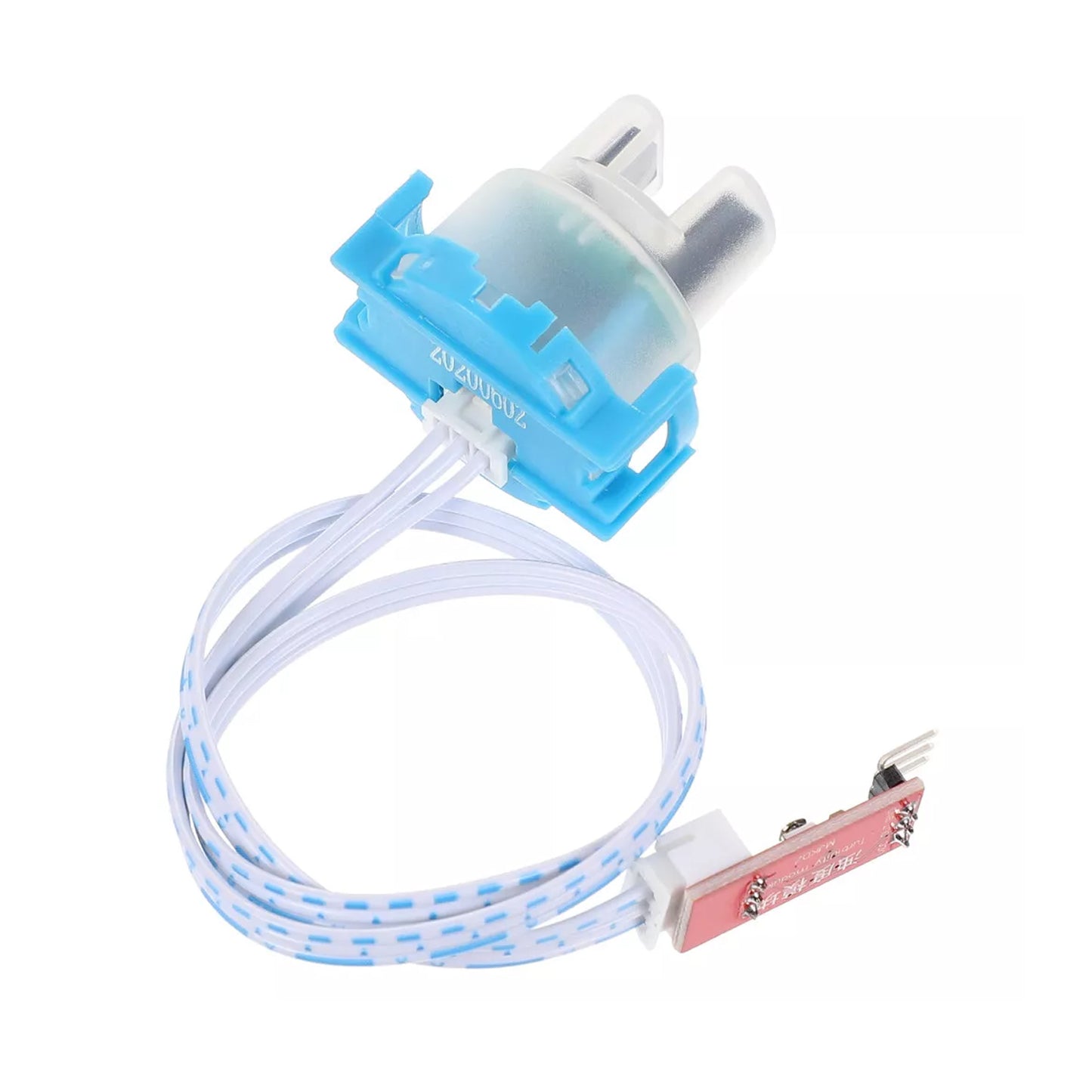

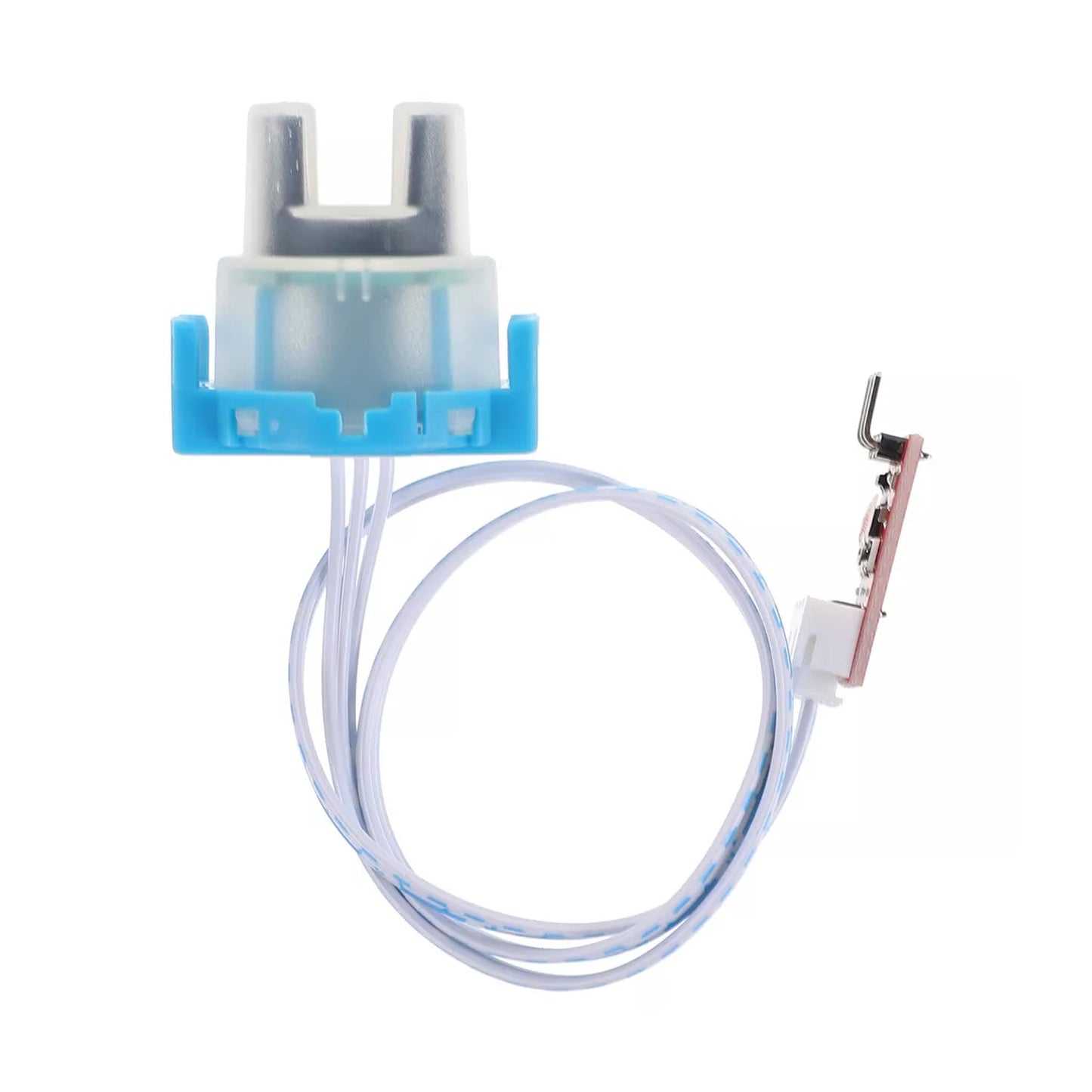

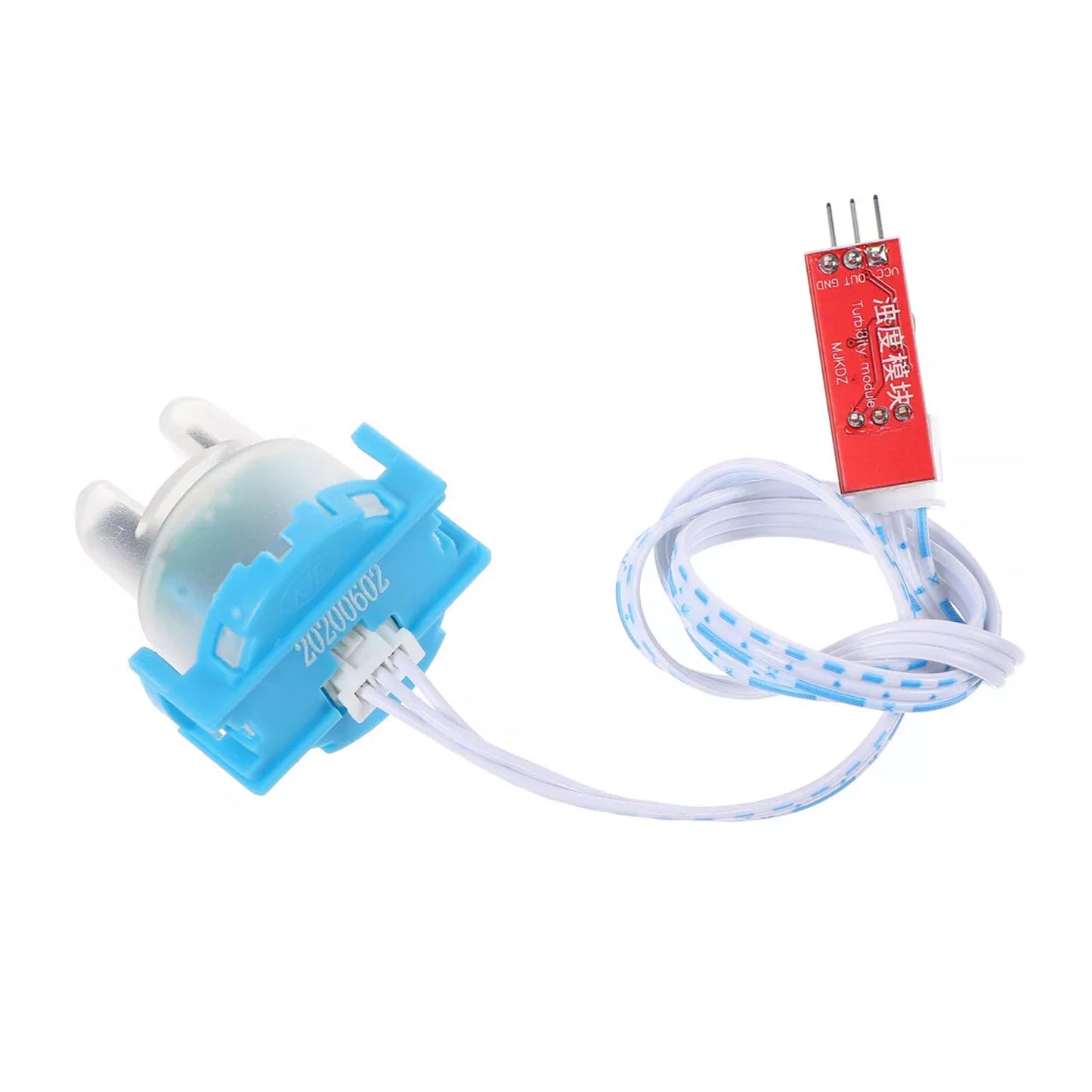

This is a Turbidity Sensor Module, an electronic monitoring module specially developed to work with microcontroller platforms such as Arduino, Raspberry Pi, PIC, ARM, and AVR.
The Portable Turbidity Analyzer is very efficient, the Turbidity Tracker can detect and verify the quality of the water, making the turbidity measurement, where it is possible to verify the results using a digital or analogue signal next to the corresponding pins in the accompanying electronic module.
The Turbidity Sensor emits at its end an infrared light, invisible to human vision, capable of detecting particles that are suspended in water, measuring the light transmittance and the dispersion rate, which changes according to the amount of TSS (Total Suspended Solids), increasing the turbidity of the liquid whenever levels increase
Specifications:
- Working Voltage: DC 5V
- Working Current: 30mA [MAX]
- Response Time: <500 msec
- Insulation Resistance: 100MΩ [Min]
- Operating Temperature: -30 ~ +80°C
Features:
- It has a digital and analogue output.
- Measures turbidity of water in rivers.
- Turbidity Analyzer detects and verifies water quality.
-
Trimpot for sensitivity adjustment.
- Ideal monitoring of water turbidity in rivers, streams, lakes, water boxes, catchment and research sites, laboratories, tanks with liquids etc.
- It comes with a module and jumpers
Package Included:
1 x Turbidity Sensor Module for Water Quality Monitoring Portable Turbidity Analyzer Precise Turbidity Measurement Solution Turbidity Tracker
