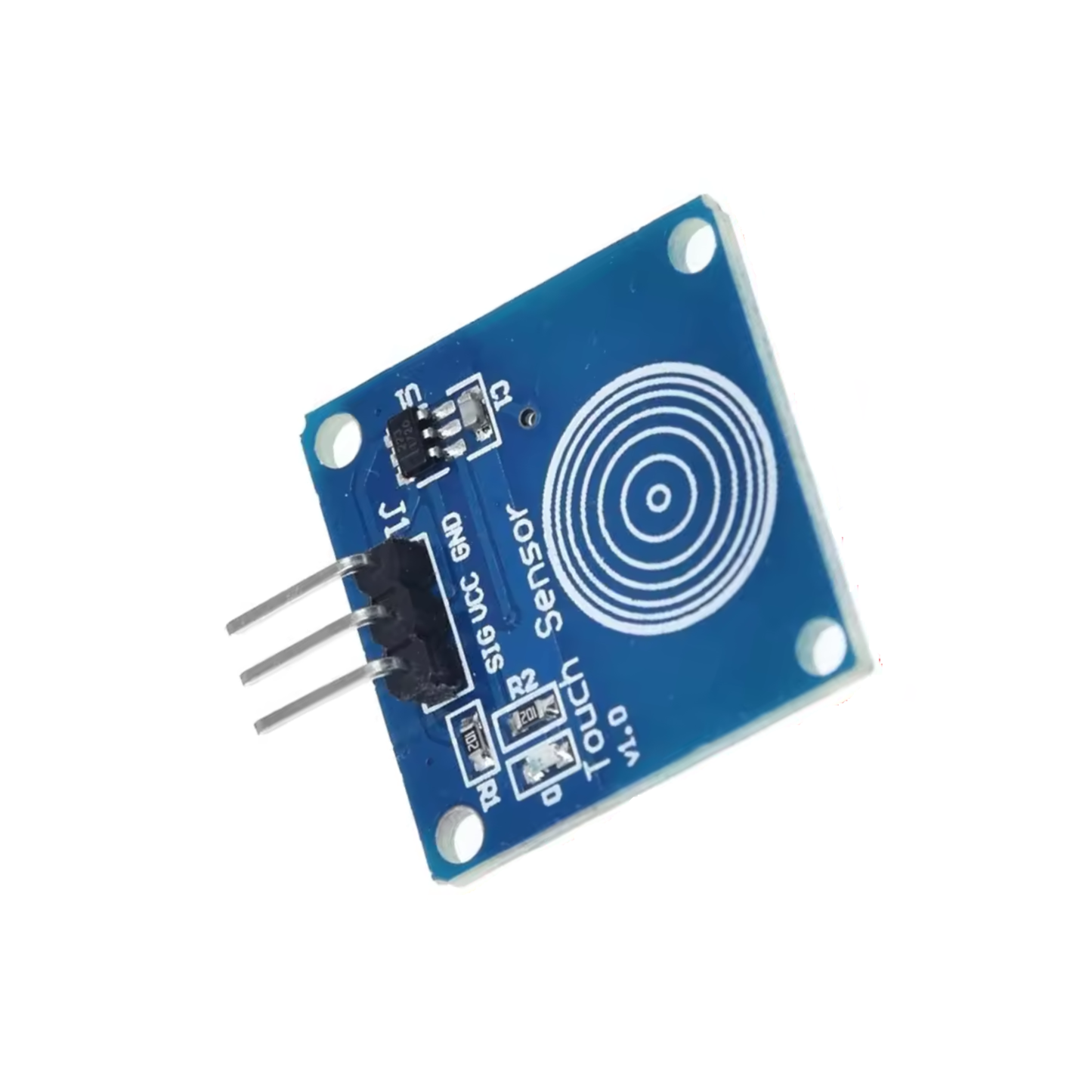

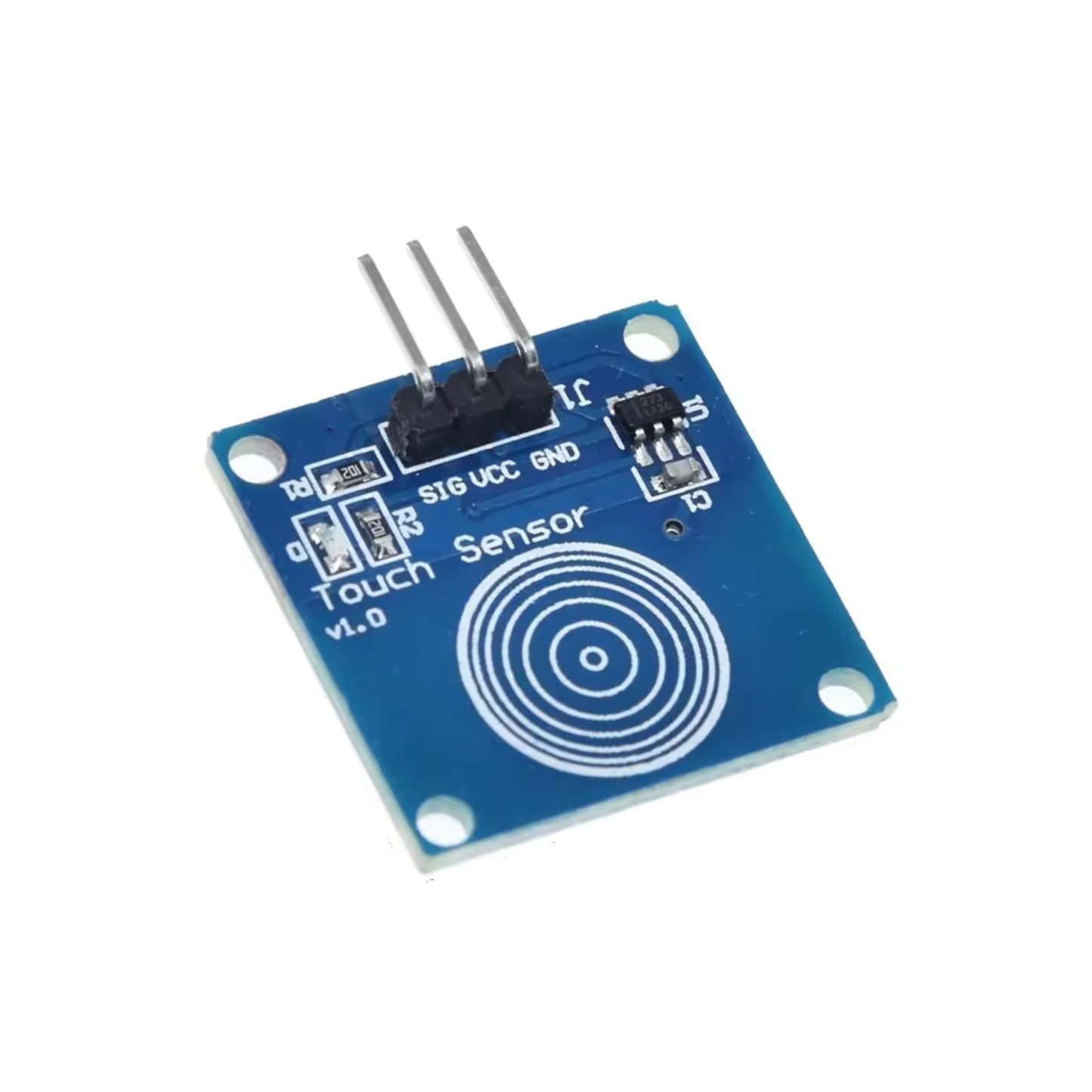

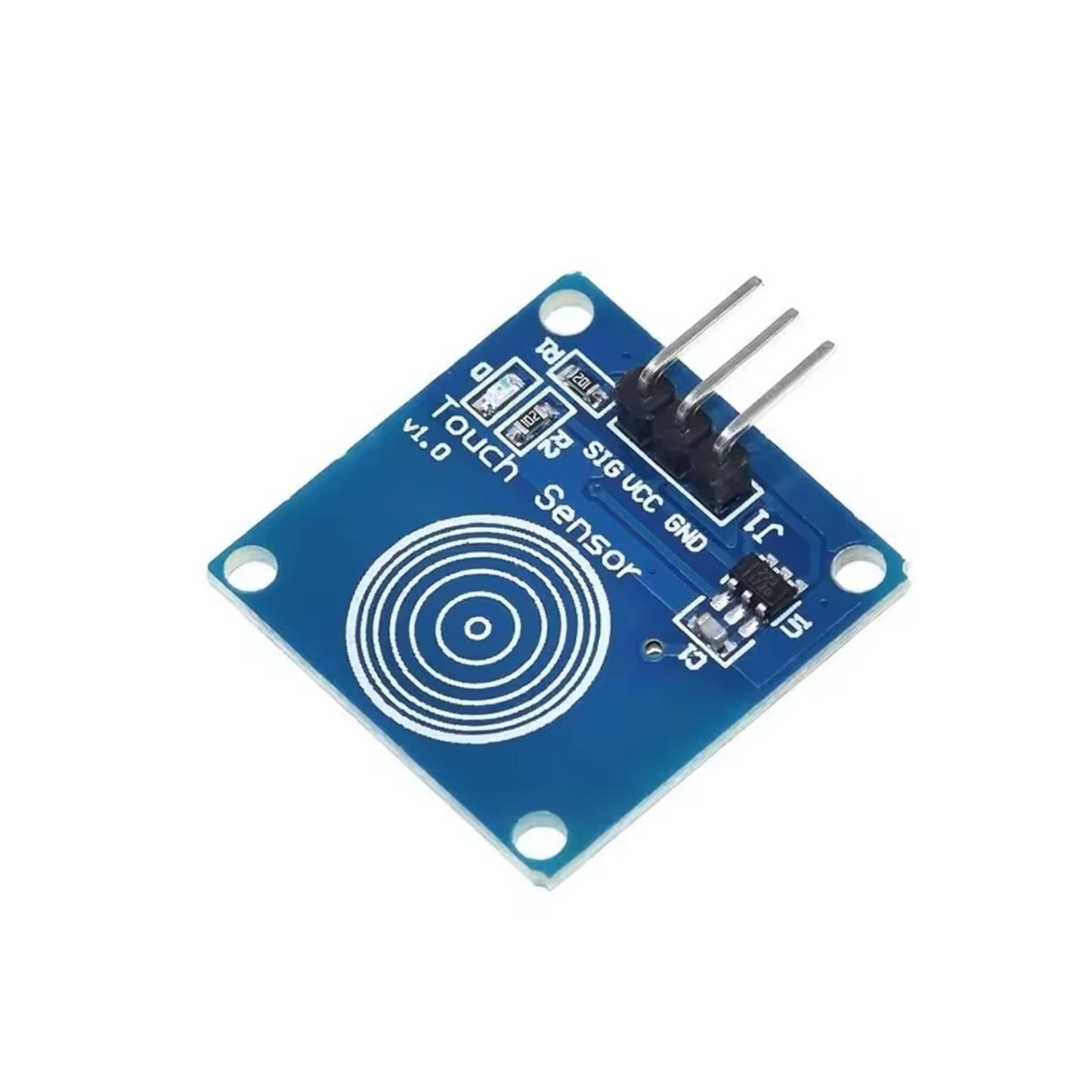

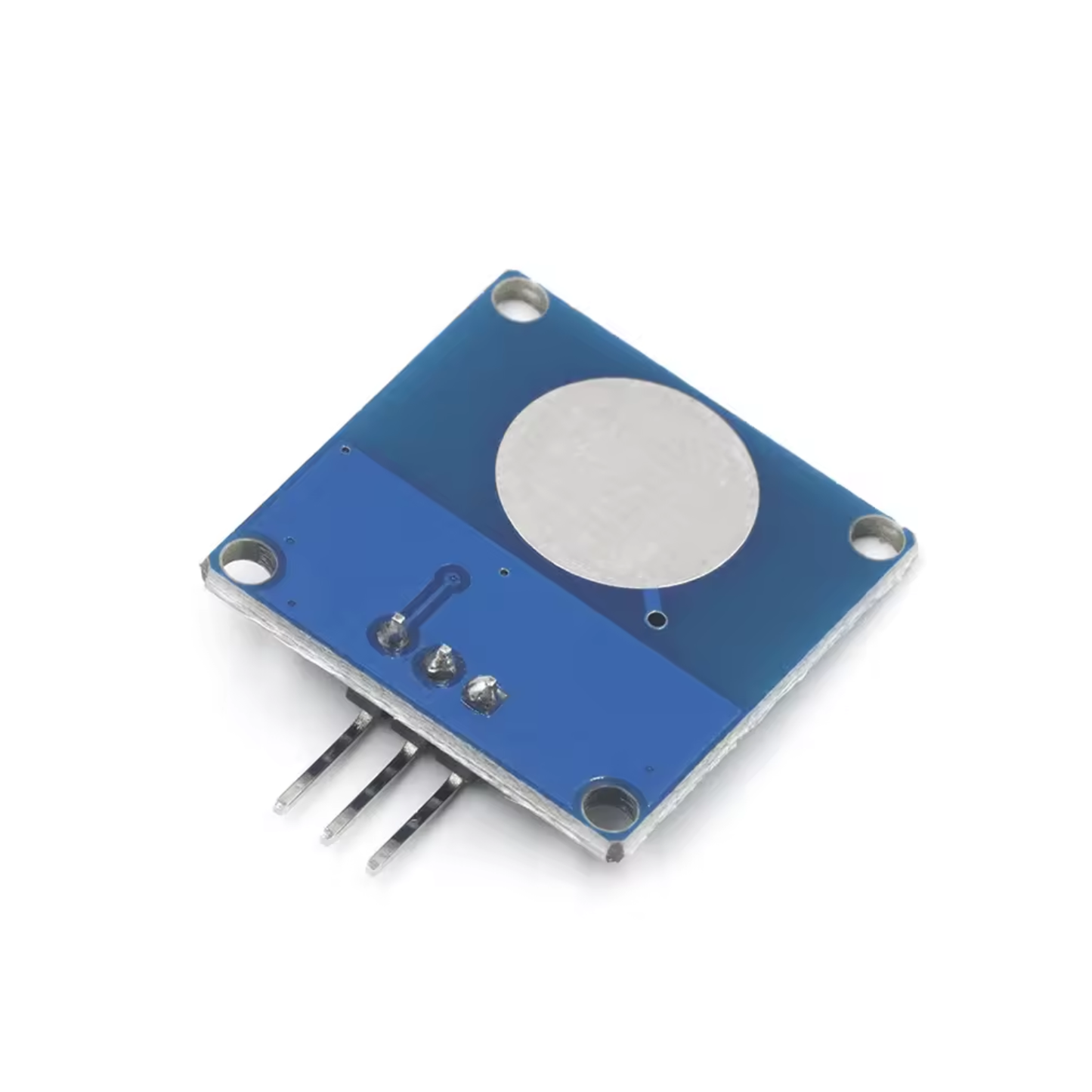

TTP223 Touch Sensor Module Digital Touch Sensor Reliable Capacitive Touch Switch Module For Arduino - RC032

TTP223 Touch Sensor Module Digital Touch Sensor Reliable Capacitive Touch Switch Module For Arduino - RC032

SKU:RC032

299 in stock

Regular price Rs. 17.00
Regular price Sale price Rs. 17.00
Sale Sold out
Shipping calculated at checkout.

Pickup available at REES52 OFFICE

Usually ready in 24 hours

For refund/return/replacement, call us at +91 95995 94524 , +91 95995 94520 or mail us at support@rees52.com

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.
  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The TTP223 Touch Sensor Module is based on a touch-sensing IC (TTP223B) capacitive touch switch module. In the normal state, the module output is low, with low power consumption. When a finger touches the corresponding position, the module output is high; if not touched for 12 seconds, it switches to low-power mode.

Specification:

  • Power supply for 2 ~ 5.5V DC
  • Operating Current(Vcc=3V): 1.5 – 3.0μA
  • Operating Current(VDD=3V): 3.5 – 7.0μA
  • Response time: 60ms

Features:

  • Low power consumption
  • It can replace the traditional touch of a button
  • Four M2 screws positioning holes for easy installation

Touch Sensor Interface:

  • Control Interface: A total of three pins (GND, VCC, SIG), GND to the ground, VCC is the power supply, SIG digital signal output pin;
  • Power Indicator: Green LED, power on the right that is shiny;
  • Touch area: Similar to a fingerprint icon inside the area, you can touch the trigger finger.
  • Positioning holes: 4 M2 screws positioning hole diameter is 2.2mm, the positioning of the module is easy to install, to achieve inter-module combination.

Package Included:

1 x TTP223 TOUCH SENSOR
