Description:
TowerPro MG958 Servo Motor Discover the accessible world of servo control with these incredibly budget-friendly motors, an economical alternative to genuine TowerPro units readily available in India. While these are explicitly not original TowerPro servos, they offer a compelling balance of affordability and functionality. Perfectly suited for a diverse array of projects, from the skies of RC aircraft and the terrains of model automobiles to the intricate movements of robotics – or even just the sheer joy of experimentation with your latest imaginative creation – these servos provide a cost-effective solution.
Specifications:
- Model No.: MG958
- Operating Voltage (VDC): 4.8 ~ 6
- Operating Speed @4.8V: 0.18sec/60°
- Operating Speed @6.6V: 0.15sec/60°
- Stall Torque @ 4.8V (Kg-Cm): 18
- Stall Torque @6.6V (Kg-Cm): 20
- Current Draw at Idle(mA): 10mA
- Current at No Load: 170mA
- Stall Current Draw (mA): 1600mA
- Operating Temperature (°C): 0 to 55
- Cable Length (cm): 32cm
- Servo Plug Type: JR (Fits JR and Futaba)
- Bearing Type: Double ball bearing
- Gear Type: Metal gear
Features:
- Servo arms screws are included and fit with the Futaba servo arm.
- TowerPro MG958 Servo Motor is CE RoHS approved.
Wire Description
- Red–Positive
- Brown–Negative
- Orange–Signal

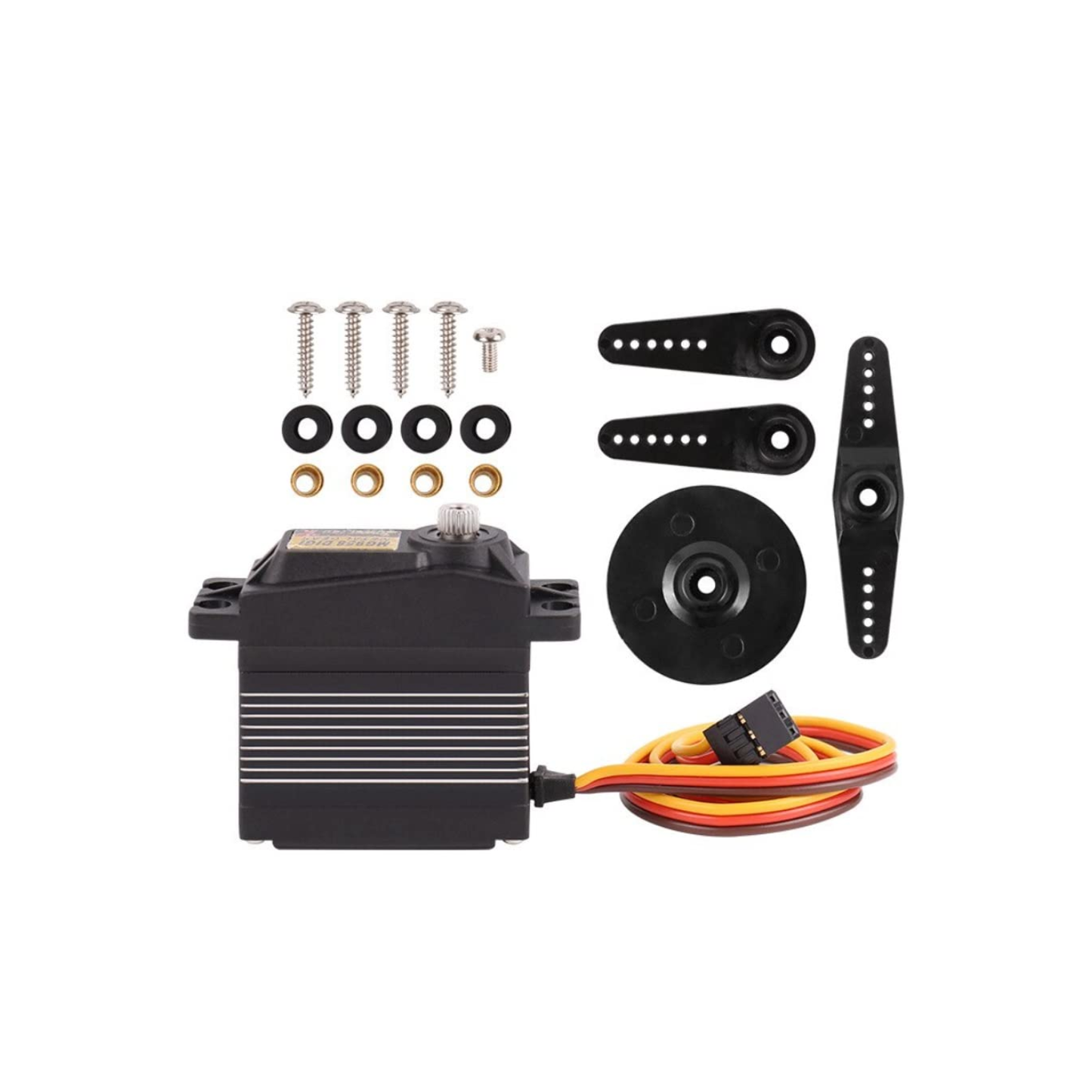

Package Included:
1 x TowerPro MG958 Servo Motor
