TDA7498E Digital Audio Amplifier Board High Power 2x160W Dual Channel Audio Amplifier Circuit Board For Home Audio Systems - RS6853
TDA7498E Digital Audio Amplifier Board High Power 2x160W Dual Channel Audio Amplifier Circuit Board For Home Audio Systems - RS6853
SKU:RS6853
29 in stock
Regular price
Rs. 1,609.00
Regular price
Sale price
Rs. 1,609.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:

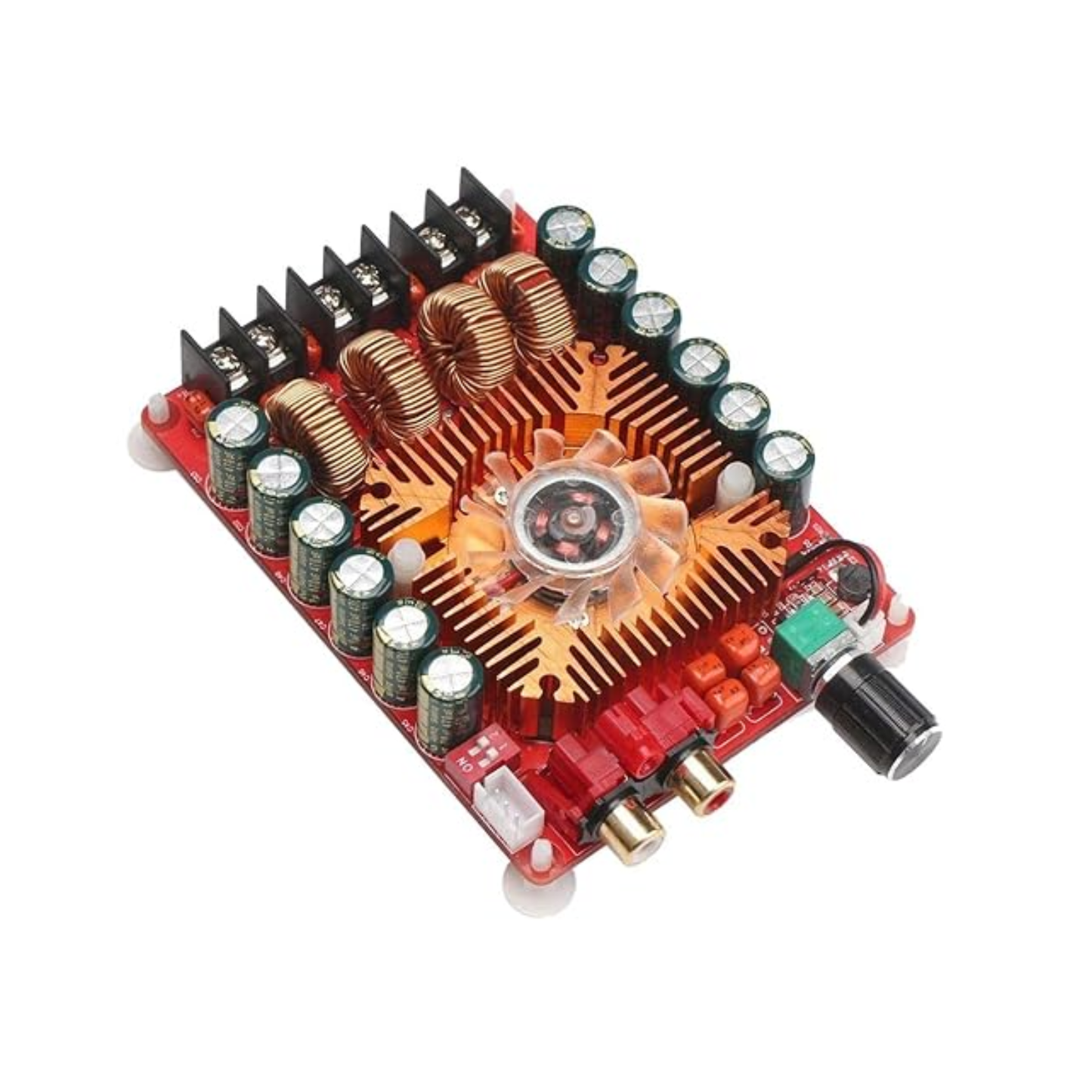

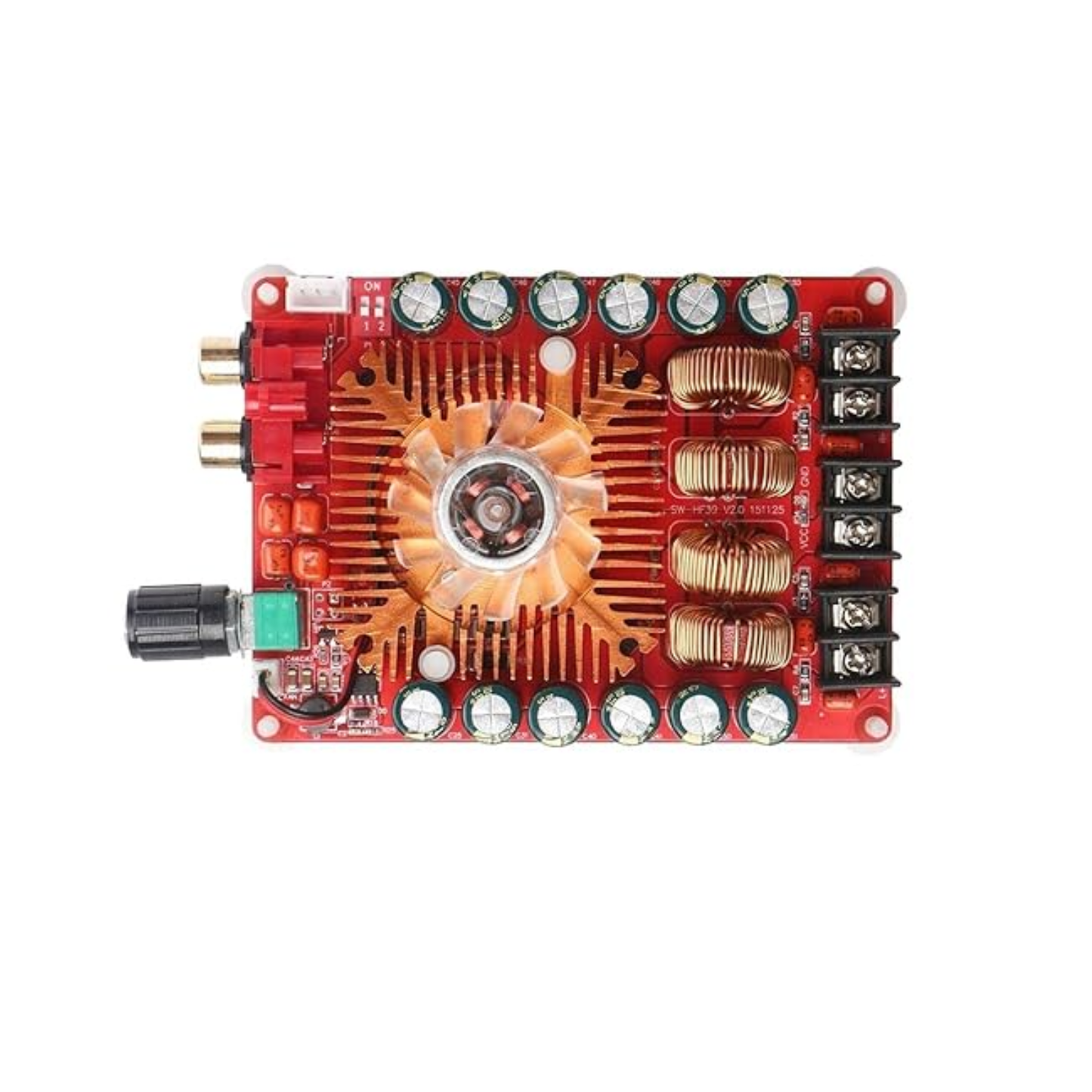

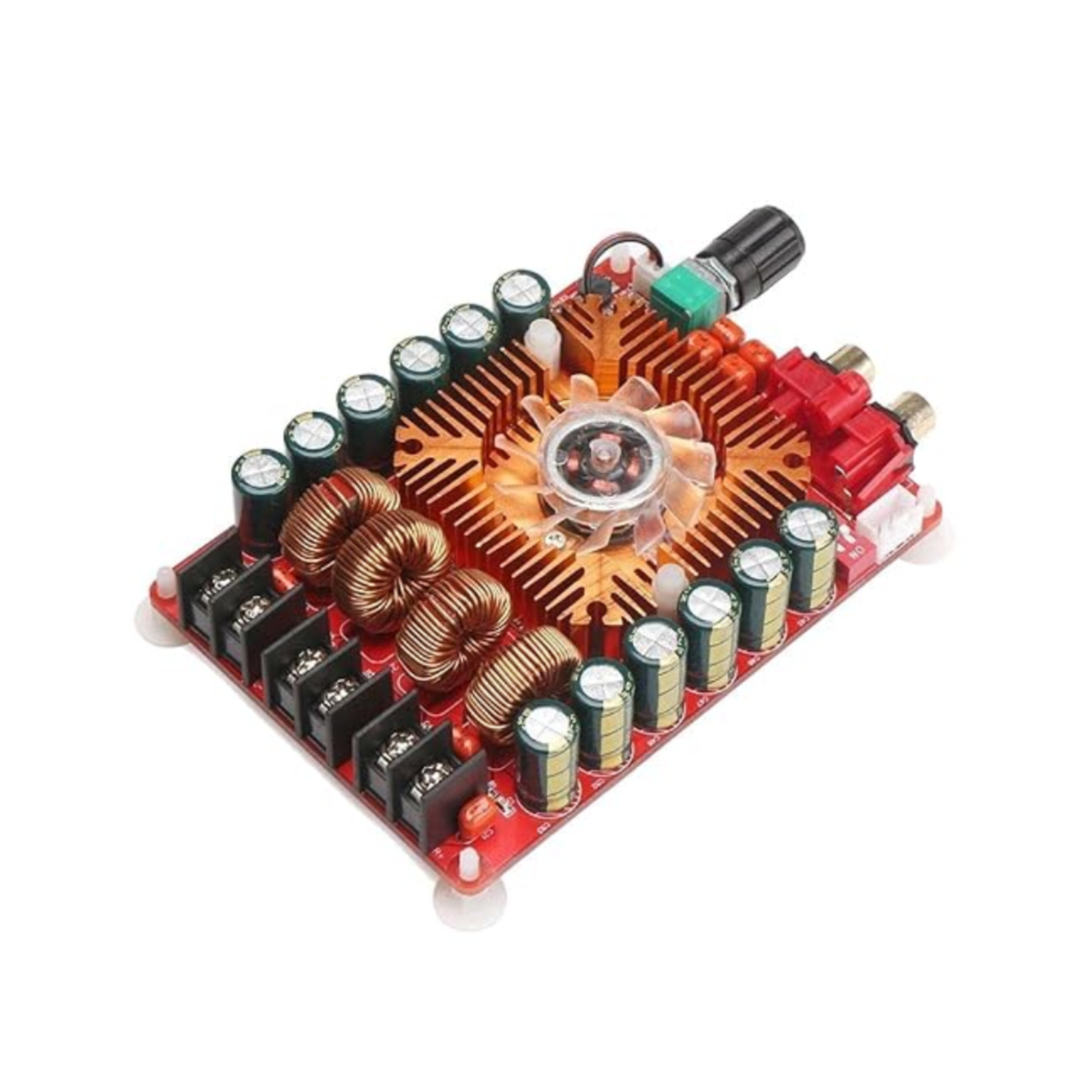

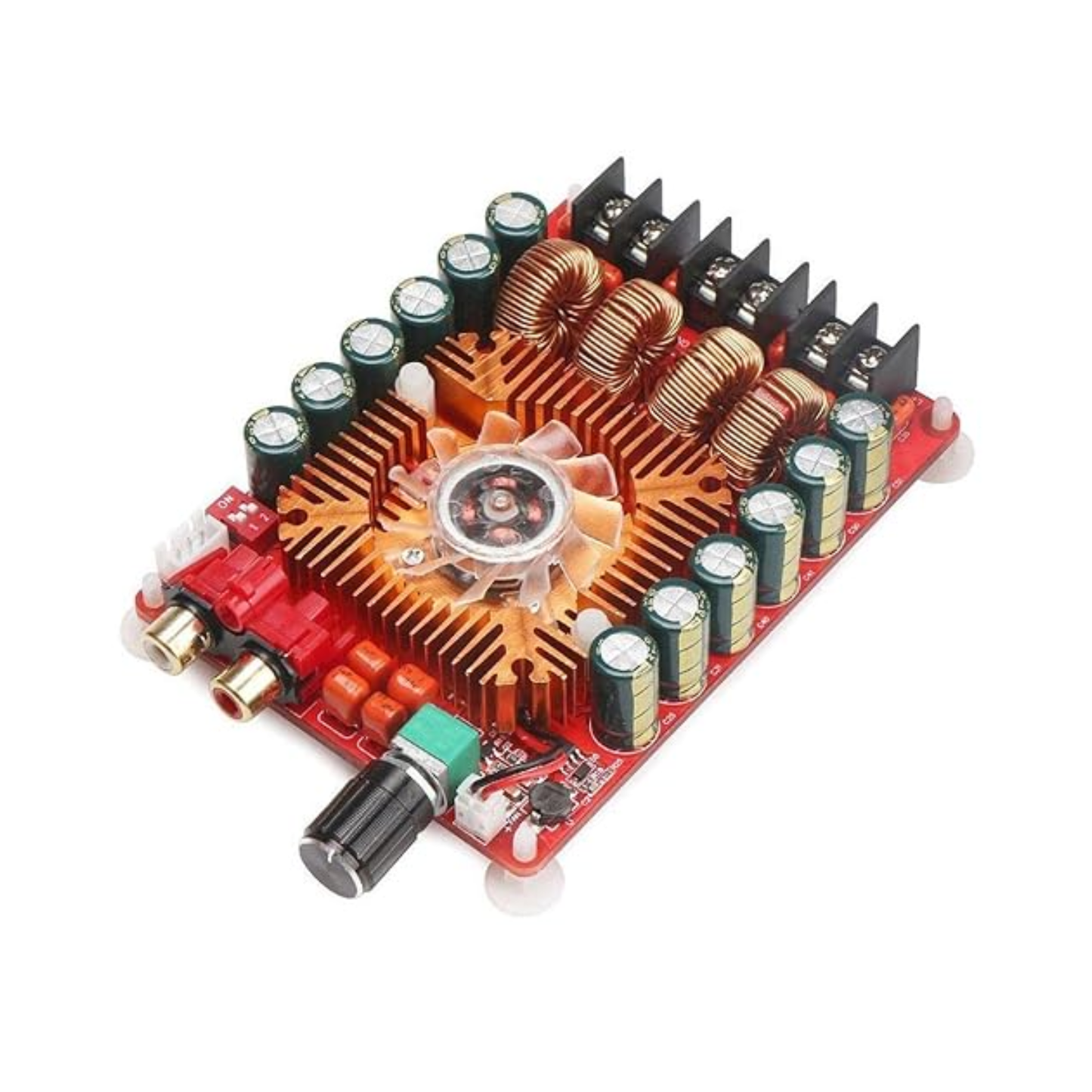

TDA7498E Digital Audio Amplifier Board Sound quality is very good and it can drive 4/6/8 ohm speakers. It has sufficient and high power output 2 x 160W. It supports BTL mode and when heat sink temperature rises to a certain extent, the cooling fan will work.
Specification:
- Amplifier Chip: TDA7498E
- Material : PCB Board
- Output Power: 2 x 160W
- Input Voltage: 36VDC
- Rated Voltage: 36V
- Number of Channels: 2
- Working Voltage: 15 to 36V DC direct current belt input polarity protection
Features:
-
High output power digital amplifier.
- Two-channel stereo, sound quality is very good.
- DC 15-36V power supply, with reverse polarity protection.
- When heat sink temperature rises to a certain extent, the cooling fan will work.

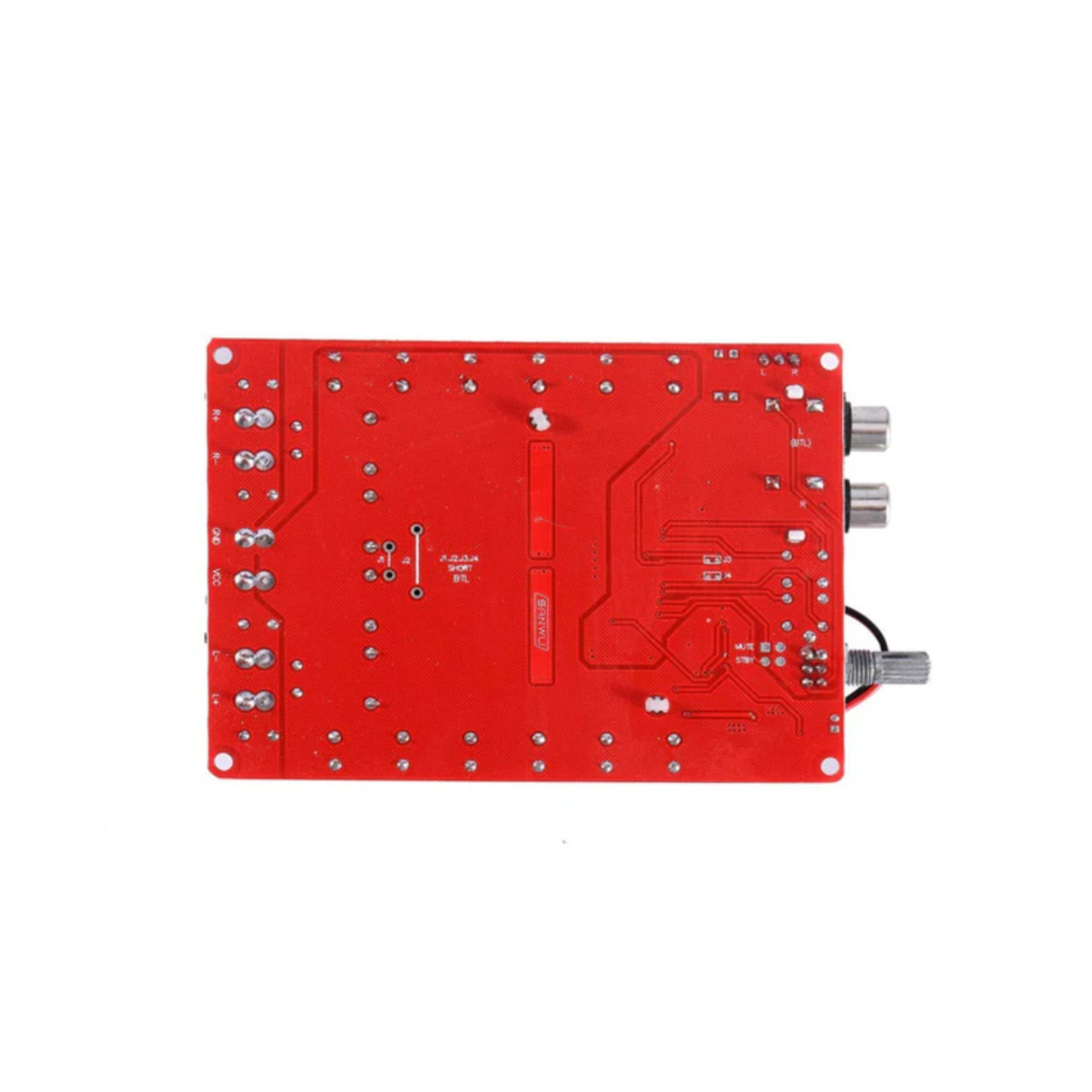

- Support BTL mode ( J1, J2, J3, J4 on the back of amplifier board should be shorted), 36V 3ohm for single channel with 220W output.
Package Included:
1 x TDA7498E Digital Audio Amplifier Board 2x160W Dual Channel Audio Amplifier Circuit Board High-Power Audio Amplifier Board For Home Audio Systems
