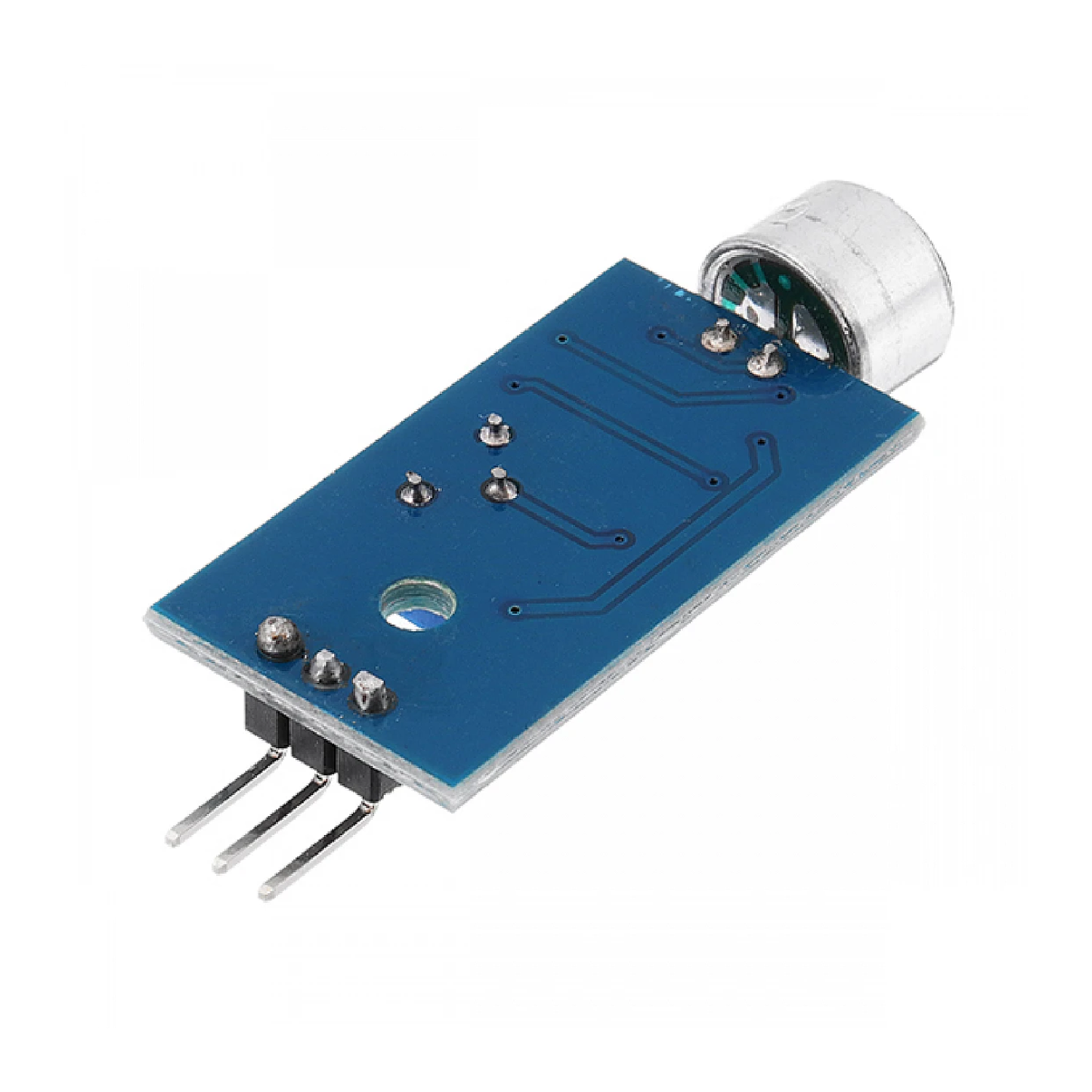

Noise Sensor Audio Detection Module Sound Activated Module PCB Sound-To-Voltage Converter Microphonic Sound Detector Module (Blue) - RS5047

Noise Sensor Audio Detection Module Sound Activated Module PCB Sound-To-Voltage Converter Microphonic Sound Detector Module (Blue) - RS5047

RS5047

483 in stock

Rs. 35.00
Rs. 35.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

A sound sensor is defined as a module that detects sound waves through their intensity and converts it to electrical signals.

The sound detection sensor module for Arduino detects whether the sound has exceeded a threshold value. Sound is detected via microphone and fed into an LM393 op-amp. The sound level set point is adjusted via an onboard potentiometer. When the sound level exceeds the set point, an LED on the module is illuminated and the output is sent low.

Specifications:

  • Color: Blue
  • Operating Voltage: 3.3V – 5V DC
  • Detection Range: Adjustable
  • IC Chip: LM393
  • Microphone Impedance: 2.2KΩ
  • Operating Temperature: -10°C to 50°C
  • Function: Sound Detection
  • Microphone Frequency: 16-20Khz

    Features:

    • Operating voltage 3.3V-5V
    • Outputs digital switching output (high and low levels 0 and 1
    • Operating current (Vcc=5V): 4-8mA
    • Microphone sensitivity (1Khz): 52-48dB
    • Microphone Impedance: 2.2KΩ
    • Microphone Frequency: 16-20Khz
    • Microphone S/N ratio: 54dB
    • Signal output indication
    • Single-channel signal output
    • Outputs low level and the signal light when there is sound

      Package Included:

      1 x Noise Sensor Audio Detection Module Sound Activated Module PCB Sound-To-Voltage Converter Microphonic Sound Detector Module (Blue)
