Single Channel 5V 30A Power Failure Relay High-Power 5V 30A Power Failure Relay Module Industrial-Grade 5V 30A Power Failure Relay For Power Outage Detection - RS3920

Description:

The 1-Channel Relay Module is a high-performance relay designed for versatile applications. With a 5V coil voltage and the ability to handle loads up to 30A at 250V AC and 30V DC, this module is perfect for both DIY enthusiasts and professional projects. Its compact size and easy installation make it an ideal choice for anyone looking to enhance their electronic setups

Specifications:

• Trigger Voltage (VDC): 5
• Trigger Current (mA): 20
• Switching Voltage (VAC): 250@30A
• Switching Voltage (VDC): 30@30A

Features:

• The module can be set high-level or low-level trigger by the jumper
• The rated current of the interface is 16A
• Optical coupling isolation, driving ability is strong, stable performance; Trigger current is 5mA
• DC+ and JD+ are shorted by the jumper cap, and DC- and JD- shorted jumper cap, is the same voltage between the trigger terminal and relay control terminal.
• High and low-level trigger mode selection. The jumper and L pin connection, IN pin, is the low-level trigger Jumper and H pin connection, IN pin, is the high-level trigger.

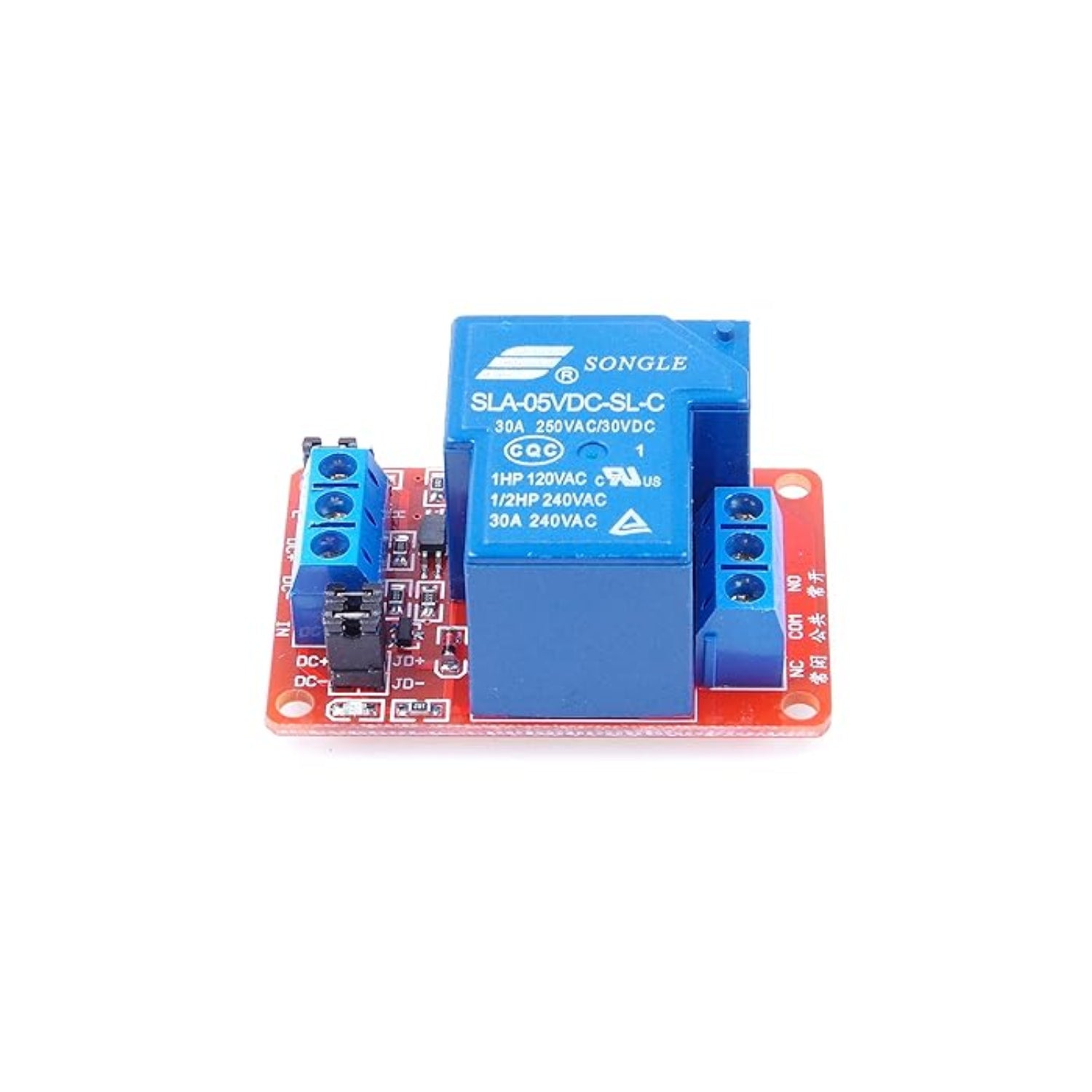

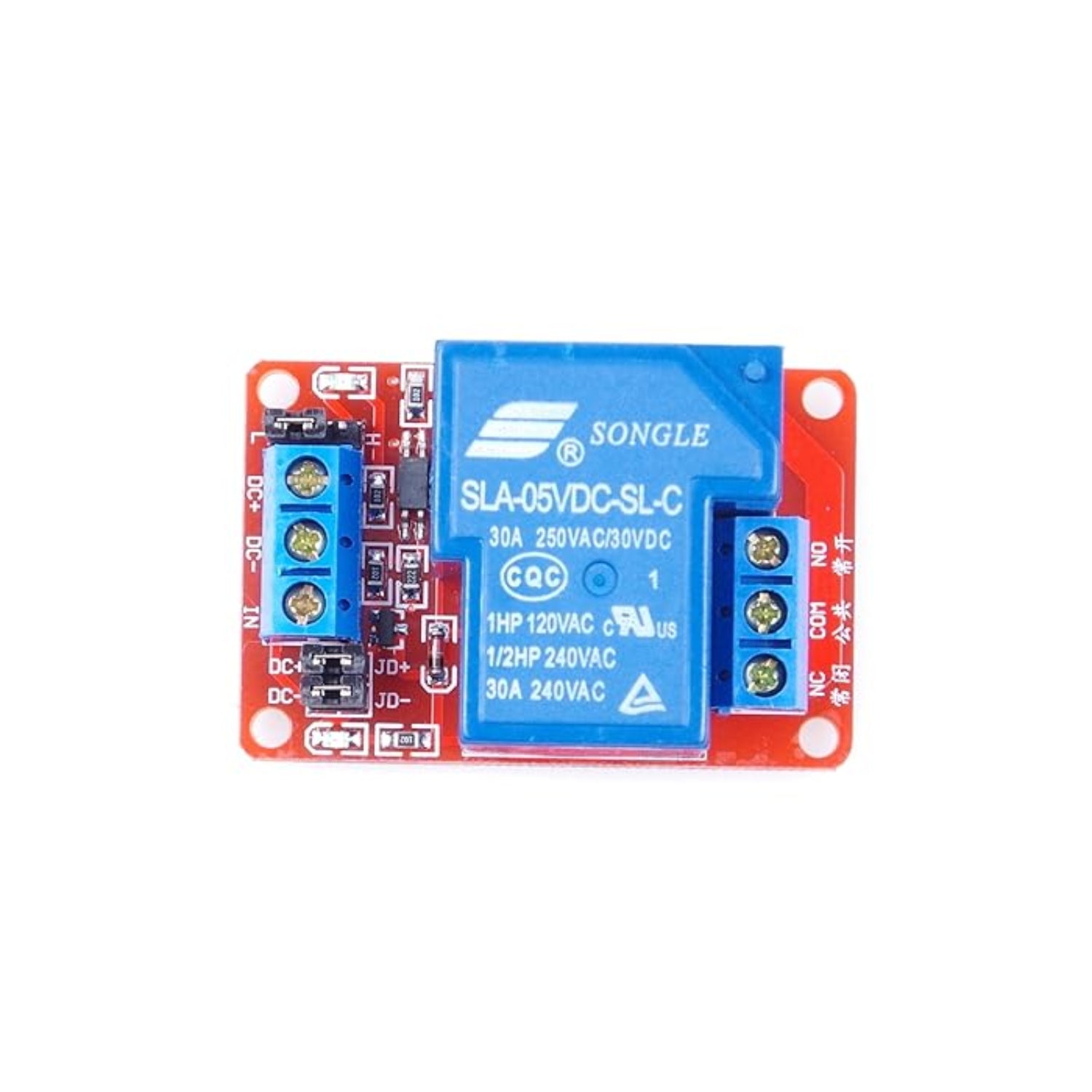

Module interface:

• DC+: DC power supply positive pole
• DC-: DC power supply negative pole
• IN: signal triggering pin
• JD+: relay control voltage positive
• JD-: relay control voltage negative
