SG90 Servo Motor 9g Mini/Micro Servo Motor 360 Degrees - RS4994

SG90 Servo Motor 9g Mini/Micro Servo Motor 360 Degrees - RS4994

RS4994

1122 in stock

Rs. 80.00
Rs. 80.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

SG90 Servo Motor is suitable for a wide range of applications, including RC aircraft, automobiles, and robotics, Or just to have some fun with whatever crazy project you’re working on.

Specifications:

Model

SG90
Weight

9gm
Operating Voltage

3.0 ~ 7.2V DC
Operating Speed @4.8V

0.10sec/60°
Stall Torque @ 4.8V

1.2 Kg-Cm
Stall Torque @6.6V

1.6 Kg-Cm
Operating Temperature

-30 to 60 °C
Dead Band Width

7 μs
Gear Type

Glass Fiber
Rotational Degree

360º
Servo Plug

JR

Features:

  • SG90 Servo Motor has a high-resolution
  • It has Accurate positioning
  • Also has a fast control response
  • Constant torque throughout the servo travel range
  • It comes with excellent holding power

Package Included:

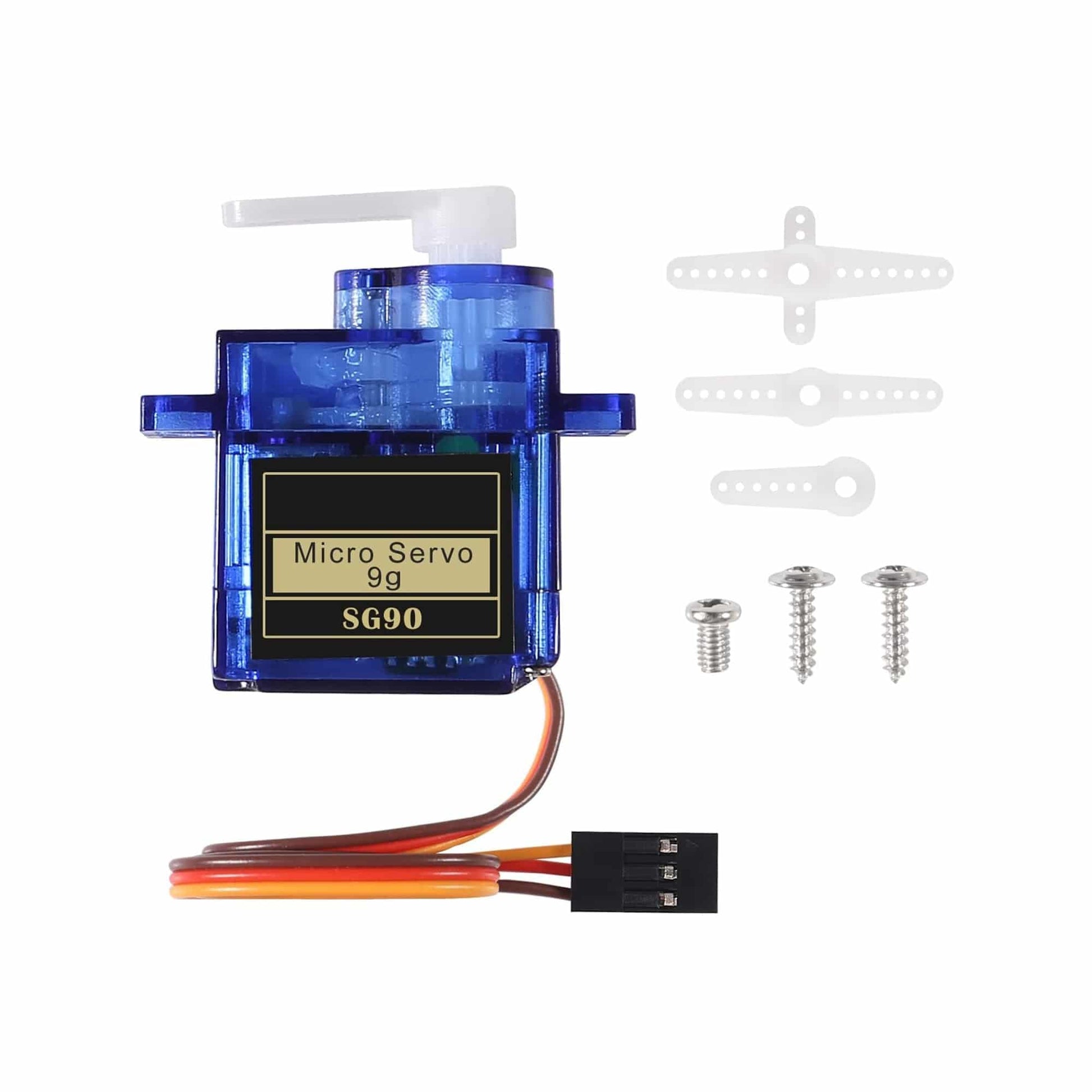

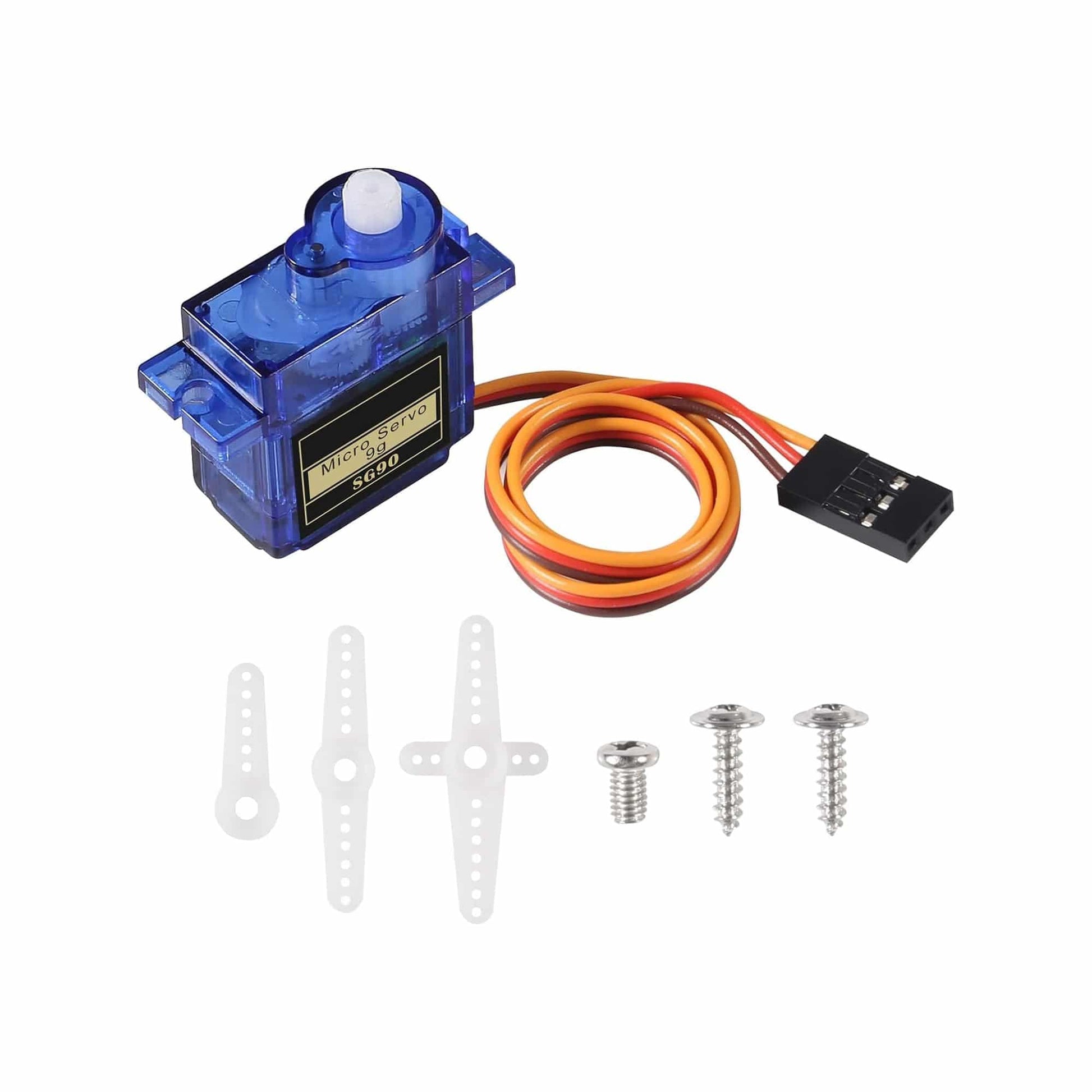

1 x SG90 Servo Motor 9g Mini/Micro Servo Motor 360 Degrees
