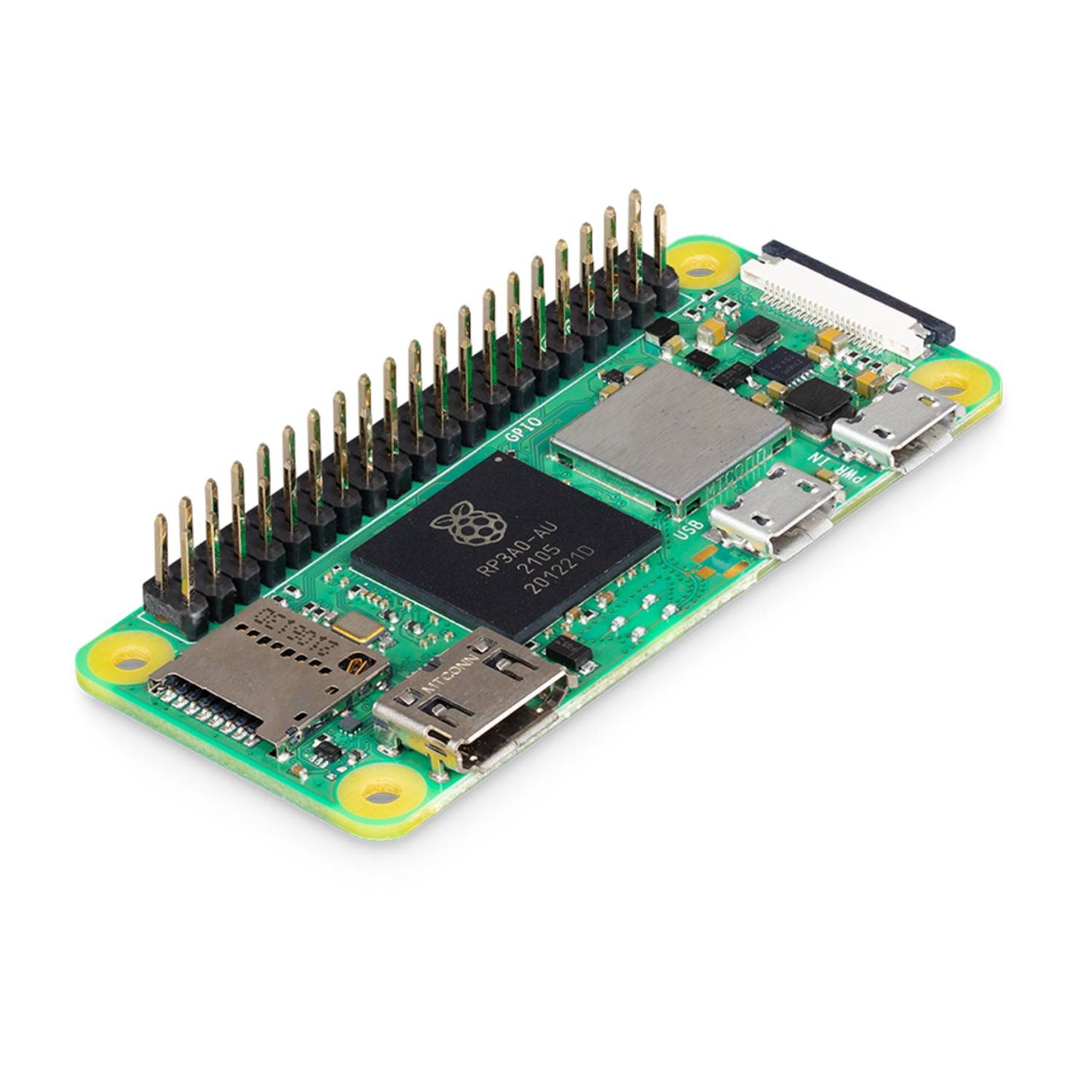

Description:
Raspberry Pi Zero 2WH, is a custom-built system-in-package designed by Raspberry Pi in the UK. With a quad-core 64-bit Cortex-A53 processor clocked at 1GHz and 512MB of SDRAM, Zero 2 is up to five times as fast as the original Raspberry Pi Zero. As for heat dissipation concerns, Zero 2 W uses thick internal copper layers to conduct heat away from the processor, sustaining higher performance without higher temperature.

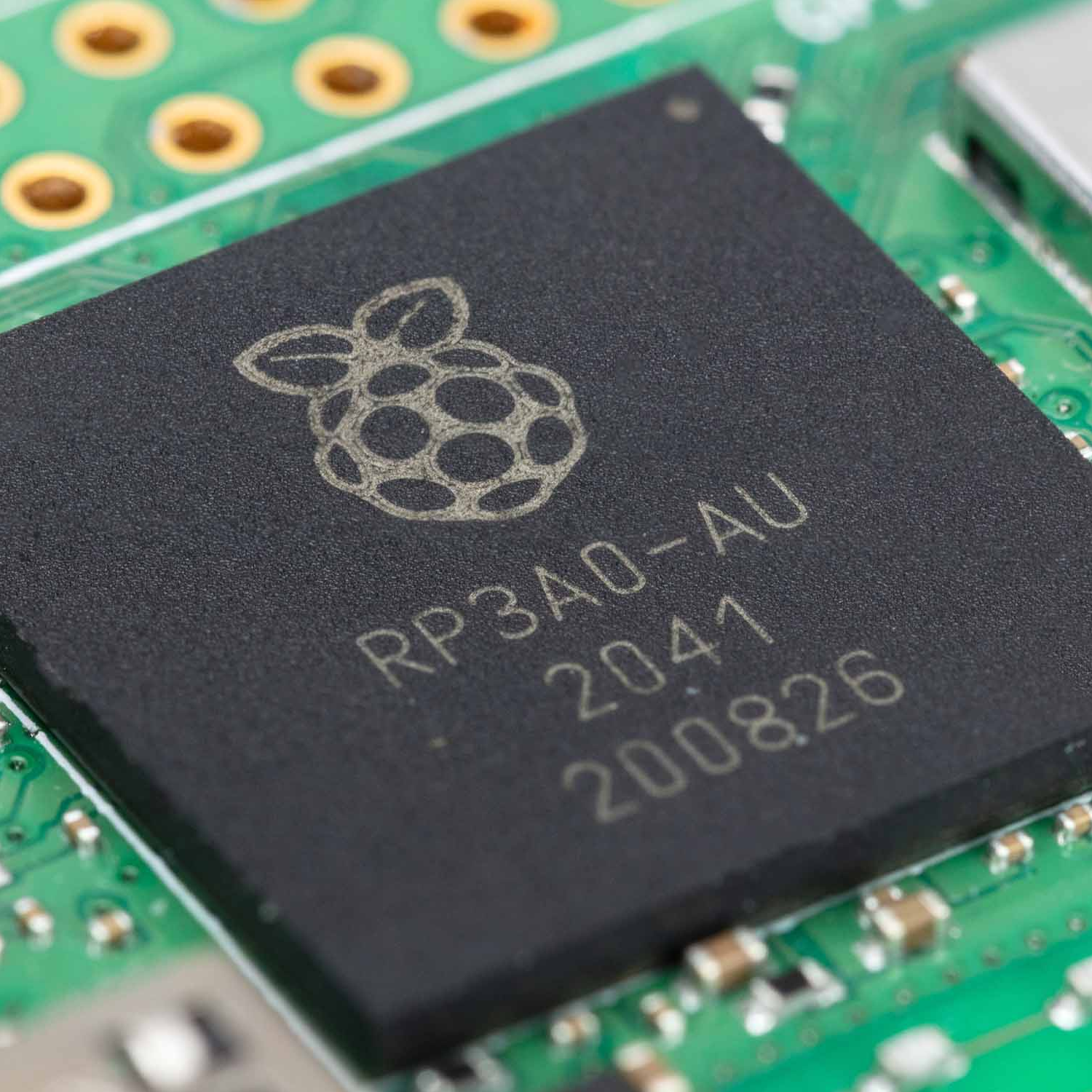

The key highlight of the Raspberry Pi Zero 2 WH lies in its powerful performance. It boasts a quad-core 64-bit Arm Cortex-A53 CPU, running at a clock speed of 1GHz. At its core, it features the Raspberry Pi RP3A0 system-in-package (SiP), which integrates a Broadcom BCM2710A1 die and comes equipped with 512MB of LPDDR2 SDRAM. This upgraded processor translates into a remarkable 40% increase in single-threaded performance and an outstanding five times boost in multi-threaded performance compared to the original single-core Raspberry Pi Zero.
Moreover, the Raspberry Pi Zero 2 WH has impressive connectivity options, including 2.4GHz 802.11 b/g/n wireless LAN and Bluetooth 4.2 support. It also includes Bluetooth Low Energy (BLE) functionality and modular compliance certification, ensuring seamless communication with other devices.
In terms of features, the board is equipped with a microSD card slot, a CSI-2 camera connector, and a USB On-The-Go (OTG) port, adding to its versatility and usability. Additionally, it has an unpopulated footprint designed to accommodate a HAT-compatible 40-pin GPIO header. Powering the device is convenient and straightforward via a micro USB socket. Users can utilize the mini HDMI port for video output, while composite video output can be easily accessed through test points if required. Another notable feature is that the Raspberry Pi Zero 2 W maintains the same form factor as the original Raspberry Pi Zero, allowing it to fit seamlessly into most existing Raspberry Pi Zero cases.
Specifications:
- Processor: Broadcom BCM2710A1, quad-core 64-bit SoC (Arm Cortex-A53 @ 1GHz)
- Memory: 512MB LPDDR2
- Connectivity:
- 2.4GHz IEEE 802.11b/g/n wireless LAN, Bluetooth 4.2, BLE, onboard antenna
- 1 × USB 2.0 interface with OTG
- HAT-compatible 40-pin I/O header footprint
- microSD card slot
- Mini HDMI port
- CSI-2 camera connector
- Video: HDMI interface
- Composite Video
- Multimedia:
- H.264, MPEG-4 decode (1080p30)
- H.264 encode (1080p30)
- OpenGL ES 1.1, 2.0 graphics
- Input Power: 5V DC 2.5A
- Operating Temperature: -20°C to +70°C
- Board Dimensions: 65.0mm x 30.0mm x 5.3mm / 2.6" x 1.2" x 0.2"
Features:
- 1GHz quad-core 64-bit Arm Cortex-A53 CPU
- 512MB SDRAM
- 2.4GHz 802.11 b/g/n wireless LAN
- Bluetooth 4.2, Bluetooth Low Energy (BLE), onboard antenna
- Mini HDMI® port and micro USB On-The-Go (OTG) port
- microSD card slot
- CSI-2 camera connector
- HAT-compatible 40-pin header footprint (unpopulated)
- H.264, MPEG-4 decode (1080p30); H.264 encode (1080p30)
- OpenGL ES 1.1, 2.0 graphics
- Micro USB power
- Composite video and reset pins via solder test points
Package Included:
1 x Raspberry Pi Zero 2WH Raspberry Pi Zero 2W with Headers and Quad-Core CPU, Wi-fi, Bluetooth 4.2, BLE, Onboard Antenna
