Description:

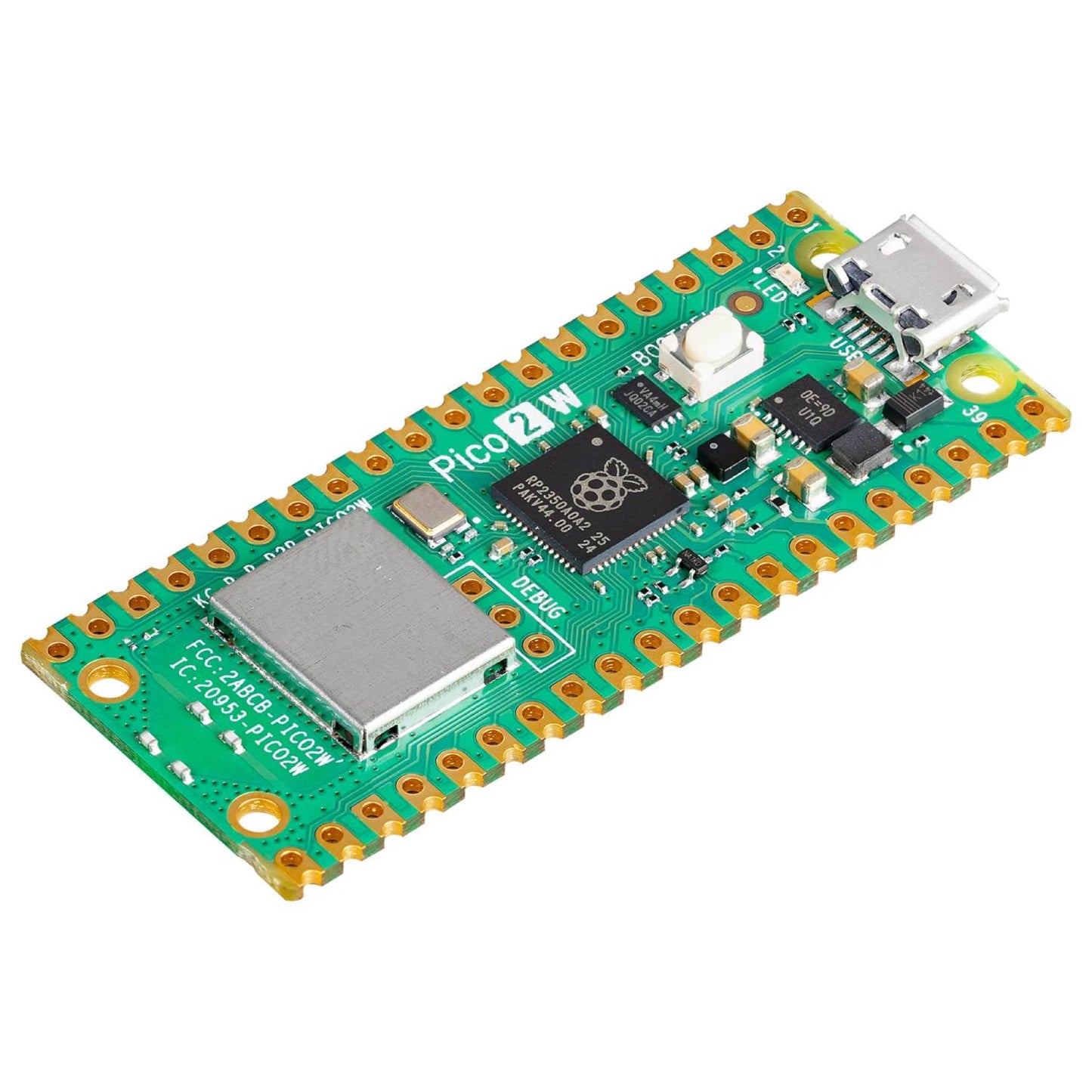

Raspberry Pi Pico 2 W features 2.4GHz 802.11n wireless LAN and Bluetooth 5.2, giving you even more flexibility in your IoT or smart product designs and expanding the possibilities for your projects.
At the heart of the board is the Raspberry Pi RP2350, Raspberry Pi's high-performance, secure microcontroller chip, successor to the popular RP2040 microcontroller first seen on the original Raspberry Pi Pico.
Compared to the original Raspberry Pi Pico, the RP2350-based Raspberry Pi Pico 2 W offers a higher core clock speed, double the on-chip SRAM, double the on-board flash memory, more powerful Arm cores, optional RISC-V cores, new security features, and upgraded interfacing capabilities!
These significant performance and feature improvements are delivered with the same form factor and are software-compatible with the original Raspberry Pi Pico series boards, with the same GPIO pinout and micro-USB connector for power and programming, allowing you to easily upgrade your projects and re-use your collection of Raspberry Pi Pico add-ons, cables and accessories.
Programmable in C / C++ and Python, and with detailed documentation, Raspberry Pi Pico 2 W is the ideal microcontroller board for enthusiasts and professional developers alike.
Specifications:
| CPU | Dual Arm Cortex-M33 or dual RISC-V Hazard3 processors @ 150MHz |
| Memory | 520 KB on-chip SRAM; 4 MB on-board QSPI flash |
| Connectivity | 2.4GHz 802.11n wireless LAN and Bluetooth 5.2 |
| Interfacing | 26 multi-purpose GPIO pins, including 3 that can be used for ADC |
| Peripherals | 2 × UART |
| 2 × SPI controllers | |
| 2 × I2C controllers | |
| 24 × PWM channels | |
| 1 × USB 1.1 controller and PHY, with host and device support | |
| 12 × PIO state machines | |
| Wireless | Yes |
| Input power | 1.8–5.5V DC |
| Operating temperature | -20°C to +85°C |
Features:
- Featuring both Arm Cortex-M33 and RISC-V cores for next-generation processing capabilities.
- 4MB of Flash memory provides plenty of space for applications and data.
- Integrated Wi-Fi and Bluetooth 5.2 for robust wireless communication.
- Optimized for low power consumption, extending battery life in portable applications.
- Arm TrustZone technology provides enhanced security for sensitive applications.
- Compact and versatile design suits IoT, robotics, and various embedded systems.
Useful Links:
- Raspberry Pi Pico 2 series product brief
- Raspberry Pi Pico 2 MicroPython SDK
- Raspberry Pi Pico 2 C/C++ SDK
Package Included:
1 x Raspberry Pi Pico 2 W
