Description:

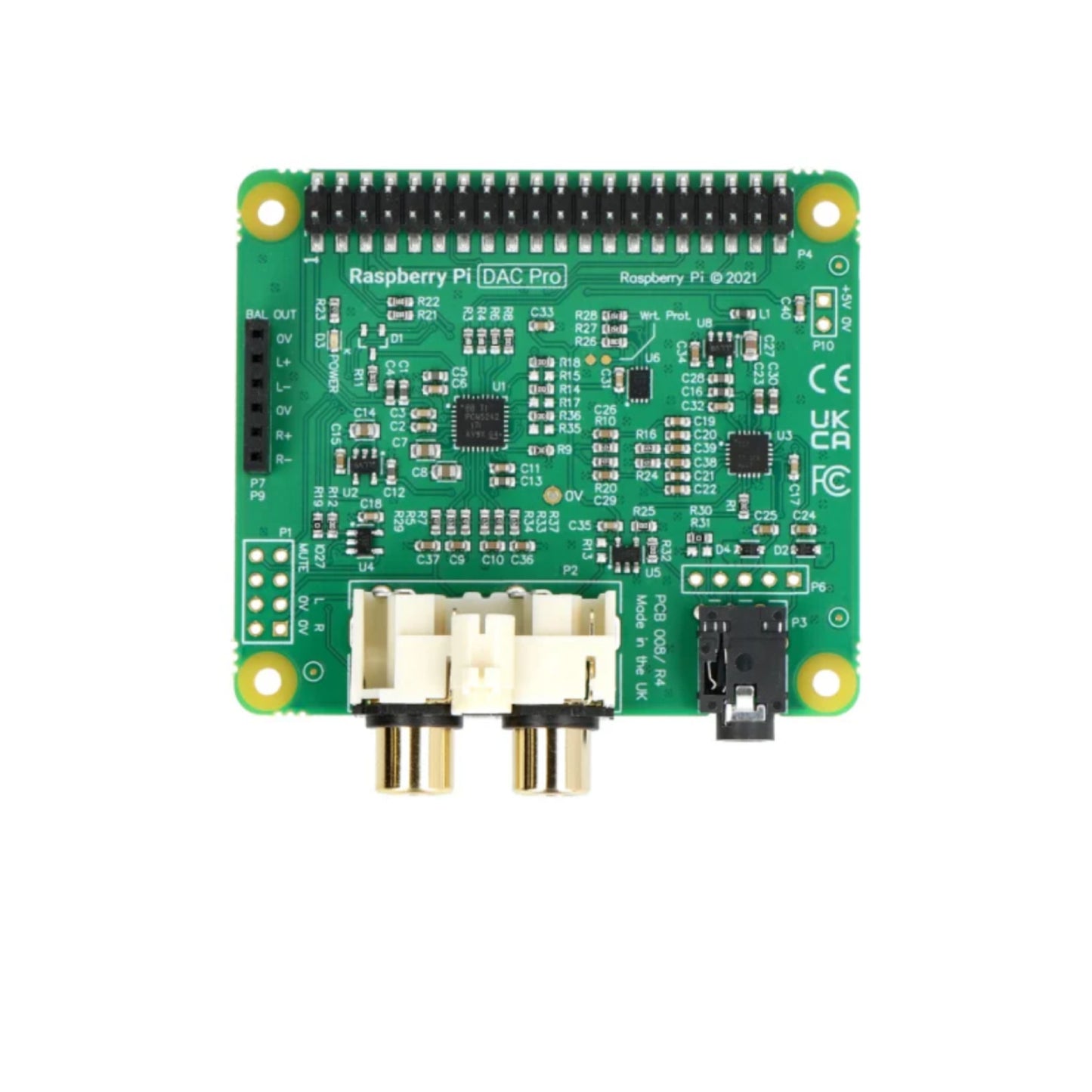

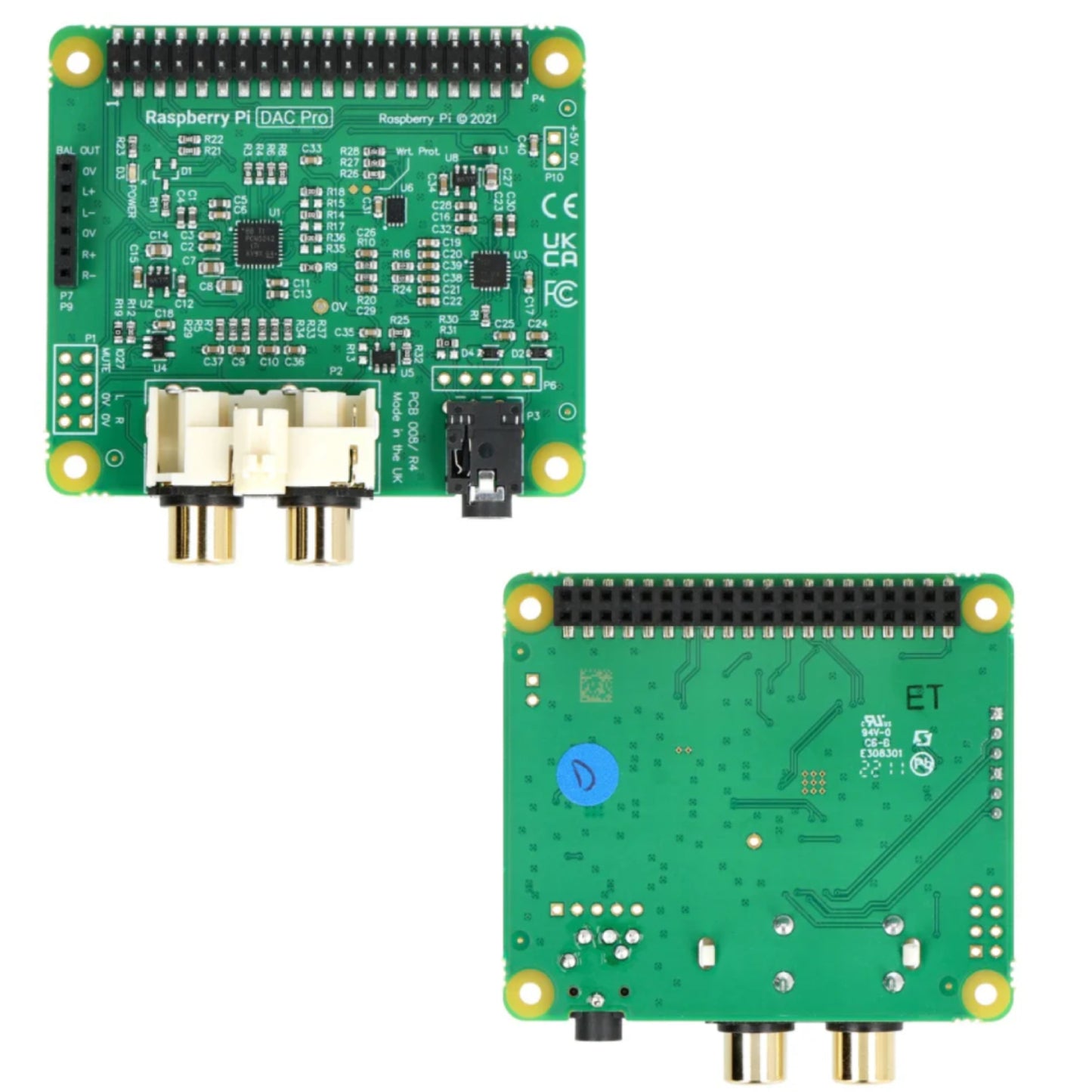

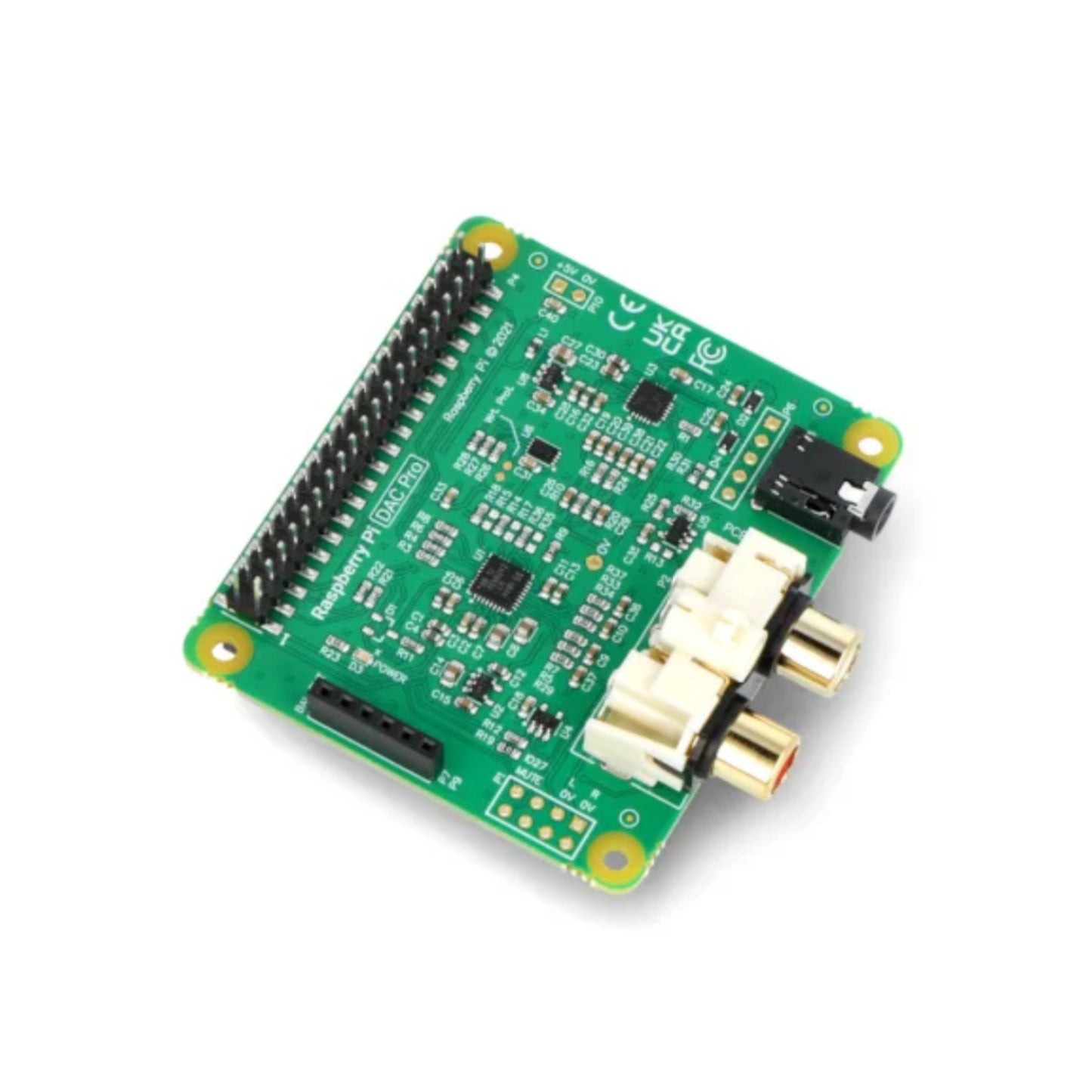

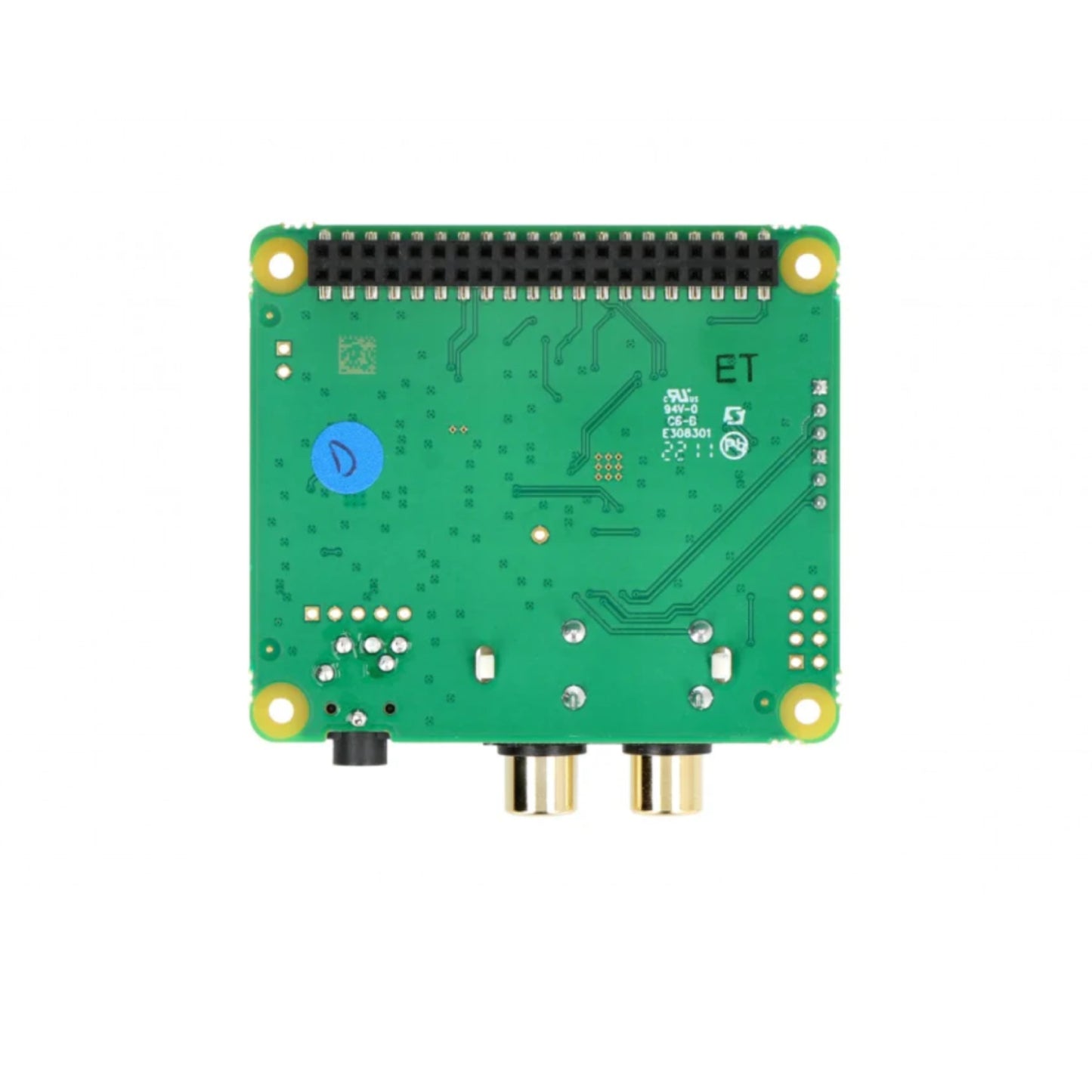

The Raspberry Pi DAC Pro is engineered to provide the best possible audio quality from your Raspberry Pi. Simply snap it onto any Raspberry Pi with a 40-pin GPIO header, and prepare to be amazed by the clarity and depth of your music.
It uses the same familiar inputs/outputs as the Raspberry Pi DAC+, but the DAC Pro features a Texas Instruments PCM5242 DAC for a superior signal-to-noise ratio. Get ready for even clearer, higher-fidelity sound!
Powered by the Texas Instruments PCM5242, the DAC Pro boasts an outstanding signal-to-noise ratio (SNR) for crystal-clear audio. It offers versatile balanced/differential output alongside standard RCA, and even includes a dedicated headphone amplifier for personal listening.
The DAC Pro includes two exposed three-pin headers (P7/P9) above the USB/Ethernet ports, ready for the optional XLR board (coming soon!) to enable professional differential/balanced output.
The DAC Pro is incredibly simple to set up: no external power needed! It connects directly to your Raspberry Pi's GPIO header, meaning no soldering or extra cables for a truly clean installation.
Specifications:
- High quality sound: SNR 114 db and THD -94 db
- Burr Brown: 32-bit / 384 kHz DAC (TI PCM5242)
- Audio Support: Full HD 24-bit/192 kHz
- Form Factor: 58 mm × 65 mm
- Operating Supply Voltage: 5 V
- Tool Is For Evaluation Of: PCM5242
- Type: Audio D/A Converter
Features:
- HAT compliant
- Integrated volume control (ALSA)
- Built-in high-quality headphone amplifier (TI TPA6133A)
- ESD security
- Communication via I2S interface to reduce load onthe Raspberry Pi processor
- Powered by Raspberry Pi, no additional power supply required
- Two Phono / RCA connectors
- JST pins for balanced XLR output (not supplied)
- Mini DSP
- For connection to the AMP+, 2x5 pins are required
Pin Description:
- P1: Analogue out (0-2V RMS), carries GPIO27, MUTE signal (headphone detect), left and right audio and left and right ground.
- P6: Headphone socket signals (1: LEFT, 2: GROUND, 3: RIGHT, 4: GROUND, 5: DETECT)
- P7/9: Differential (0-4V RMS) output (P7: LEFT, P9: RIGHT).
- P10: Alternative 5V input, powering Raspberry Pi in parallel.
Useful Links:
- Pi DAC Pro Product Brief
- Raspberry Pi IQAudio Acquisition Announcement
- Raspberry Pi Audio Documentation
- Raspberry Pi DAC Pro Section
Package Included:
1 x Raspberry Pi DAC Pro
