Description:

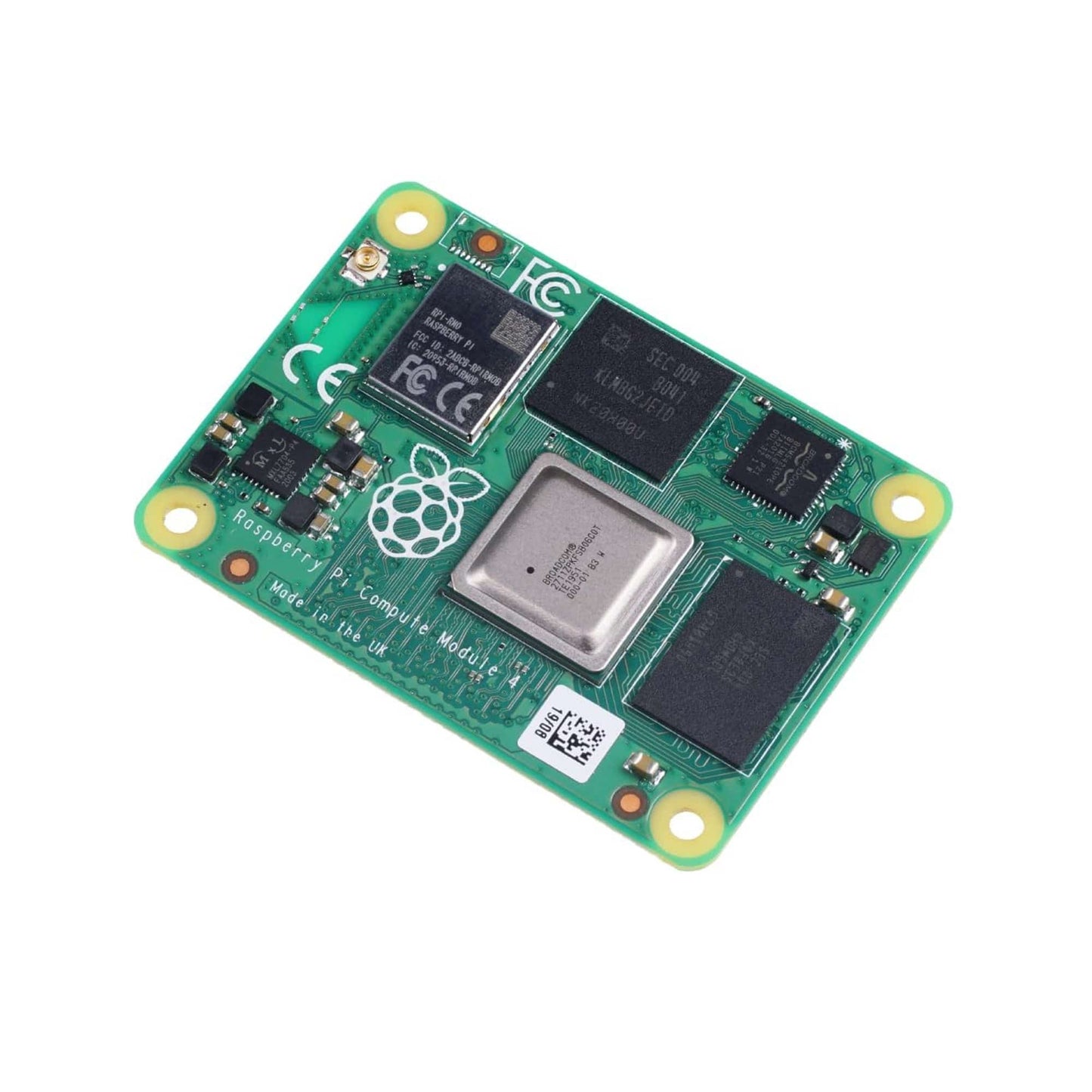

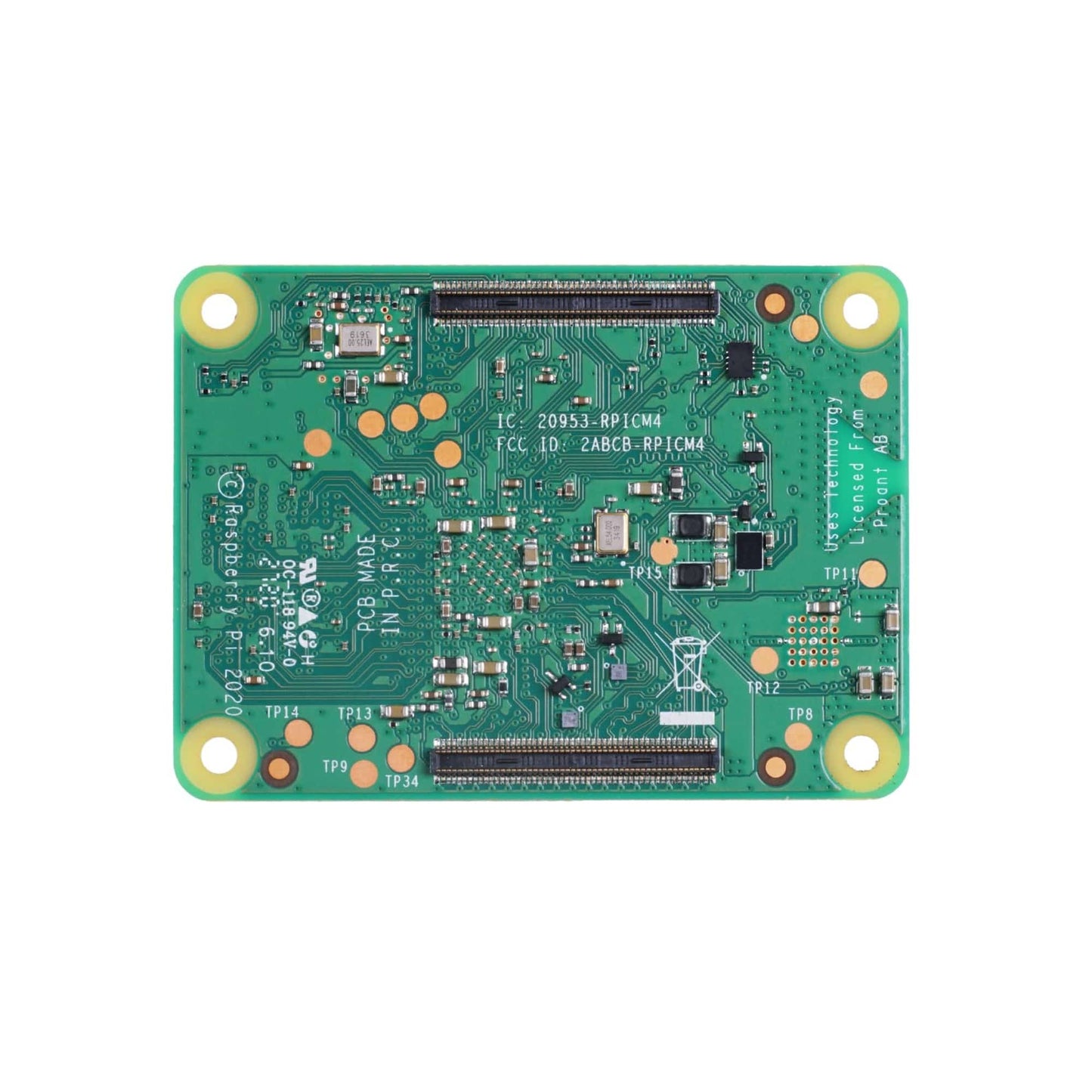

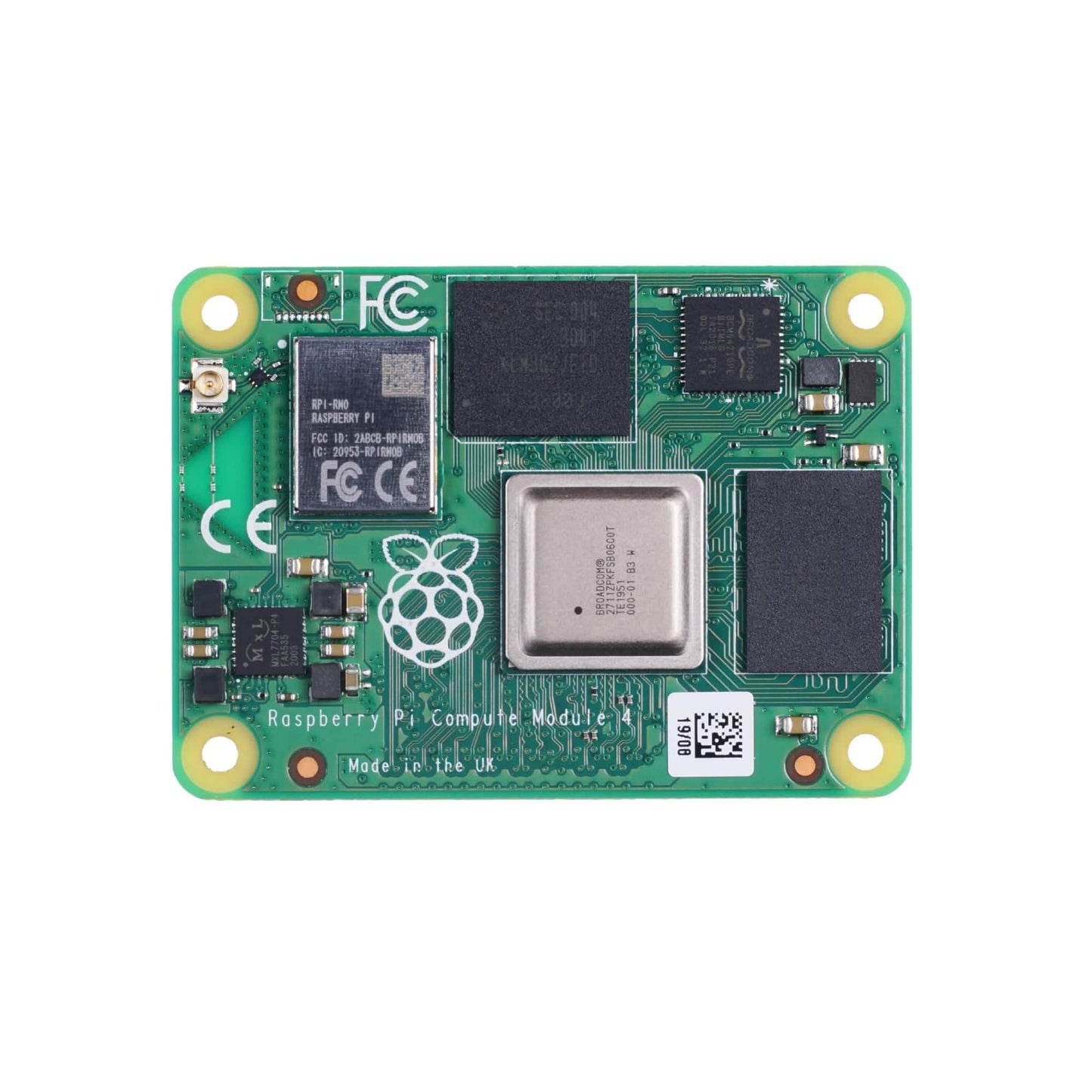

The power of Raspberry Pi 4 in a compact form factor for deeply embedded applications. Raspberry Pi Compute Module 4 incorporates a quad-core ARM Cortex-A72 processor, dual video output, and a wide selection of other interfaces. Raspberry Pi Compute Module 4 is available in 32 variants, with a range of RAM and eMMC Flash options, and with or without wireless connectivity.
The Raspberry Pi Compute Module 4 IO Board is an invaluable development tool. Exposing every interface from Raspberry Pi Compute Module 4, the IO Board provides a development platform and reference base-board design for the most powerful Compute Module yet and is also designed for integration into end products.
Specifications:
- Form factor: 55 mm × 40 mm
- Processor: Broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz Memory: 1GB, 2GB, 4GB or 8GB LPDDR4 (depending on variant)
- Input power: 5V DC
- Operating temperature: -20°C to +85°C
- Multimedia: H.265 (4Kp60 decode); H.264 (1080p60 decode, 1080p30 encode); OpenGL ES 3.0 graphics
- Optional wireless LAN, 2.4GHz and 5.0GHz IEEE 802.11b/g/n/ ac wireless, Bluetooth 5.0, BLE with onboard and external antenna options
- Onboard Gigabit Ethernet PHY supporting IEEE1588
- 1 × USB 2.0 interface
- PCIe Gen 2 x1 interface
- 28 GPIO signals
- SD card interface for SD card or external eMMC (for use only with Compute Module 4 variants without eMMC)
- Dual HDMI interface (up to 4Kp60 supported)
- 2-lane MIPI DSI display interface
- 2-lane MIPI CSI camera interface
- 4-lane MIPI DSI display interface
- 4-lane MIPI CSI camera interface
Features:
- Raspberry Pi Compute Module 4 has broadcom BCM2711 quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
- H.265 (HEVC) (up to 4Kp60 decode), H.264 (up to 1080p60 decode, 1080p30 encode)
- Raspberry Pi Compute Module 4 has OpenGL ES 3.1, Vulkan 1.0
- Options for 1GB, 2GB, 4GB or 8GB LPDDR4-3200 SDRAM (depending on variant)
- Options for 0GB ("Lite"), 8GB, 16GB or 32GB eMMC Flash memory (depending on variant)
- 2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac wireless
- Bluetooth 5.0, BLE
- On-board electronic switch to select either external or PCB trace antenna
Package Included:
1 x Raspberry Pi Compute Module 4 - CM4002008 - 2GB RAM 8GB eMMC No Wireless
